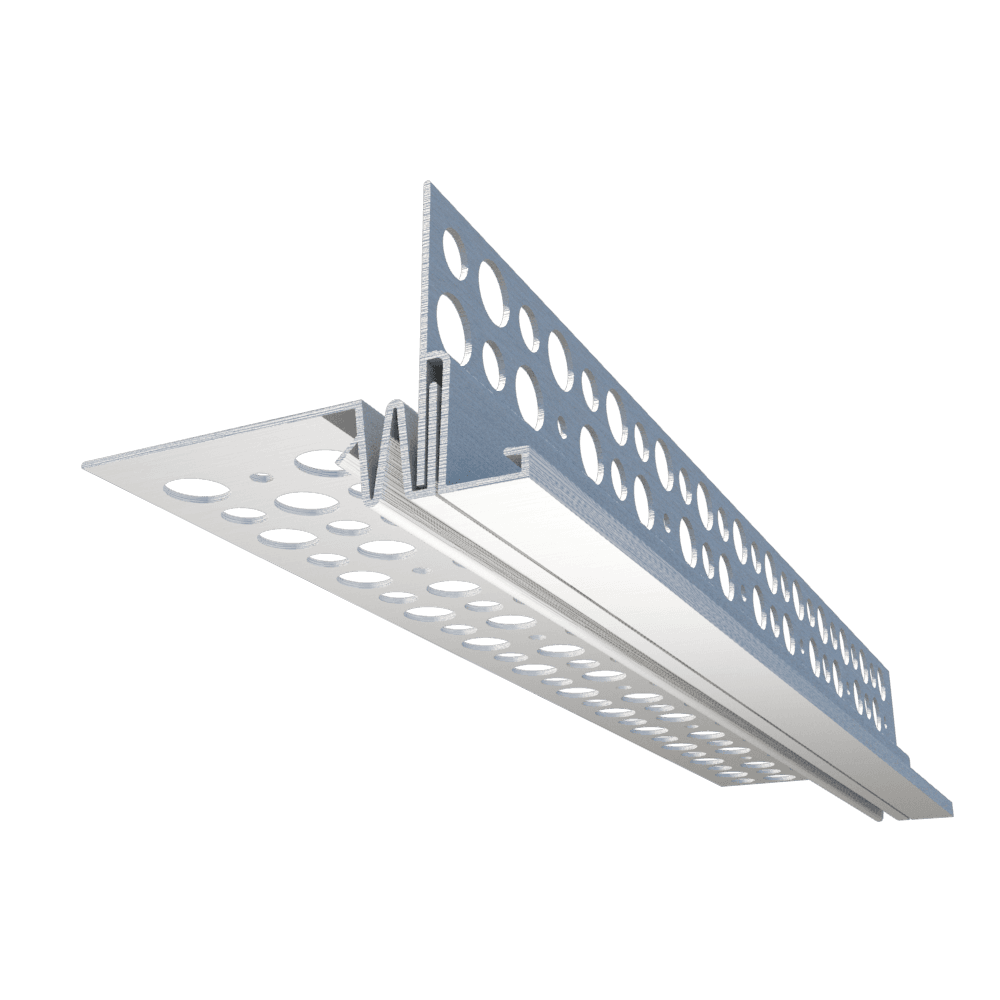

1/4" Drip "V" Screeds
Designed for stucco or plaster soffits when drip and reveal need to be combined
Quick Actions:
Designed for stucco or plaster soffits when drip and reveal need to be combined.
Product Data & Ordering Information

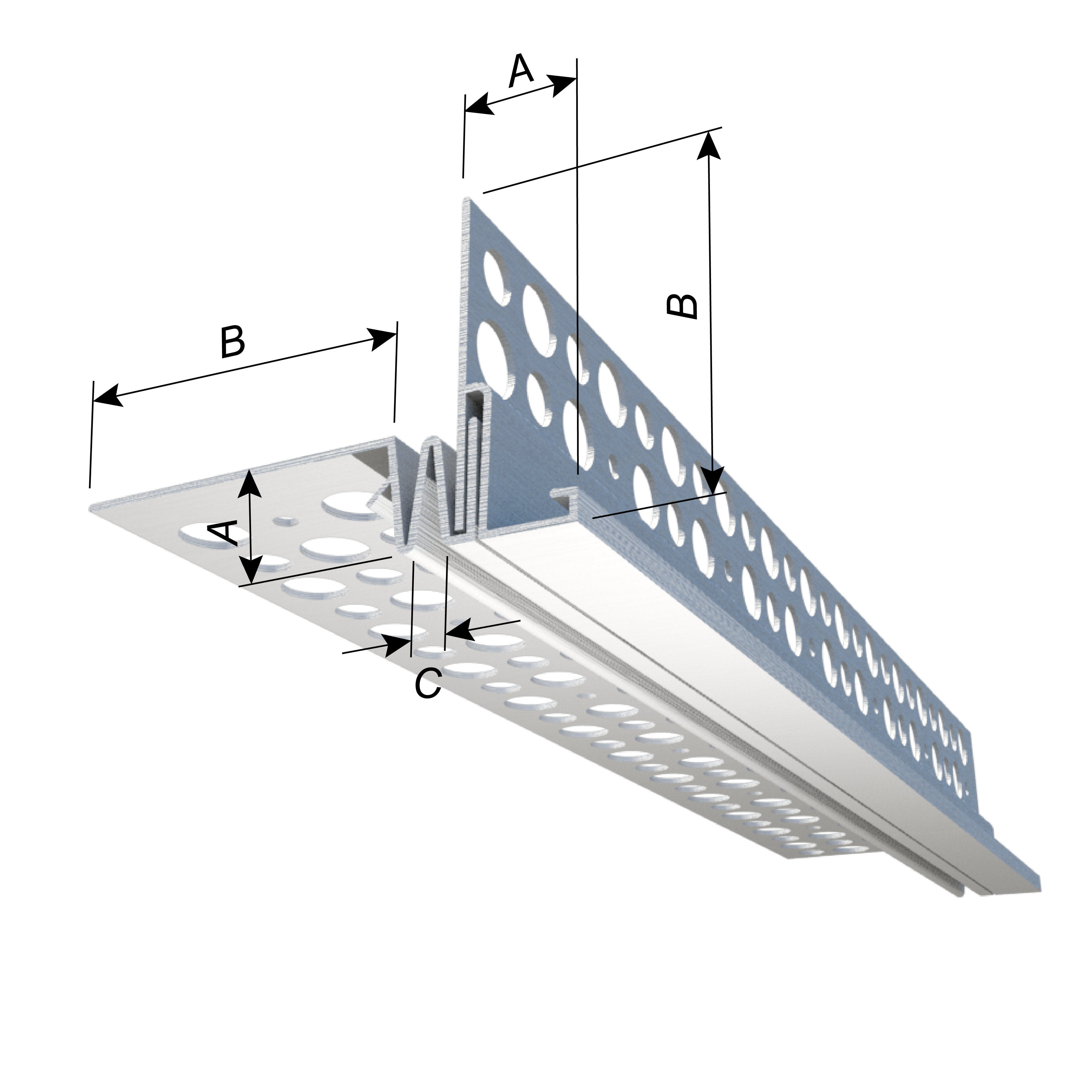

| Product code | Ground (A) | Flange (B) | Reveal (C) | Pcs./Box |
|---|---|---|---|---|
| DS15-38 | 3/8" | 1-3/4" | 1/4" | 15 |
| DS15-50 | 1/2" | 1-3/4" | 1/4" | 15 |
| DS15-58 | 5/8" | 1-3/4" | 1/4" | 15 |
| DS15-75 | 3/4" | 1-3/4" | 1/4" | 15 |
| DS15-78 | 7/8" | 1-3/4" | 1/4" | 15 |
| DS15-100 | 1" | 1-3/4" | 1/4" | 15 |
Note: Dissimilar grounds may be specified. Also available with 3-1/2" solid attachment flange (vertical). Contact ClarkDietrich customer service for more information.
