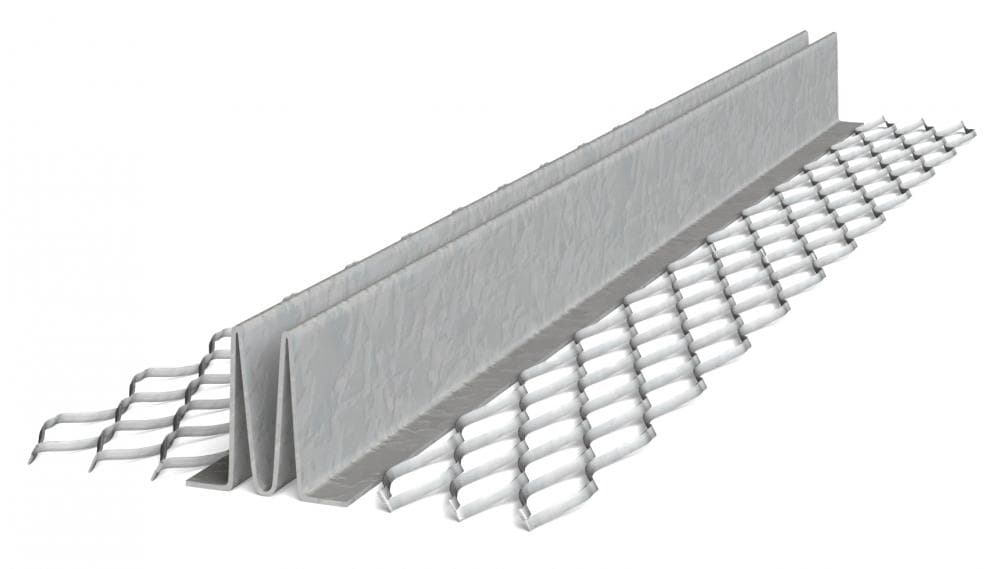

#15 Double-V Control Joint
Expanded flange control joint
#15 Expanded Flange Control Joint (Double-V) is used to relieve stresses in large plastered areas of walls, ceilings, and stucco areas. The Double-V Control Joint counteracts the inherent shrinkage during stucco curing and general thermal changes.
Quick Actions:
This nearly inconspicuous, expanded wing control joint minimizes cracking and assures proper plaster and stucco thickness.
Ground heights include 3/8” for thin coat plaster and 1/2", 5/8", 3/4" and 7/8” for conventional plaster applications. Follow use provisions outlined in ASTM C1063.
The #15 Double-V Control Joint is also available in zinc alloy for increased corrosion resistance.
Product Data & Ordering Information
| Product Code | Ground | Length | Pcs./Ctn. |
|---|---|---|---|
| VVCJ | 3/8" | 10' | 24 |
| 1/2" | 10' | 24 | |
| 5/8" | 10' | 24 | |
| 3/4" | 10' | 24 | |
| 7/8" | 10' | 24 |
