3-1/2" Weep Screed with Extended Bottom Leg
Designed to direct moisture from stucco and to act as a stop
Install on frame construction where stucco and foundation walls meet. Includes an extended bottom leg to go under sheathing.
Quick Actions:
Designed to direct moisture from stucco and to act as a stop. Install on frame construction where stucco and foundation walls meet. Includes an extended (1/2") bottom leg to go under sheathing.
The 3-1/2" solid attachment flange makes this style weep screed ASTM C1063, IBC and IRC code compliant.
Product Data & Ordering Information

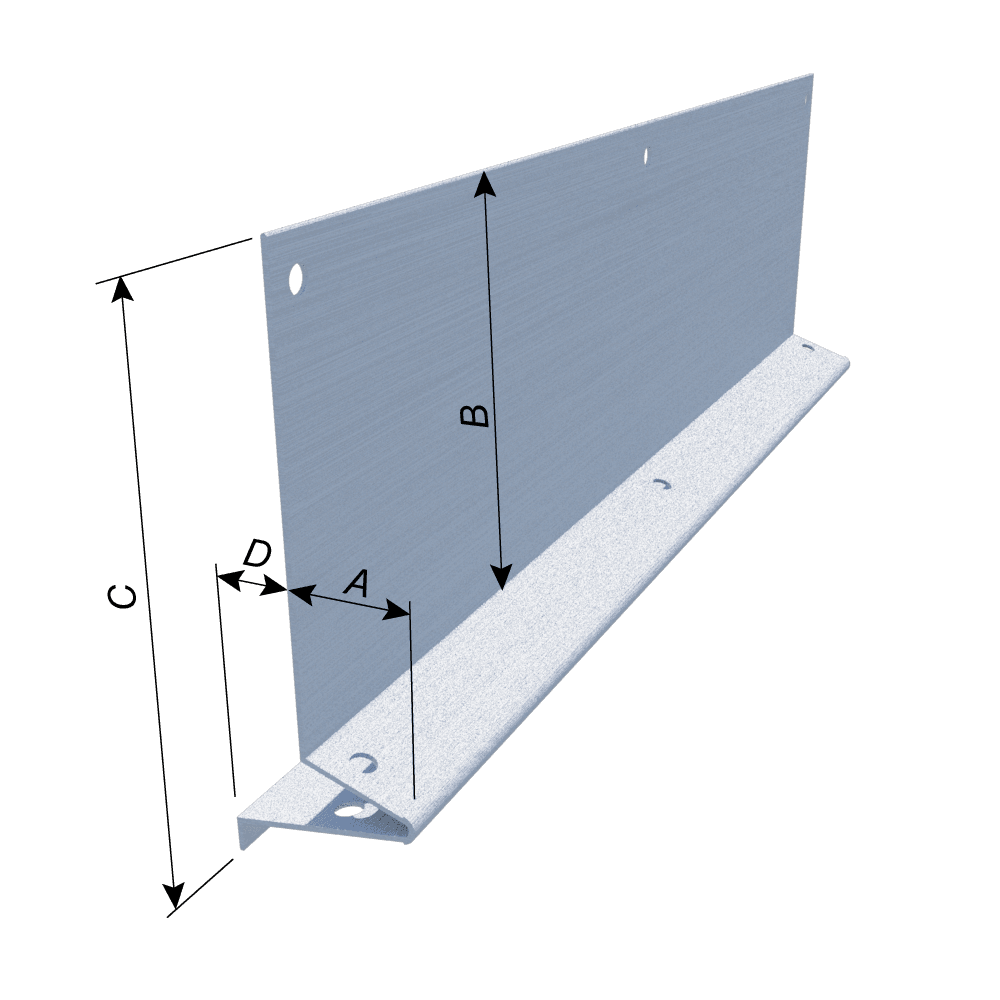

| Product code | Ground (A) | Flange (B) | Overall height (C) | Extended leg (D) | Length | Pcs./Box |
|---|---|---|---|---|---|---|
| WSL38-350U | 3/8" | 3-1/2" | 4" | 1/2" | 10' | 50 |
| WSL50-350U | 1/2" | 3-1/2" | 4" | 1/2" | 10' | 50 |
| WSL58-350U | 5/8" | 3-1/2" | 4" | 1/2" | 10' | 40 |
| WSL75-350U | 3/4" | 3-1/2" | 4" | 1/2" | 10' | 40 |
| WSL78-350U | 7/8" | 3-1/2" | 4" | 1/2" | 10' | 40 |
| WSL138-350U | 1-3/8" | 3-1/2" | 4" | 1/2" | 10' | 30 |
All intersections, butt joints, ends, and corners to be properly caulked and sealed at time of installation.
