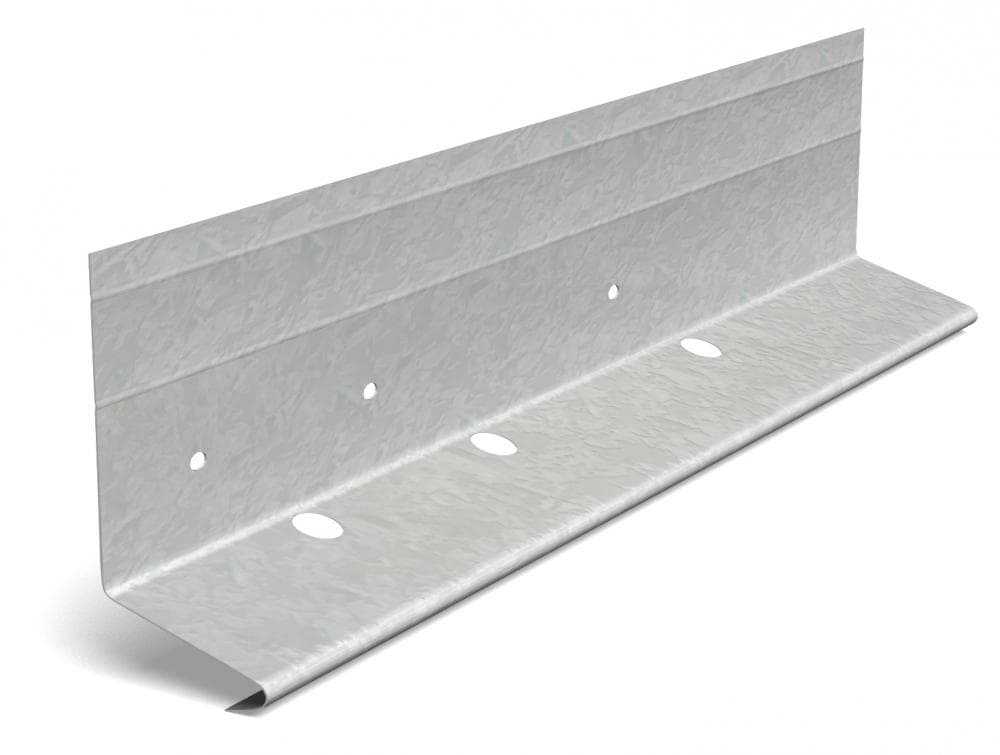

#36 Sill Screed
Exterior Foundation sill screed
A variation of the #7 style screed which allows trowel access underneath the screed to clean excess stucco material. No visible metal is seen below the stucco line.
Quick Actions:

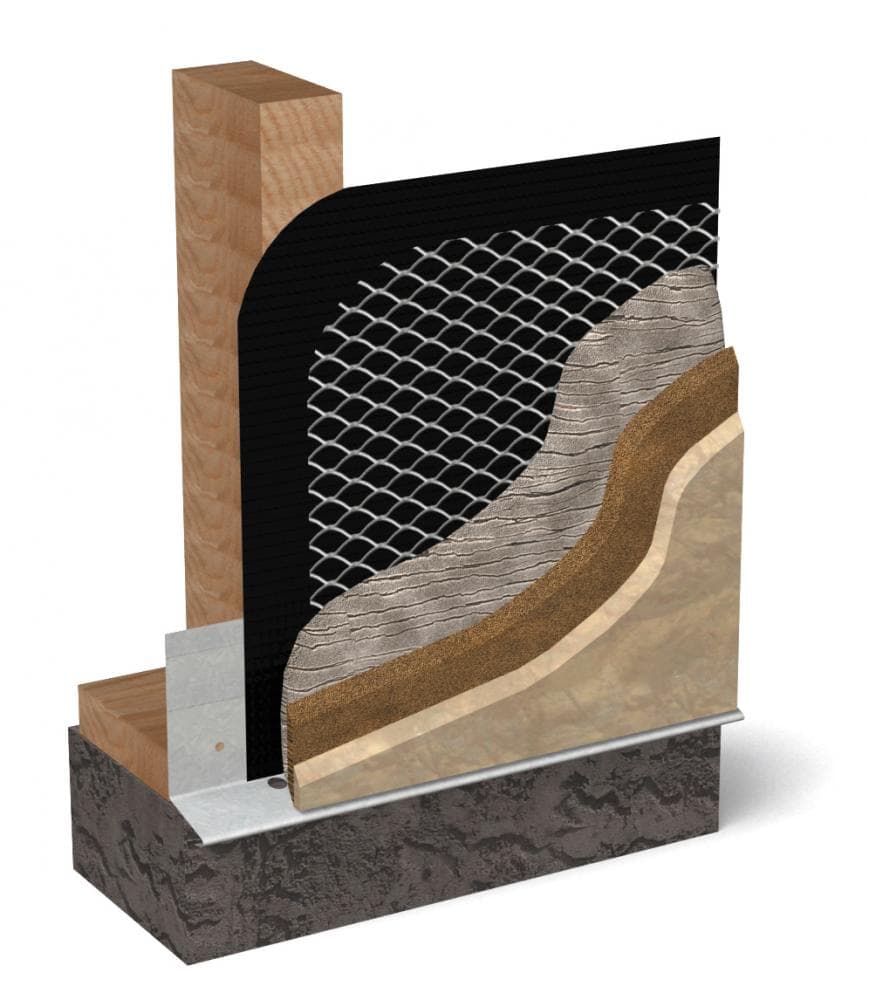

Installed at the juncture of the sill and exterior concrete foundation, or in similar areas, to allow trapped moisture to drain to the exterior of the building. Provides straight edge stops for applied plaster stucco and E.I.F.S. (Exterior Insulation Finishing Systems) with exacting grounds, as well as impact and splash protection at the bottom edge. Additionally, the #36 Sill Screed is ideal for wall to roof transitions.
The #36 style screed is manufactured in compliance with ASTM standards and has the minimum requirement of 26-gauge, G60 galvanized steel, and a 3-1/2” solid nailing flange.
Product Data & Ordering Information
| Product Code | Grounds | Flange | Length | Pcs./Bdl. |
|---|---|---|---|---|
| SI36 | 7/8" | 3-1/2" | 10' | 10 |
Also available without holes in the nose/ground.
