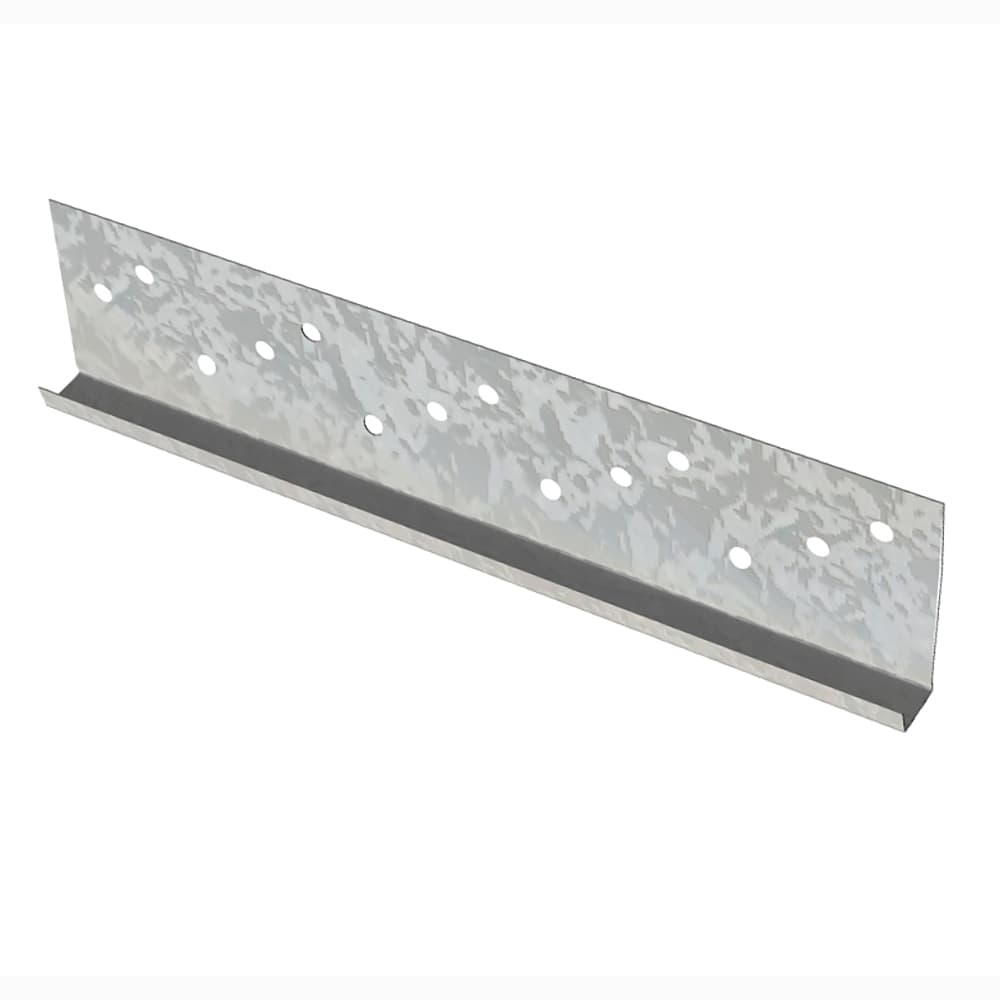

#66N Zinc Short Flange Casing Bead
Short flange casing bead to terminate stucco or plaster edge
Used as a stucco/plaster stop to provide a screed edge and protective finish trim while terminating plaster in a clear, straight line at windows, doors, and other openings in conditions where extreme corrosion resistance is required.
Quick Actions:
The #66N is recommended as a divider at the edge between plaster and other dissimilar materials. When used in conjunction with metal lath, the 66N is installed under the lath.
The #66N short flange is used under regular corner reinforcement conditions where an expanded flange is not required. Available with or without weep holes. Also available in galvanized steel alloy.
Galvanized steel products should not be used with Portland cement stucco containing calcium chloride additives or magnesium oxychloride cement stucco. The selection of the appropriate type of material for accessories shall be determined by the surrounding climatic and environmental conditions such as salt air, high humidity, and industrial pollution.
Product Data & Ordering Information
| Product Code | Size | Length | Pcs./Ctn. | Ft./Ctn. | Ctn./Skid |
|---|---|---|---|---|---|
| SFZB | 3/8" | 10' | 30 | 300' | 30 |
| 1/2" | 10' | 30 | 300' | 30 | |
| 3/4" | 10' | 30 | 300' | 30 | |
| 7/8" | 10' | 30 | 300' | 30 |
