#701A/#801A J-Trim
Provides clean, neat edge protection at gypsum panel terminations for one- and two-coat veneer plaster finishes

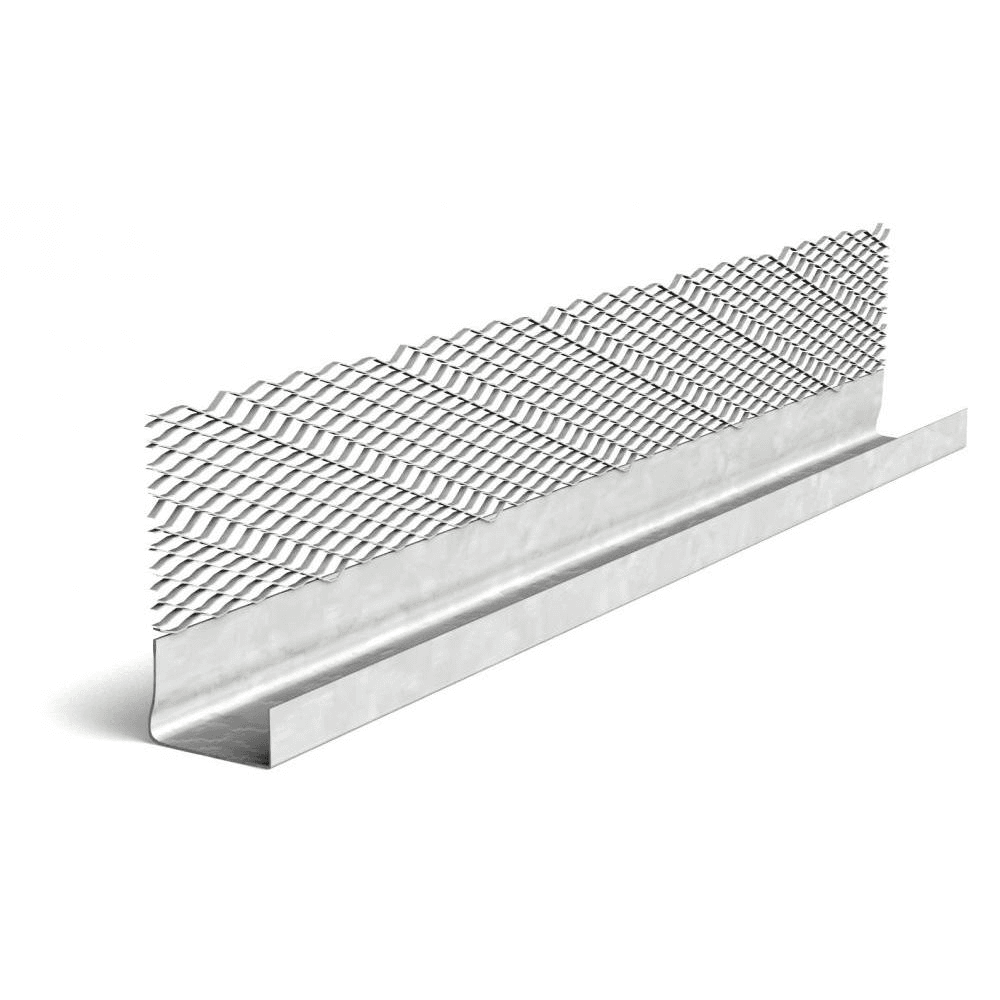

Veneer trims 701A and 801A are J-shaped trims formed from galvanized steel to fit standard 1/2" and 5/8" gypsum panel depths with grounds to accommodate veneer finishes.
Quick Actions:
These trims provide clean, neat edge protection for one- or two-coat veneer plaster finishes at gypsum panel terminations to wall openings and wall or ceiling intersections. 701A provides 3/32" grounds for two-coat veneers and 801A has 1/16" grounds for one-coat veneer plaster.
- Mini-mesh flanges for plaster keying
- Eliminates shadowing
- Galvanized coated for corrosion protection
- Also available in zinc
Material: 0.013 min thickness, G30 galvanized
Product Data & Ordering Information
| Product Code | Type | Grounds | Width | Length | Pcs./Ctn. | Ctns/Skid |
|---|---|---|---|---|---|---|
| M71A | 701A | 3/32" | 1/2" | 8' or 10' | 50 | 40 |
| M71A | 701A | 3/32" | 5/8" | 8' or 10' | 50 | 40 |
| M81A | 801A | 1/16" | 1/2" | 8' or 10' | 50 | 40 |
| M81A | 801A | 1/16" | 5/8" | 8' or 10' | 50 | 40 |
