#701A/#801A Zinc J-Trim
Provides clean, neat edge protection at gypsum panel terminations for one- and two-coat veneer plaster finishes

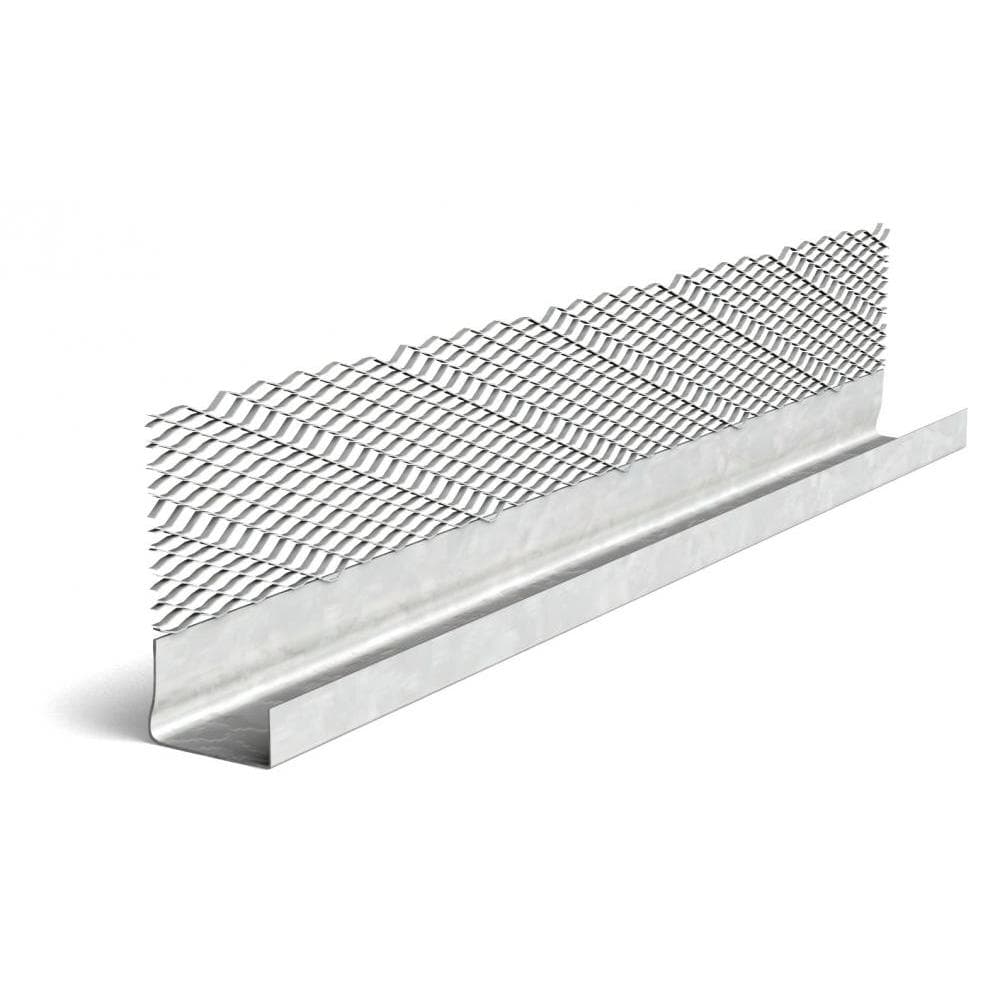

Veneer trims 701A and 801A are J-shaped trims formed from Zinc Alloy to fit standard 1/2" and 5/8" gypsum panel depths with grounds to accommodate veneer finishes.
Quick Actions:

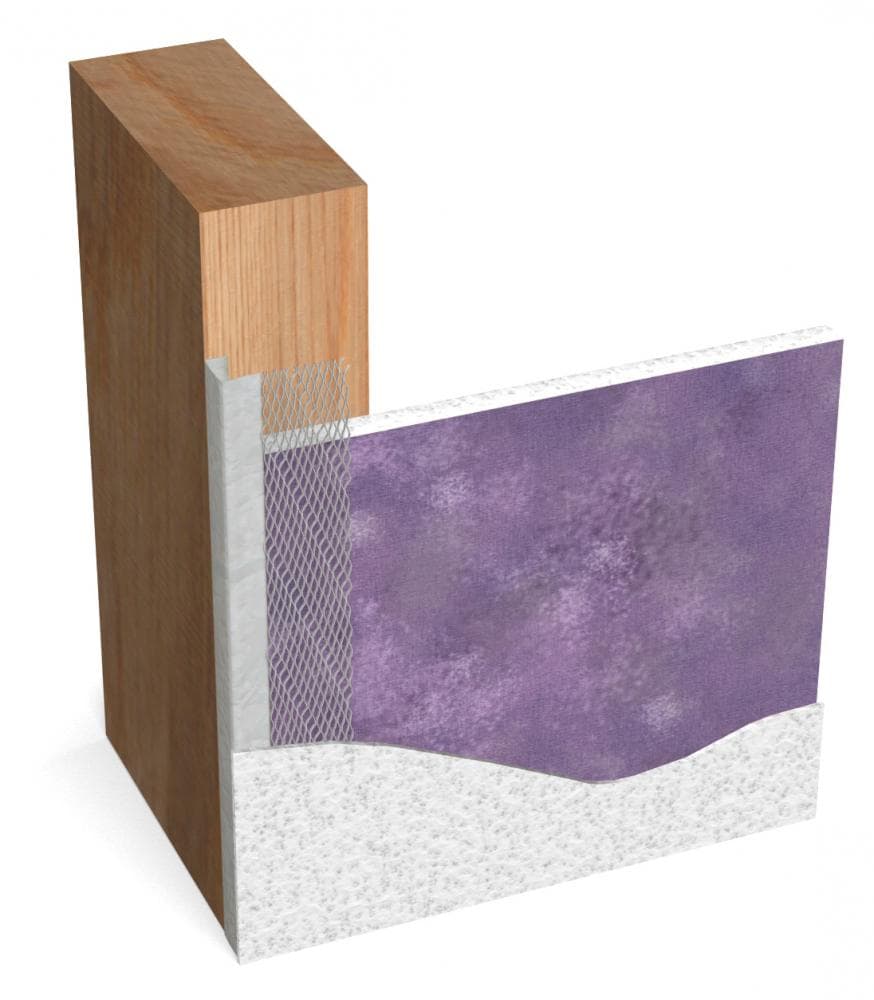

These trims provide clean, neat edge protection for one- or two-coat veneer plaster finishes at gypsum panel terminations to wall openings and wall or ceiling intersections. 701A provides 3/32" grounds for two-coat veneers and 801A has 1/16" grounds for one-coat veneer plaster.
Zinc veneer trims are the zinc equivalents of 701A and 801A J-Trim with the added benefit of providing ultimate corrosion protection for cement board and exterior applications. These trims provide clean, neat edge protection at wall or ceiling intersections, or wall terminations for one- and two-coat veneer plaster systems.
- Mini-mesh flanges for plaster keying
- Eliminates shadowing
- Zinc coated for corrosion protection
- Also available in Galvanized
Material: .012" 99.97% pure Zinc, compliant with ASTM B69
Product Data & Ordering Information
| Product Code | Type | Grounds | Width | Length | Pcs./Ctn. |
|---|---|---|---|---|---|
| Z71A | 701A (zinc) | 3/32" | 1/2" | 10' | 50 |
| Z71A | 701A (zinc) | 3/32" | 5/8" | 10' | 50 |
| Z81A | 801A (zinc) | 1/16" | 1/2" | 10' | 50 |
| Z81A | 801A (zinc) | 1/16" | 5/8" | 10' | 50 |
