ADJUSTABLE STRAP HANGERS

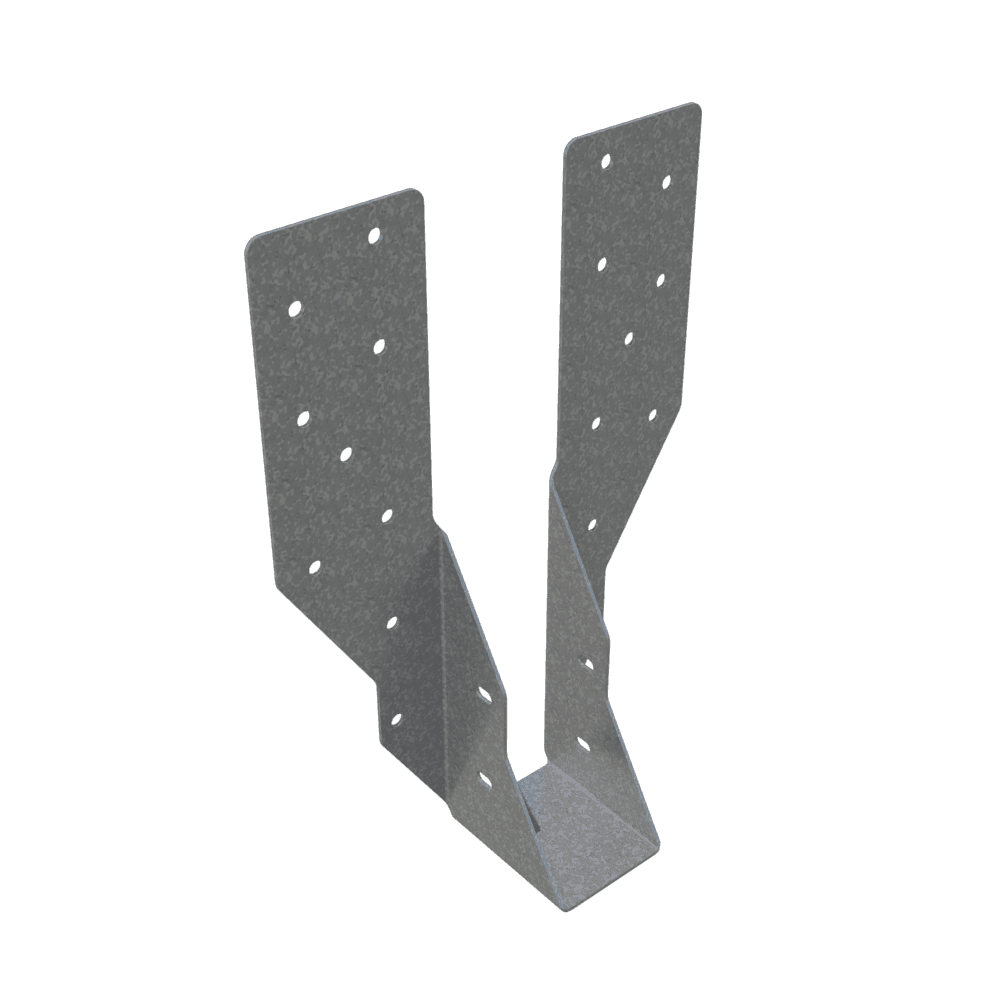

The hanger’s long straps can be field formed to the required height of the carried member.
Quick Actions:
Superior performance and easy installation. The hanger’s long straps can be field formed to the required height of the carried member. Face mount nailing options available. Designed and developed for Component Manufacturers to have a wide range of use including:
- Ceiling hanger

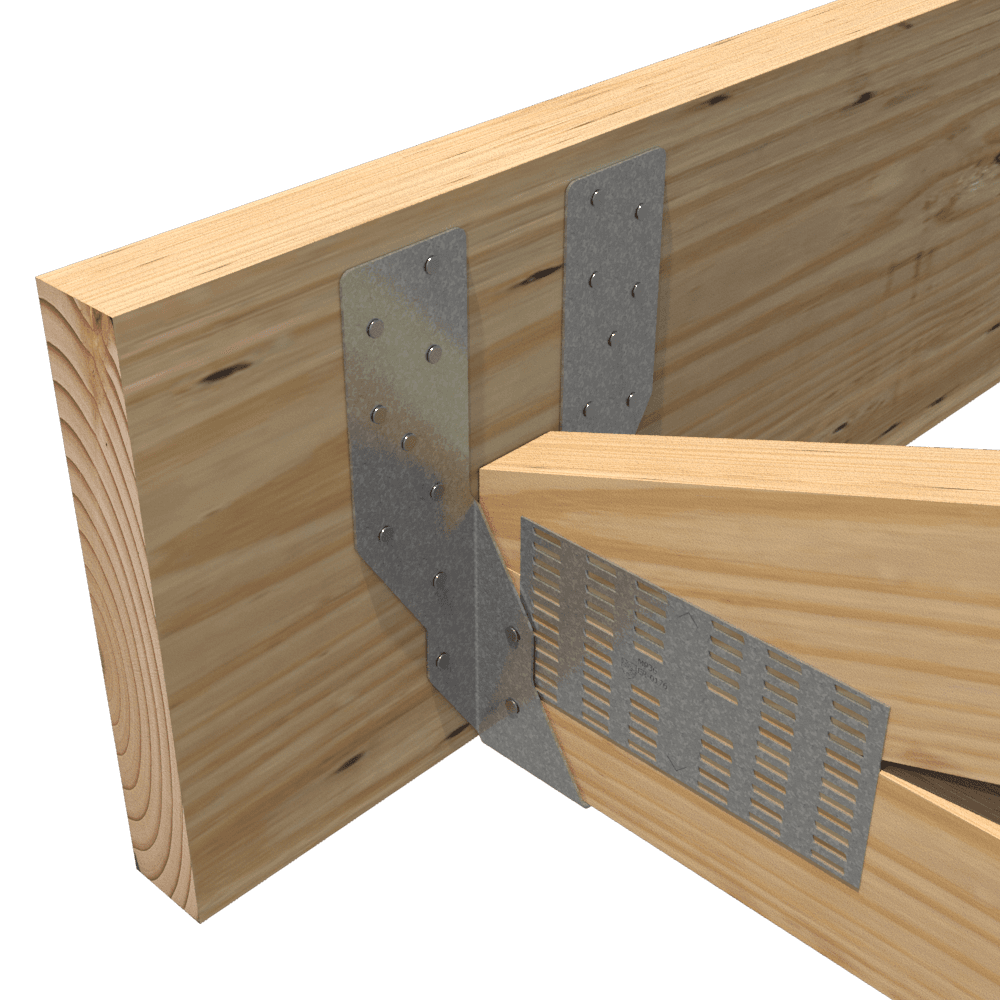

- Face mount hanger

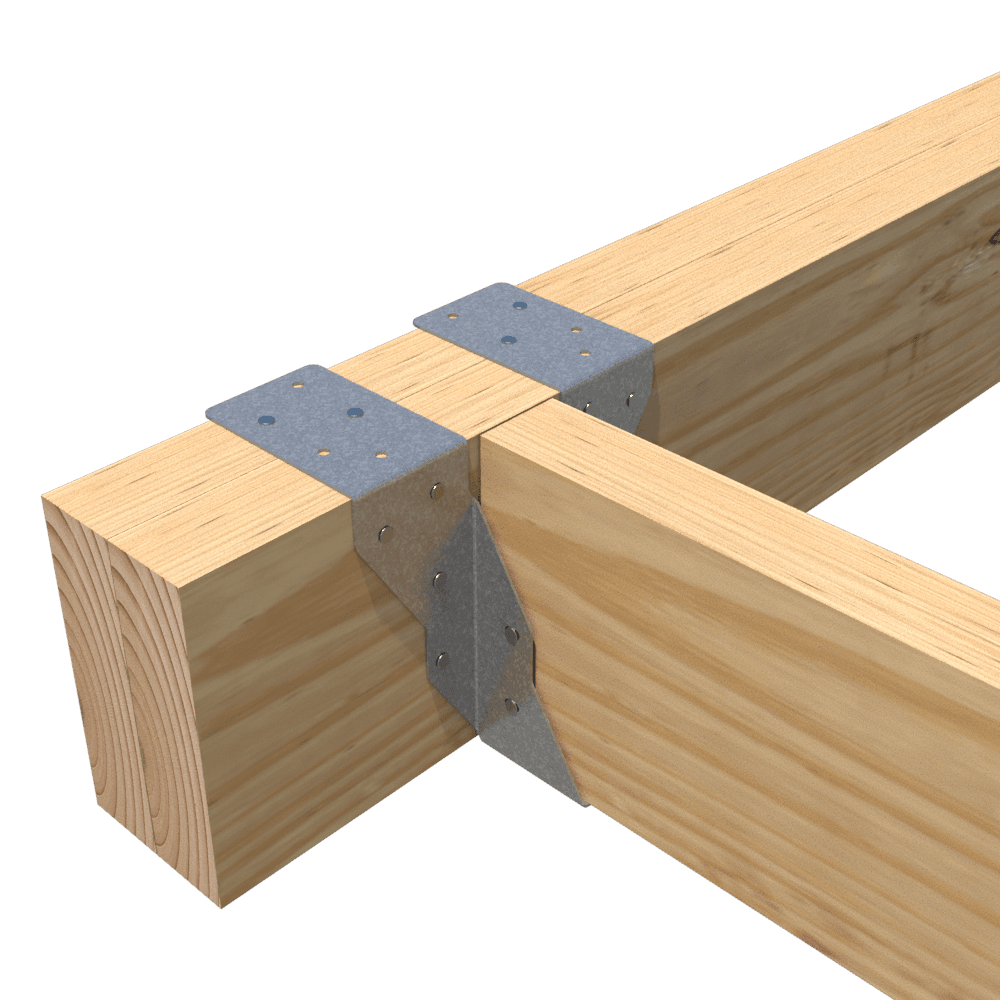

- Top flange hanger
- Top flange over-the-back hanger
Reverse flange options available on some products.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available on CDSTH422)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
| Product code | Gauge | Clear Seat Width | Overall Height | Overall Depth |
|---|---|---|---|---|
| CDSTH29 | 18 | 1-5/8" | 8-25/32" | 2-5/16" |
| CDSTH29-2 | 18 | 3-1/8" | 8-25/32" | 2-5/16" |
| CDSTH418 | 16 | 3-5/8" | 16-1/16" | 1-31/32" |
| CDSTH422 | 16 | 3-5/8" | 22-1/16" | 1-31/32" |
| CDSTHI1.81/22 | 16 | 1-13/16" | 21-13/16" | 1-31/32" |
| CDSTHI222 | 16 | 1-9/16" | 21-15/16" | 1-31/32" |
| CDSTHI322 | 16 | 2-9/16" | 21-7/16" | 1-31/32" |
| CDSTHI422 | 16 | 3-9/16" | 20-15/16" | 1-31/32" |
