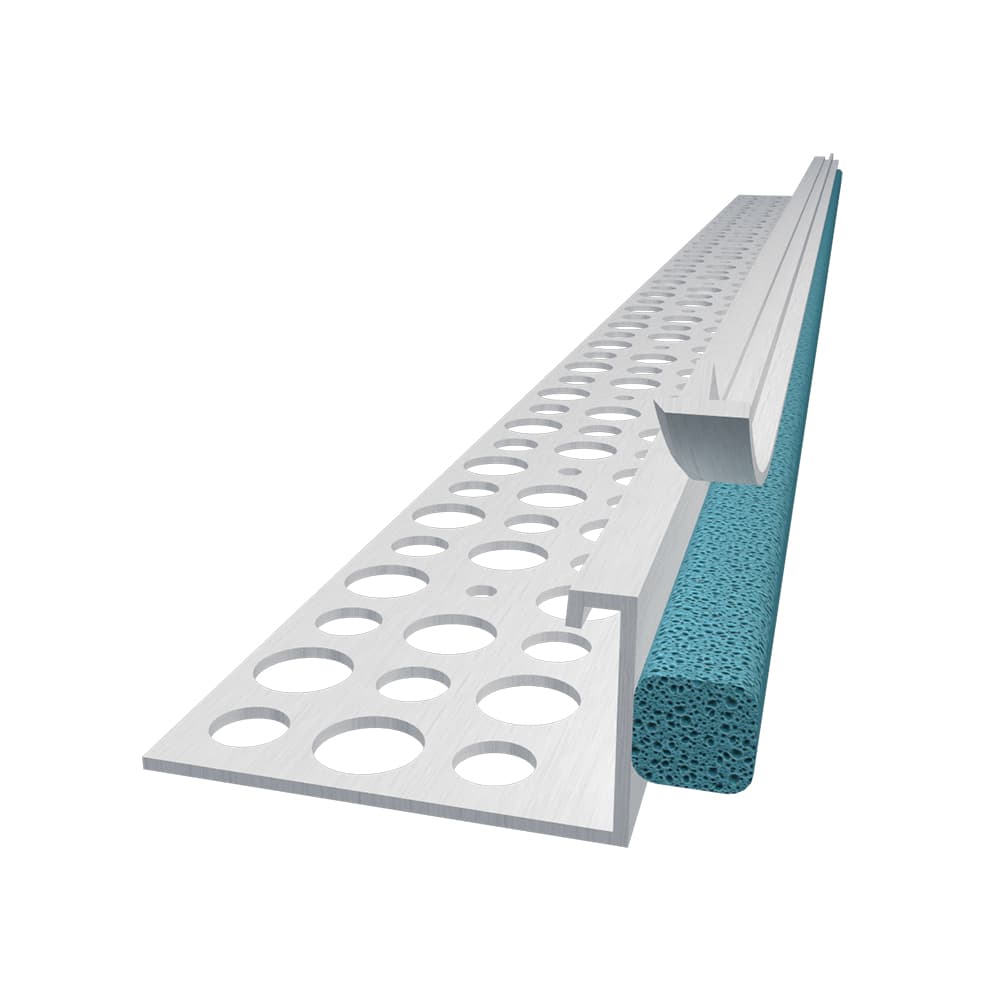

BackerBead® with Rip-Bead®
1/4" removable leg provides a clean, stucco-free caulk gap
Assures efficient caulk seal for optimal moisture protection.
Quick Actions:
1/4" removable leg provides a clean, stucco-free caulk gap. A clean 1/4" x 1/4" caulk gap assures the most efficient caulk seal for optimal moisture protection.
Features / Benefits:
- Combination Bead - Reduces steps in the field installation of casing bead and separate backer rod. Ensures backer rod is installed around all door and window openings.
- Improved Quality - Factory-applied blue backer rod with preset width and depth to ensure proper caulk gap for sealant application. When the gap is properly caulked, the blue backer rod will no longer be visible.

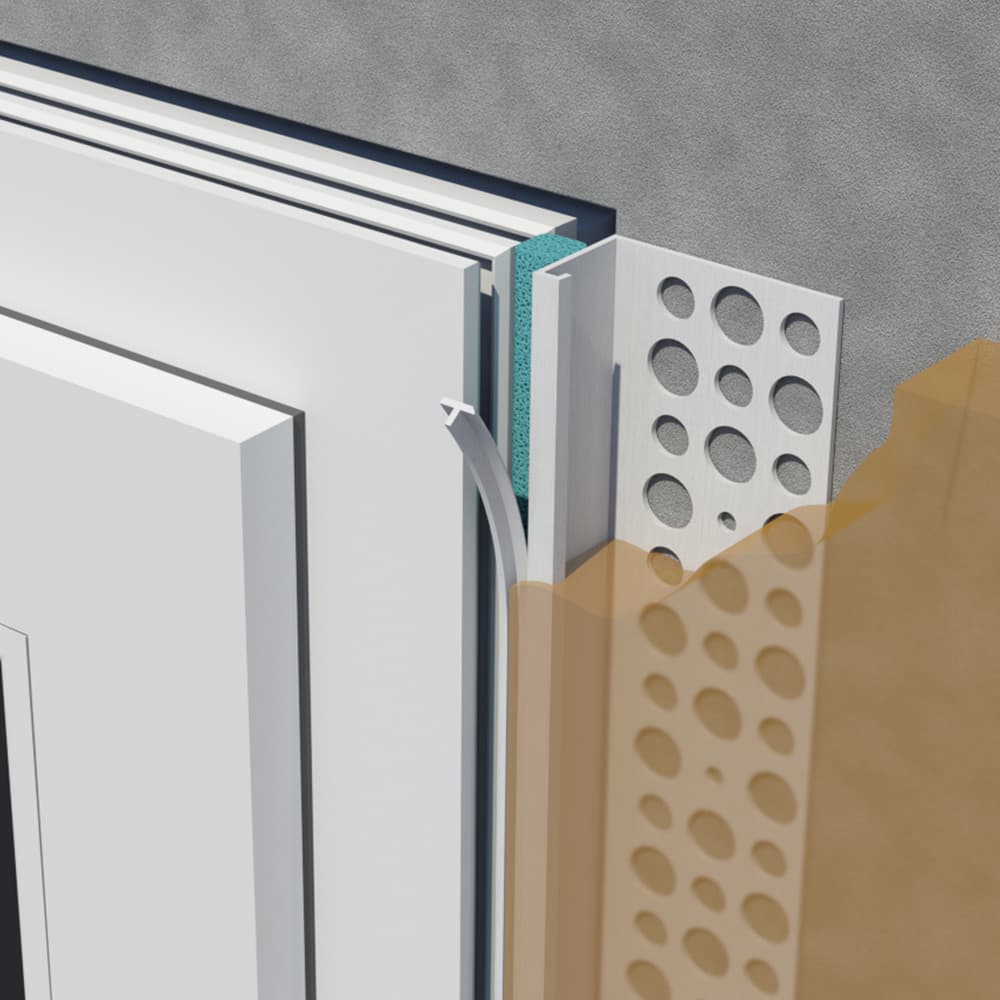

- Separation of Dissimilar Materials - Properly terminates stucco and mortar at window and door frames.
- Sealant Compatibility - Closed-cell backer rod compatible with elastomeric and other cold-applied sealants.
Product Data & Ordering Information

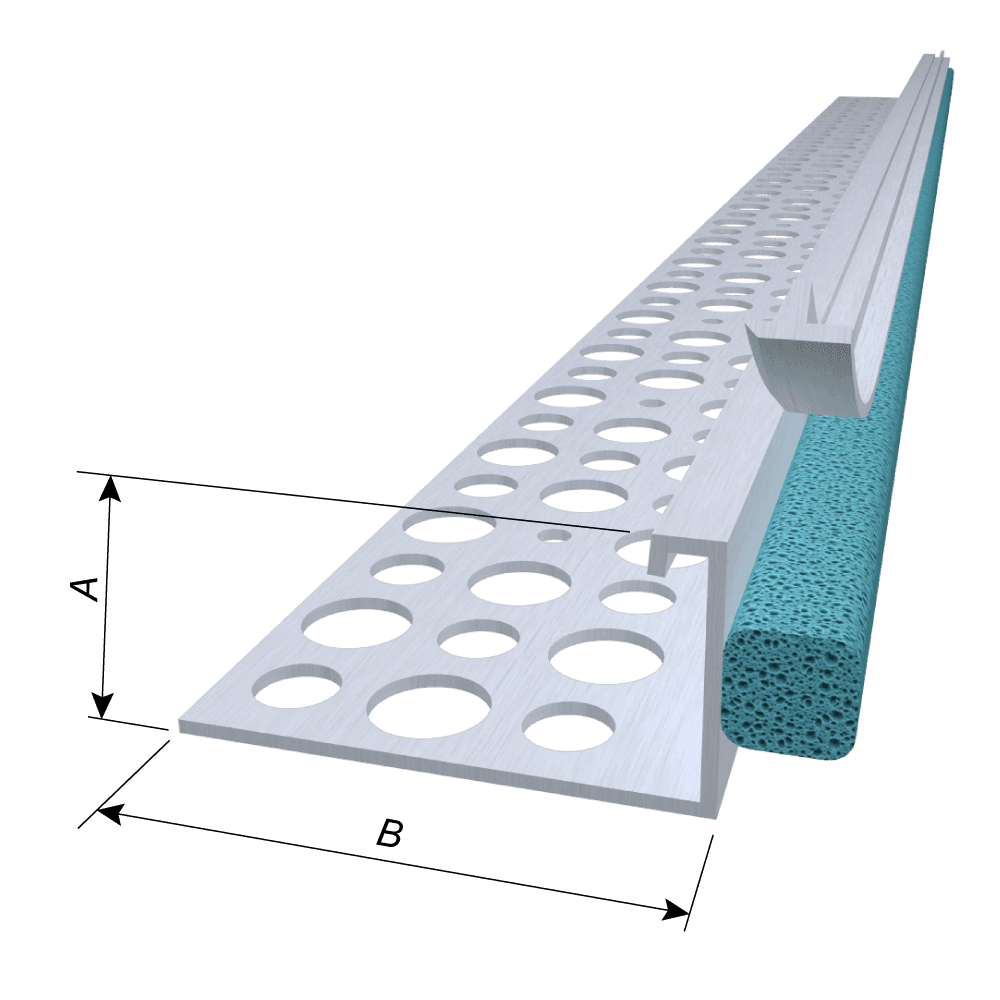

| Product code | Ground (A) | Flange (B) | Length | Pcs./Box |
|---|---|---|---|---|
| 6658BBR | 5/8" | 1-3/4" | 10' | 50 |
| 6678BBR | 7/8" | 1-3/4" | 10' | 50 |
U.S. Patent Number D762,310
Lengths: All 10-foot long standard. Custom lengths upon request.
Colors: Available in white, tan, brown or gray.
Backer Rod: Blue standard, white backer rod optional (for clear sealants)
Product Notes:
- Factory applied backer rod is adhered with set back of 1/4" from the leading edge of the ground on BackerBead casing bead products, unless noted.
- Backer Rod also available in white upon request for clear sealant applications.
