BlazeFrame® (DSL 2)
BLAZEFRAME (DSL 2) SLOTTED BOTH SIDES

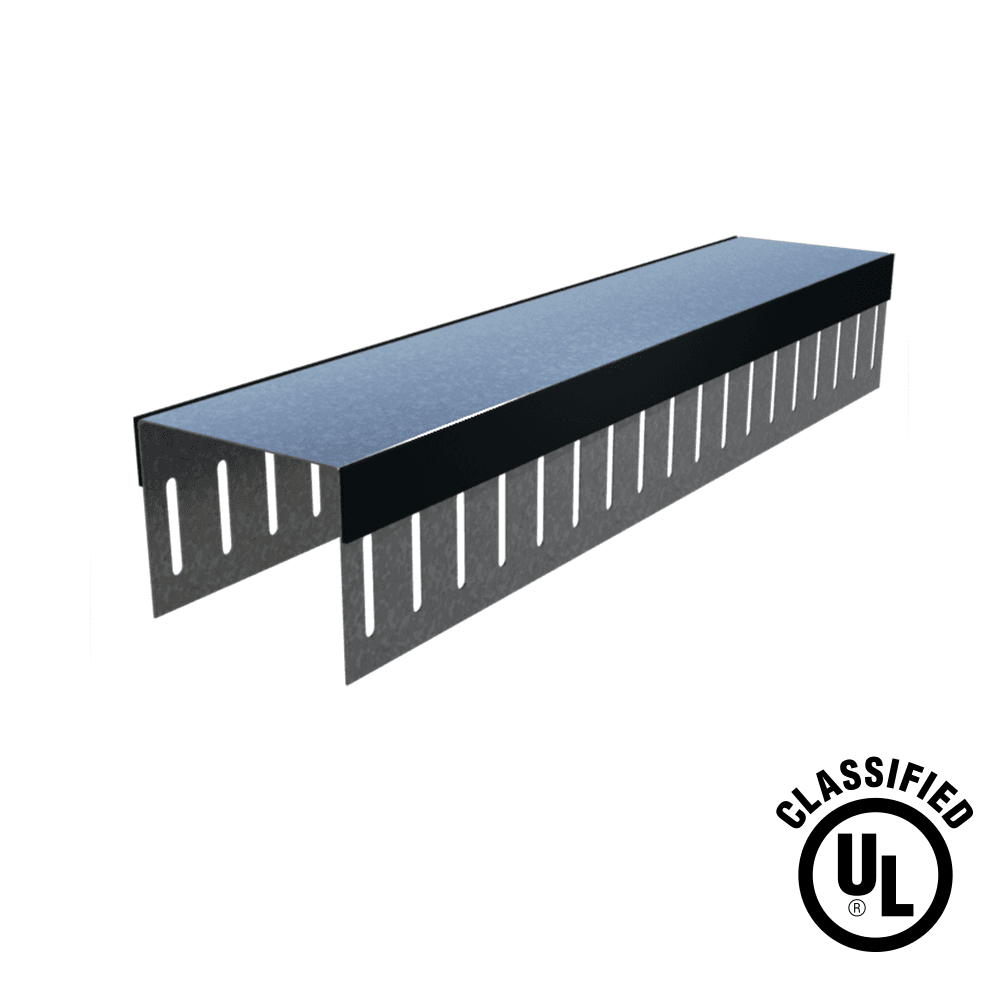

Profile with two slotted legs w/ firestop on both sides. Composite Firestop Deflection Track System for use in fire rated wall assemblies. Legs with slots spaced 1” o.c. for positive attachment to studs.
Quick Actions:
Composite Firestop/Framing for use in fire-resistant joint systems in or between fire-resistance-rated walls and floor/ceiling or roof/ceiling assemblies. Many assemblies can also be used in smoke barriers with tested air leakage (L ratings) well below the code defined maximum of 5 cfm per linear foot.
UL 2079 - Fifth Edition Compliant
When used in conjunction with BlazeFrame Perimeter L-Bead, DSL2 is UL 2079-fifth edition compliant. Provides joint protection for up to 1" with UL 2079 Class II or III Movement Capabilities. Legs with slots spaced 1" o.c. for positive attachment of studs per listed assemblies in UL Fire Resistance Directory. A 2mm thickness of cured intumescent material adhered to metal profiles provides air and smoke seals. When exposed to heat above 375 degrees Fahrenheit, the intumescent material expands up to 35 times its size. This provides protection from heat and flame passage during a fire event.
- UL Classified and Listed Joint Systems
- Intumescent strip provides air & smoke seals
- Patents: www.cd-patents.com
Product Data & Ordering Information:
Material: Yield Strength: Grade 33ksi for 30mils, 33mils & 43mils - 50ksi for 54mils
Coating: G40 EQ for 30mils, All others = CP60 (CP90 available)
30mils: 20ga DW, 0.0312" Design Thickness, 0.0296" Min. Thickness
33mils: 20ga STR, 0.0346" Design Thickness, 0.0329" Min. Thickness
43mils: 18ga, 0.0451" Design Thickness, 0.0428" Min. Thickness
54mils: 16ga, 0.0566" Design Thickness, 0.0538" Min. Thickness
Dimensions:
| Profile | Leg Length (L) | Tape Width (I) | Slot Height (S) | Joint Protection |
|---|---|---|---|---|
| DSLE2 | 2.50" | 0.75" | 1.50" | 0.50" |
| DSL 2 | 3.00" | 1.00" | 1.50" | 0.75" |
| DSLW 2 | 3.00" | 1.25" | 1.50" | 1.00" |
(30mils is only available in DSLE2 and DSL 2 Profiles)
Inside depth: Equal to the outside width of the stud
Web sizes (W): 2-1/2", 3-5/8", 4", 6", 8"
Vertical slots: 0.22" wide & spaced every 1" o.c.
Track length: 10'-0"
