CD Holdown
SECURE AND HOLD DOWN SHEAR WALLS TO THE STRUCTURE FOUNDATION

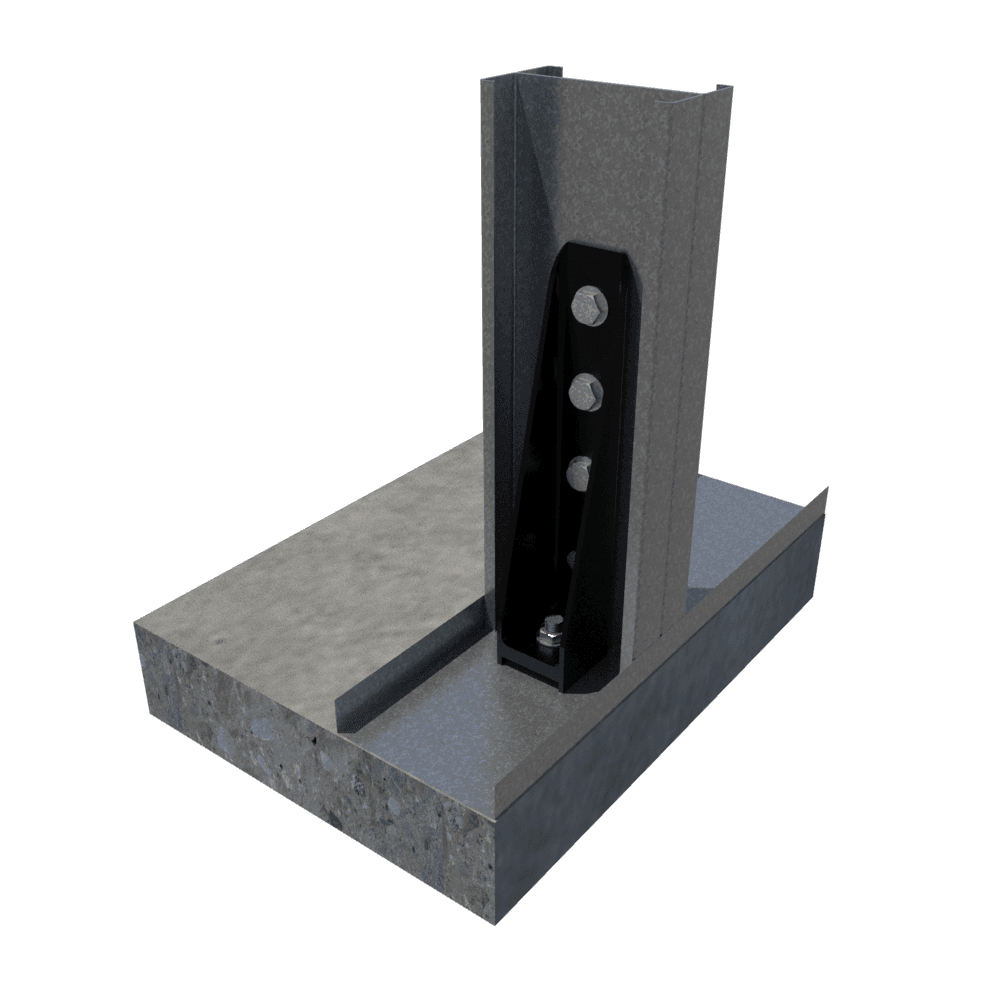

ClarkDietrich holdowns provide cost-effective shearwall attachment and are used to transfer tension loads between floors or from structural members to the foundation.
Quick Actions:

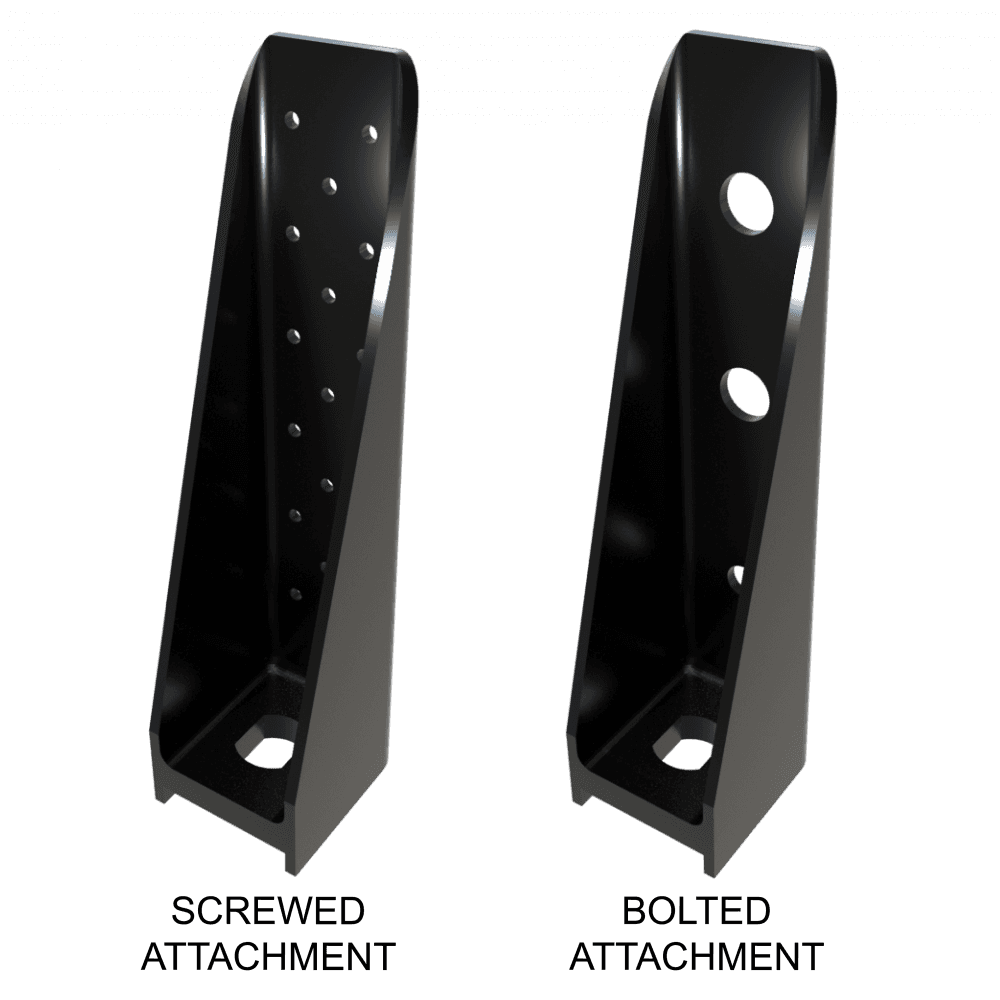

Two-piece welded construction comes in three sizes for optimal performance. Installation is made easy with prepunched bolt holes.
Material: 7 Gauge (179mil) with 1/2" bearing plate
Anchor hole size: 7/8" x 1-1/8" for CD8-S, CD8-B, CD10-S and CD10-B; 1" x 1-1/8" for CD15-S and CD15-B
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

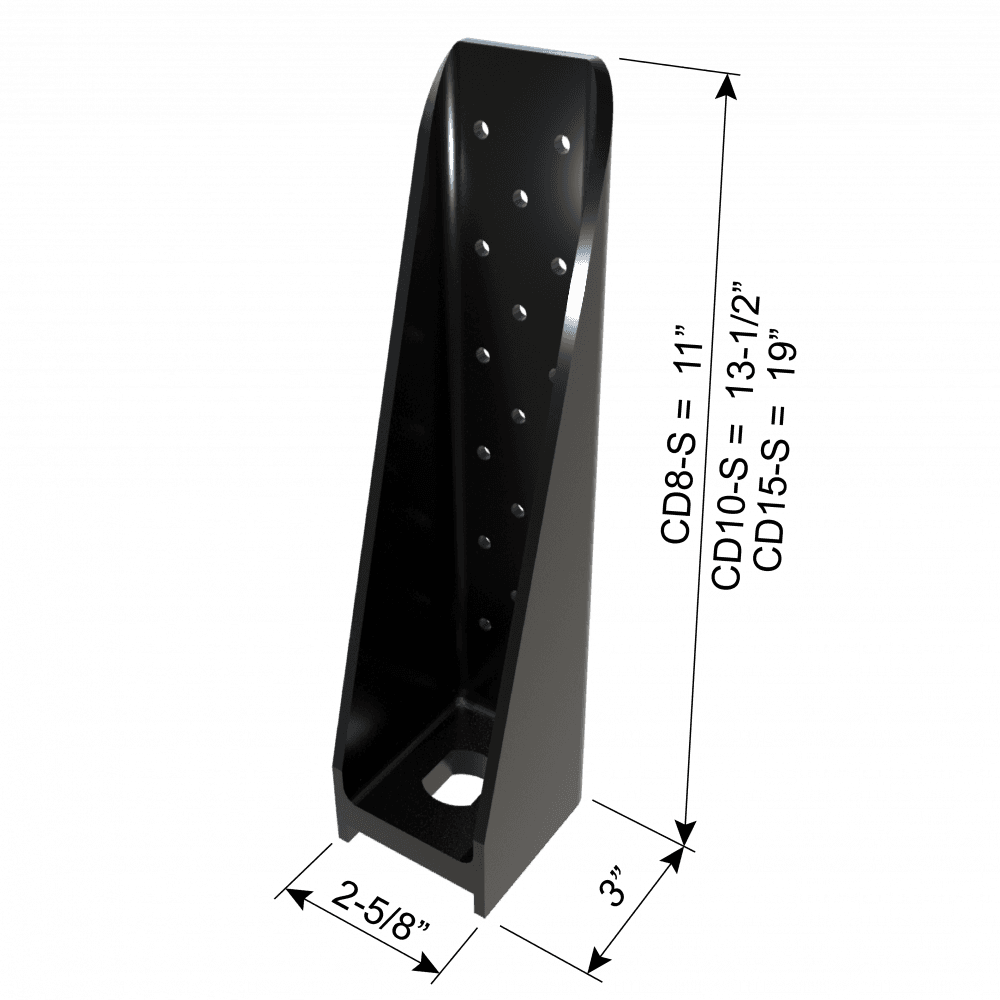

| Product code | Gauge | Mils | Design Thickness | Minimum Thickness | Height | Packaging |
|---|---|---|---|---|---|---|
| CD8-S | 7 | 179 | 0.188" | 0.1713" | 11" | Dependent on Order Quantity |
| CD10-S | 7 | 179 | 0.188" | 0.1713" | 13-1/2" | |
| CD15-S | 7 | 179 | 0.188" | 0.1713" | 19" |
Alternative Products
Product Data & Ordering Information
| Product code | Gauge | Mils | Design Thickness | Minimum Thickness | Height | Packaging |
|---|---|---|---|---|---|---|
| CD8-B | 7 | 179 | 0.188" | 0.1713" | 11" | Dependent on Order Quantity |
| CD10-B | 7 | 179 | 0.188" | 0.1713" | 13-1/2" | |
| CD15-B | 7 | 179 | 0.188" | 0.1713" | 19" |
