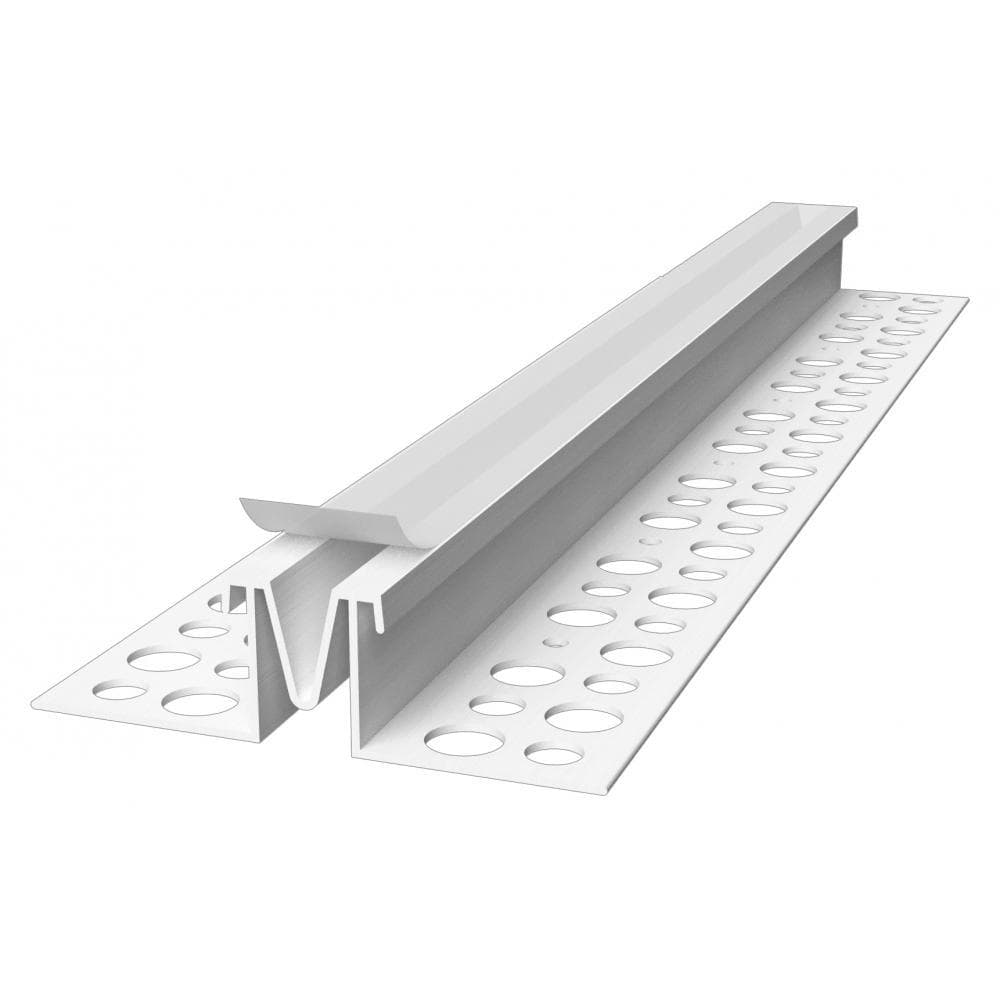

Control Joint with Removable Tape
Recommended for smooth finishes
Removable tape protects the deep "V" groove during construction. J-hooks on the ground helps reduce the effect of plaster shrinkage.
Quick Actions:

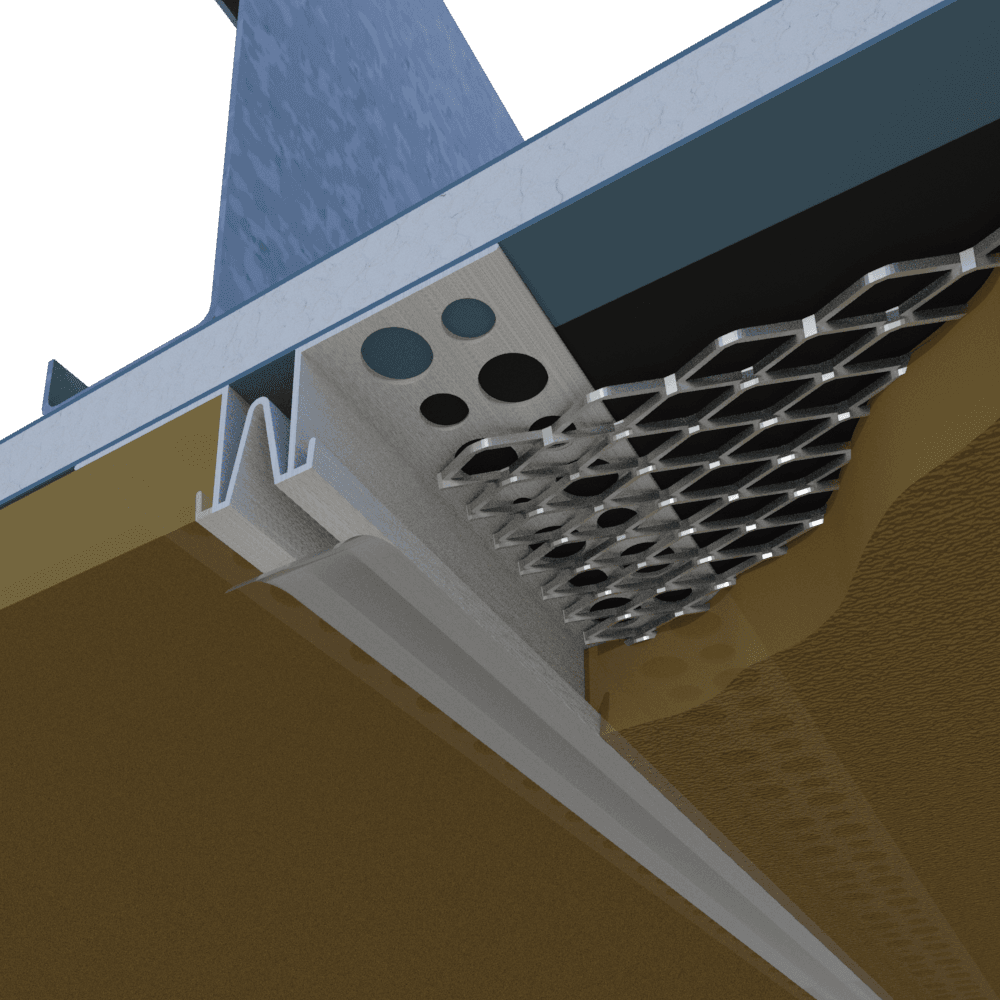

Recommended for smooth finishes. Removable tape protects the deep "V" groove during construction. J-hooks on the ground helps reduce the effect of plaster shrinkage. Control joints help with the embedment of the lath and flange while assisting with tying requirements of discontinuous lath to the joint.
Product Data & Ordering Information

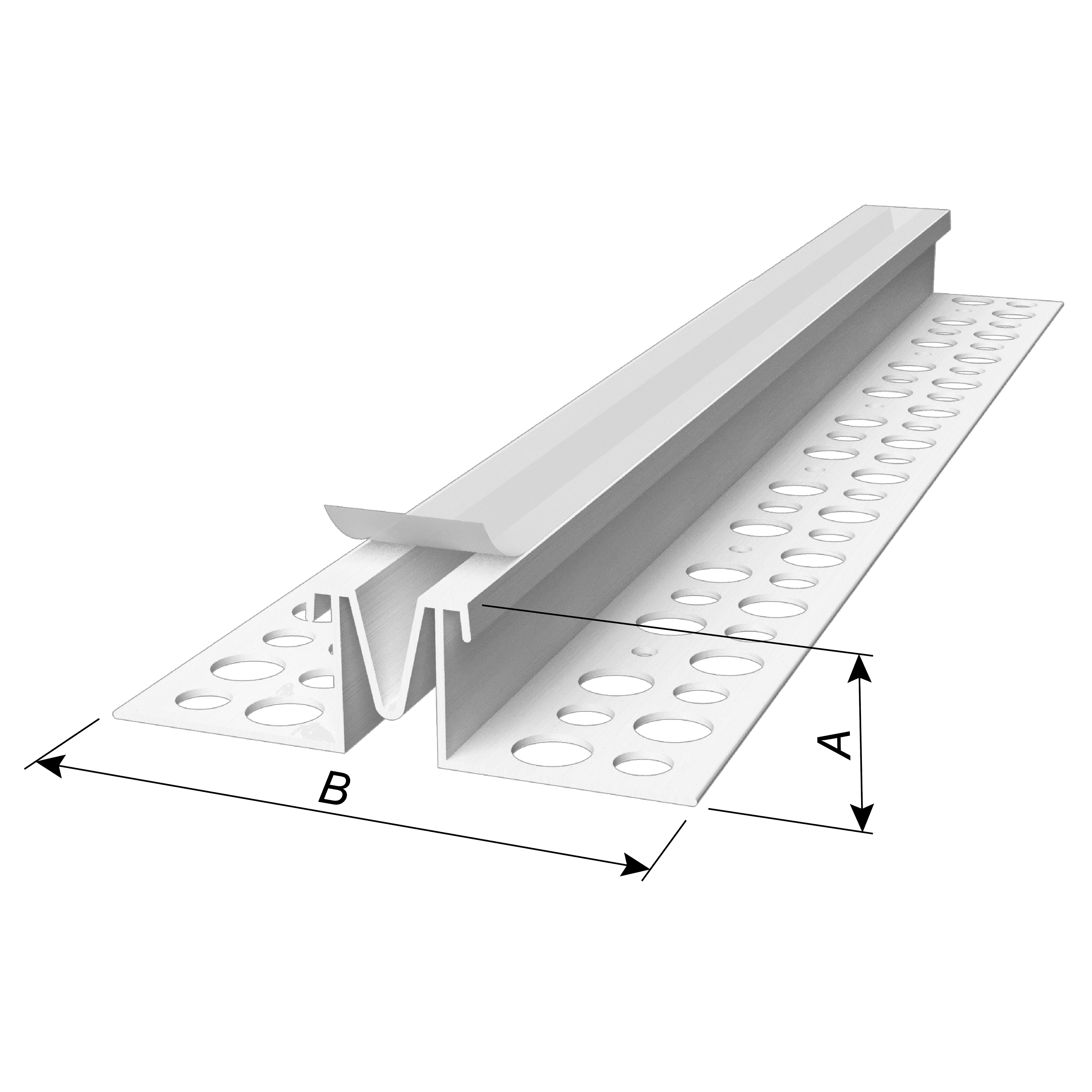

| Product code | Ground (A) | Overall width (B) | Length | Pcs./Box |
|---|---|---|---|---|
| 1525X | 1/4" | 3-1/4" | 10' | 50 |
| 1538X | 3/8" | 3-1/4" | 10' | 50 |
| 1550X | 1/2" | 3-1/4" | 10' | 40 |
| 1558X | 5/8" | 3-1/4" | 10' | 35 |
| 1575X | 3/4" | 3-1/4" | 10' | 30 |
| 1578X | 7/8" | 3-1/4" | 10' | 30 |
| 15100X | 1" | 3-1/4" | 10' | 30 |
NOTE: Connector clips are not provided for 1/4" or 3/8" grounds. Positive attachment of each flange or control joint to separate framing is required. Caulk all intersections, butt joints, ends and corners at time of installation.
