Deck Anchors
Deck Anchor

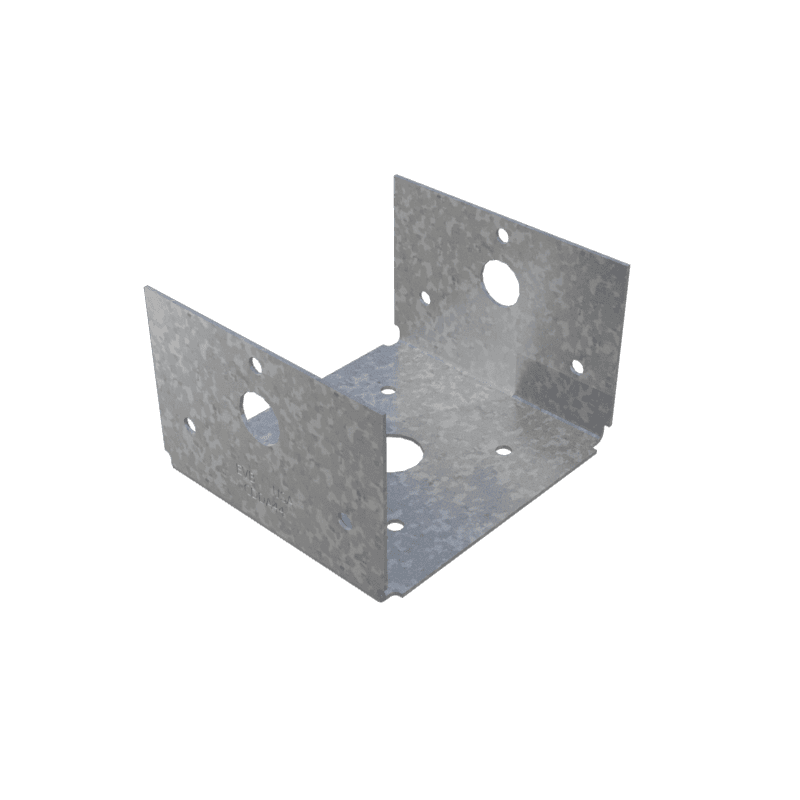

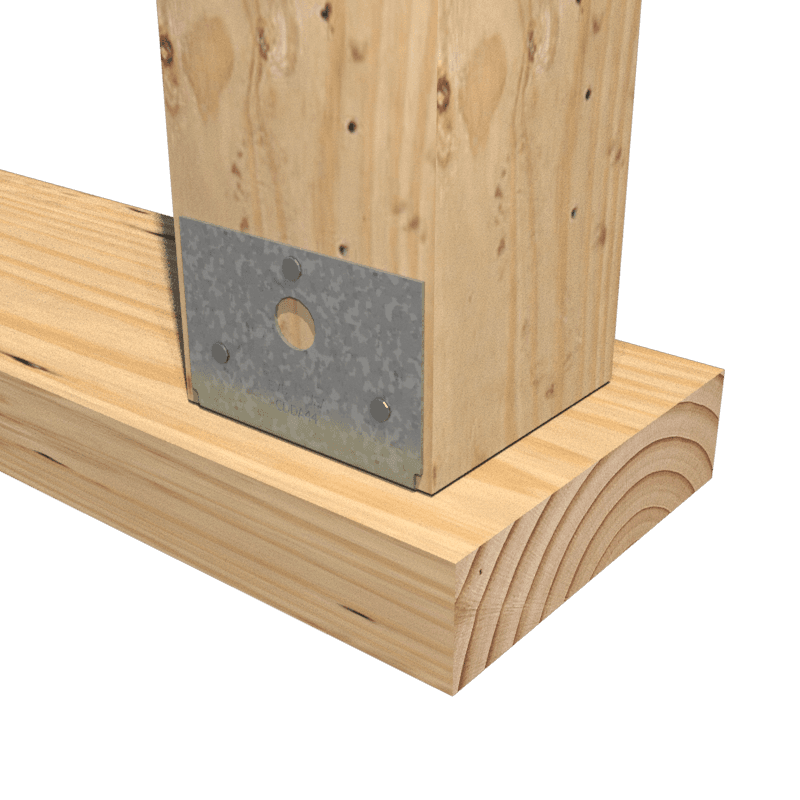

The deck anchor post base secures wood posts to a wood supporting member. Eliminates the need for toe-nailing of the post or column.
Quick Actions:
The deck anchor post base secures wood posts to a wood supporting member. Eliminates the need for toe-nailing of the post or column.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available upon request)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

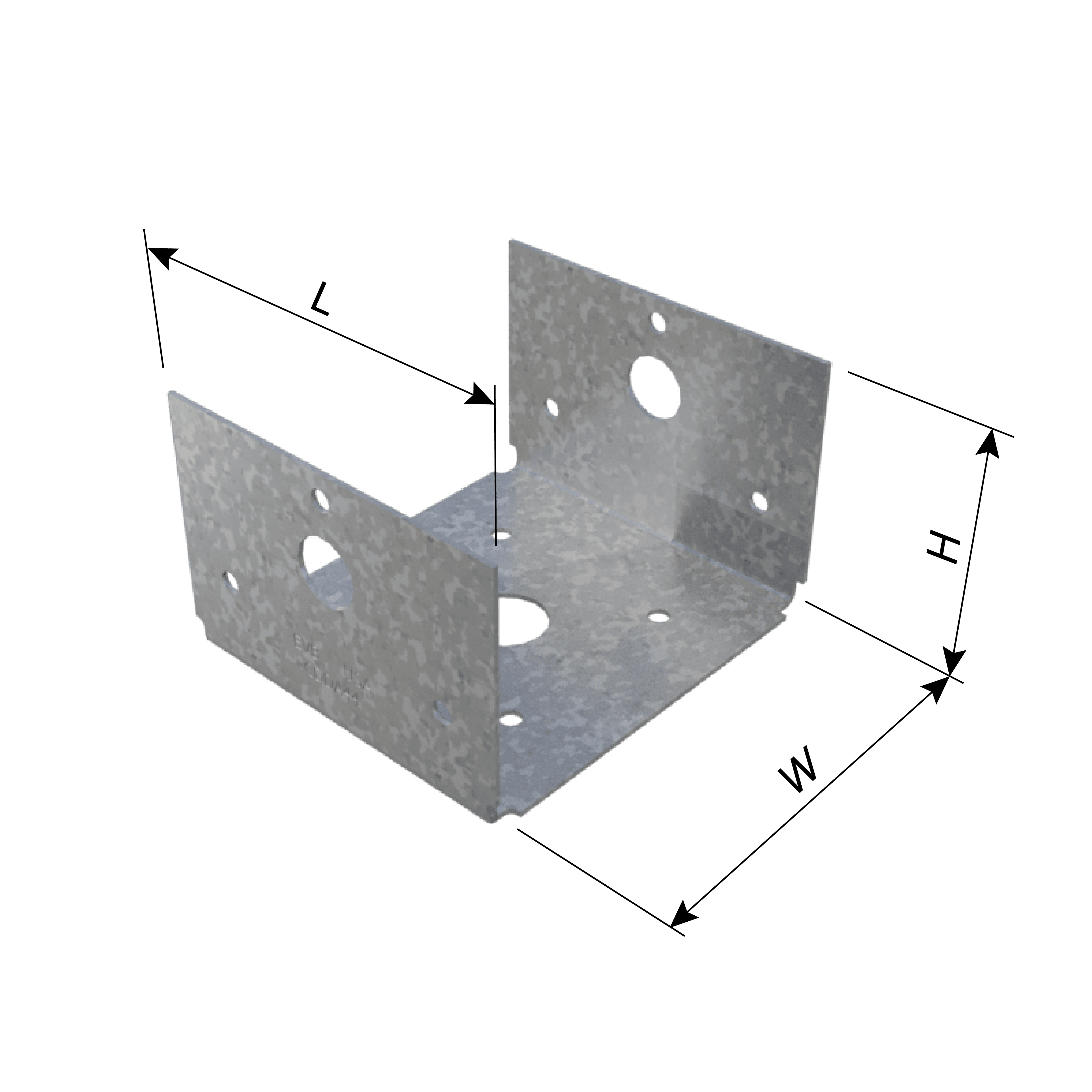

| Product Code | Post Size | Length (L) | Width (W) | Height (H) |
|---|---|---|---|---|
| CDDA44 | 4x4 | 3-1/4" | 3-9/16" | 2-1/4" |
| CDDA66 | 6x6 | 5" | 5-9/16" | 2-1/2" |
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com.
