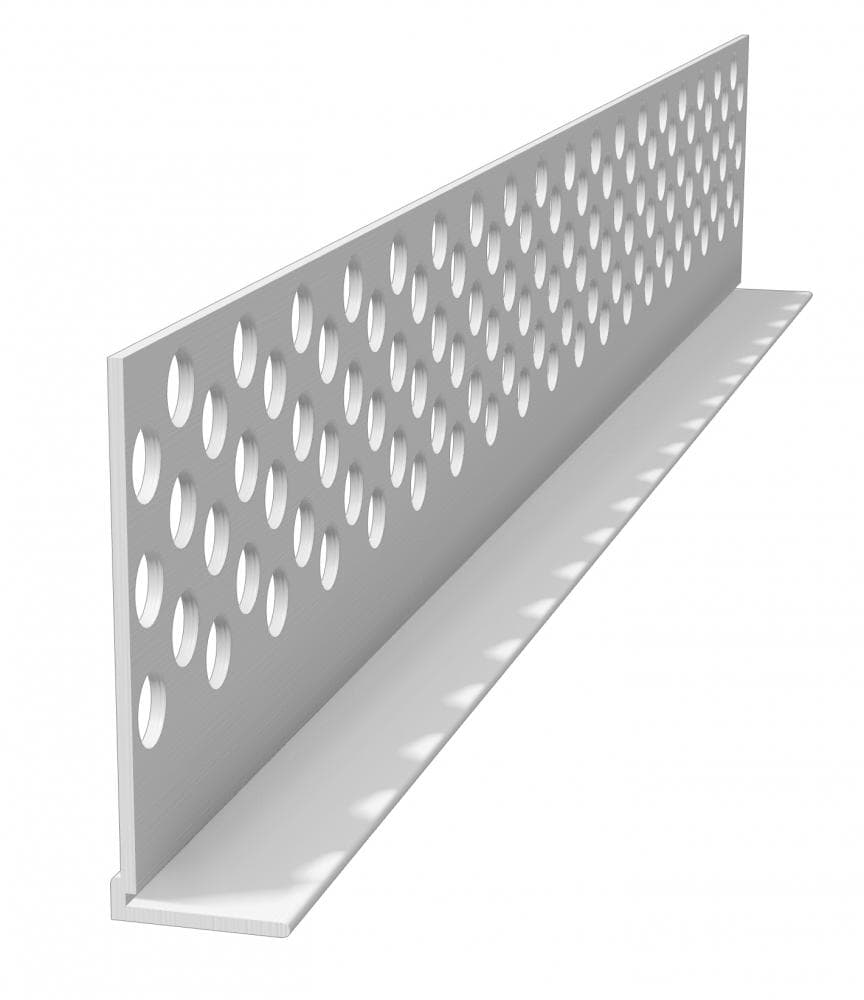

DEFS L-Stop Casing Bead

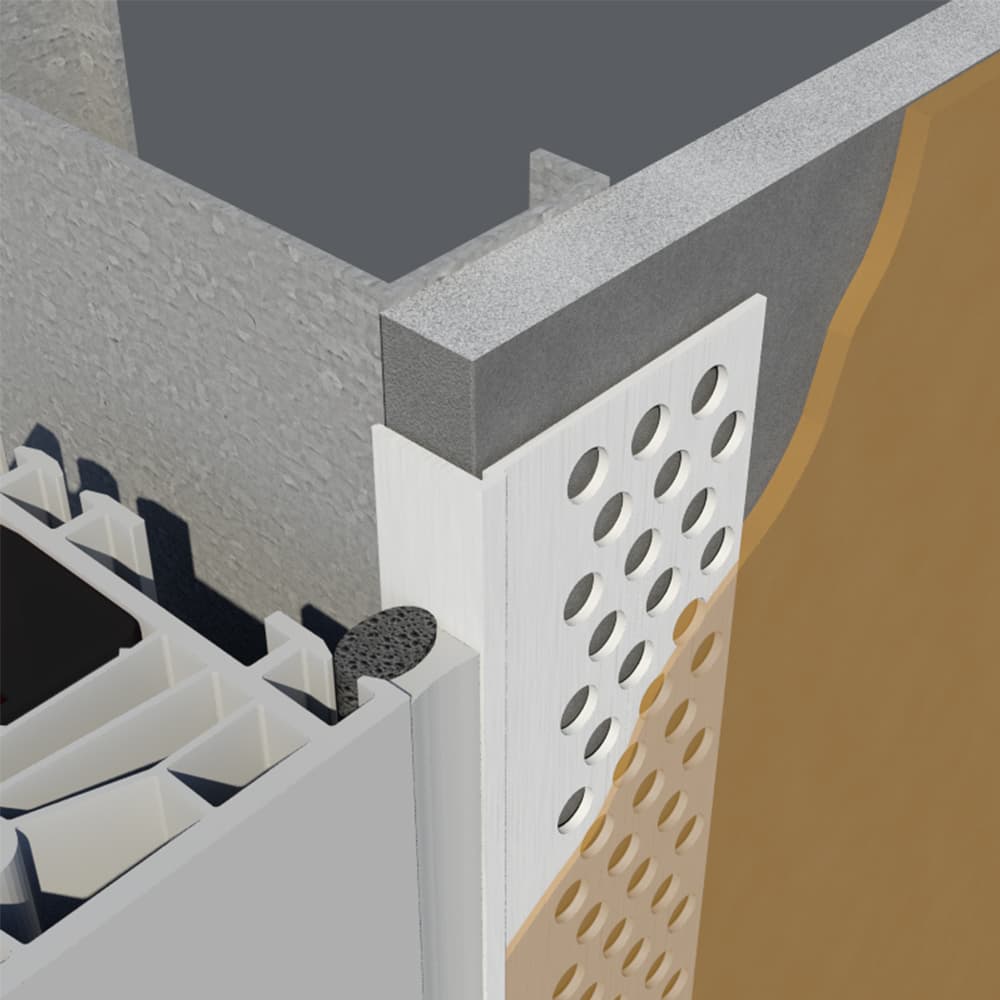

Provides casing against doors, windows and other dissimilar materials
Designed to protect the raw edges of the board in Direct-Applied Exterior Finish Systems (DEFS).
Quick Actions:
Designed to protect the raw edges of the board in Direct-Applied Exterior Finish Systems (DEFS). Two rows of large perforations allow the base coat mixture to easily flow through and bond to the substrate. Weep holes provide drainage away from the substrate. ClarkDietrich Keylock™ Splice connectors are available for alignment and as a base for sealant. Caulk all intersections, butt joints, ends, and corners at the time of installation
Product Data & Ordering Information

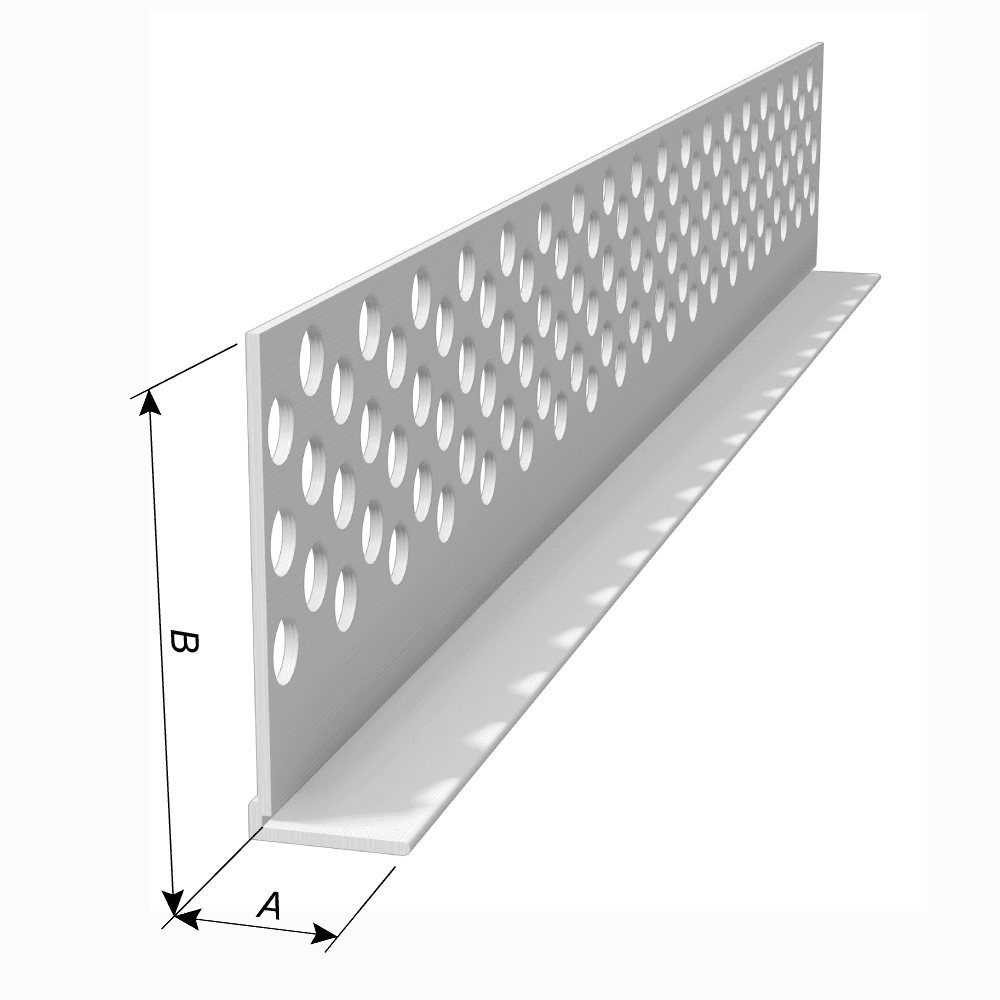

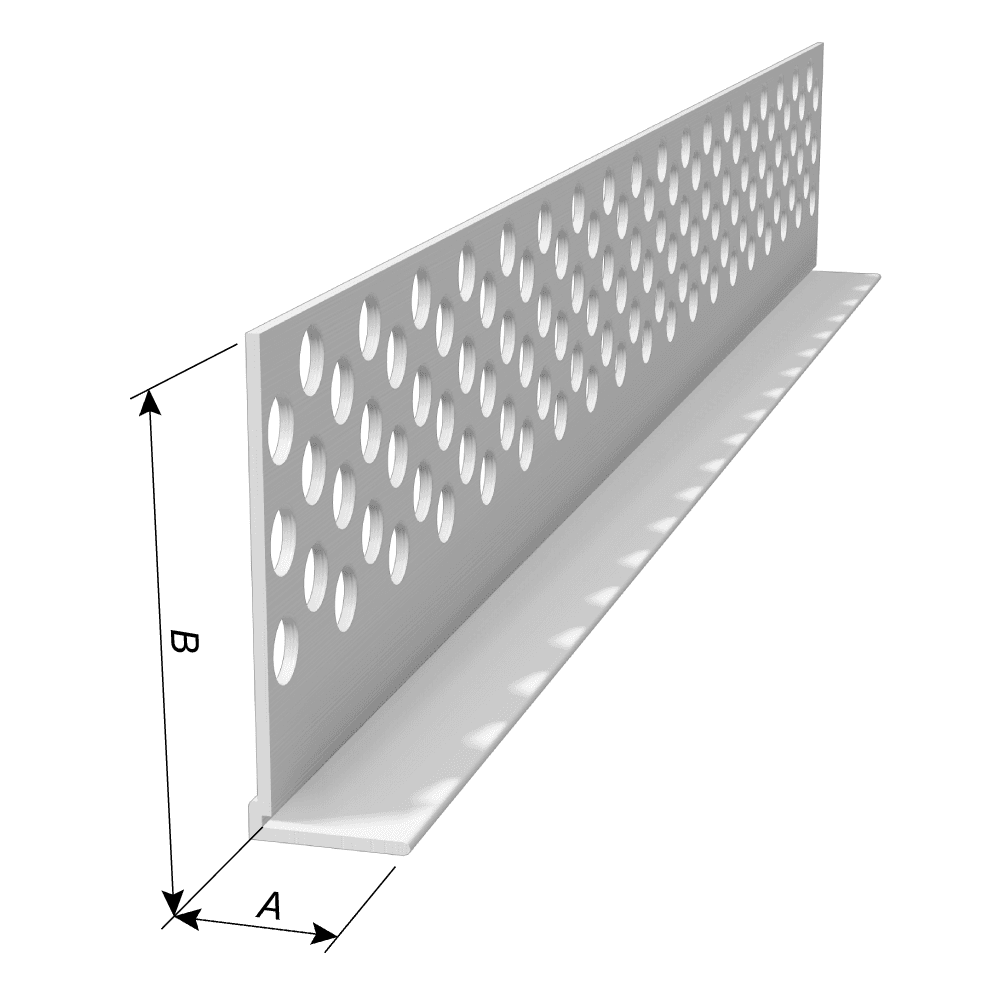

| Product code | Finish thickness | Board thickness (A) | Perforated flange (B) | Pcs./Box |
|---|---|---|---|---|
| SBL50E | 1/16" | 1/2" | 1-3/4" | 50 |
| SBL58E | 1/16" | 5/8" | 1-3/4" | 50 |
