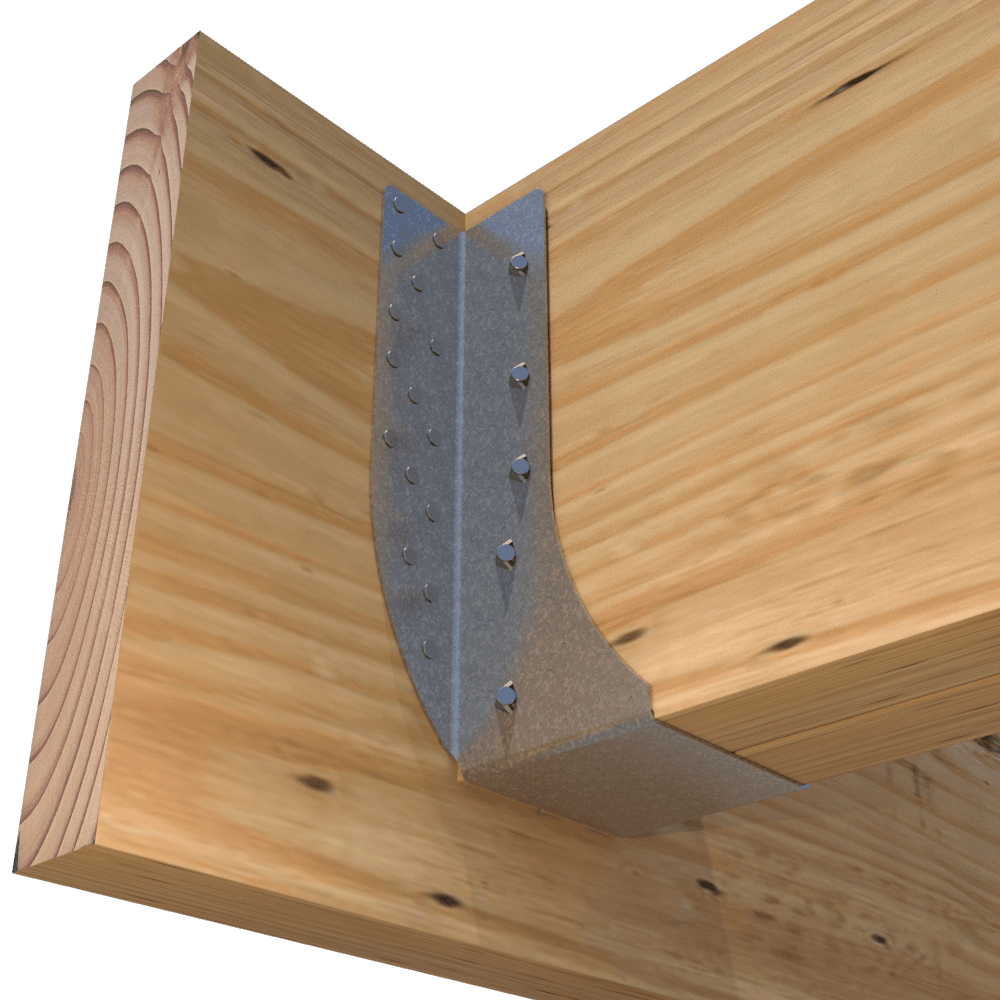

Double Shear Face-Mount Hangers - CDMDS

double shear face-mount hangers - CDMDS

Double shear nailing distributes loads at two points across the joist nails, reducing the number of nails and enabling quicker installation.

Quick Actions:

Double shear nailing distributes loads at two points across the joist nails, reducing the number of nails and enabling quicker installation. Use the enhanced nailing schedule for greater load carrying capacities.

Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
                 16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
(G185 available except CDMDS1.81/10, CDMDS210-3, CDMDS210-4, CDMDS26-3 & CDMDS28-4)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
