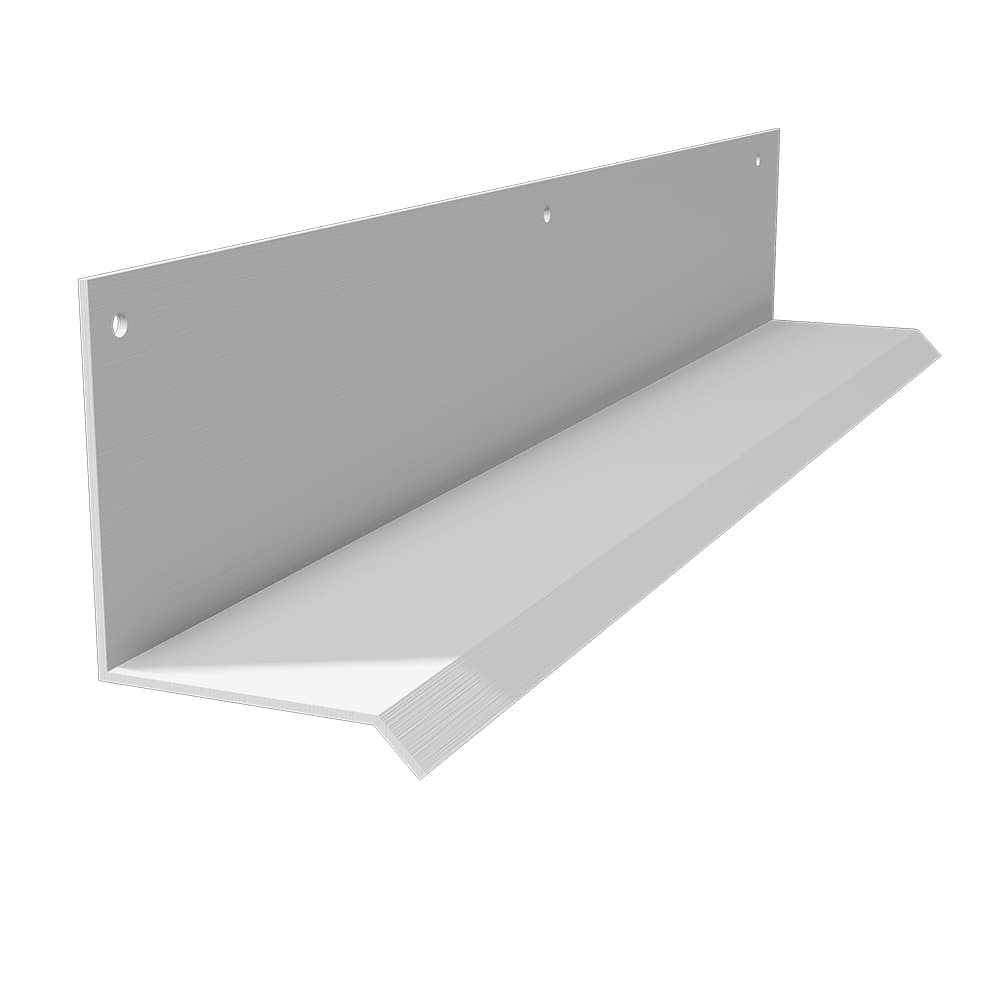

Drip Casing

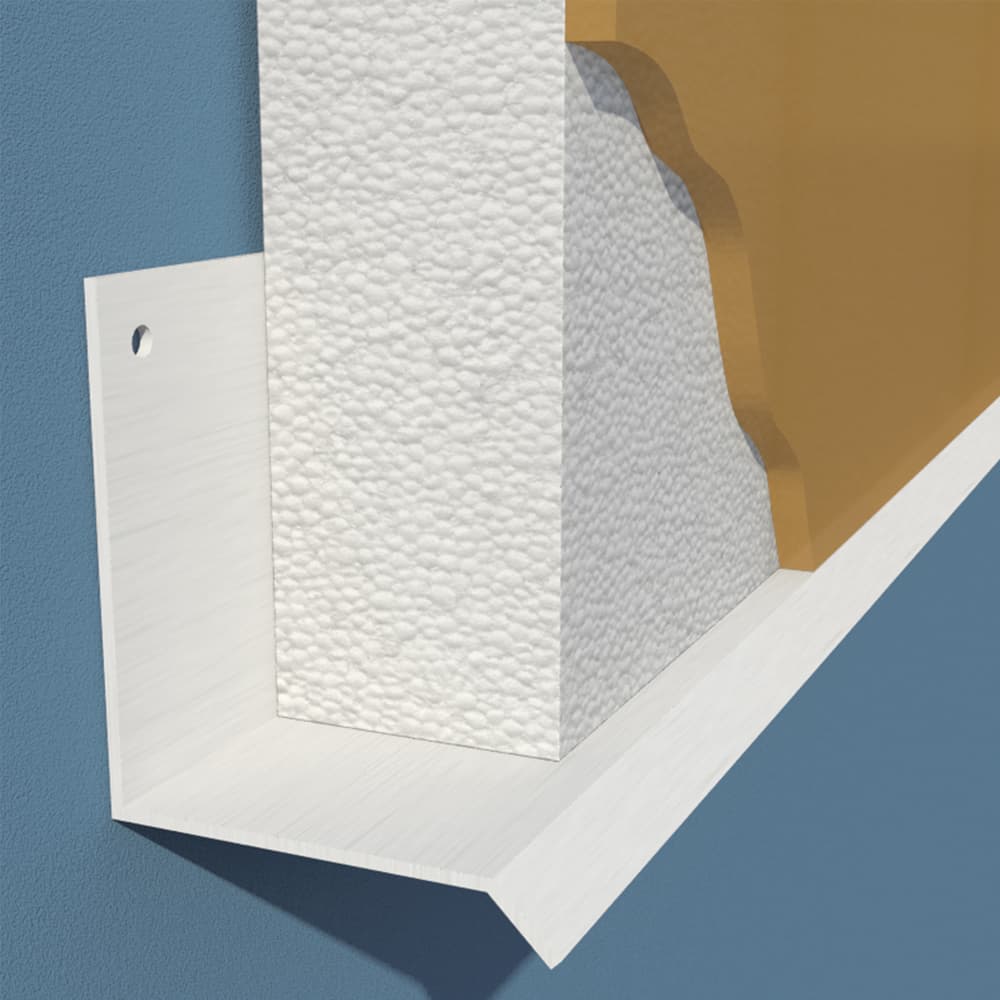

Drip leg directs moisture away from openings and foundation walls
Designed to be used above window and door openings or at the foundation line to assist with moving moisture away from the wall. May be used in combination with casing bead or as a stand-alone for flashing
Quick Actions:
Designed to be used above window and door openings or at the foundation line to assist with moving moisture away from the wall. May be used in combination with casing bead or as a stand-alone for flashing. Caulk all intersections, butt joints, ends and corners at time of installation. Available in white, gray, tan and brown. If a custom color is required, please contact a ClarkDietrich sales representative or customer service.
Product Data & Ordering Information

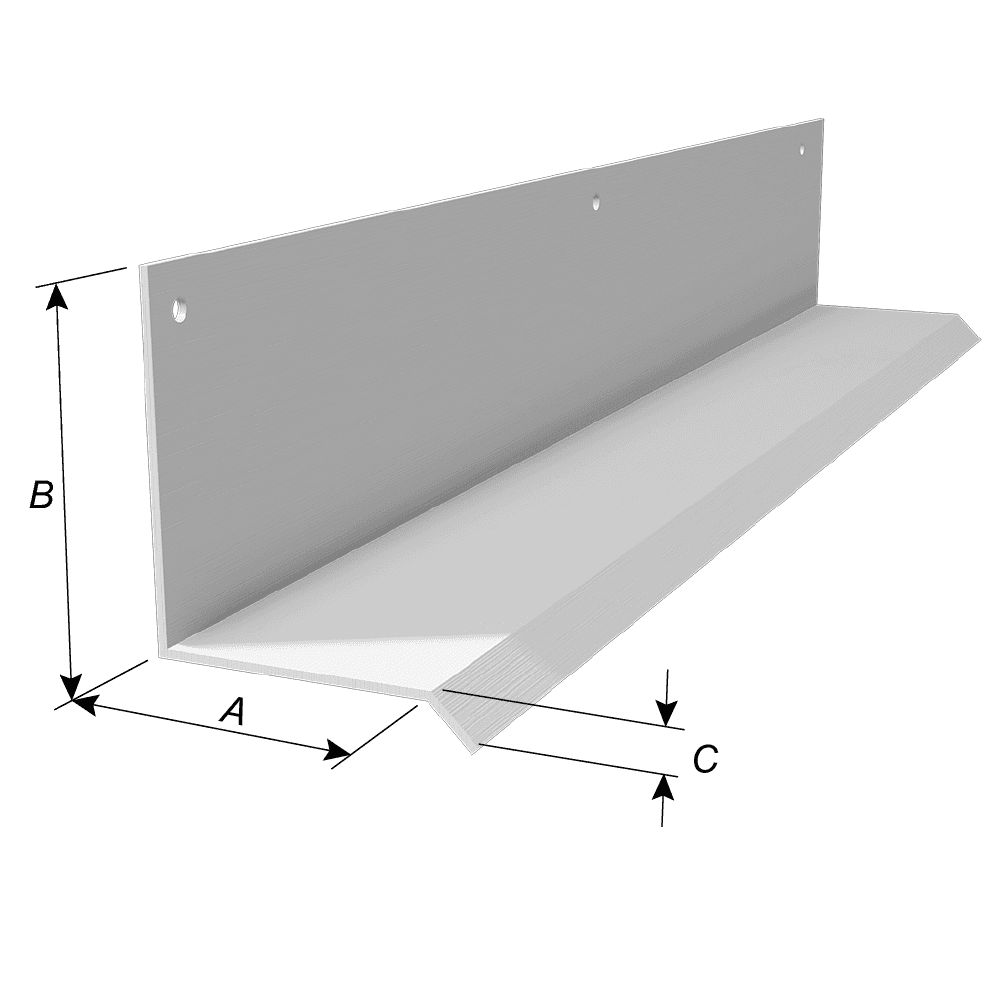

| Product code | Ground / Insul thickness (A) | Back flange (B) | Drip leg (C) | Pcs./Box |
|---|---|---|---|---|
| DCB50-25 | 1/2" | 2" | 1/4" | 50 |
| DCB58-25 | 5/8" | 2" | 1/4" | 50 |
| DCB75-25 | 3/4" | 2" | 1/4" | 50 |
| DCB78-25 | 7/8" | 2" | 1/4" | 50 |
| DCB100-25 | 1" | 2" | 1/4" | 50 |
| DCB150-25 | 1-1/2" | 2" | 1/4" | 50 |
| DCB200-25 | 2" | 2" | 1/4" | 50 |
| DCB300-25 | 3" | 2" | 1/4" | 30 |
| DCB400-25 | 4" | 2" | 1/4" | 30 |
| DCB50-38 | 1/2" | 2" | 3/8" | 30 |
| DCB58-38 | 5/8" | 2" | 3/8" | 50 |
| DCB75-38 | 3/4" | 2" | 3/8" | 50 |
| DCB78-38 | 7/8" | 2" | 3/8" | 50 |
| DCB100-38 | 1" | 2" | 3/8" | 50 |
| DCB150-38 | 1-1/2" | 2" | 3/8" | 50 |
| DCB200-38 | 2" | 2" | 3/8" | 50 |
| DCB300-38 | 3" | 2" | 3/8" | 30 |
| DCB400-38 | 4" | 2" | 3/8" | 30 |
Contact your ClarkDietrich Sales Representative for profile and market availability.
Notes: If weep holes are required, add W to the product code, example: DCBW75-25.
If a 3" or 3-1/2" back flange is required refer to Drip Flashing
If an arched profile is required refer to Archmaker Drip Flashing
