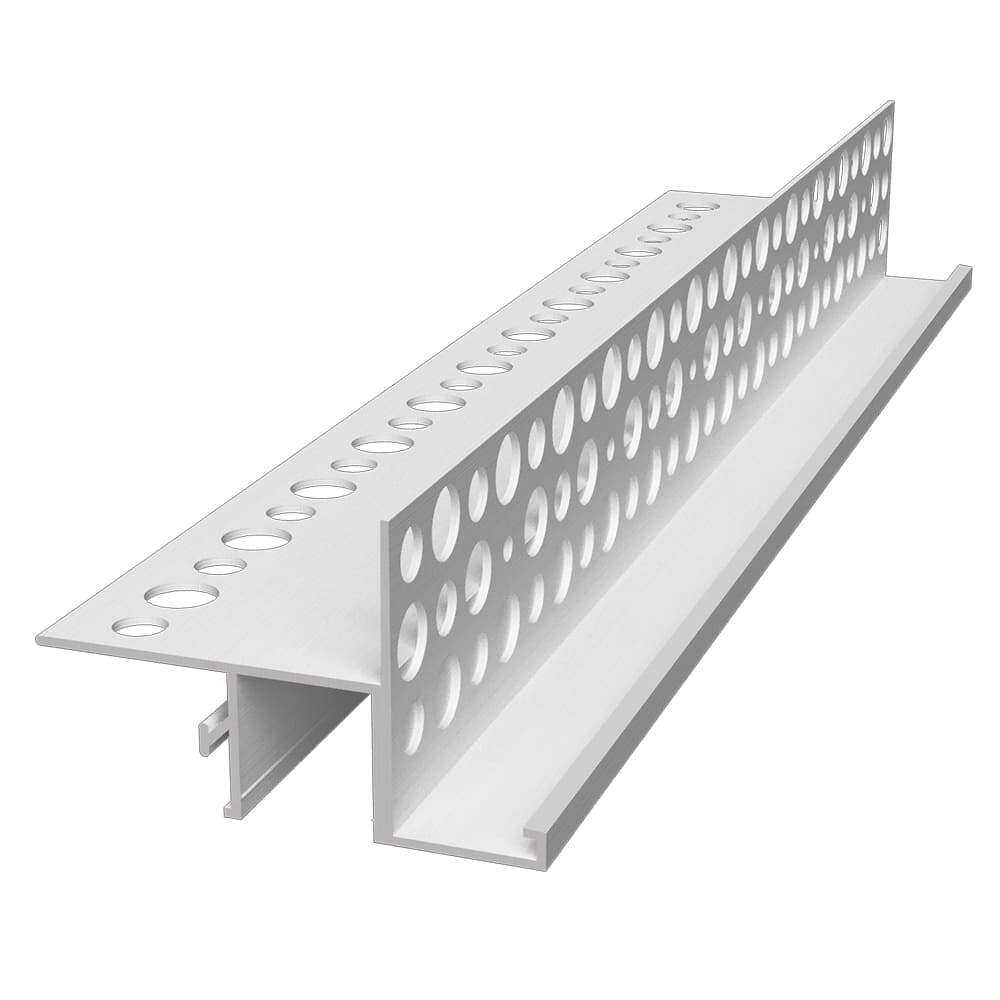

Drip Screed Reveals
Designed for stucco or plaster soffits when a drip and reveal need to be combined
To assist with moving moisture away from the wall.
Quick Actions:

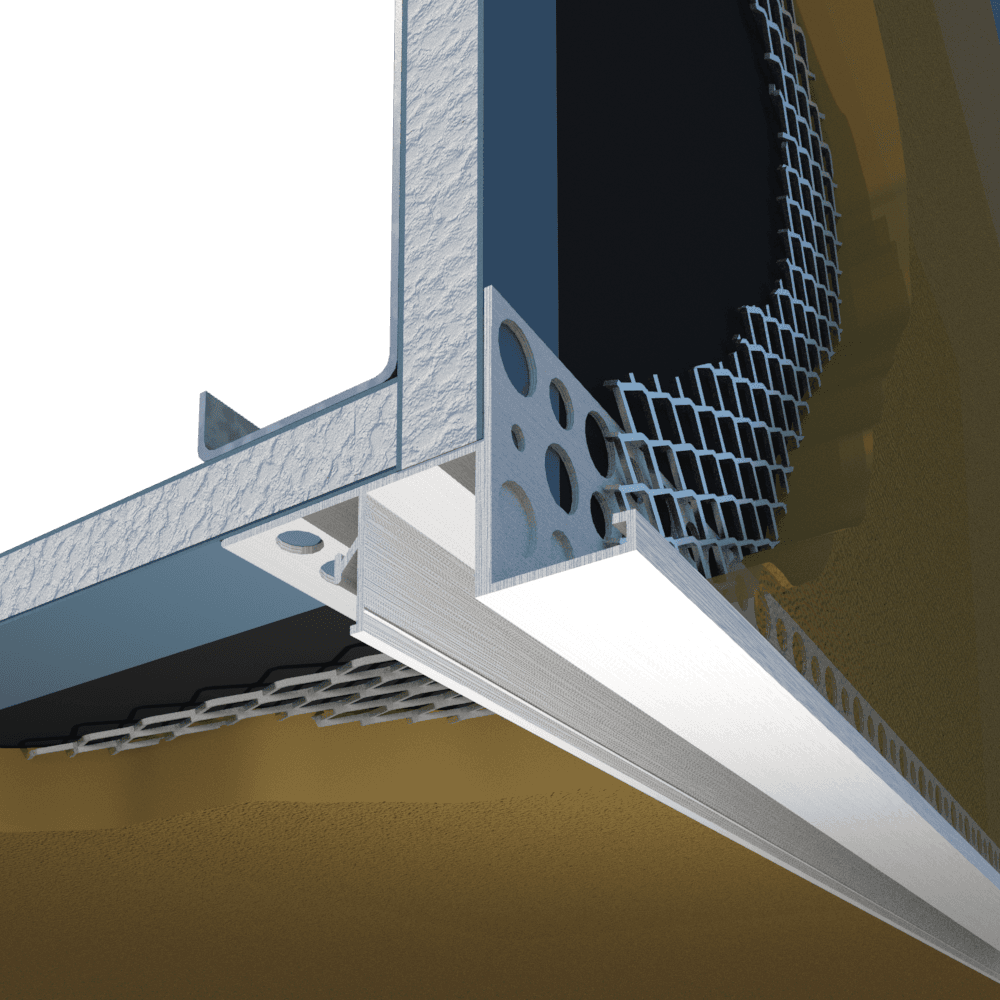

Designed for stucco or plaster soffits when a drip and reveal need to be combined to assist with moving moisture away from the wall.
Product Data & Ordering Information

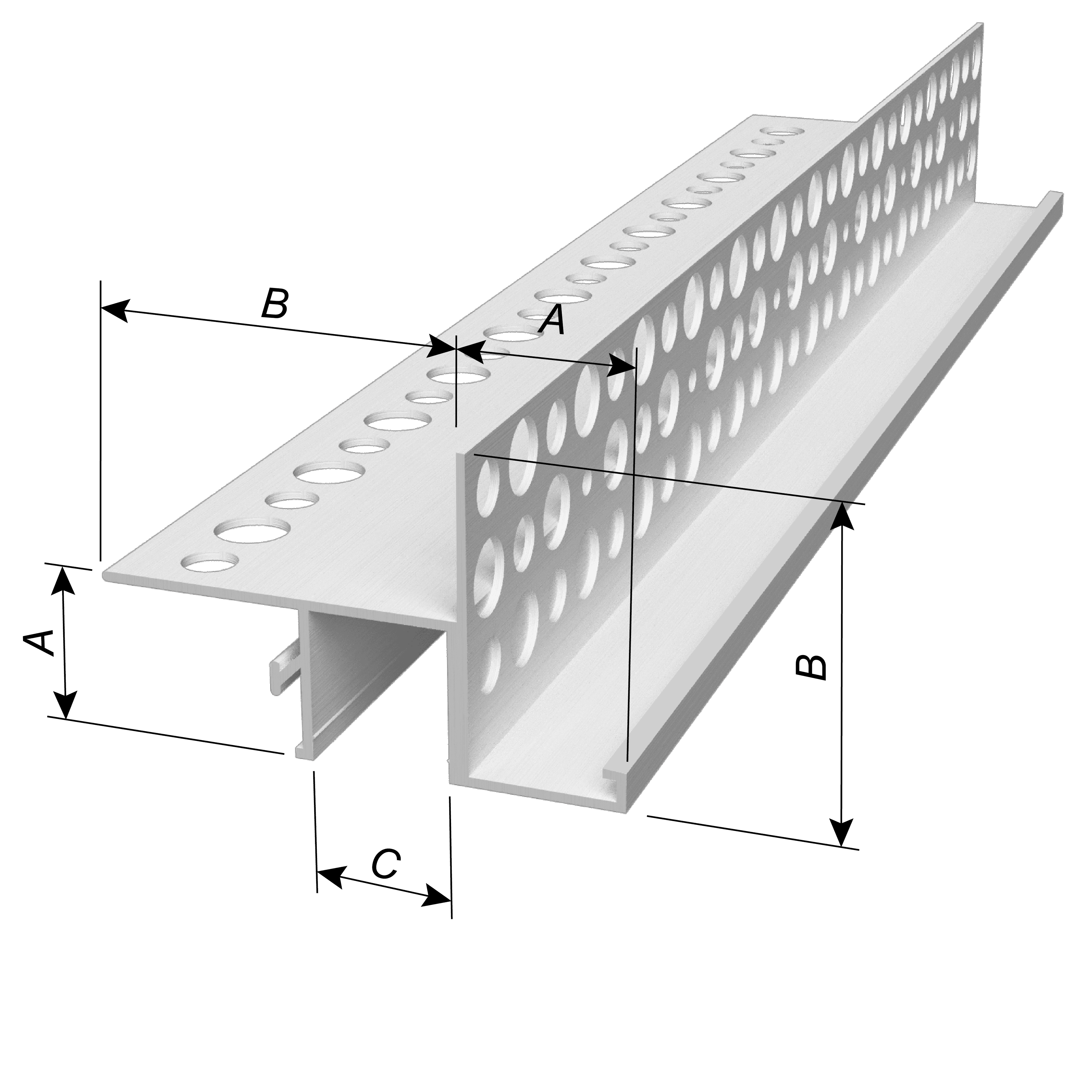

| Product code | Ground (A) | Flange (B) | Reveal (C) | Pcs./Box |
|---|---|---|---|---|
| DCS50-50 | 1/2" | 1-3/4" | 1/2" | 10 |
| DCS58-50 | 5/8" | 1-3/4" | 1/2" | 10 |
| DCS75-50 | 3/4" | 1-3/4" | 1/2" | 9 |
| DCS78-50 | 7/8" | 1-3/4" | 1/2" | 9 |
| DCS100-50 | 1" | 1-3/4" | 1/2" | 9 |
| DCS50-75 | 1/2" | 1-3/4" | 3/4" | 10 |
| DCS58-75 | 5/8" | 1-3/4" | 3/4" | 10 |
| DCS75-75 | 3/4" | 1-3/4" | 3/4" | 9 |
| DCS78-75 | 7/8" | 1-3/4" | 3/4" | 9 |
| DCS100-75 | 1" | 1-3/4" | 3/4" | 9 |
| DCS50-100 | 1/2" | 1-3/4" | 1" | 10 |
| DCS58-100 | 5/8" | 1-3/4" | 1" | 10 |
| DCS75-100 | 3/4" | 1-3/4" | 1" | 9 |
| DCS78-100 | 7/8" | 1-3/4" | 1" | 9 |
| DCS100-100 | 1" | 1-3/4" | 1" | 9 |
Dissimilar grounds may be specified. Contact ClarkDietrich for more information.
