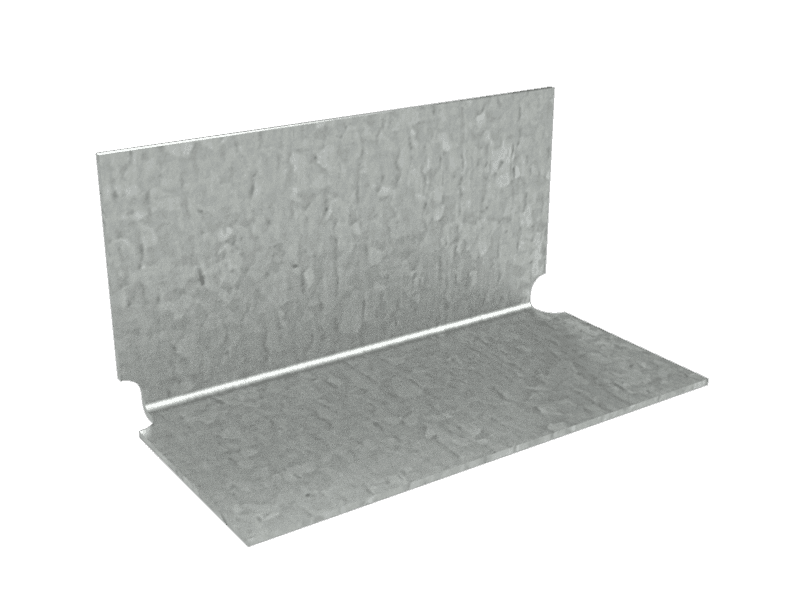

EasyClip™ A-Series™ End Clip
Used in knee wall connections or to reinforce jamb stud connections at the primary frame
EasyClip™ A-Series™ End Clips are most commonly used to reinforce connections in knee-wall applications or to reinforce jamb stud connections to the primary frame.
Quick Actions:
These clips are unpunched as the specific application will determine the appropriate number and placement of fasteners.
- 3" x 3" legs.
- Available in 16, 14 and 12 gauge.
- A-Series™ clips are unpunched.
- Lengths available: 3" and 6".
Alternative Products
- EasyClip™ D-Series™ Anchor Clip
- EasyClip™ T-Series™ Tall Anchor Clip
- SwiftClip™ LA-Series™ Support Clip
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Pcs./Bucket |
|---|---|---|---|---|---|
| A543 | 16 | 54 | 0.0566 | 3 x 3 x 3 | 100 |
| A546 | 16 | 54 | 0.0566 | 3 x 3 x 6 | 100 |
| A683 | 14 | 68 | 0.0713 | 3 x 3 x 3 | 100 |
| A686 | 14 | 68 | 0.0713 | 3 x 3 x 6 | 100 |
| A973 | 12 | 97 | 0.1017 | 3 x 3 x 3 | 100 |
| A976 | 12 | 97 | 0.1017 | 3 x 3 x 6 | 50 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
