EIFS/DEFS Corner Bead
Designed for use in EIFS and DEFS wall and ceiling systems
These corner beads are hard to damage, rust-proof, and straight.
Quick Actions:
These corner beads are hard to damage, rust-proof, and straight.

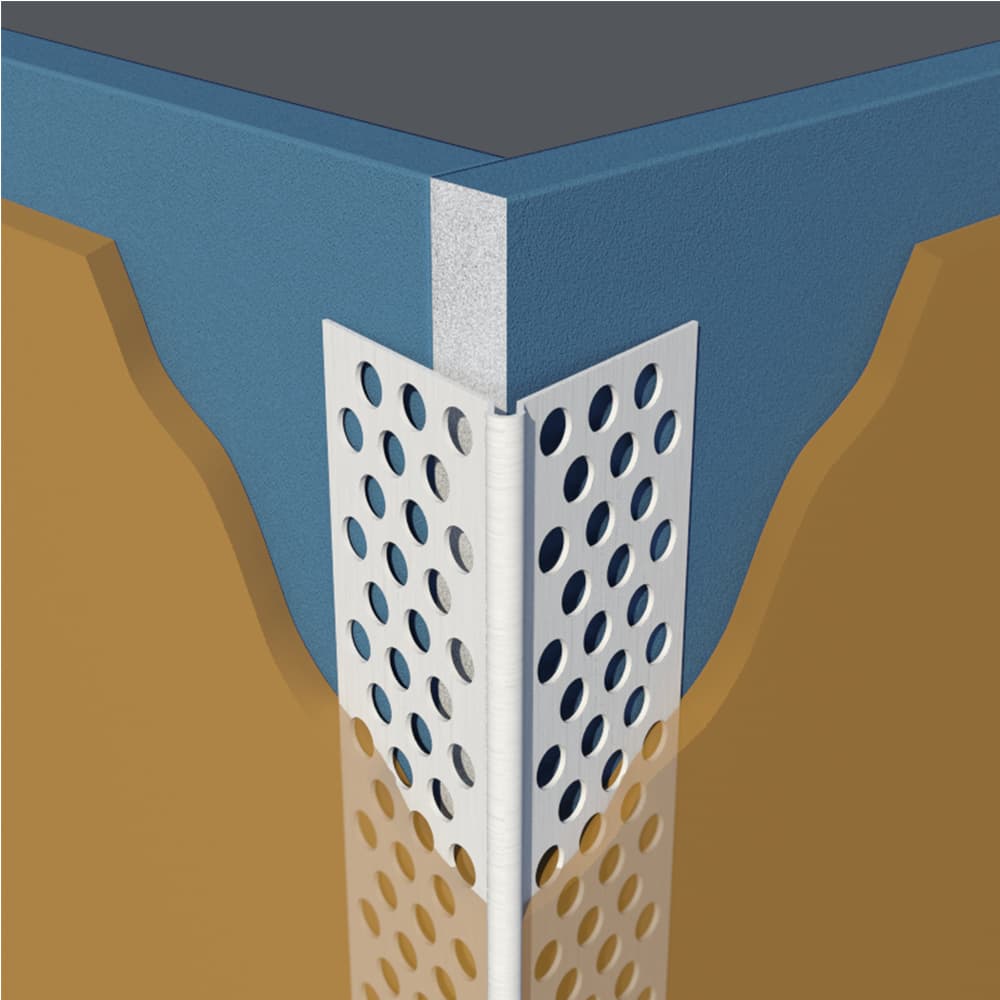

Large perforations allow the base coat mixture to easily flow through and bond to the substrate for better embedment.
When joining continuous runs of corner bead the preferred method of alignment is to miter the flanges. When creating corner bead intersections, such as for exterior soffit corners, miter all flanges to prevent overlapping, which will cause poor bonding and alignment.
Product Data & Ordering Information

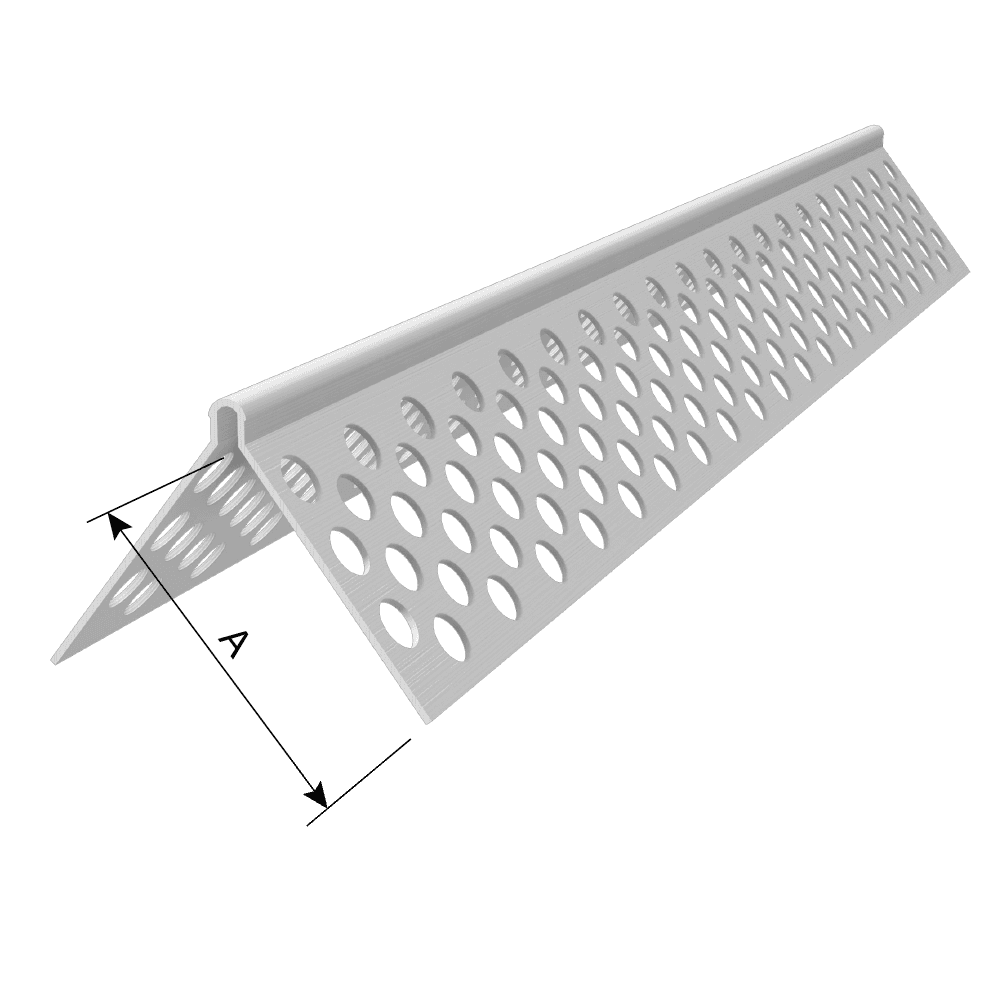

| Product code | Finish thickness | Insulation thickness | Flanges | Pcs./Ctn. |
|---|---|---|---|---|
| CB138E | 1/16" | All | 1-3/8" | 100 |
| CB158E | 1/16" | All | 1-5/8" | 75 |
Note: Available in 8 ft. and 10 ft. lengths.
