Extended SwiftClip™ LE-Series
USED In rigid attachments of wall studs to the structure

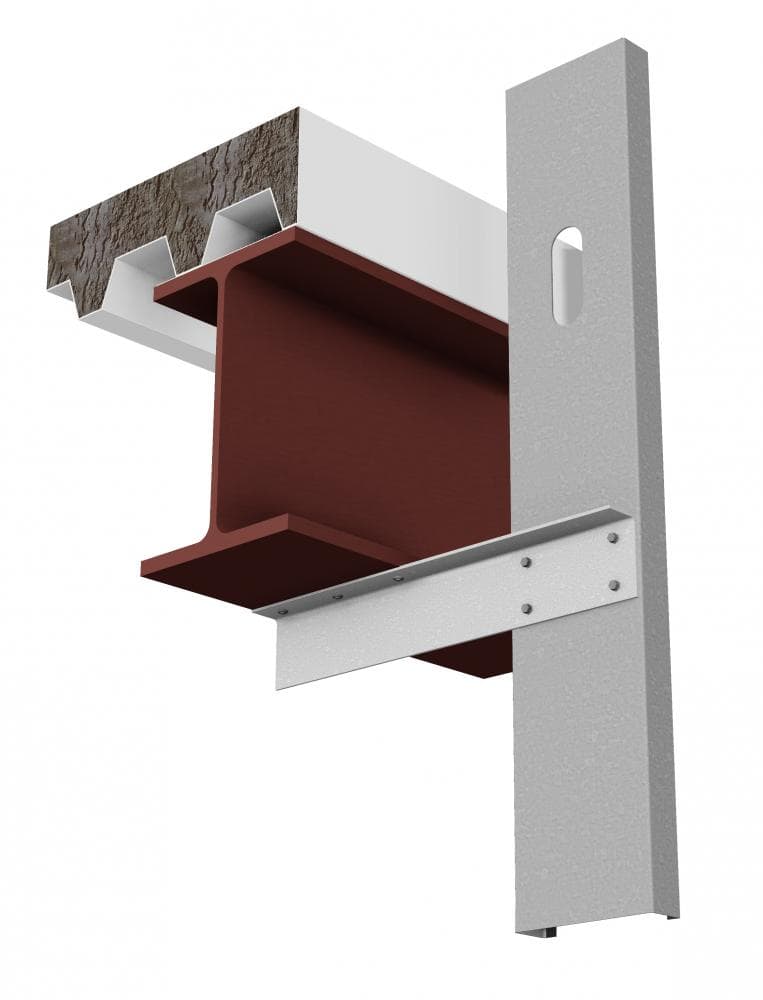

ClarkDietrich’s Extended SwiftClip™ LE-Series rigid framing clip is used to attach exterior wall studs to the structure of the building.
Quick Actions:
Designed to resist horizontal and vertical loads, the extended rigid clips install easily with screws, powder-actuated fasteners, or welds. This clip is ideal for all medium and large standoff conditions. These clips are unpunched as the specific application will determine the appropriate number and placement of fasteners.

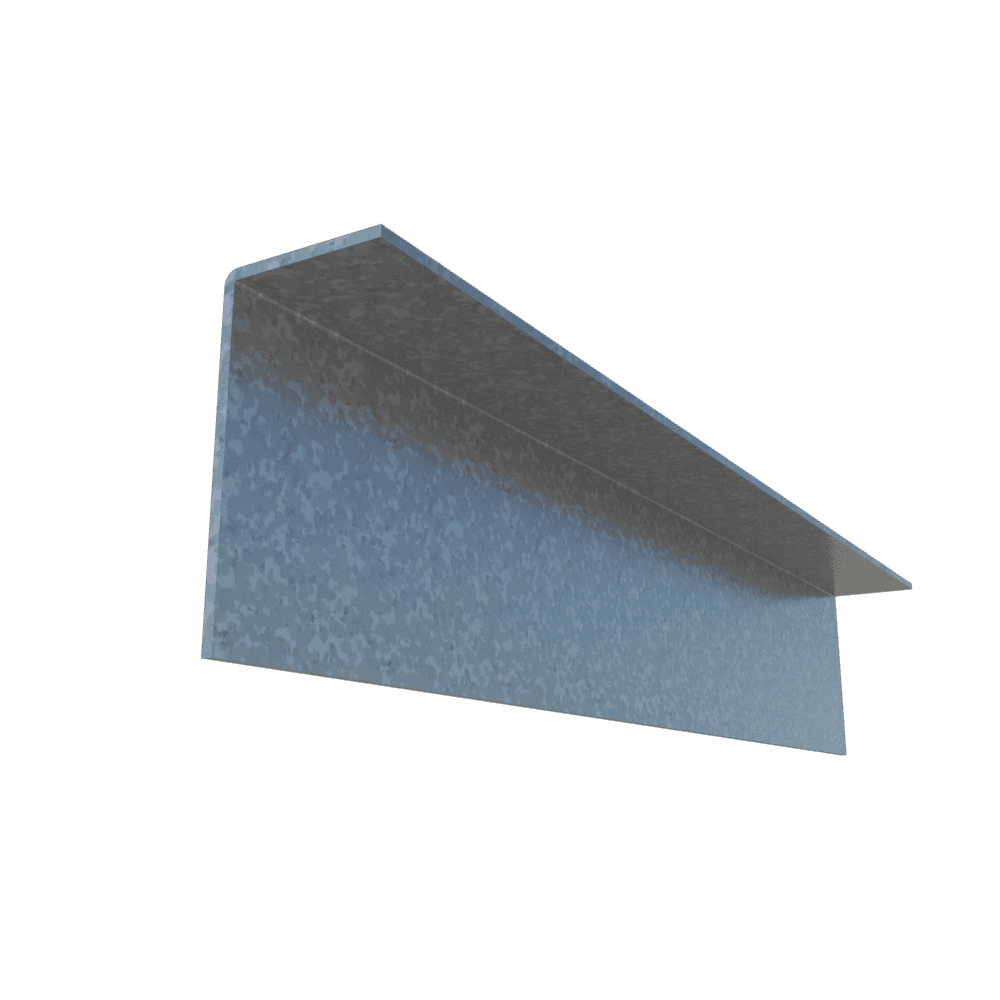

- 1-1/2" x 3" legs for up to 20" long clips

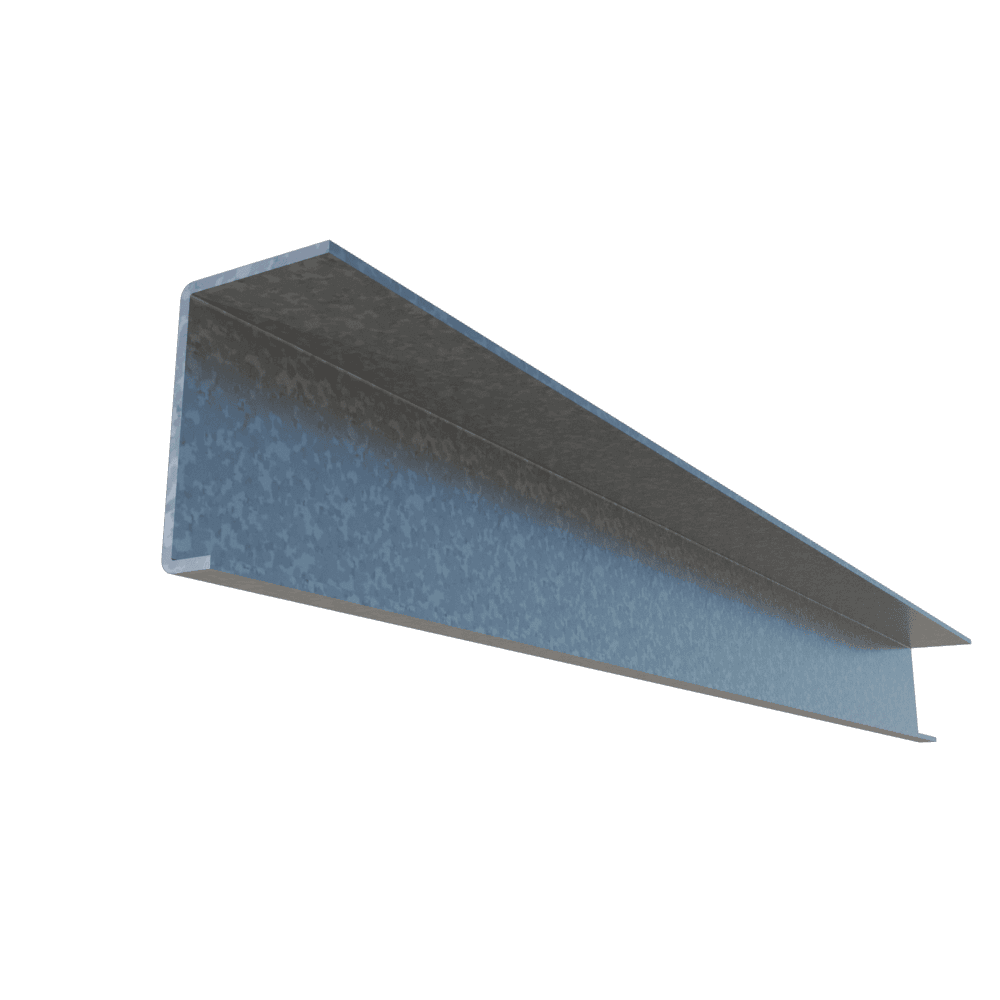

- 1-1/2" x 2-5/8" legs + 1/2" return for clips longer than 20"
- All clips: 68 mils (14 gauge) 50ksi, CP90
- Extended SwiftClip LE-Series clips are unpunched
- Lengths available: 16", 18", 20", 24", 30" and 36"
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Box |
|---|---|---|---|---|---|
| LE6816 | 14 | 68 | 0.0713 | 1-1/2" x 3" x 16" | 10 |
| LE6818 | 14 | 68 | 0.0713 | 1-1/2" x 3" x 18" | 10 |
| LE6820 | 14 | 68 | 0.0713 | 1-1/2" x 3" x 20" | 10 |
| LE6824 | 14 | 68 | 0.0713 | 1-1/2" x 2-5/8" x 24" | 10 |
| LE6830 | 14 | 68 | 0.0713 | 1-1/2" x 2-5/8" x 30" | 10 |
| LE6836 | 14 | 68 | 0.0713 | 1-1/2" x 2-5/8" x 36" | 10 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
