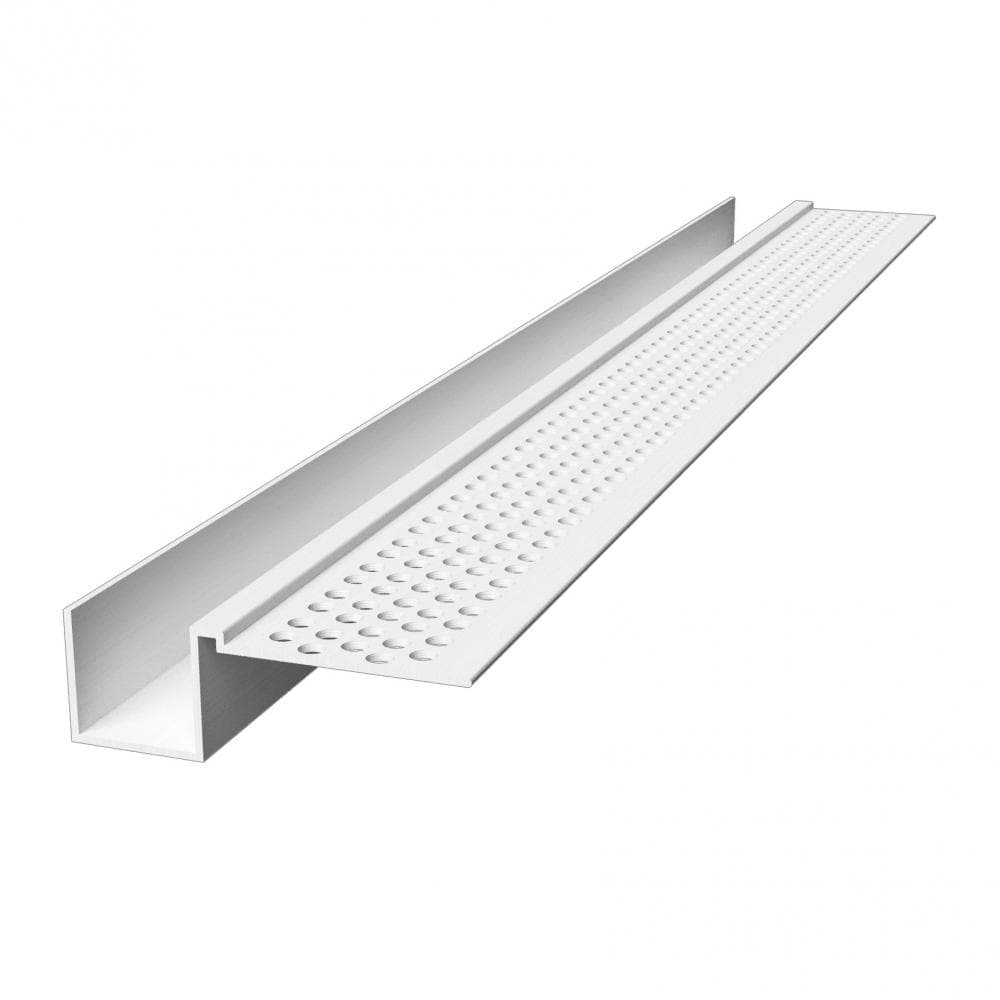

"F" Channel Reveal
Create 1/4" to 1" reveals in drywall surfaces

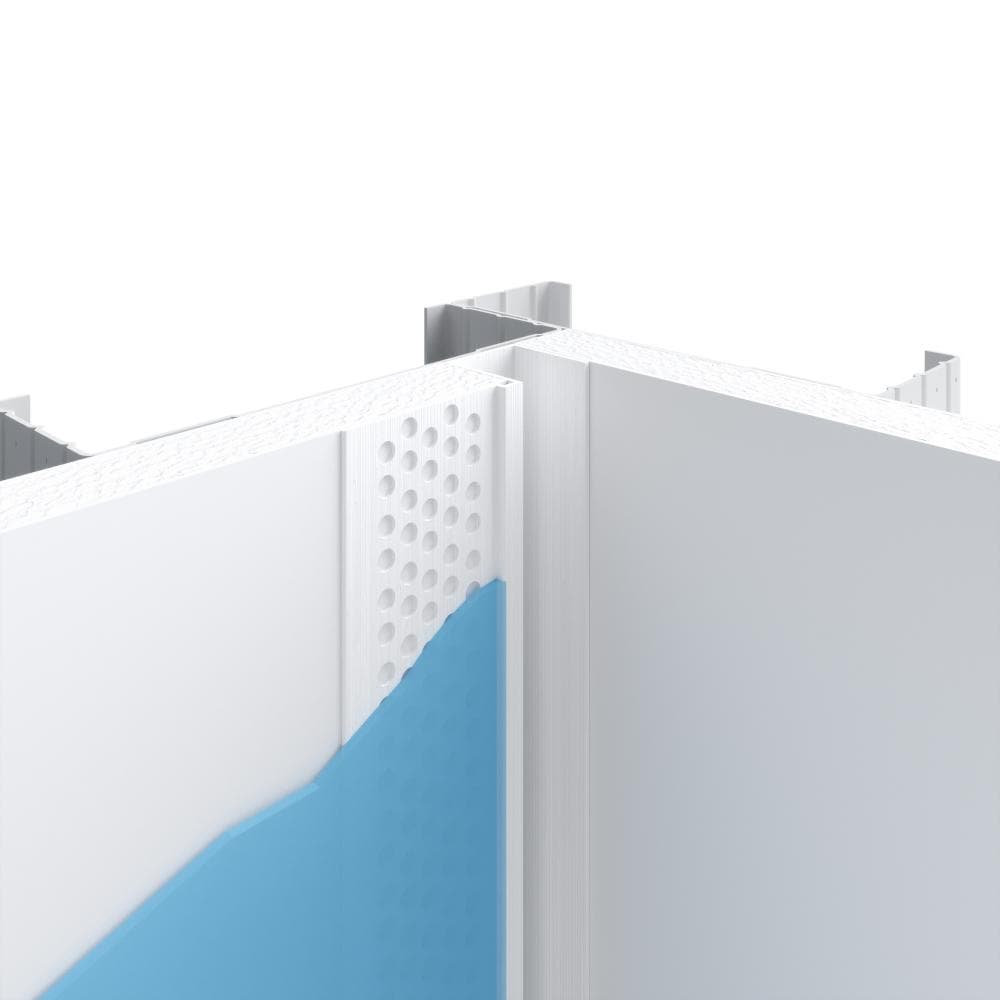

Designed to be used at the juncture of door jambs, windows and other unfinished surfaces.
Quick Actions:
Designed to be used at the juncture of door jambs, windows and other unfinished surfaces. Factory fabricated intersections available.
Product Data & Ordering Information

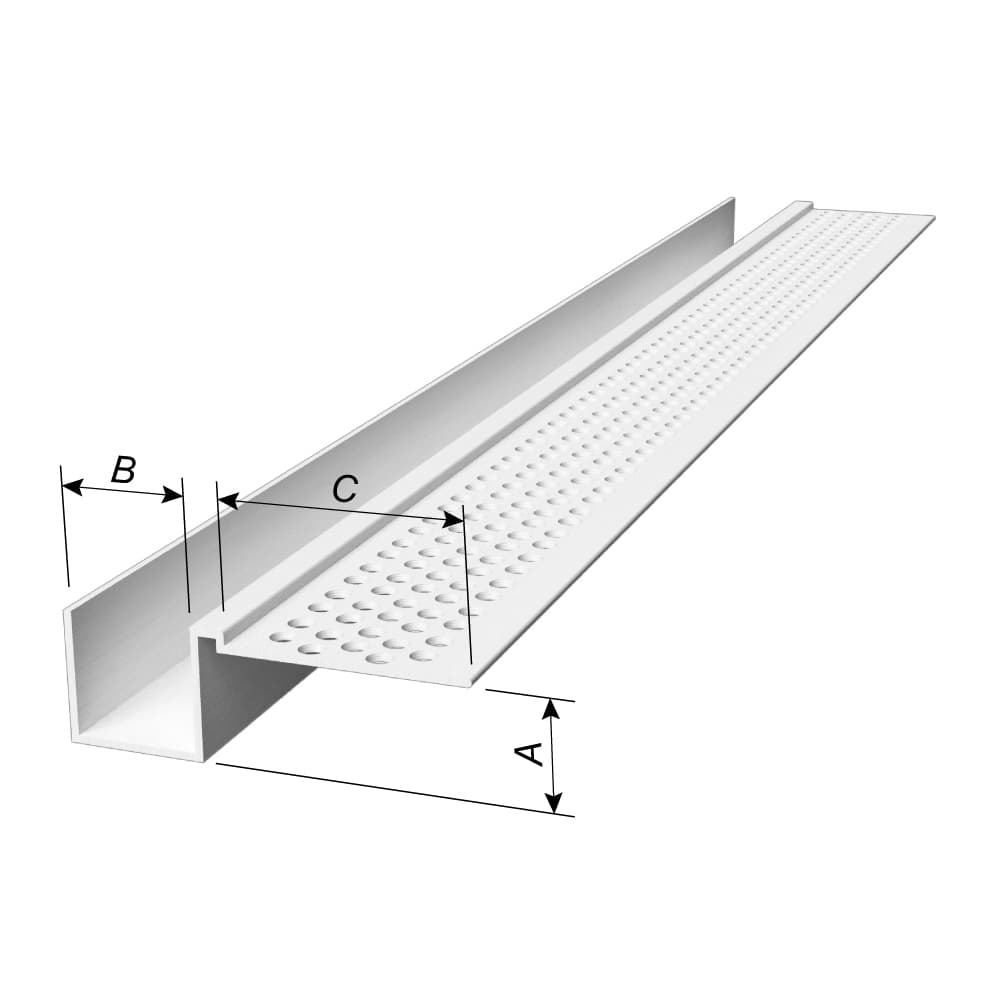

| Product code | Board thickness (A) | Reveal (B) | Flange (C) | Length | Pcs./Box |
|---|---|---|---|---|---|
| FDC50-25S | 1/2" | 1/4" | 1-1/8" | 10' | 25 |
| FDC50-38S | 1/2" | 3/8" | 1-1/8" | 10' | 25 |
| FDC50-50S | 1/2" | 1/2" | 1-1/8" | 10' | 25 |
| FDC50-75S | 1/2" | 3/4" | 1-1/8" | 10' | 20 |
| FDC50-100S | 1/2" | 1" | 1-1/8" | 10' | 15 |
| FDC58-25S | 5/8" | 1/4" | 1-1/8" | 10' | 20 |
| FDC58-38S | 5/8" | 3/8" | 1-1/8" | 10' | 20 |
| FDC58-50S | 5/8" | 1/2" | 1-1/8" | 10' | 15 |
| FDC58-75S | 5/8" | 3/4" | 1-1/8" | 10' | 15 |
| FDC58-100S | 5/8" | 1" | 1-1/8" | 10' | 10 |
