"F" Series Architectural Soffit Vent

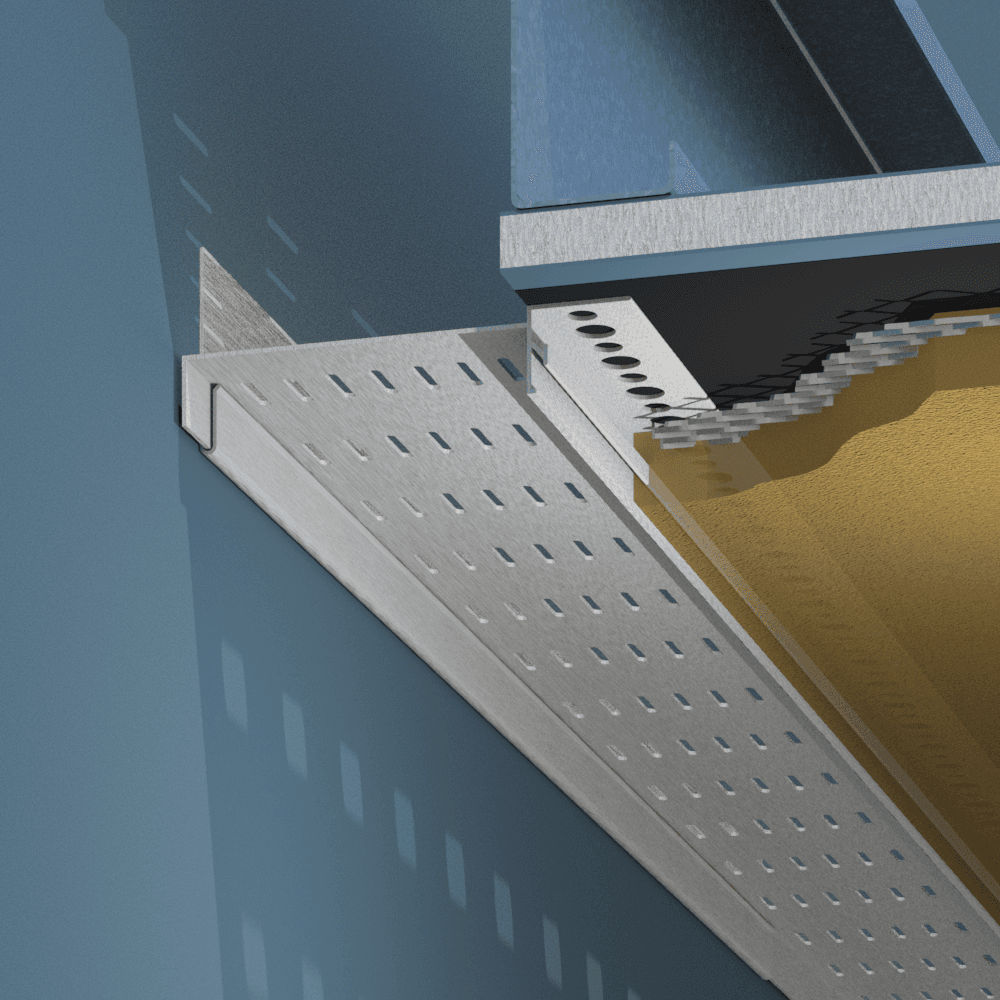

AFCS Series of one-piece soffit vent with a reinforcing rib to key into stucco
3/4" elongated vent holes.
Quick Actions:
AFCS Series of one-piece soffit vent with a reinforcing rib to key into stucco. 3/4" elongated vent holes. Vent clips are provided to connect soffit vents.
Product Data & Ordering Information
| Product code | Ground (A) | Vent width (B) | Overall width (C) | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| AFCS-50-200V | 1/2" | 2" | 3" | 7 sq. in. | 20 |
| AFCS-58-200V | 5/8" | 18 | |||
| AFCS-75-200V | 3/4" | 15 | |||
| AFCS-78-200V | 7/8" | 13 | |||
| AFCS-100-200V | 1" | 12 | |||
| AFCS-50-300V | 1/2" | 3" | 4" | 8 sq. in. | 18 |
| AFCS-58-300V | 5/8" | 15 | |||
| AFCS-75-300V | 3/4" | 15 | |||
| AFCS-78-300V | 7/8" | 13 | |||
| AFCS-100-300V | 1" | 12 | |||
| AFCS-50-400V | 1/2" | 4" | 5" | 9 sq. in. | 20 |
| AFCS-58-400V | 5/8" | 18 | |||
| AFCS-75-400V | 3/4" | 14 | |||
| AFCS-78-400V | 7/8" | 12 | |||
| AFCS-100-400V | 1" | 10 |
Note: AFCS Series can be ordered with the 300VFZ clip for installation. Items are made to order, lead time will apply. Contact customer service at 1-800-648-4695.
