"F" Series Control Joint and Vent
Designed to work on narrow overhangs
Where vents are needed to go against fascia or walls.
Quick Actions:

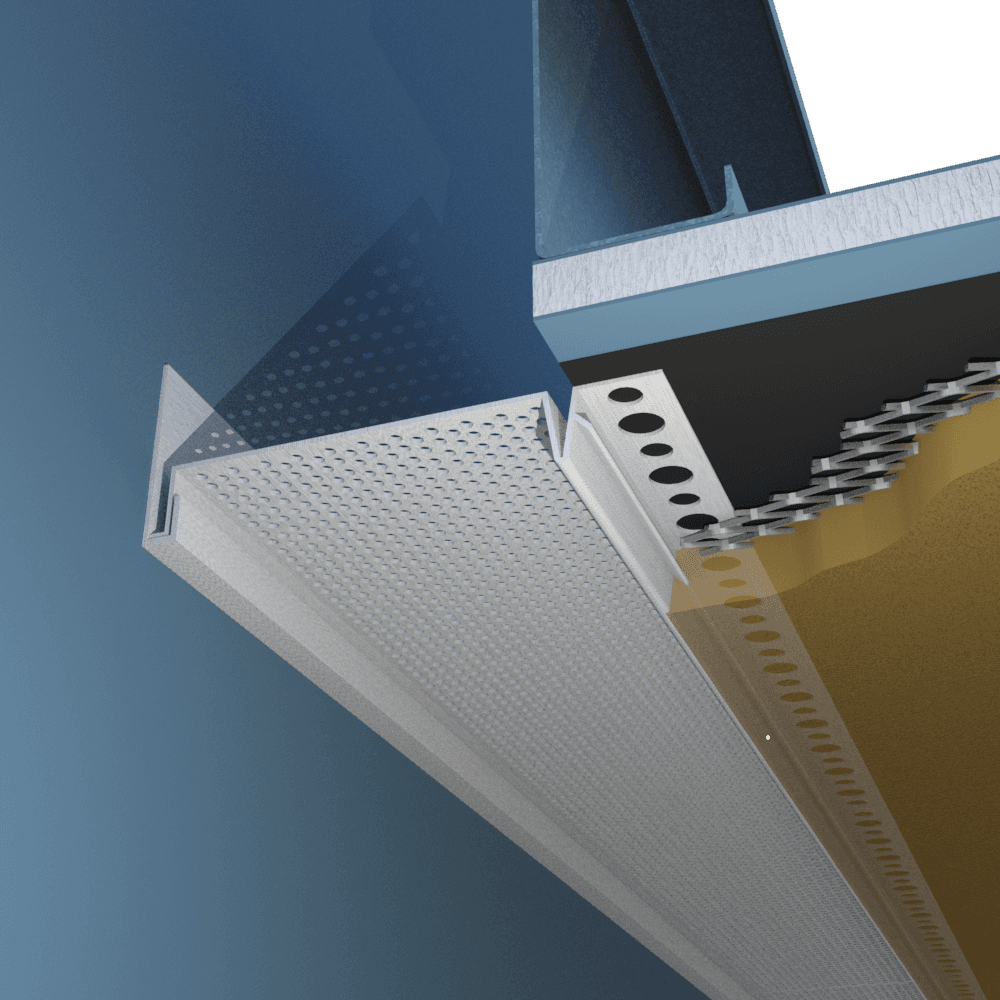

Designed to work on narrow overhangs where vents are needed to go against fascia or walls. Vent clips are provided to connect soffit vents and a perforated flange aids in embedment.
Product Data & Ordering Information

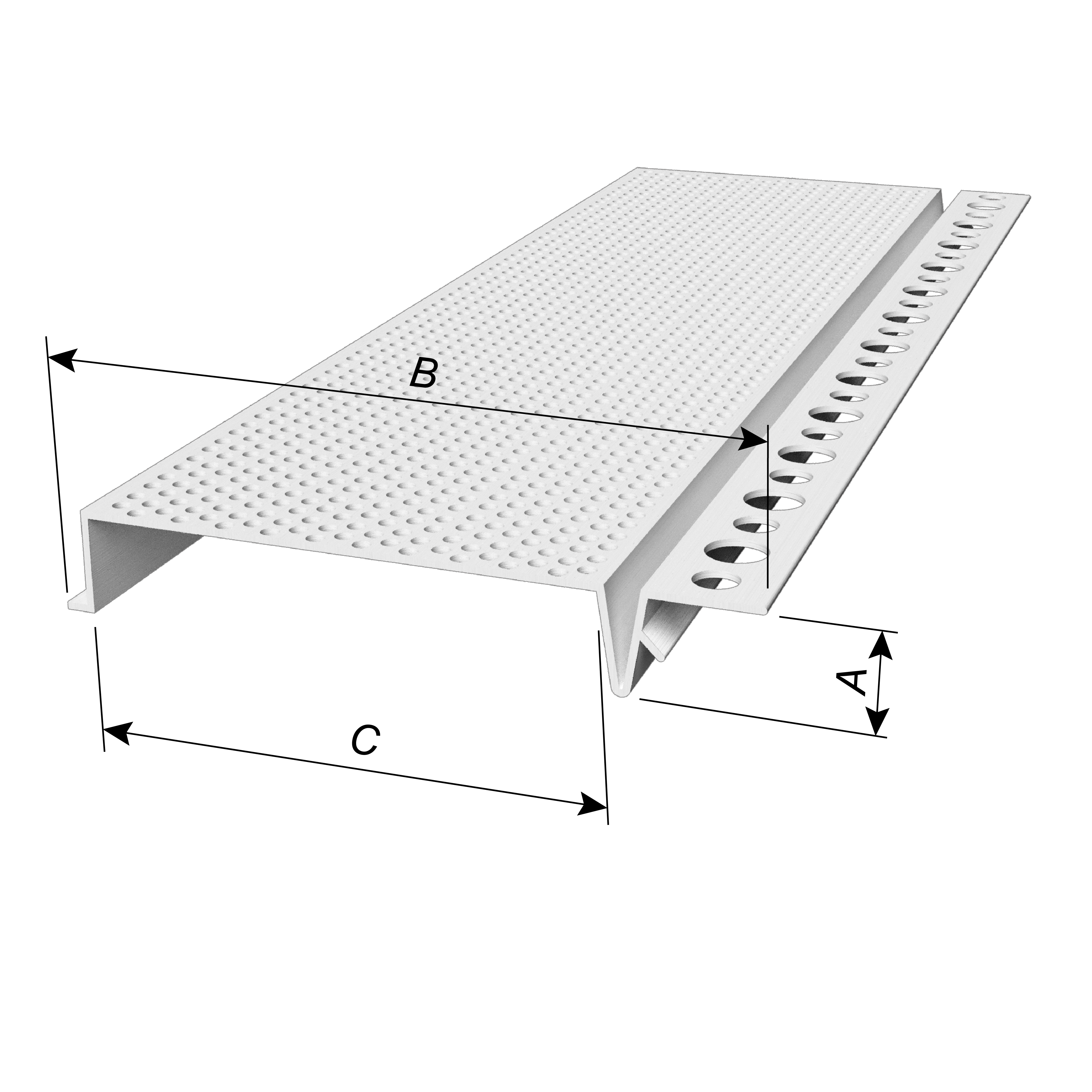

| Product code | Ground (A) | Overall width (B) | Vented Reveal (C) | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| F1538R-200V | 3/8" | 4" | 2" | 8 sq. in. | 20 |
| F1550R-200V | 1/2" | 18 | |||
| F1558R-200V | 5/8" | 18 | |||
| F1575R-200V | 3/4" | 15 | |||
| F1578R-200V | 7/8" | 12 | |||
| F15100R-200V | 1" | 12 | |||
| F1538R-300V | 3/8" | 5" | 3" | 15 sq. in. | 15 |
| F1550R-300V | 1/2" | 15 | |||
| F1558R-300V | 5/8" | 12 | |||
| F1575R-300V | 3/4" | 12 | |||
| F1578R-300V | 7/8" | 10 | |||
| F15100R-300V | 1" | 10 | |||
| F1538R-400V | 3/8" | 6" | 4" | 16 sq. in. | 12 |
| F1550R-400V | 1/2" | 12 | |||
| F1558R-400V | 5/8" | 10 | |||
| F1575R-400V | 3/4" | 8 | |||
| F1578R-400V | 7/8" | 8 | |||
| F15100R-400V | 1" | 8 |
Note: F15 Series can be ordered with the 300VFZ clip for installation.
