FCS Soffit Vent
Available in several grounds and widths
Can be ordered with the 300VFZ clip for installation.
Quick Actions:
Available in several grounds and widths. Can be ordered with the 300VFZ clip for installation.
Product Data & Ordering Information

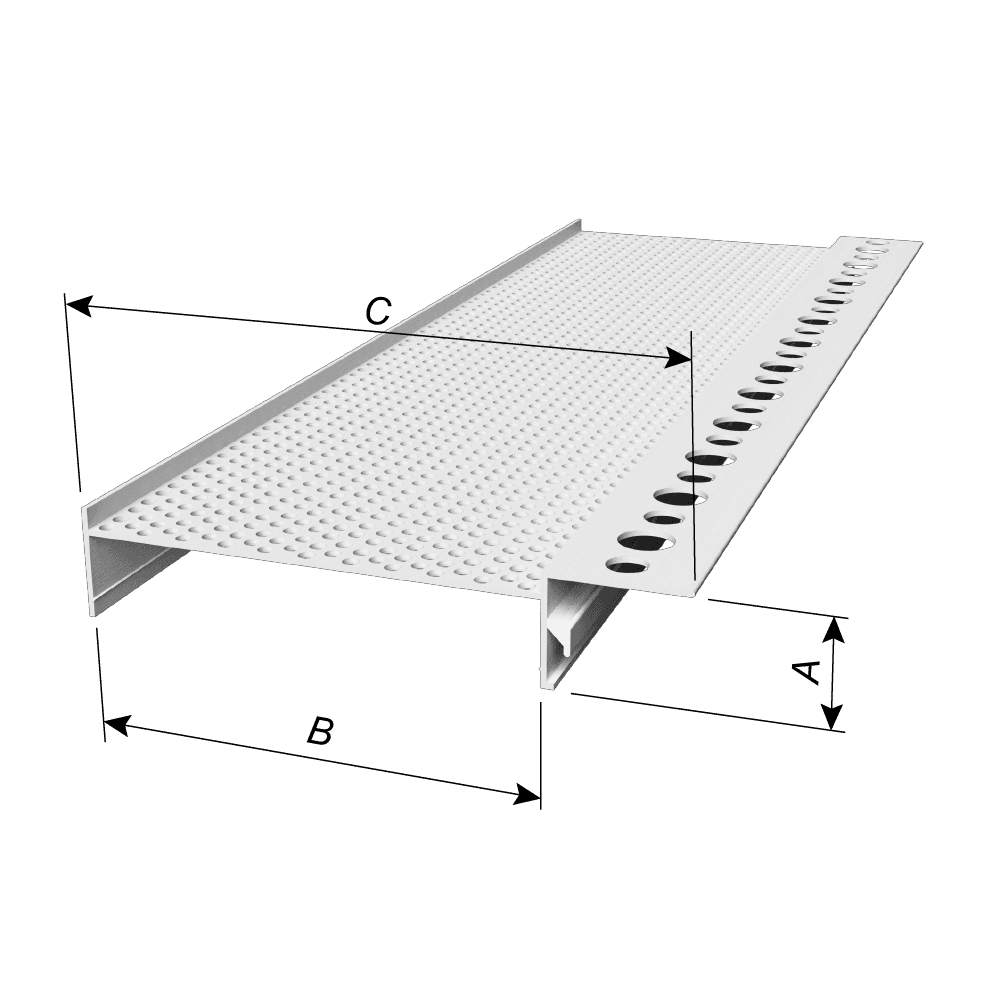

| Product code | Ground (A) | Vent width (B) | Overall width (C) | Pcs./Box |
|---|---|---|---|---|
| FCS50-200V | 1/2" | 2" | 3" | 20 |
| FCS58-200V | 5/8" | 18 | ||
| FCS75-200V | 3/4" | 15 | ||
| FCS78-200V | 7/8" | 13 | ||
| FCS100-200V | 1" | 12 | ||
| FCS50-300V | 1/2" | 3" | 4" | 18 |
| FCS58-300V | 5/8" | 15 | ||
| FCS75-300V | 3/4" | 15 | ||
| FCS78-300V | 7/8" | 13 | ||
| FCS100-300V | 1" | 12 | ||
| FCS50-400V | 1/2" | 4" | 5" | 20 |
| FCS58-400V | 5/8" | 18 | ||
| FCS75-400V | 3/4" | 14 | ||
| FCS78-400V | 7/8" | 12 | ||
| FCS100-400V | 1" | 10 | ||
| FCS50-600V | 1/2" | 6" | 7" | 25 |
| FCS58-600V | 5/8" | 25 | ||
| FCS75-600V | 3/4" | 25 | ||
| FCS78-600V | 7/8" | 20 | ||
| FCS100-600V | 1" | 18 |
