Framing Angles
light and medium framing angles

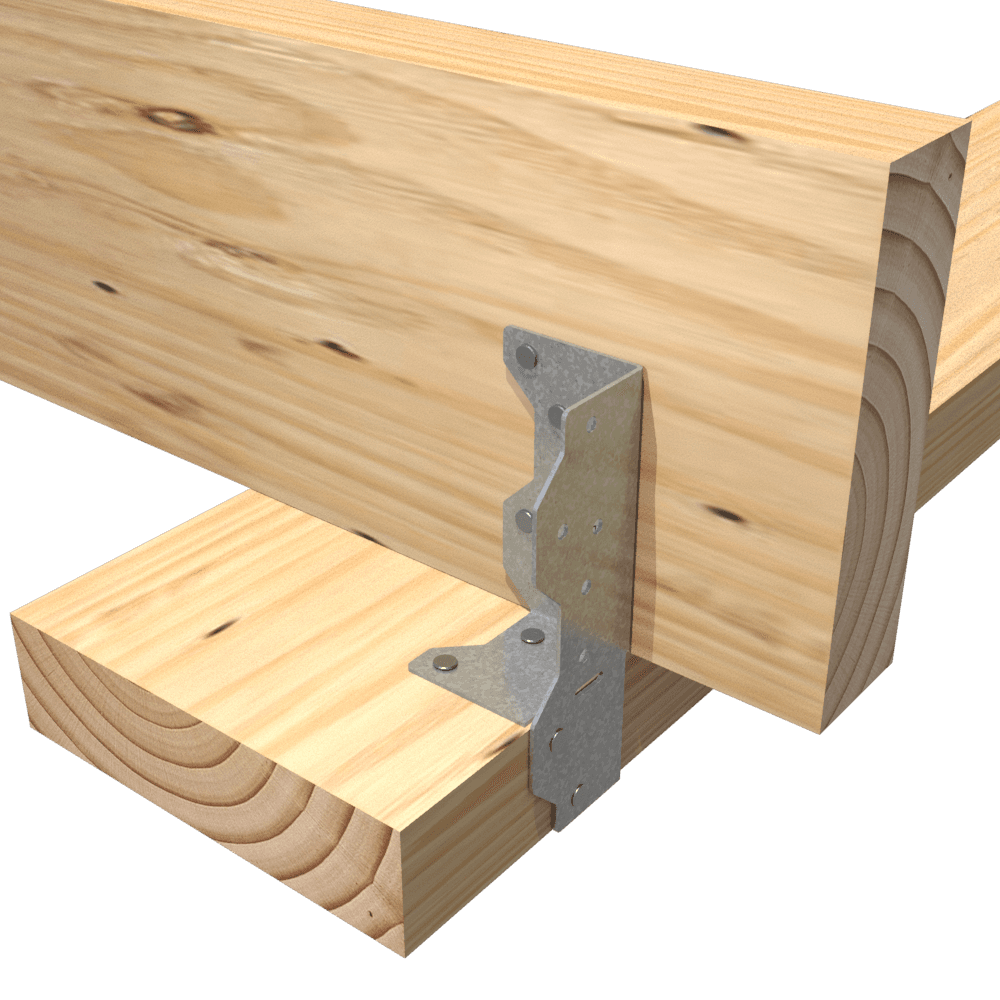

CDFA's provide fast, accurate bolting of two intersecting wood members (reinforcing intersection joints).
Quick Actions:

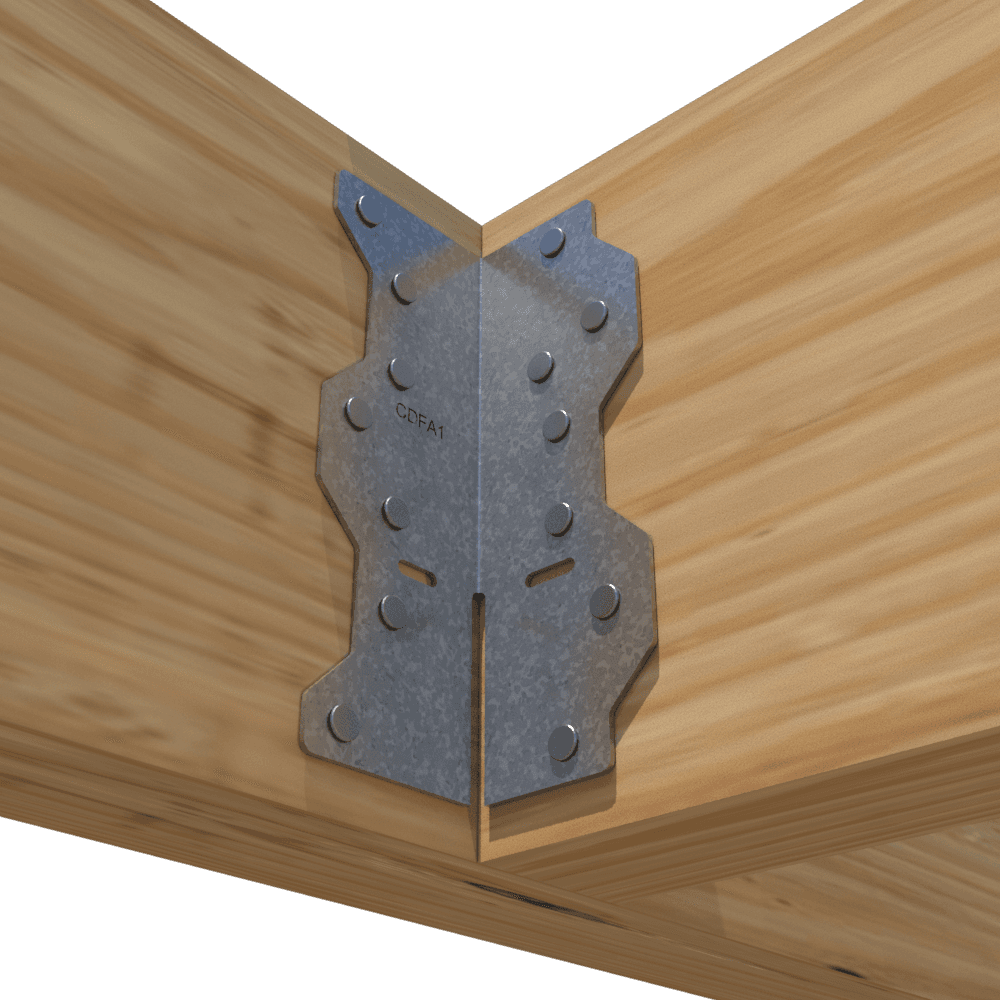

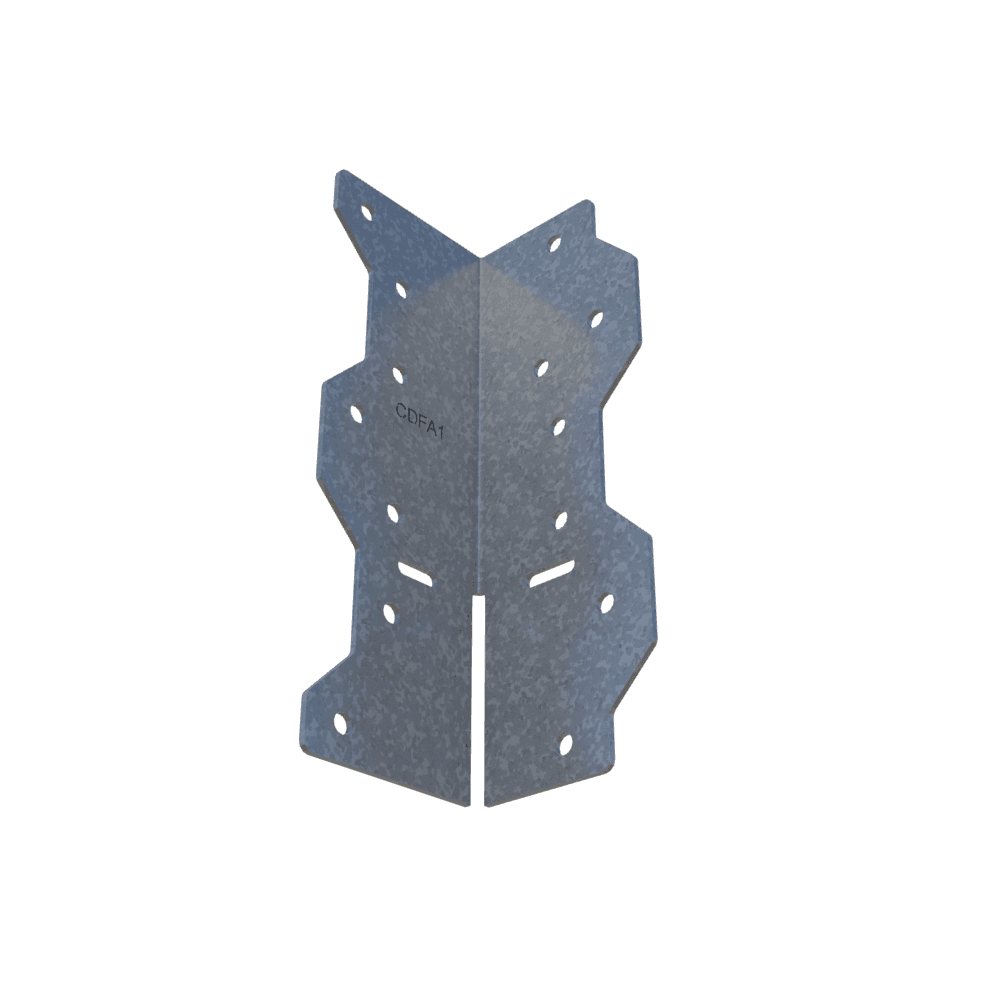

CDFA1 angles provide the builder with the industry’s most versatile framing angle including:
- Prongs - permit faster and easier installation.

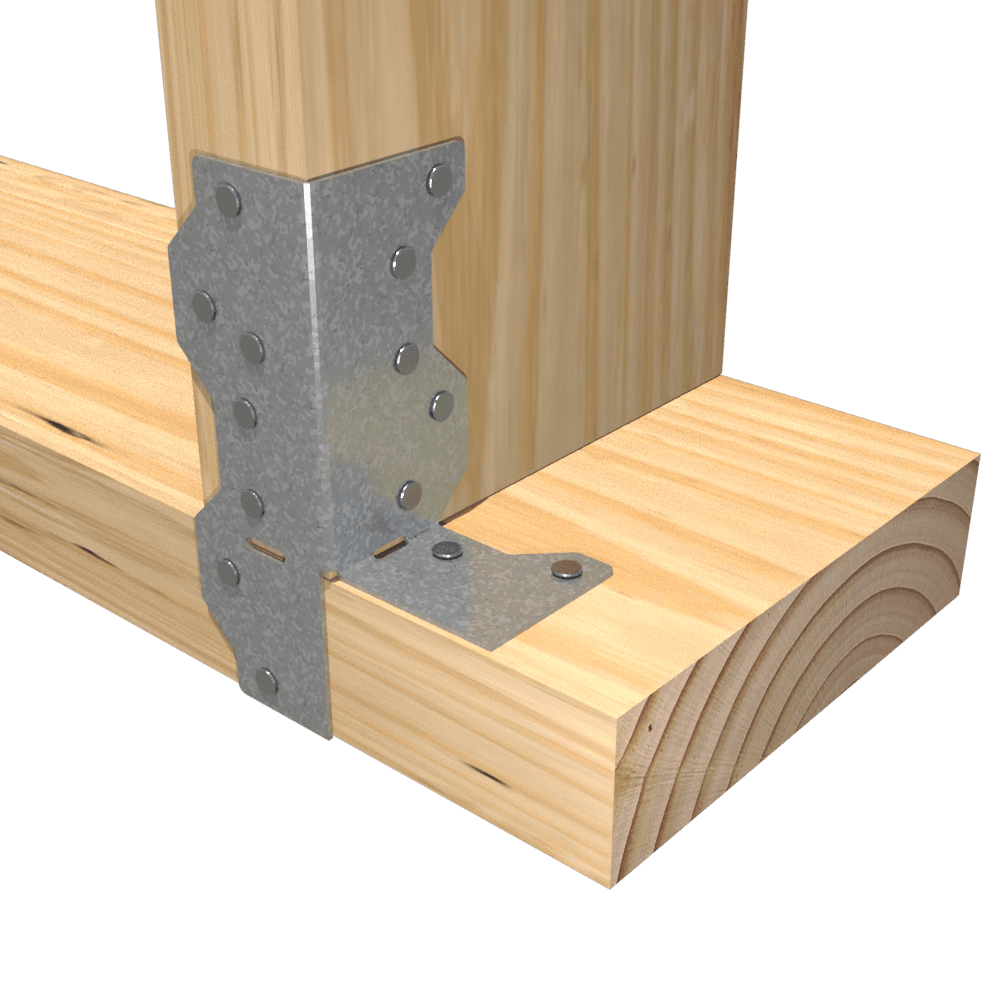

- Bending slots - make accurate bends for all 2- and 3-way anchoring ties on the job.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

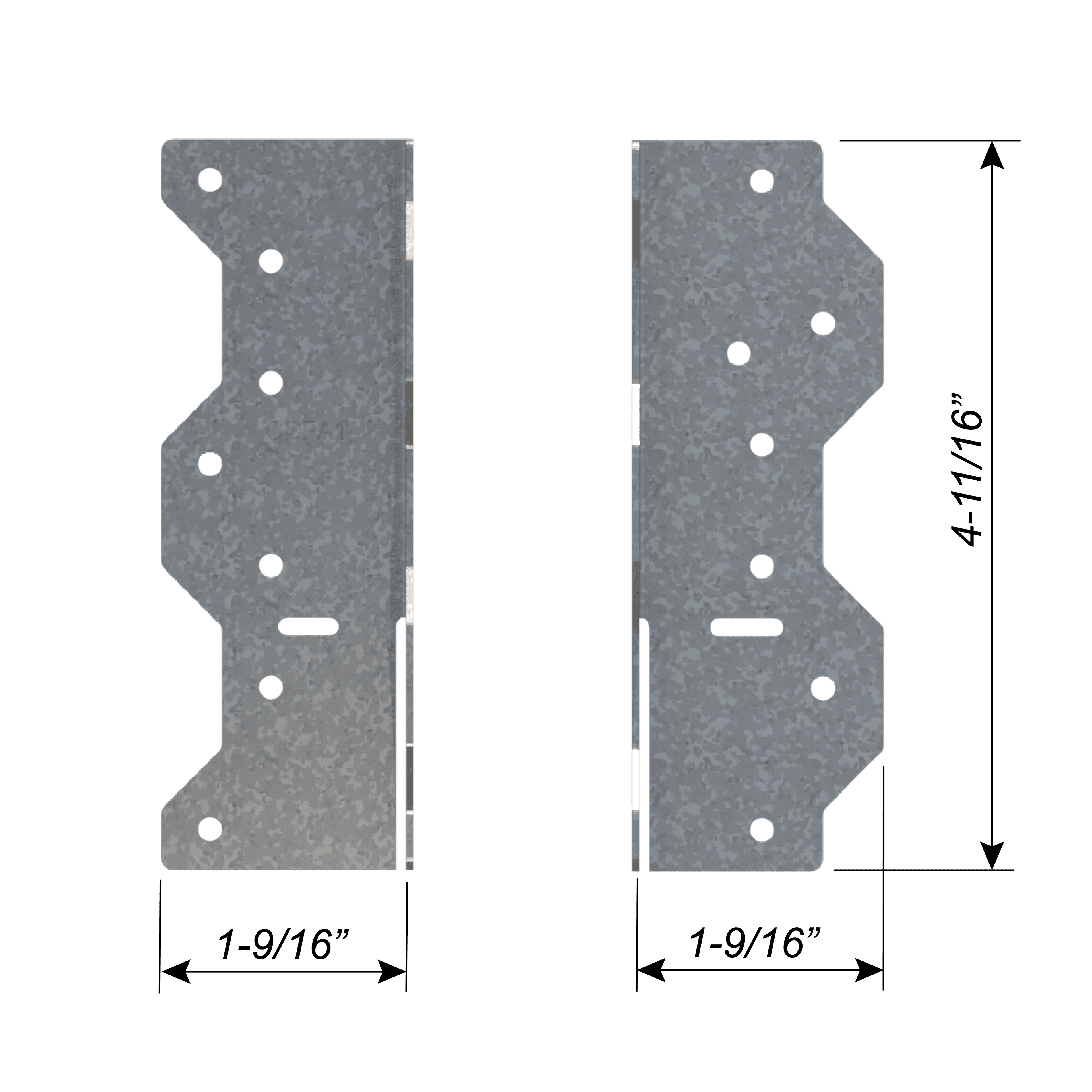

Product Dimensions:
Width (W): 1-9/16"
Height (H): 4-11/16"
Depth (D): 1-9/16"

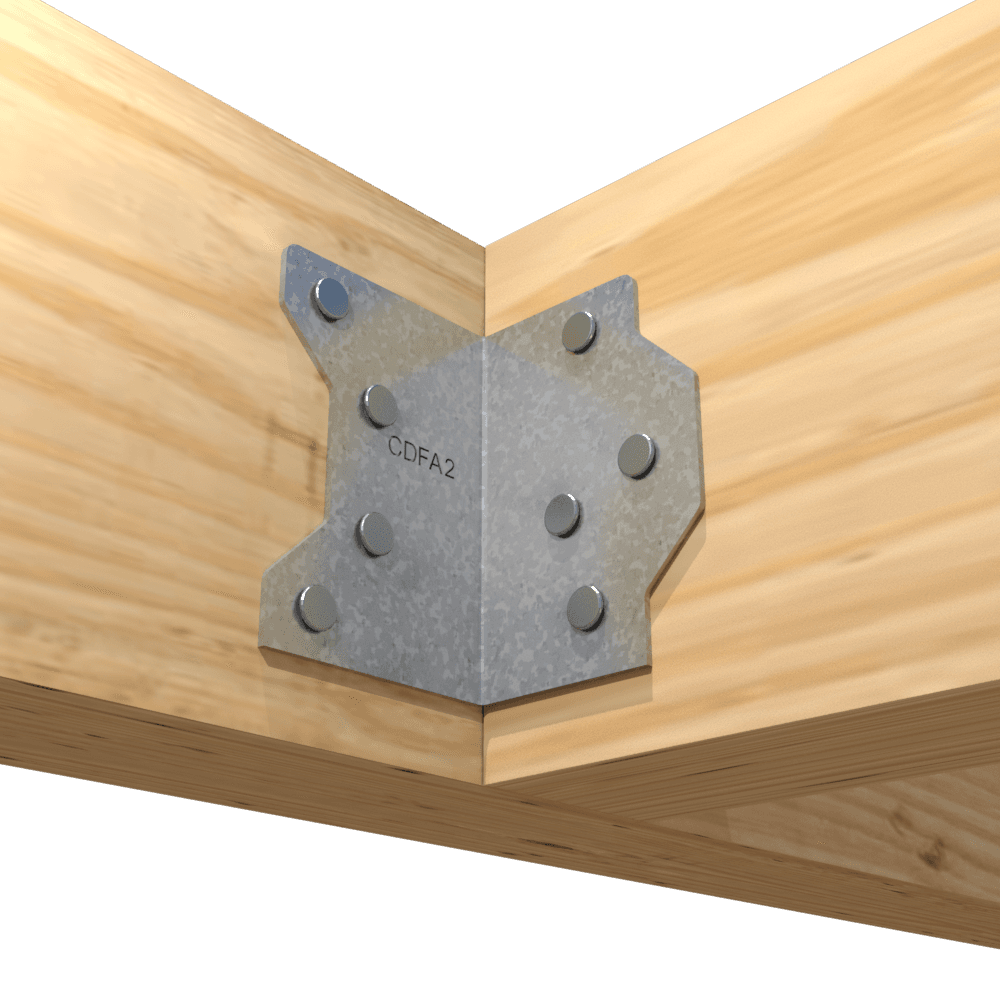

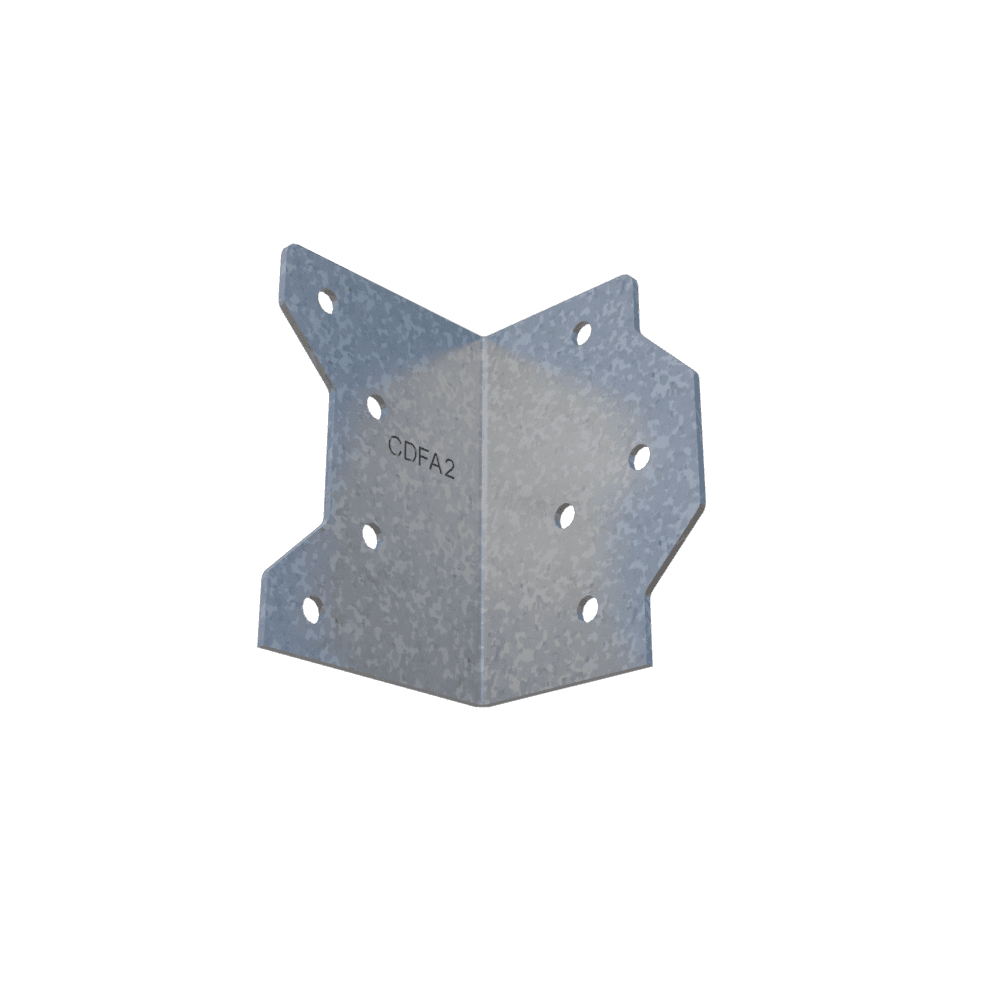

CDFA2 angles have been designed especially for use on 2x4, 2x3, and 3x4 framing. Angles provide the following:
- Prongs - permit faster and easier installation.
- Bending slots - make accurate bends for all 2- and 3-way anchoring ties on the job.
Material: 18ga galvanized steel
Coating: G90
Yield Strength: 50ksi

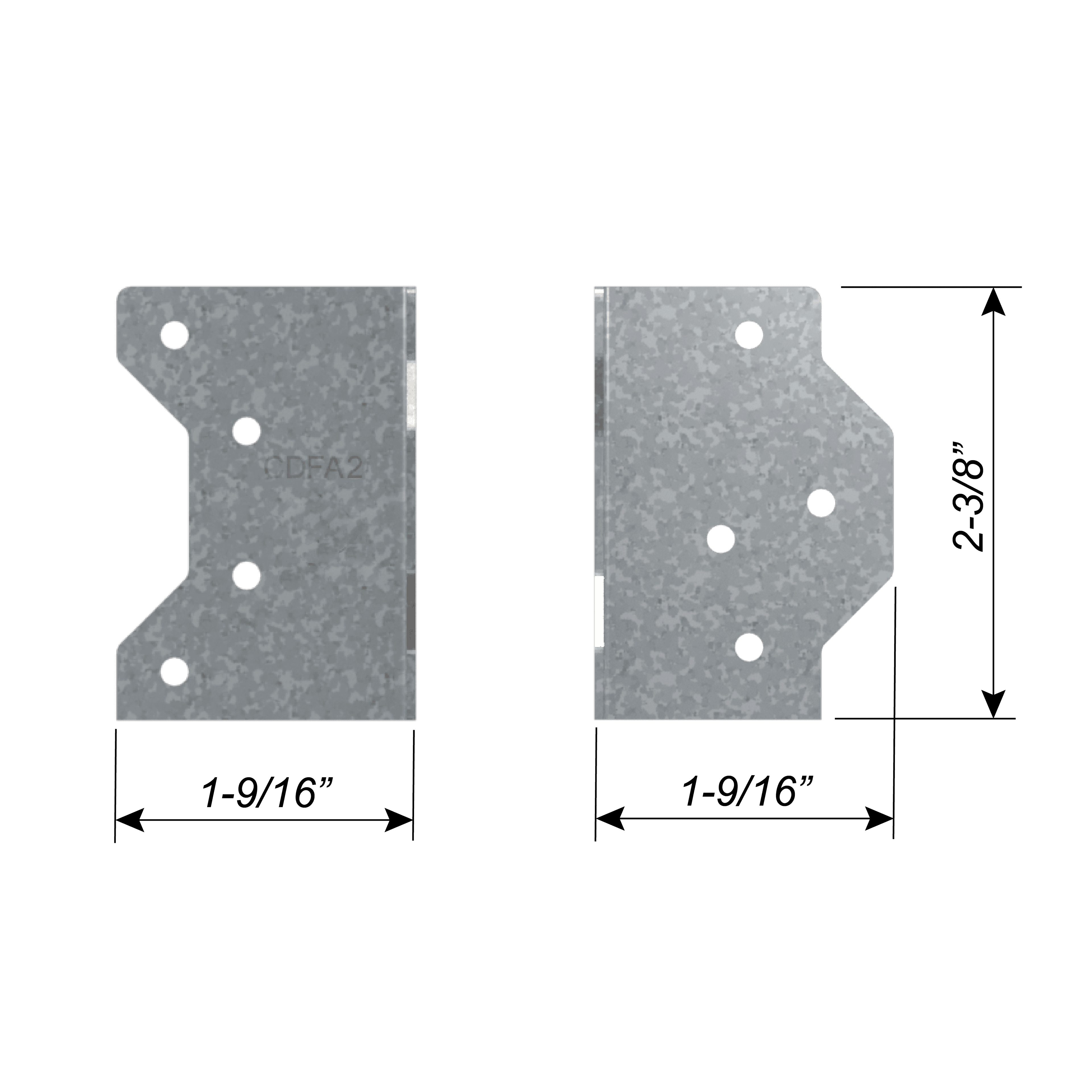

Product Dimensions:
Width (W): 1-9/16"
Height (H): 2-3/8"
Depth (D): 1-9/16"
