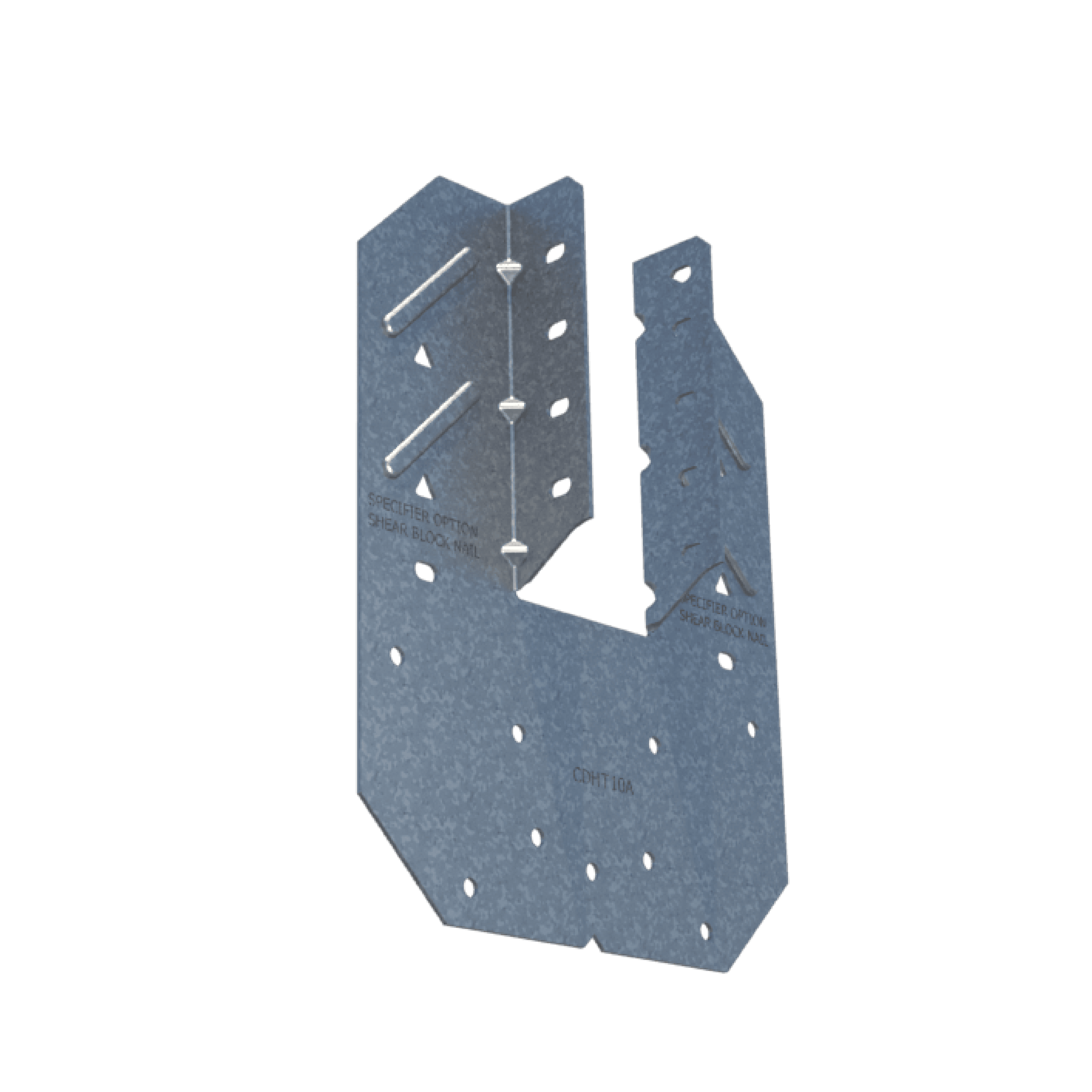

CDHT10A

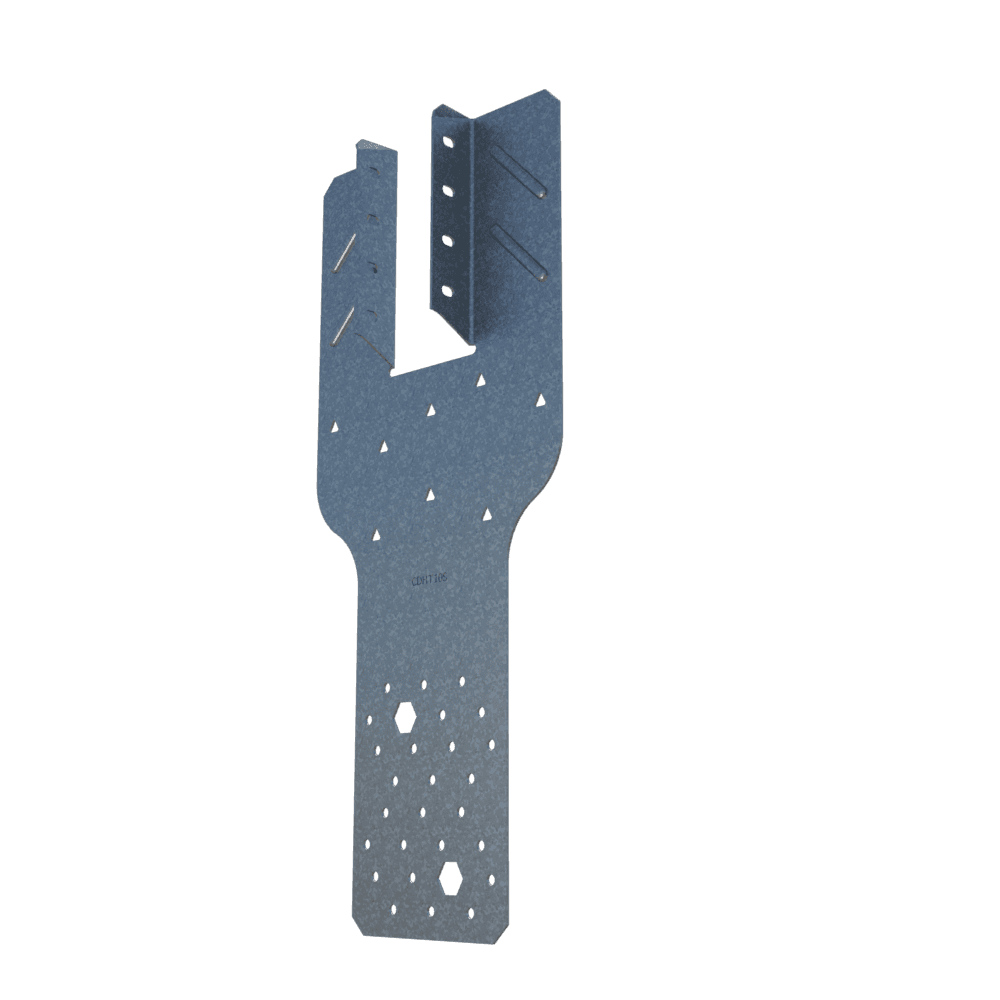

CDHT10S
CDHT10A
CDHT10S

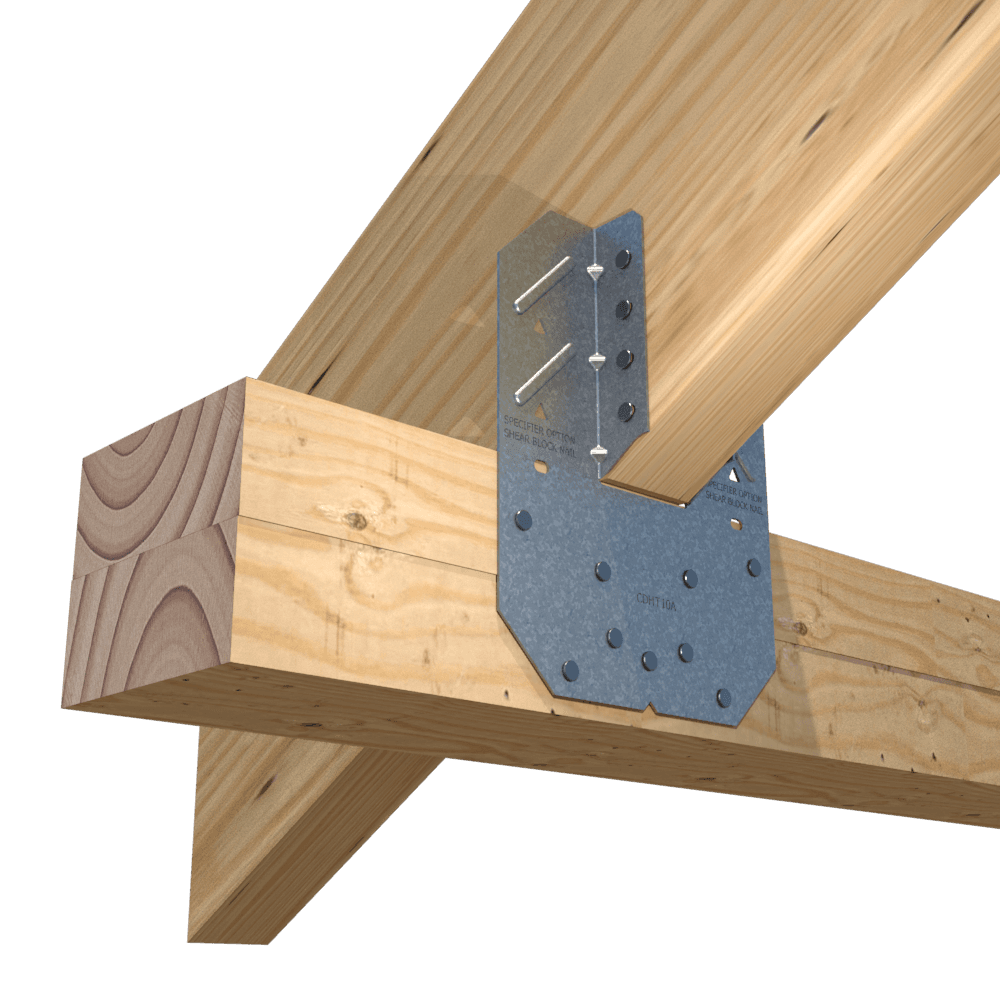

CDHT10A-APP

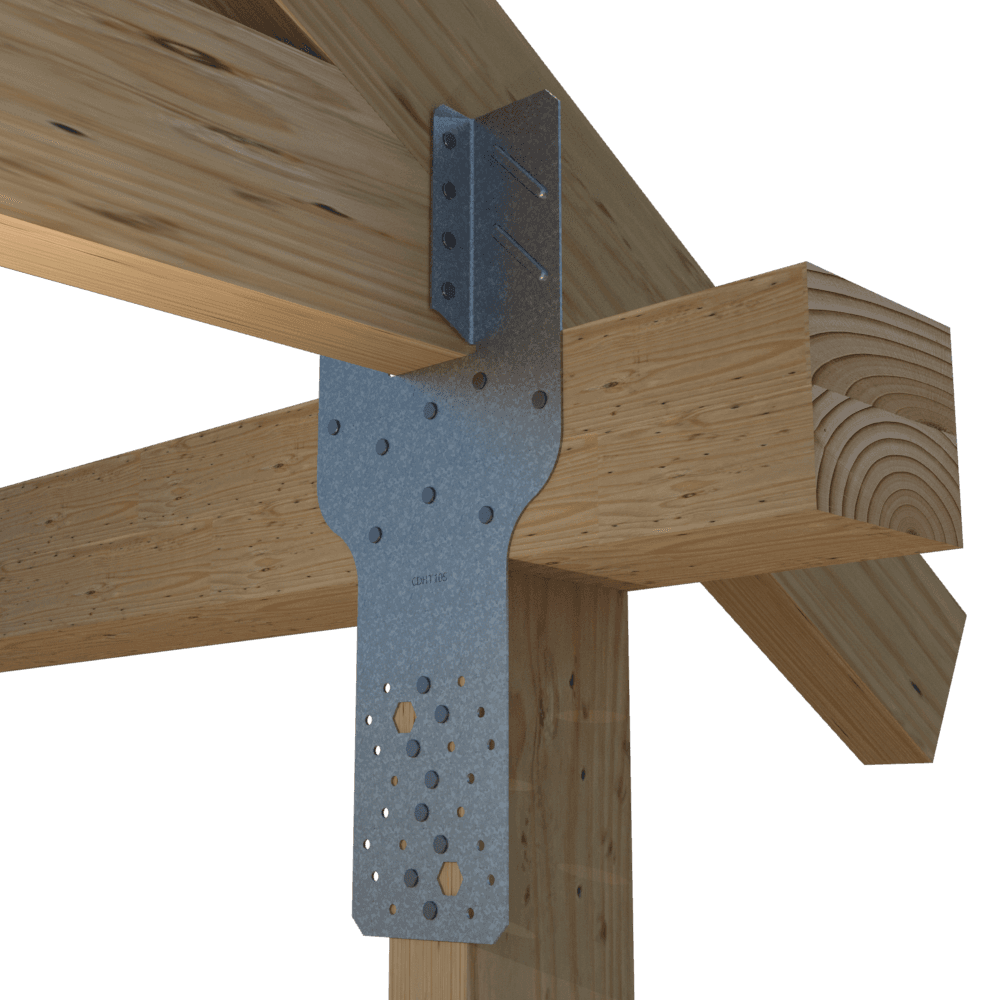

CDHT10S-APP
CDHT10A-APP
CDHT10S-APP

HURRICANE tie

Designed to hold trusses on both sides to transfer uplift loads from roof framing members to the wall studs.

Quick Actions:

Designed to hold trusses on both sides to transfer uplift loads from roof framing members to the wall studs.

Material: CDHT10A, CDHT10S = 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Material: CDHT1 = 16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness

Coating: G90 (Z275) hot-dipped galvanized coating (G185 available on CDHT1 & CDHT10A only)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

PRODUCT DIMENSIONS

Product CodeSize
CDHT11-9/16" x 5-5/16"
CDHT10A1-9/16" x 6-1/4"
CDHT10S1-9/16" x 11-5/8"
Product description

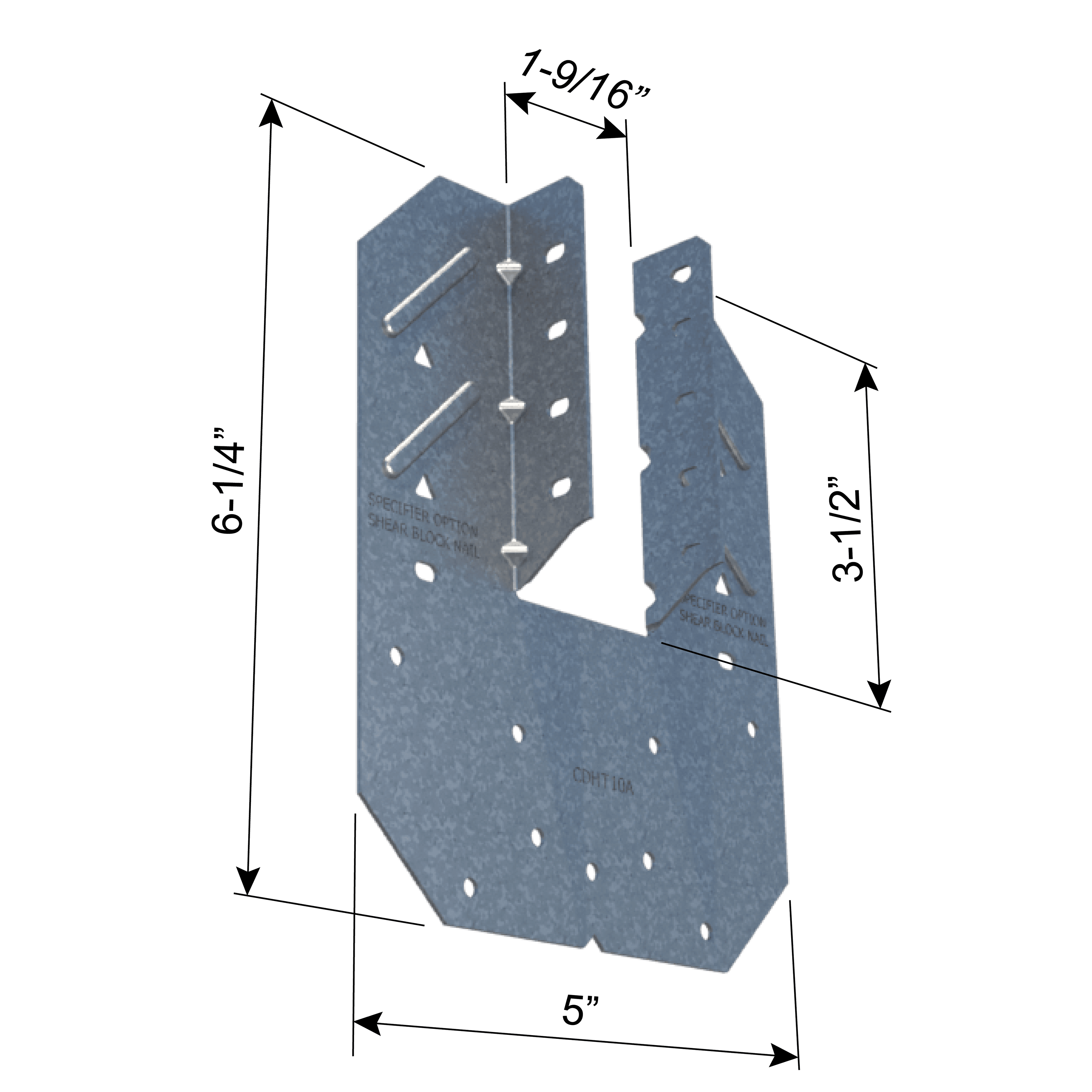

CDHT10A-Dims

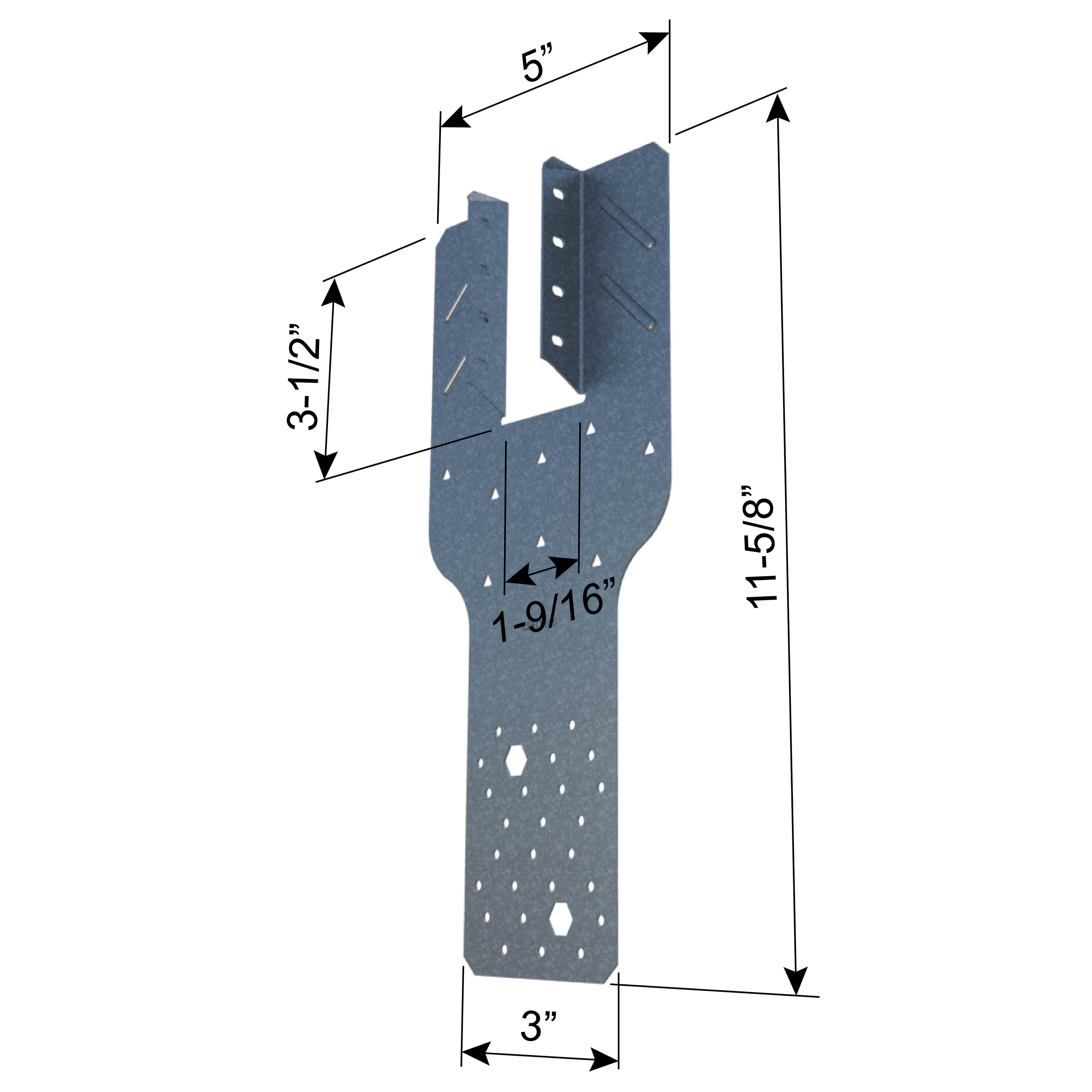

CDHT10S-Dims
