"L" and "T" Strap Ties
"l" and "T" strap ties

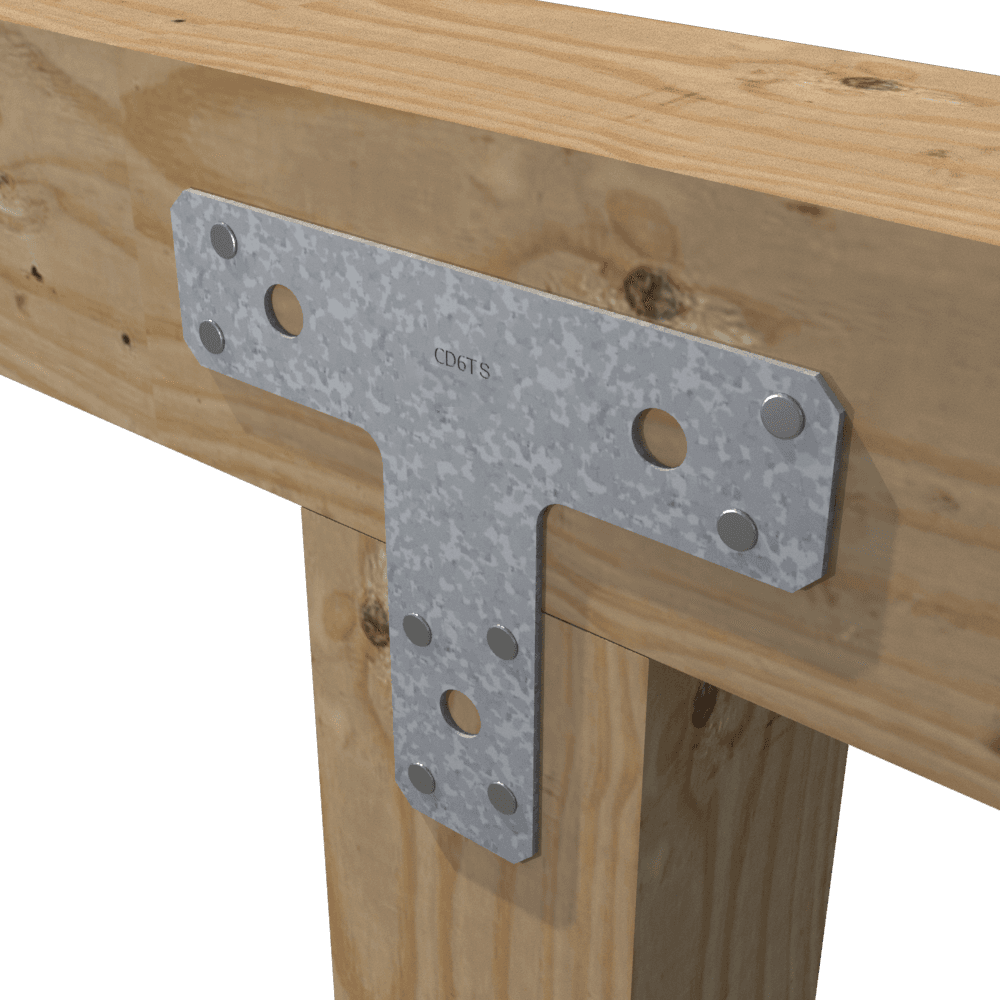

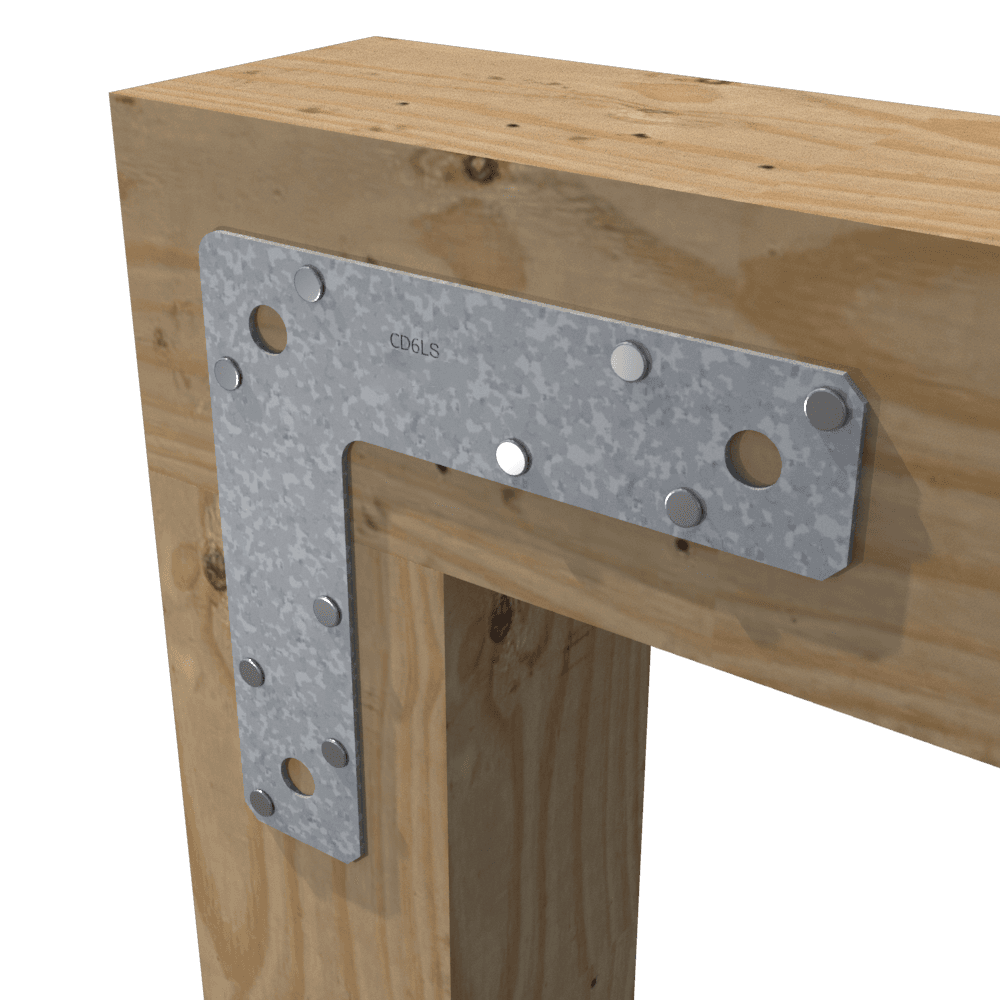

Economical braces are ideal for gates, patio covers, joining posts and columns to headers, beams and other applications where added reinforcement is needed.
Quick Actions:
Economical braces are ideal for gates, patio covers, joining posts and columns to headers, beams and other applications where added reinforcement is needed. Braces may be bolted for heavy-duty applications.
Material: 14ga (68mil), 0.0713 Design thickness, 0.0677 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

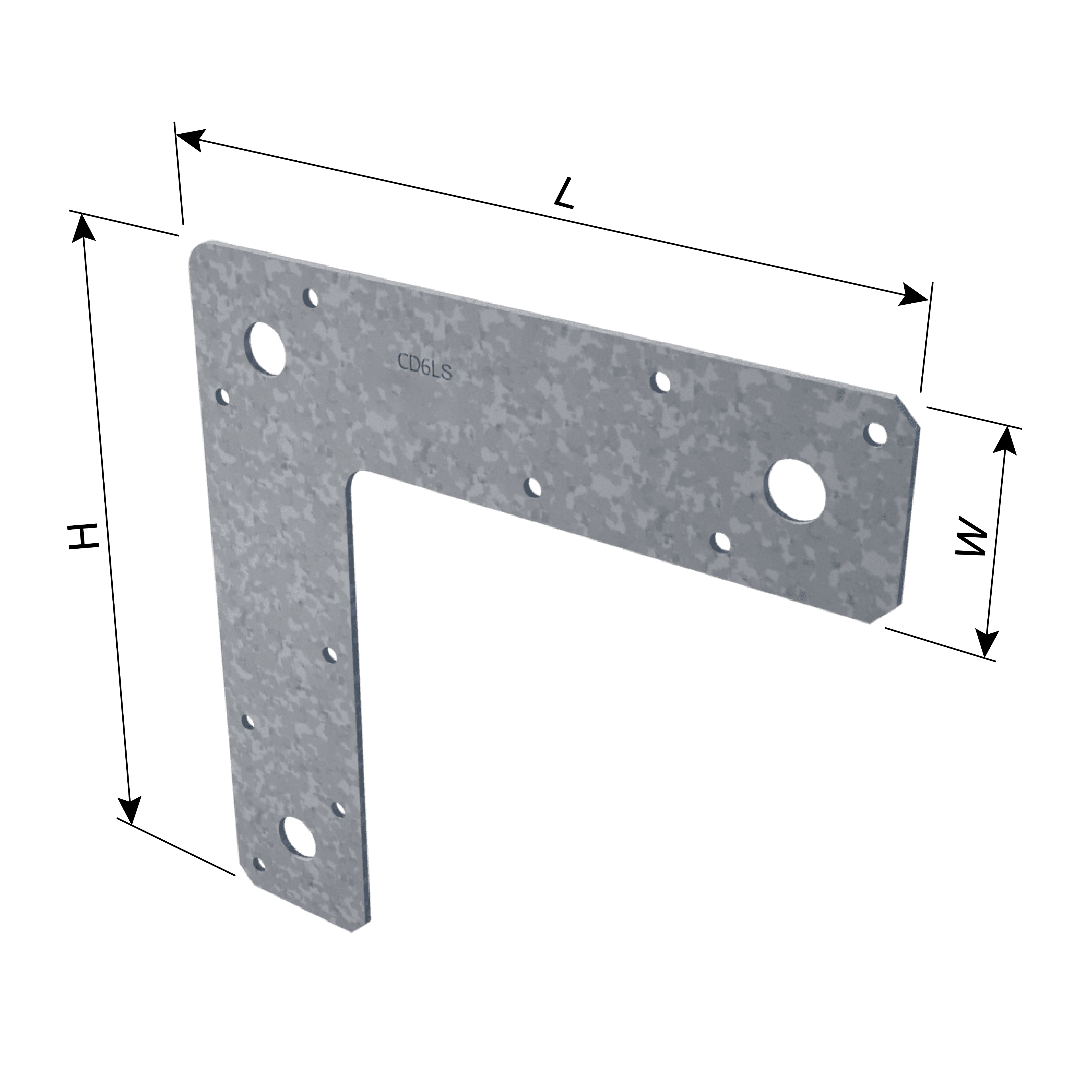

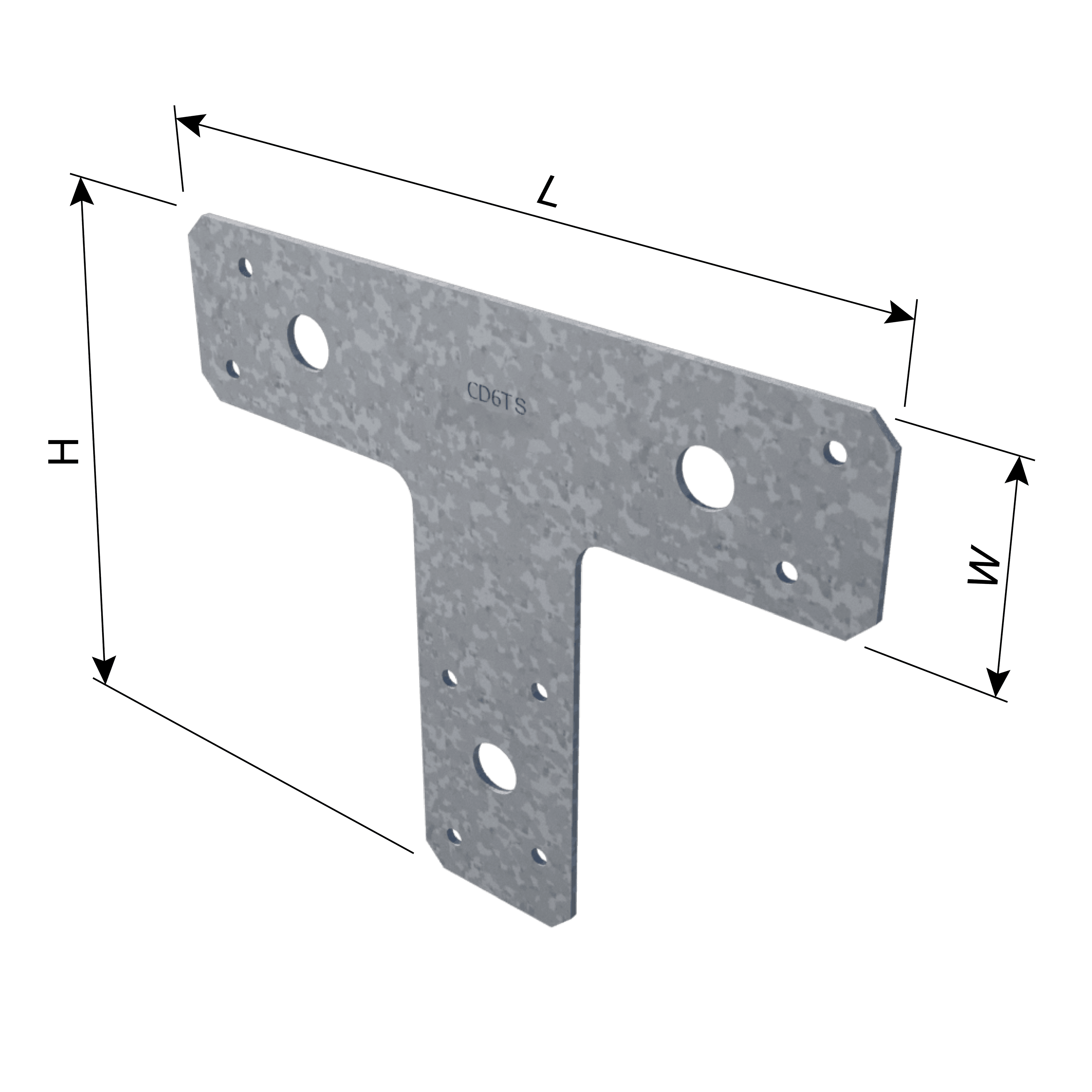

| Product Code | Gauge | Dimension | ||
|---|---|---|---|---|
| H | L | W | ||

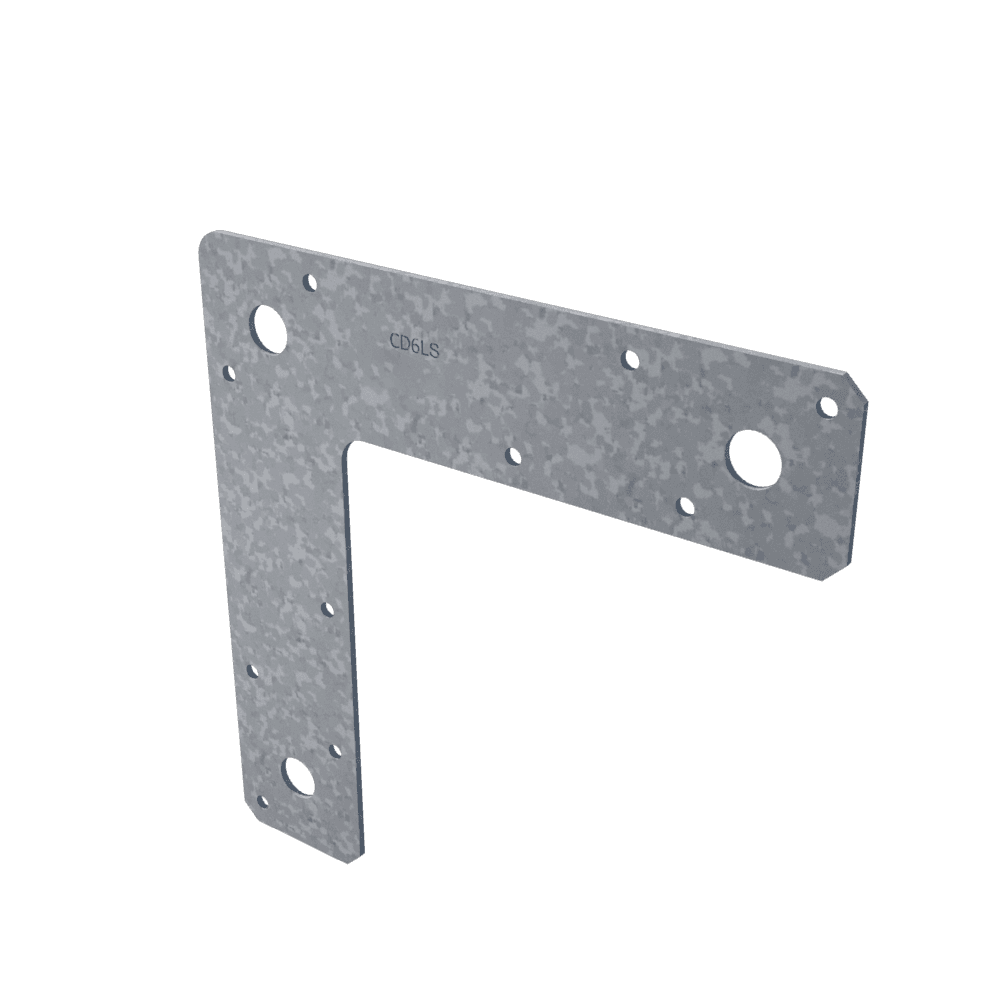

| CD6LS | 14 | 6" | 6" | 1-1/2" |

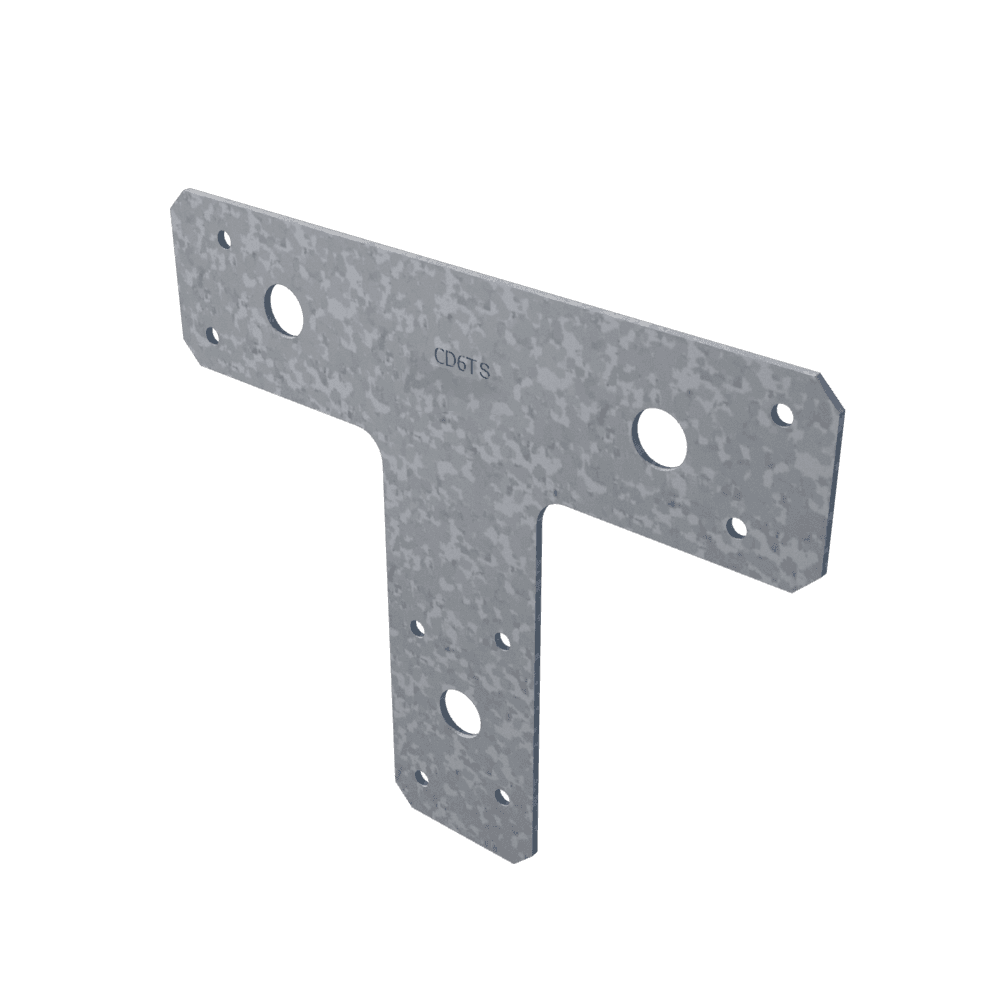

| CD6TS | 14 | 5" | 6" | 1-1/2" |
