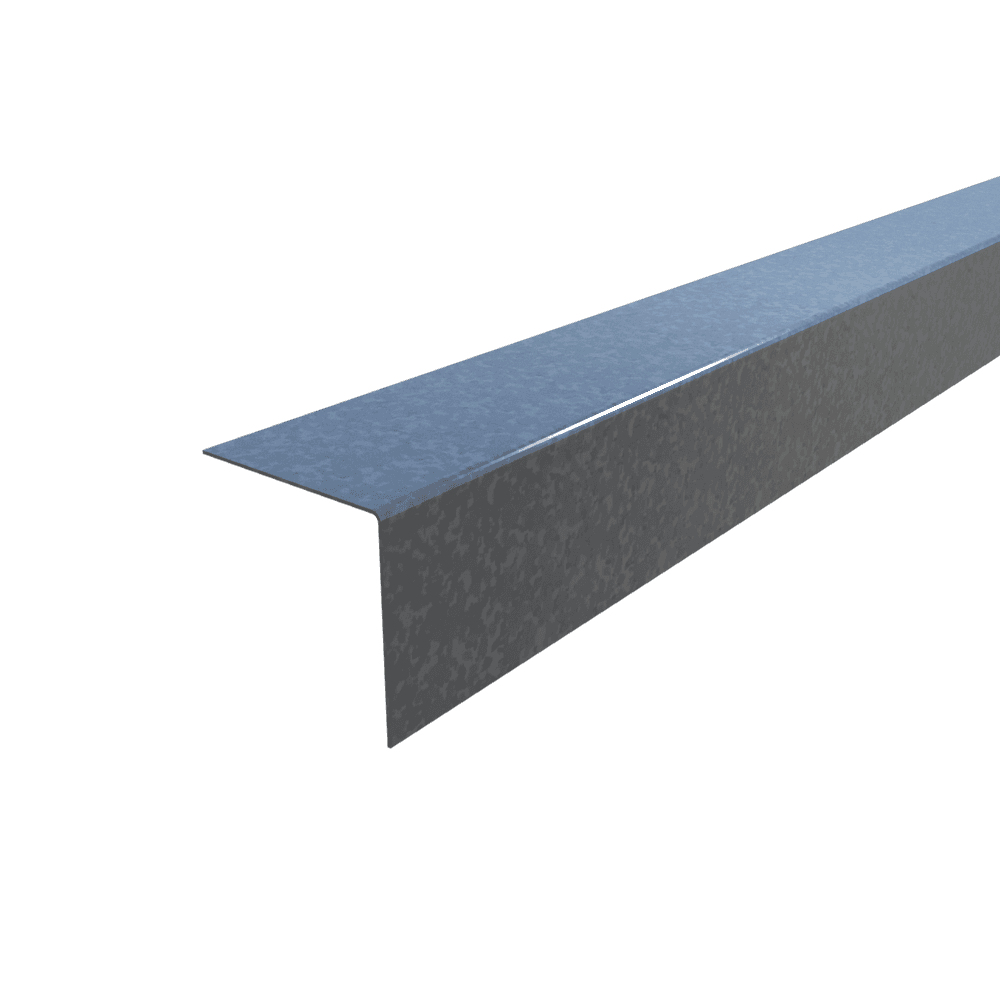

L-Angle / Corner Angle
L-angle / corner angle

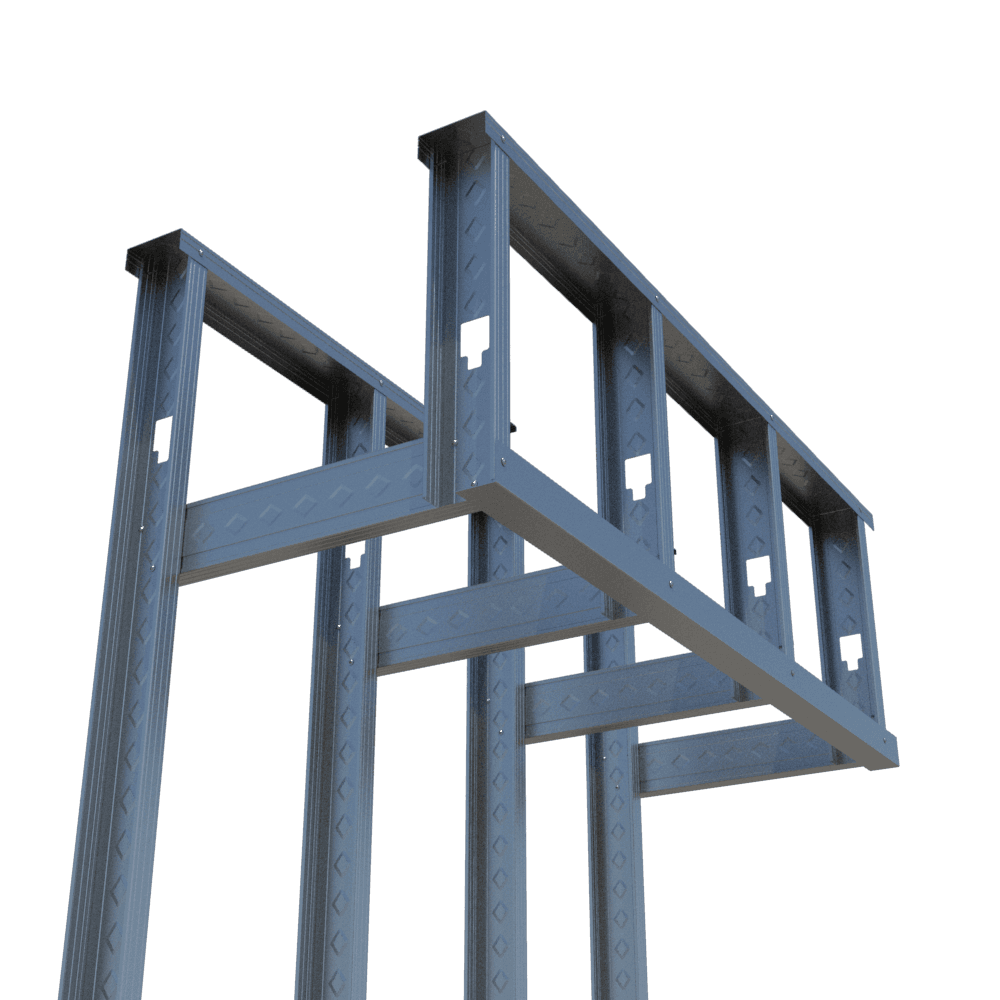

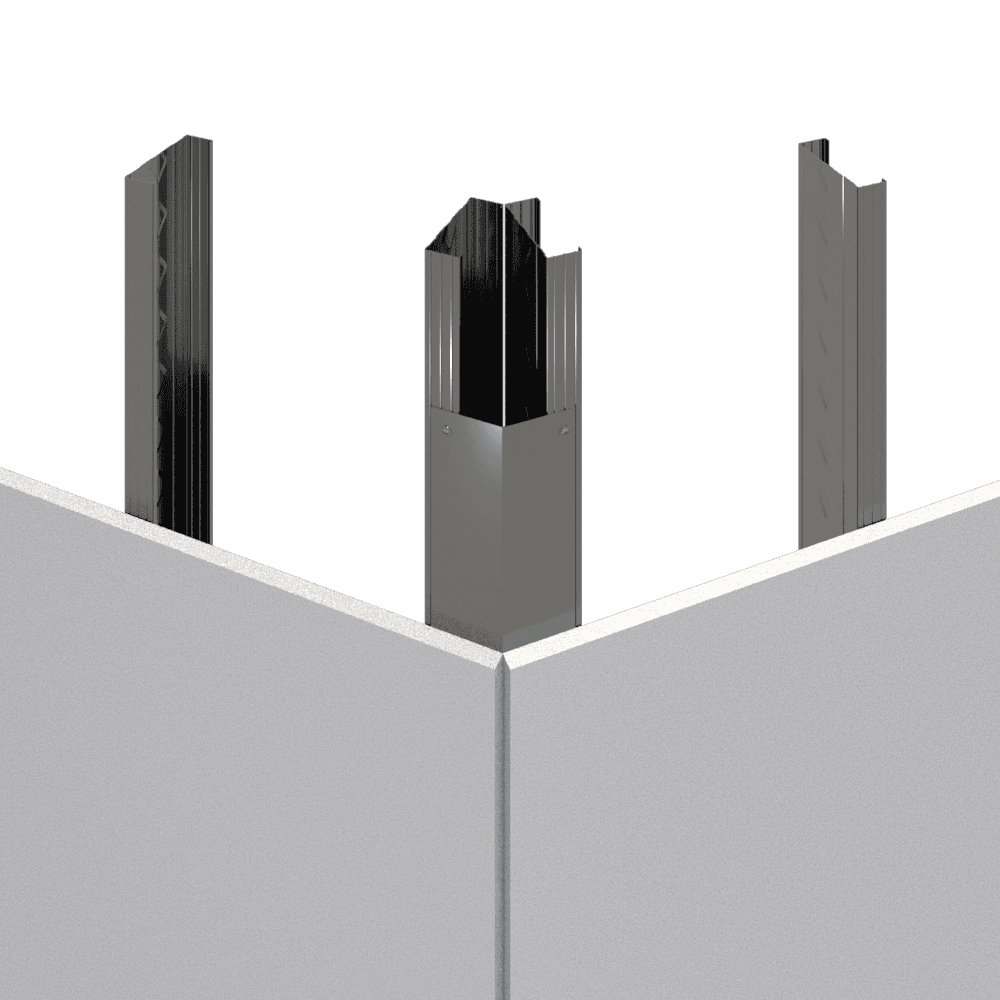

Non-structural corner angles commonly used to connect, reinforce or secure metal stud framing in various drywall applications.

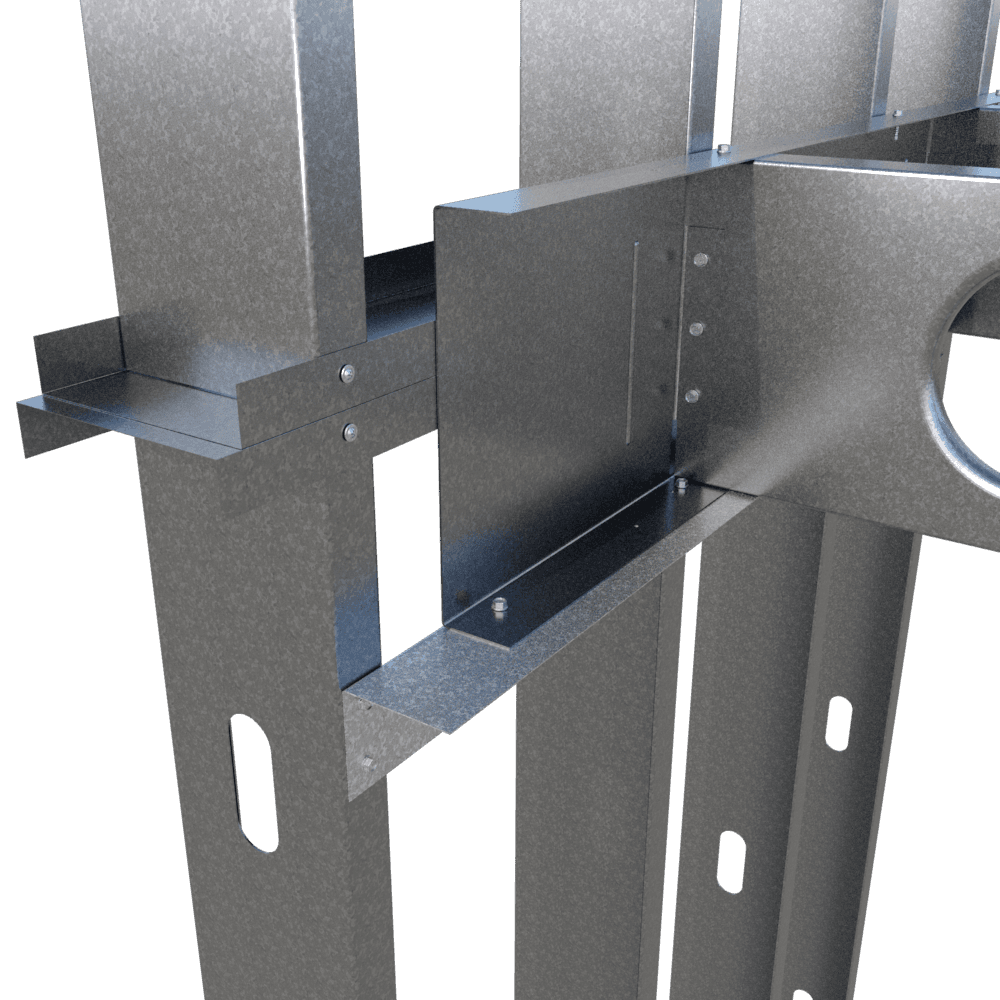

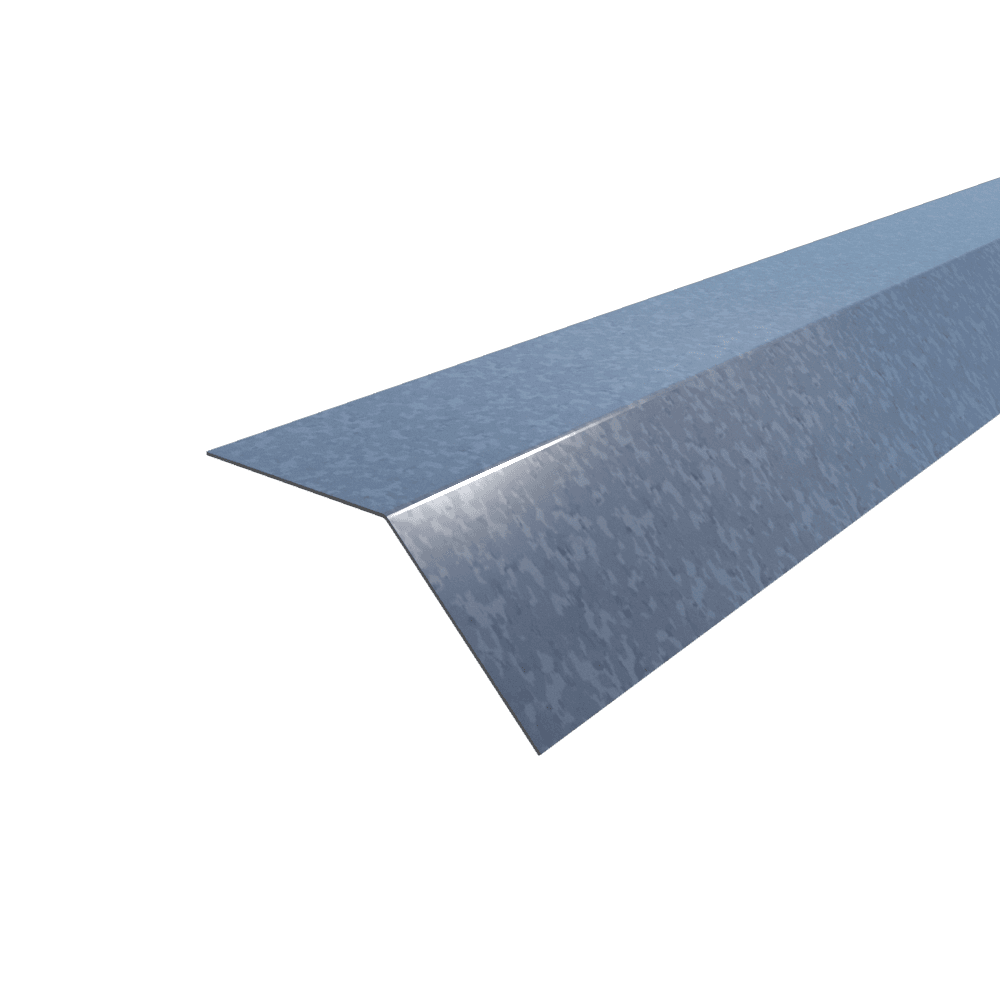

Structural L-Angle commonly used for connection strut or angle, concrete pour stop, roof ridge angles and corner reinforcement.
Quick Actions:
Non-structural corner angles used to connect, reinforce or secure metal stud framing in various drywall applications.
Structural L-Angle is commonly used for a variety of applications including: concrete pour stop, connection strut or angle, roof ridge angles and corner reinforcement.
- Standard leg sizes are 2”x2” and 3”x3”.
- Wider and uneven leg sizes available.
- Available in 25, 20 DW, 20 STR, 18, 16, 14 and 12 gauge.
- Standard 10’ lengths. Other lengths available on request.
- Contact ClarkDietrich Technical Services at 888-437-3244 for help with creating product submittals for custom angle sizes.
Product Data & Ordering Information:
Non-Structural Material
Material: Grade 33ksi min. yield strength
18mils (25ga), 0.0188" Design Thickness, 0.0179" Min. Thickness
30mils (20ga DW), 0.0312" Design Thickness, 0.0296" Min. Thickness
Coating: G40EQ (G40 or G60 available)
Structural Material
Material: Grade 33ksi min. yield strength
33mils (20ga STR), 0.0346" Design Thickness, 0.0329" Min. Thickness
43mils (18ga), 0.0451" Design Thickness, 0.0428" Min. Thickness
54mils (16ga), 0.0566" Design Thickness, 0.0538" Min. Thickness
68mils (14ga), 0.0713" Design Thickness, 0.0677" Min. Thickness
97mils (12ga), 0.1017" Design Thickness, 0.0966" Min. Thickness
Coating: CP60 (G90 available)
