Light and Medium Framing Angle
Light and Medium Framing Angle

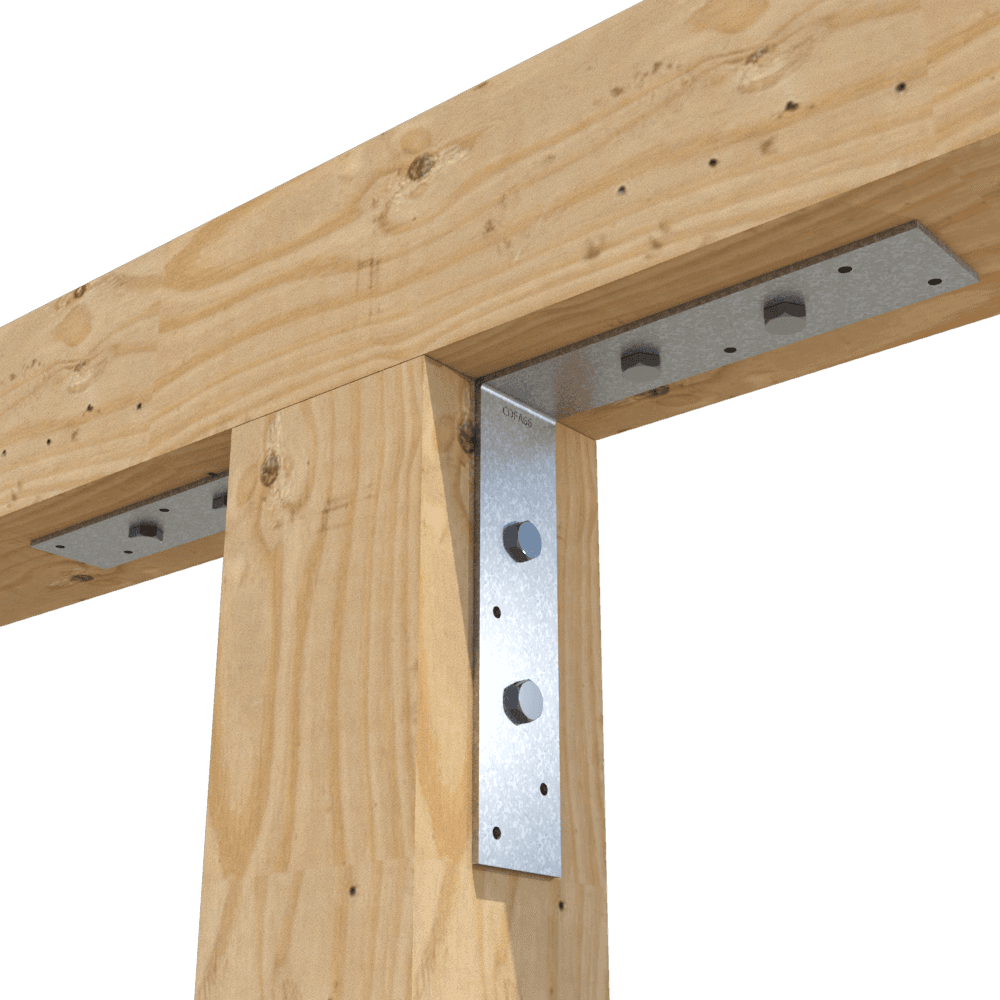

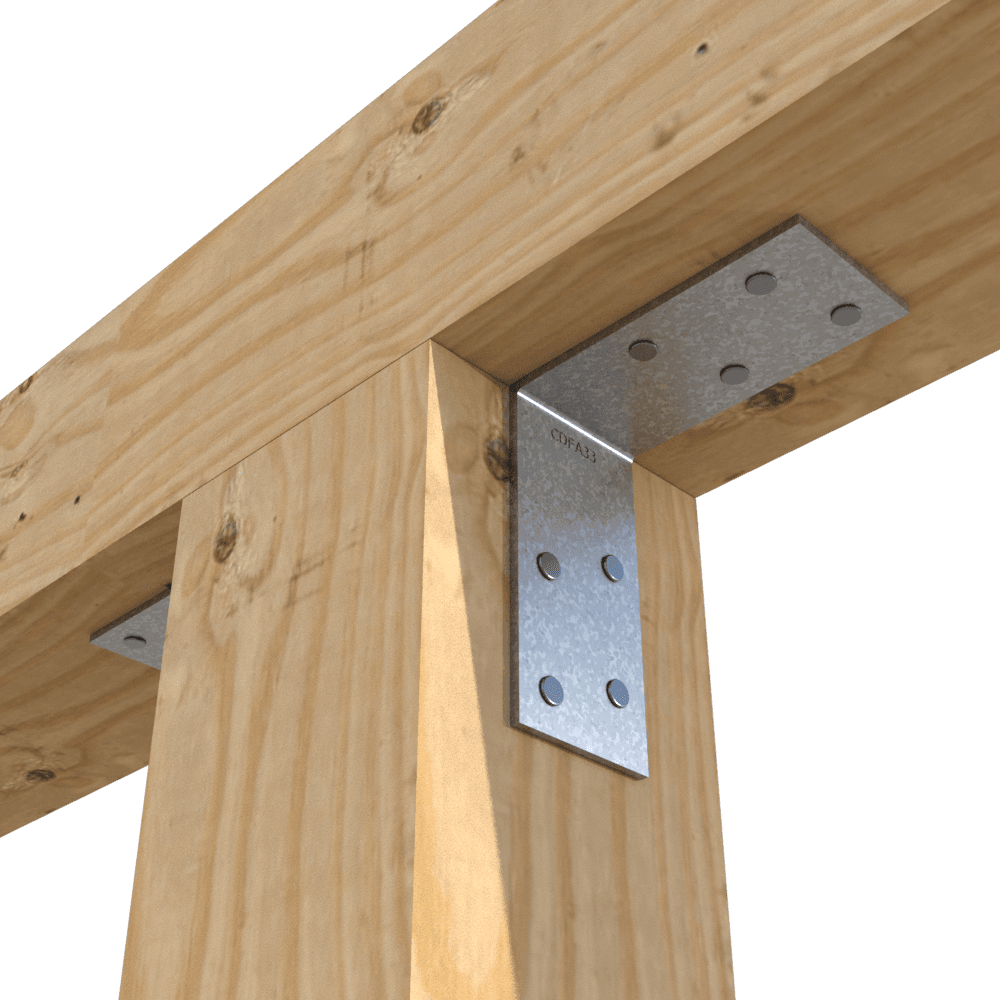

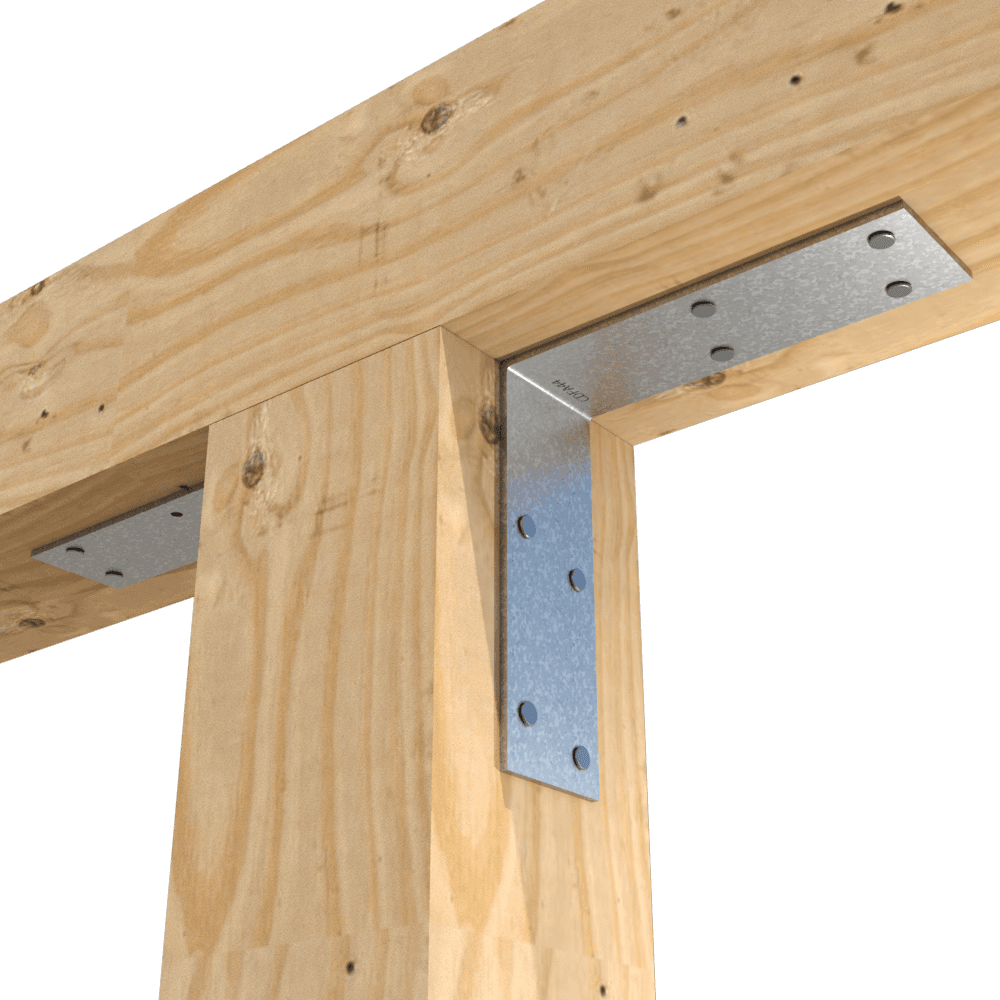

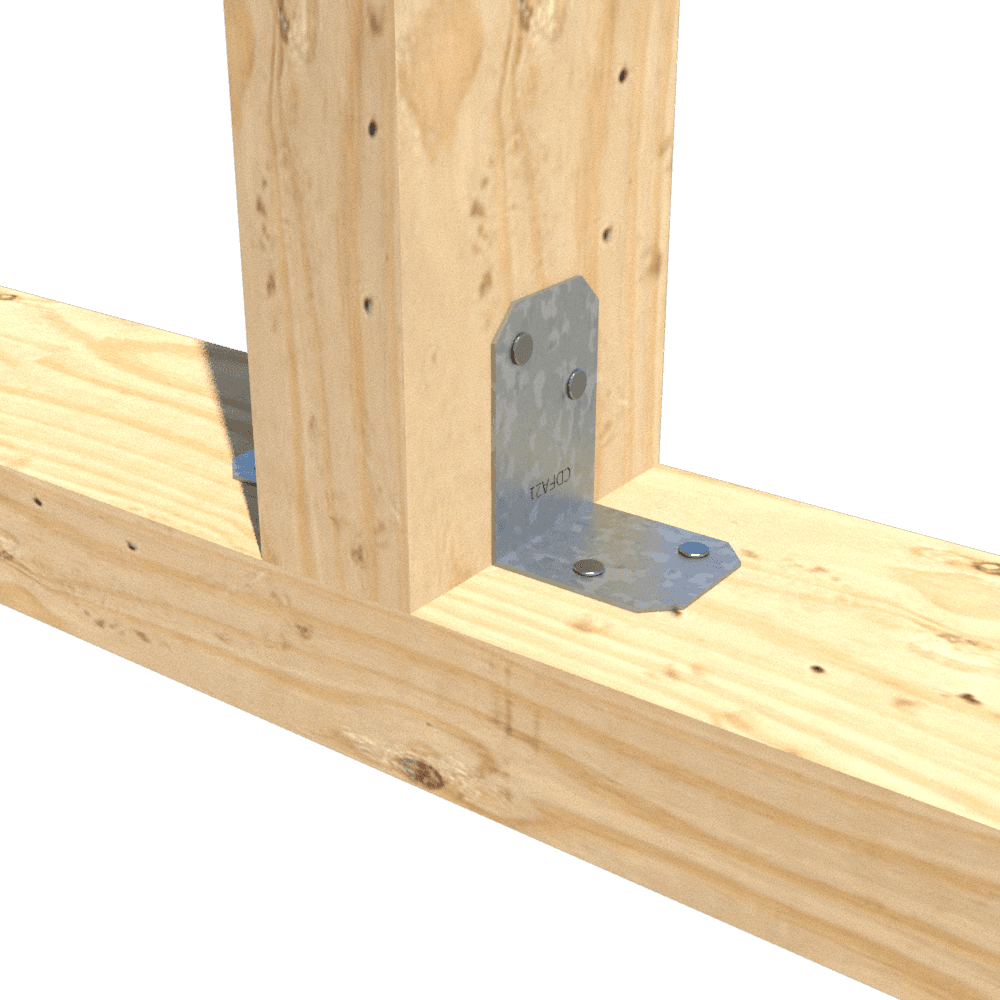

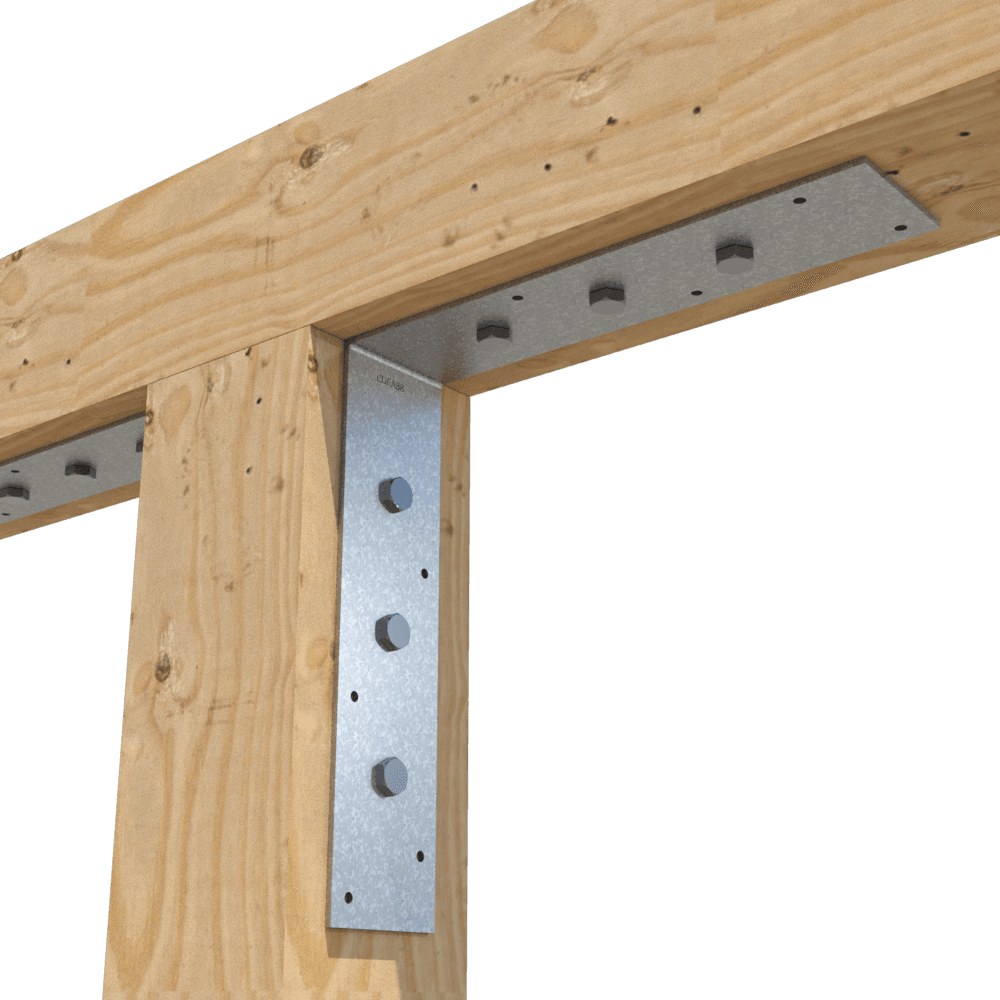

CDFA's provide fast, accurate bolting of two intersecting wood members (reinforcing intersection joints).
Quick Actions:

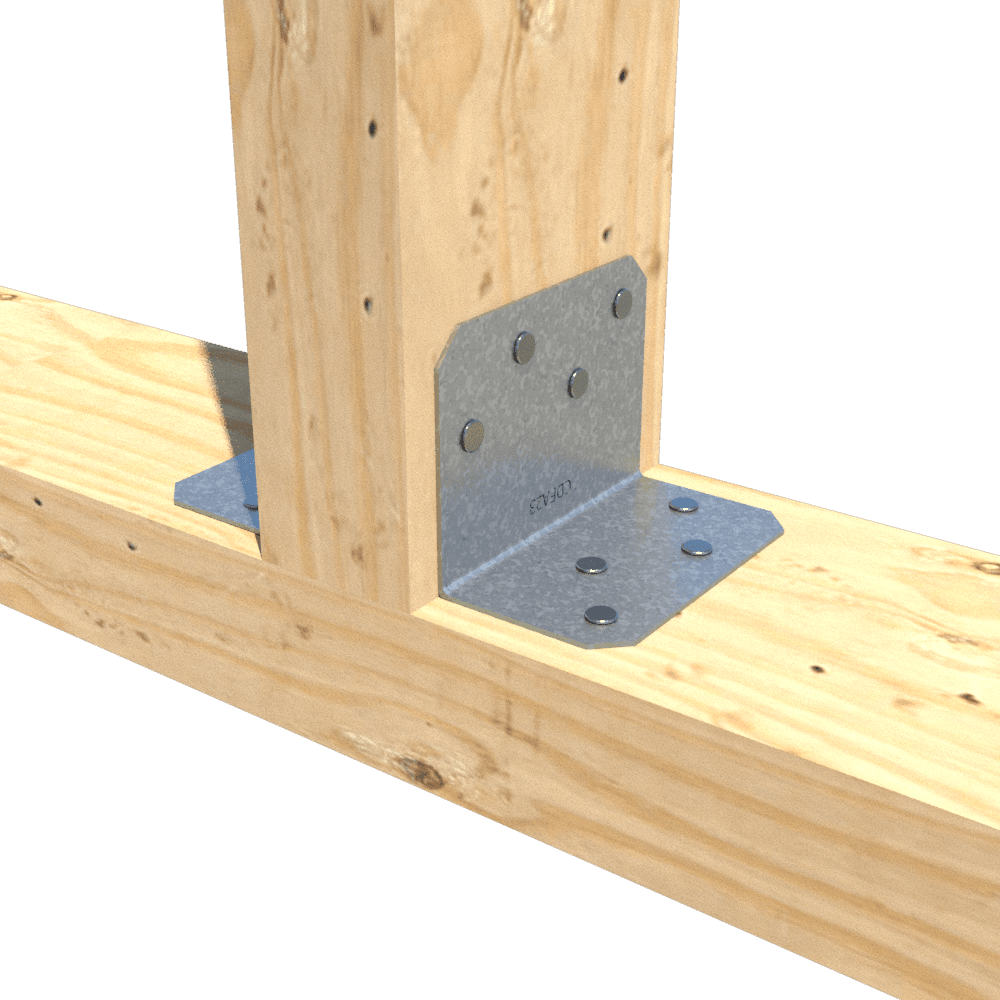

CDFA's provide fast, accurate bolting of two intersecting wood members (reinforcing intersection joints). Versatile angles that are nailed to reinforce intersecting wood members.
Medium angles are designed for standardization and construction economies.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
12ga (97mil), 0.1017" Design thickness, 0.0966" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com

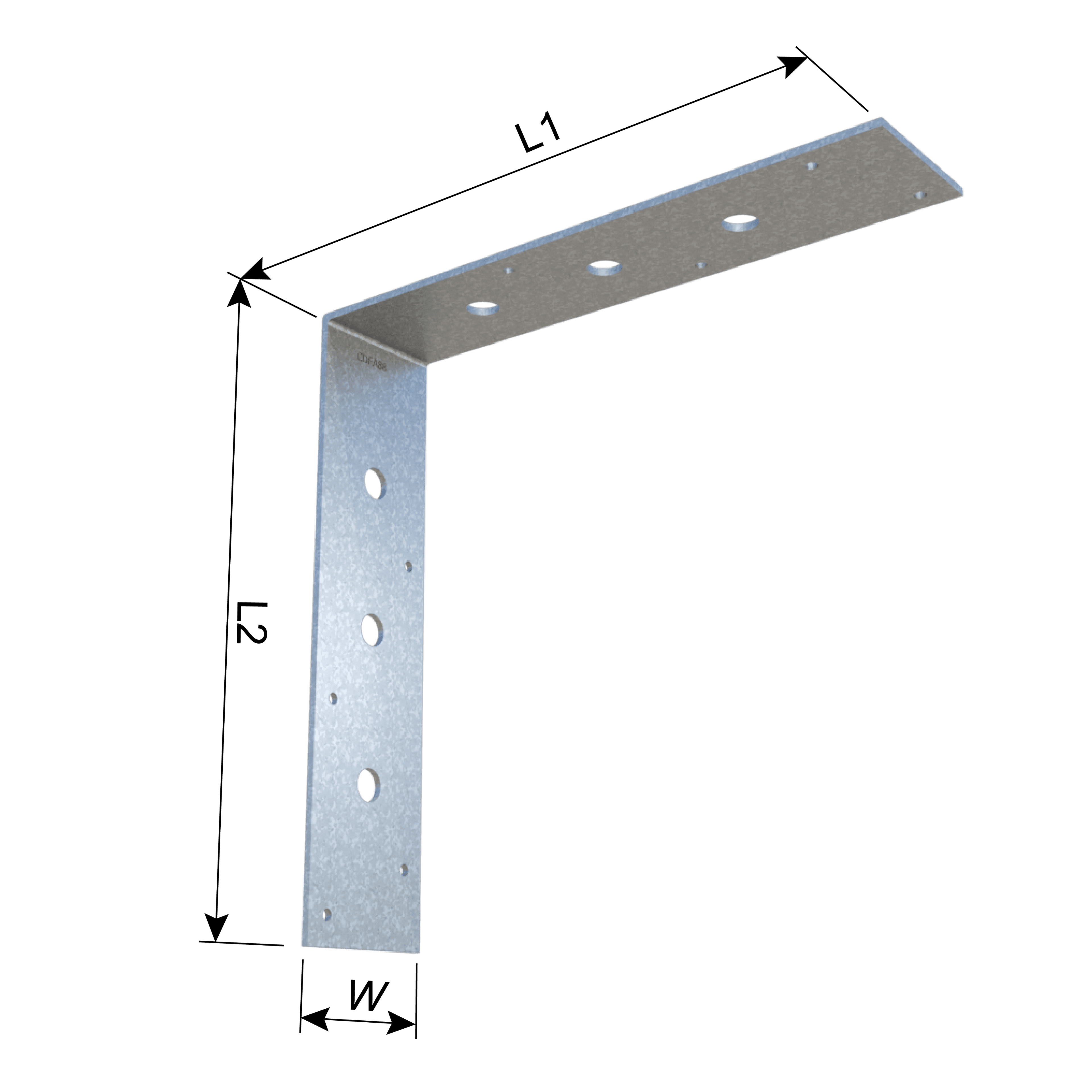

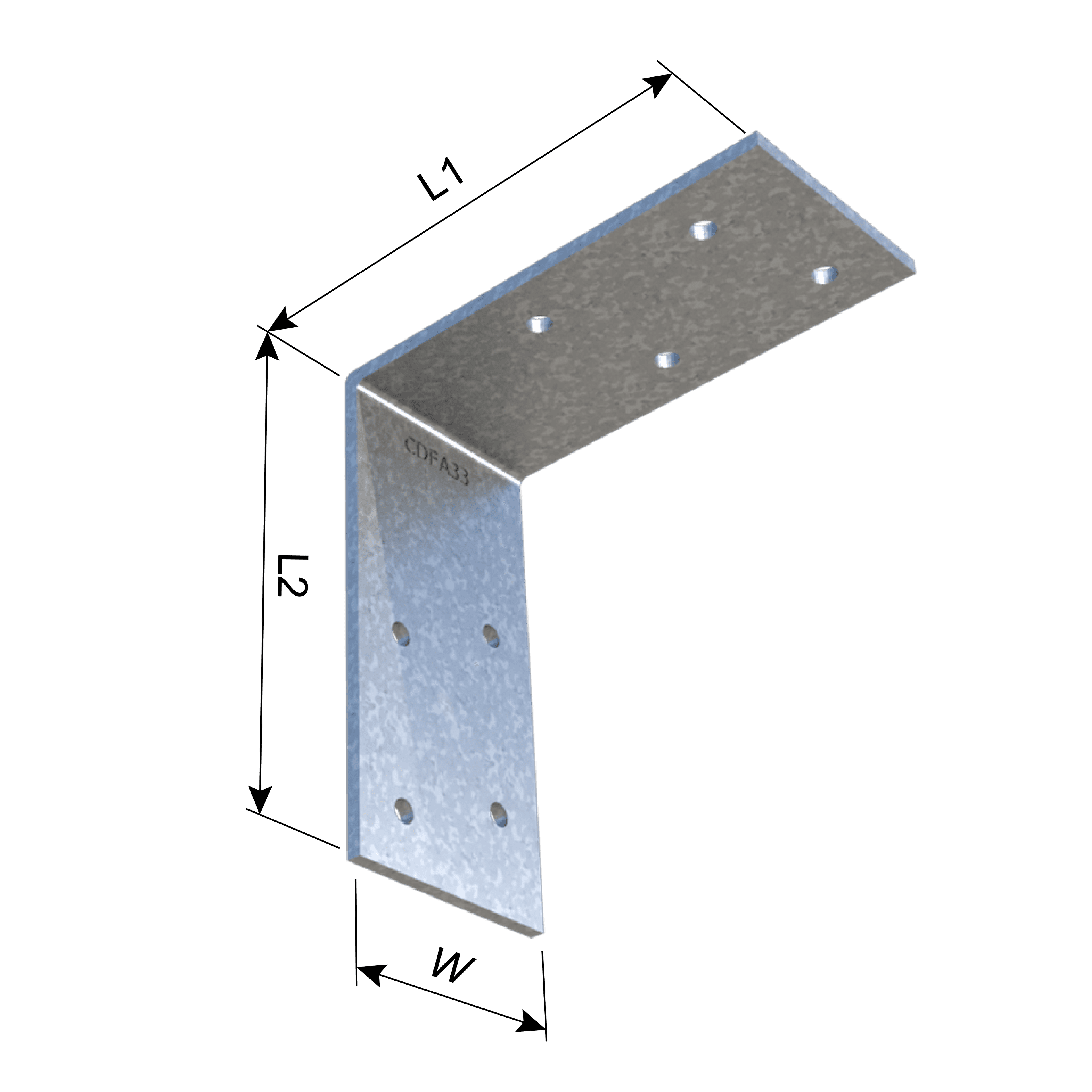

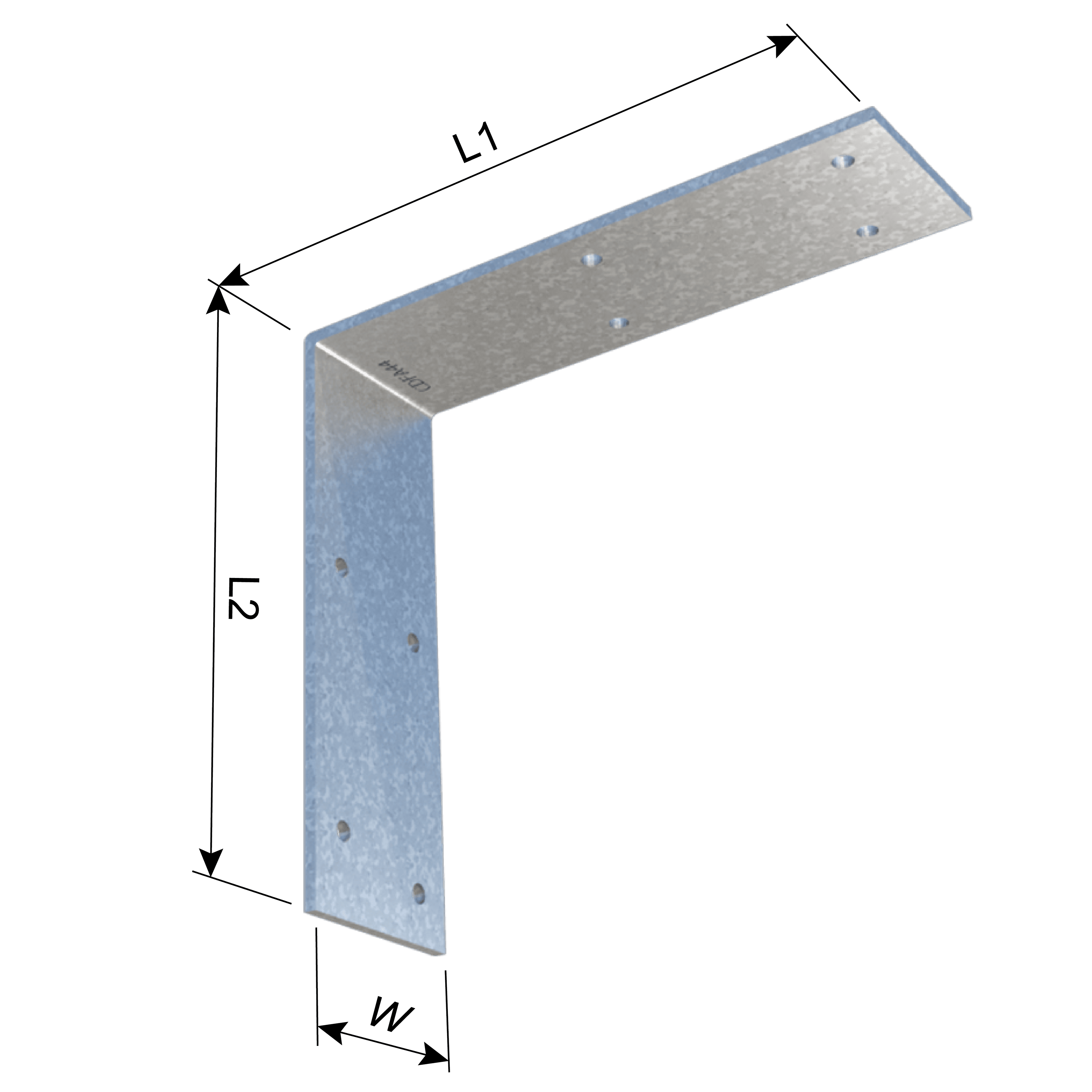

| Product Code | Gauge | Dimensions | ||
|---|---|---|---|---|
| L1 | L2 | W | ||

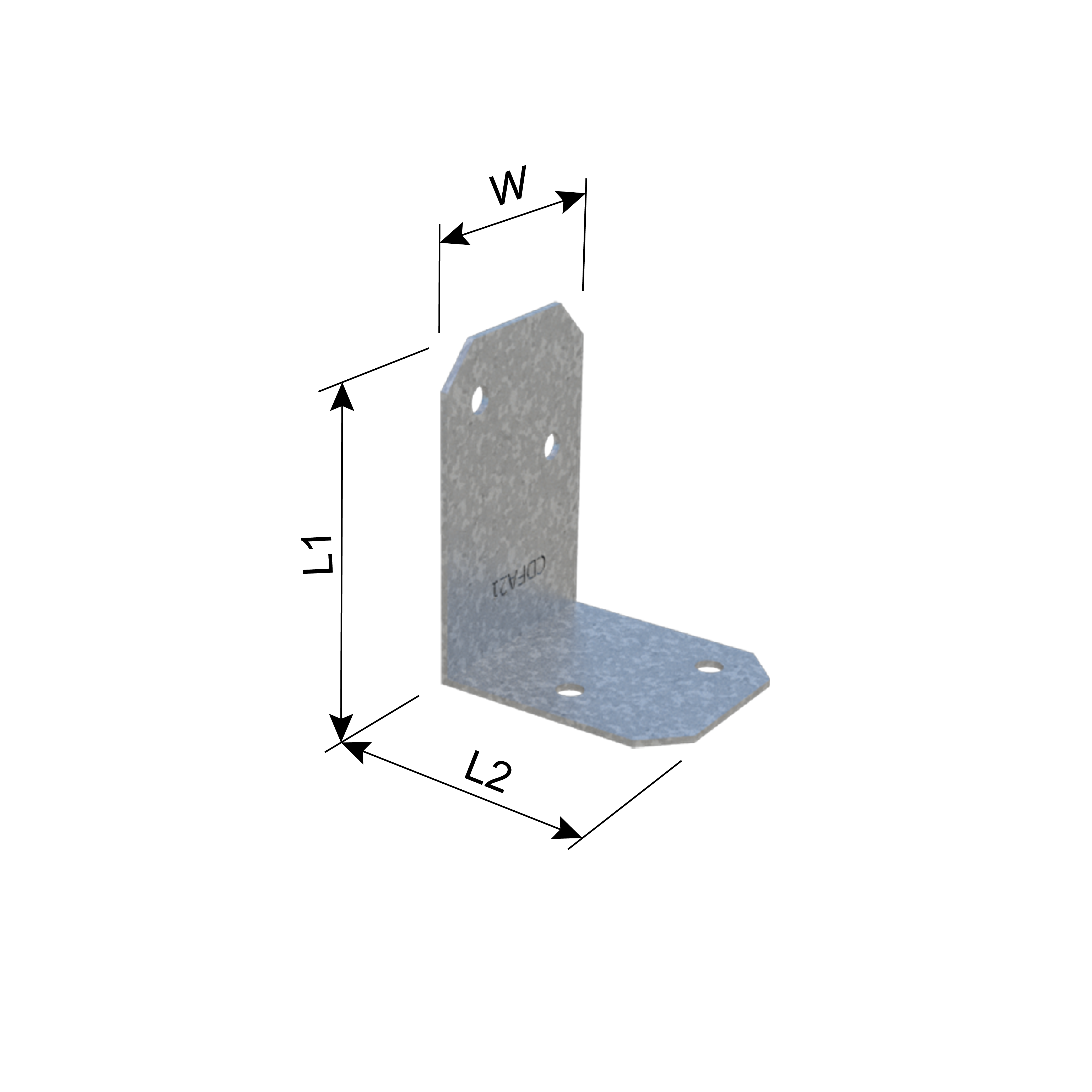

| CDFA21 | 18 | 2-1/16" | 1-37/64" | 1-3/8" |

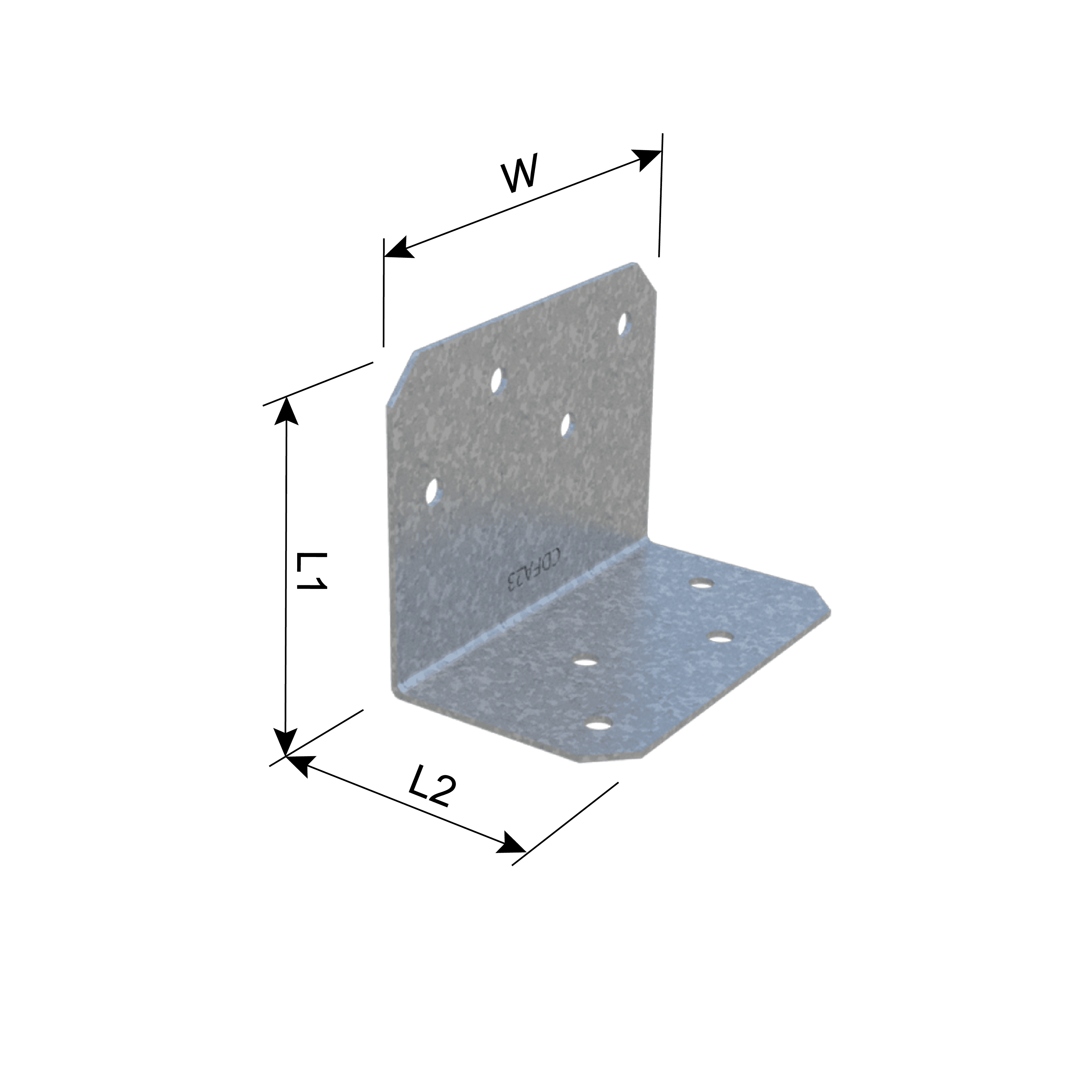

| CDFA23 | 18 | 2-1/16" | 1-37/64" | 2-3/4" |

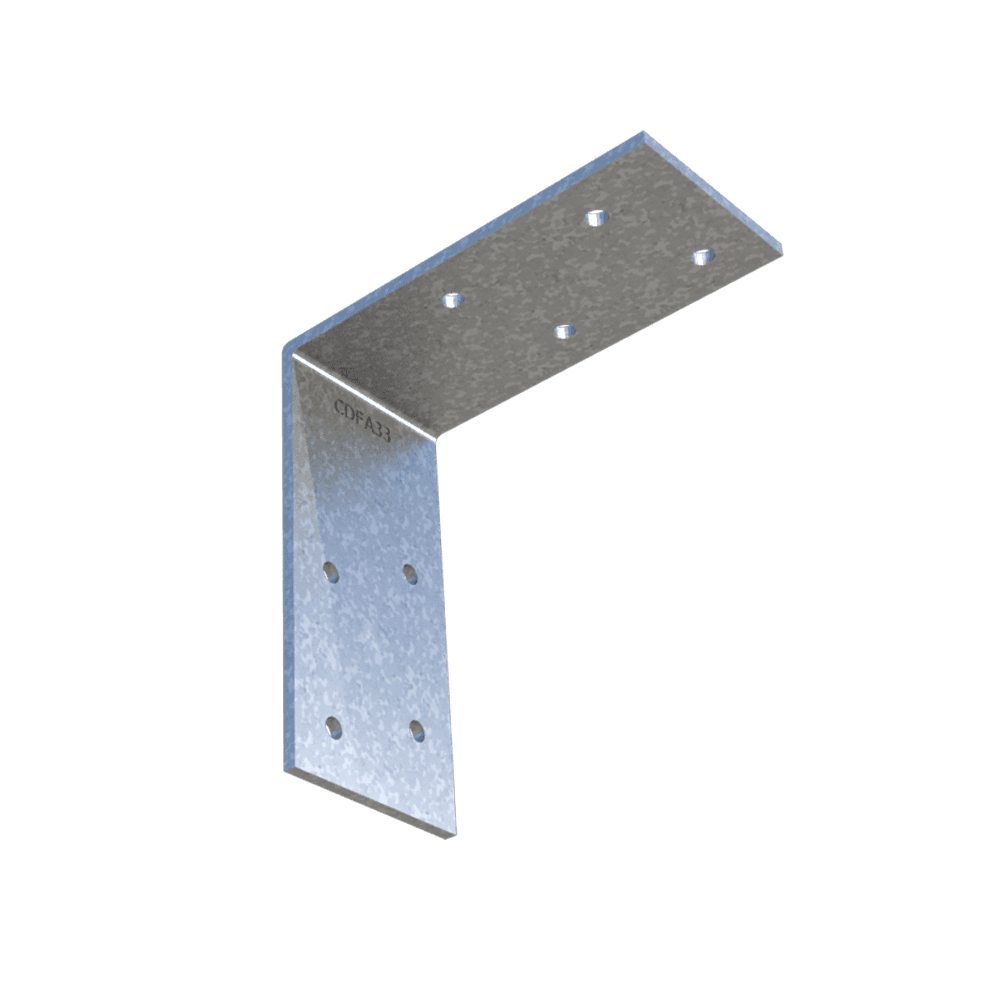

| CDFA33 | 12 | 3-7/32" | 3-1/16" | 1-1/2" |
| CDFA44 | 12 | 4-15/32" | 4-15/32" | 1-3/16" |

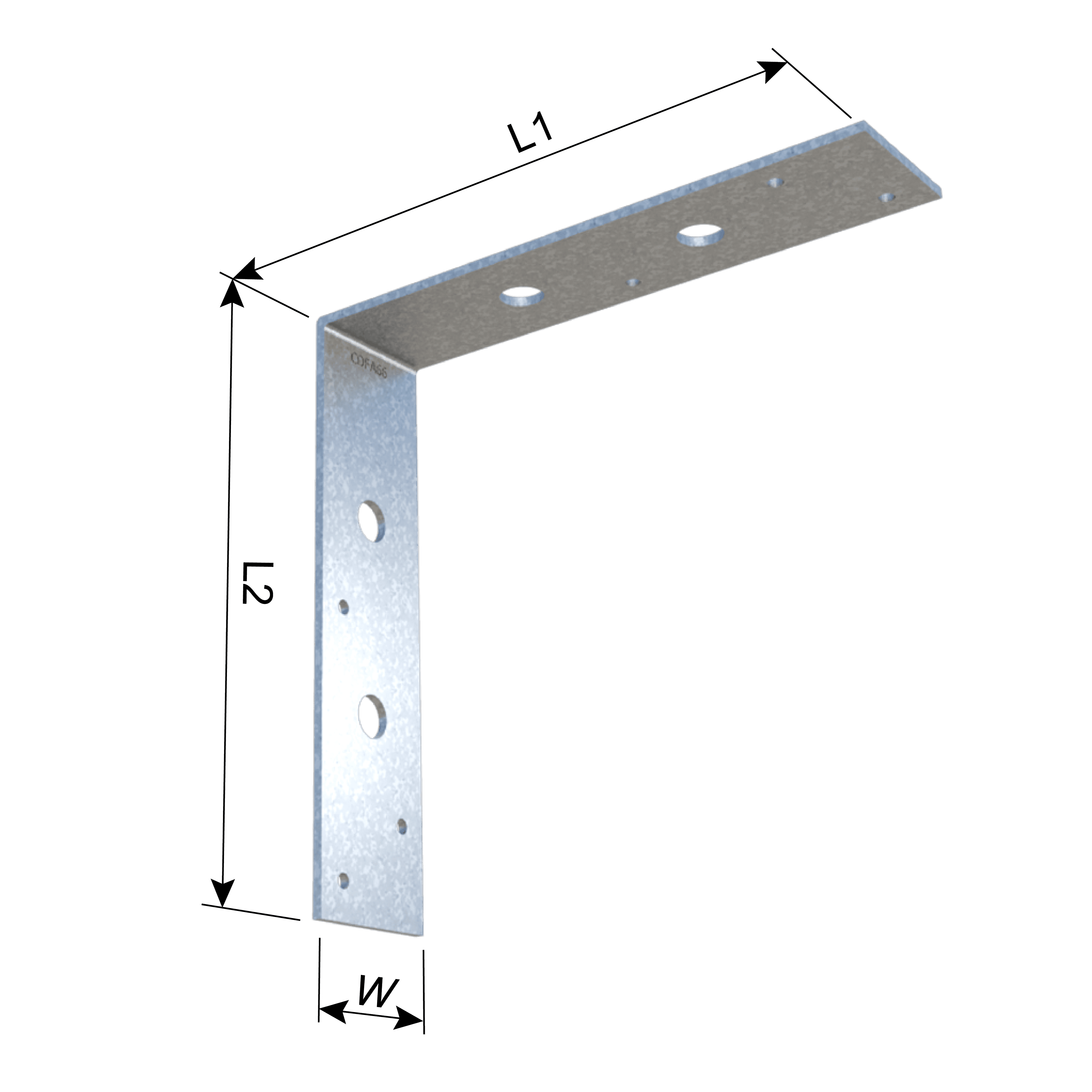

| CDFA66 | 12 | 6" | 6" | 1-1/5" |
| CDFA88 | 12 | 8-1/8" | 8-1/8" | 2" |
