Light Duty Face-Mount Hangers
light duty face-mount hangers
Prongs secure CDLTH hangers to header for fast, easy nailing.
Quick Actions:
CDLTH's combine greater strength with maximum economy. Prongs secure CDLTH hangers to header for fast, easy nailing. Economical price and ease-of-use make these an ideal hanger for the do-it-yourself market.
PRODUCT DIMENSIONS
Joist Sizes: Singles and Doubles, 2x4, 2x6, 2x8
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
(G185 available on CDLTH24-2, CDLTH26-2 & CDLTH28-2 only)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

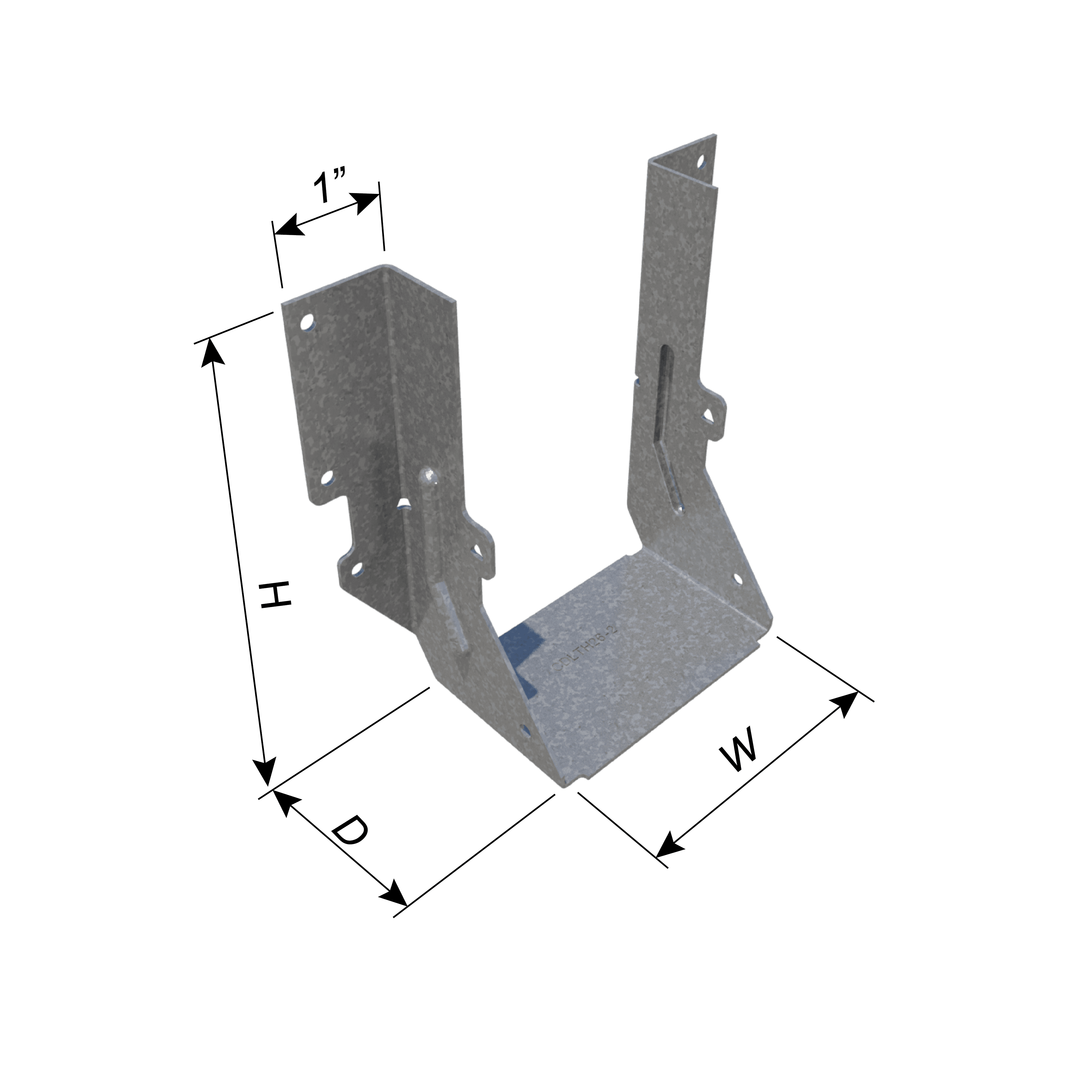

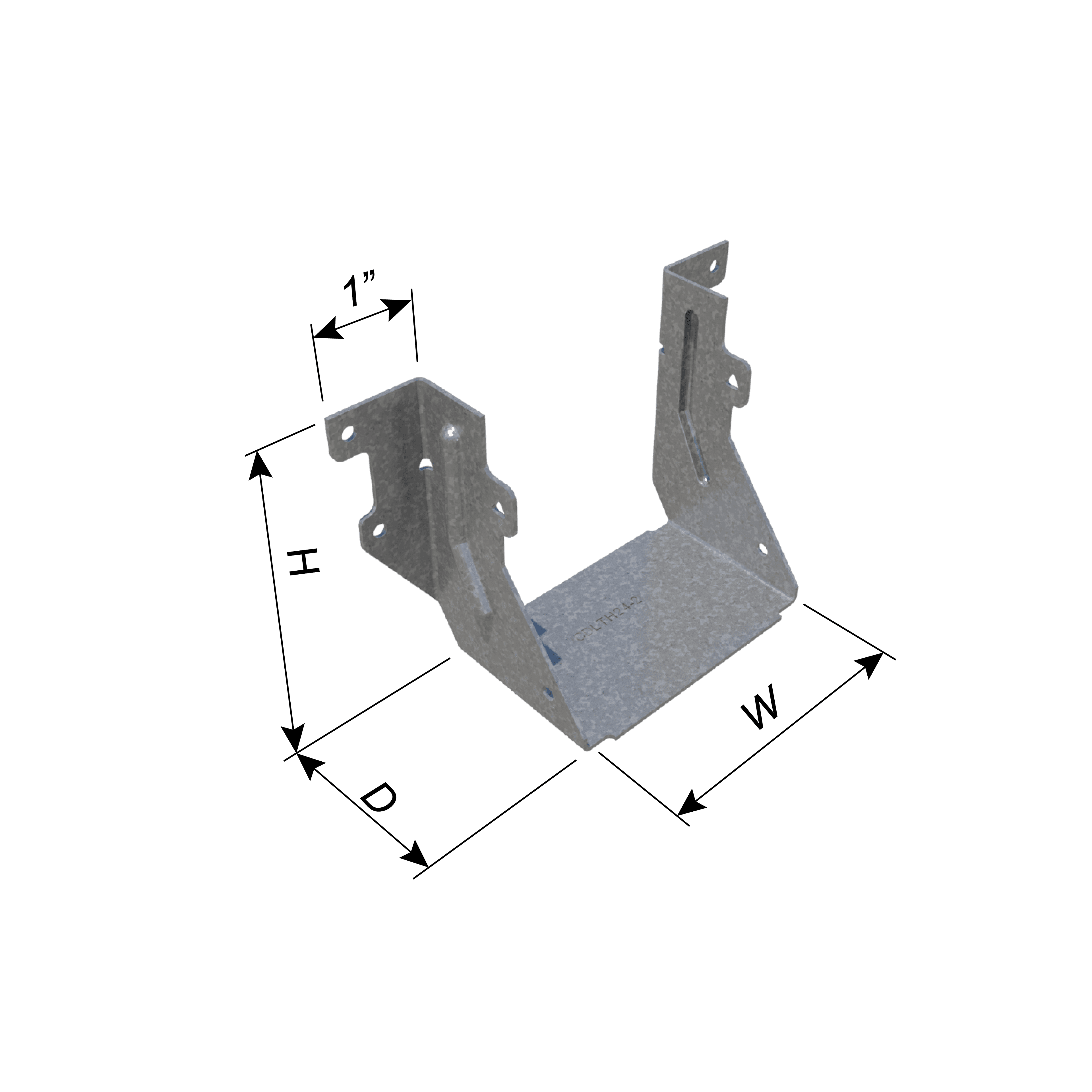

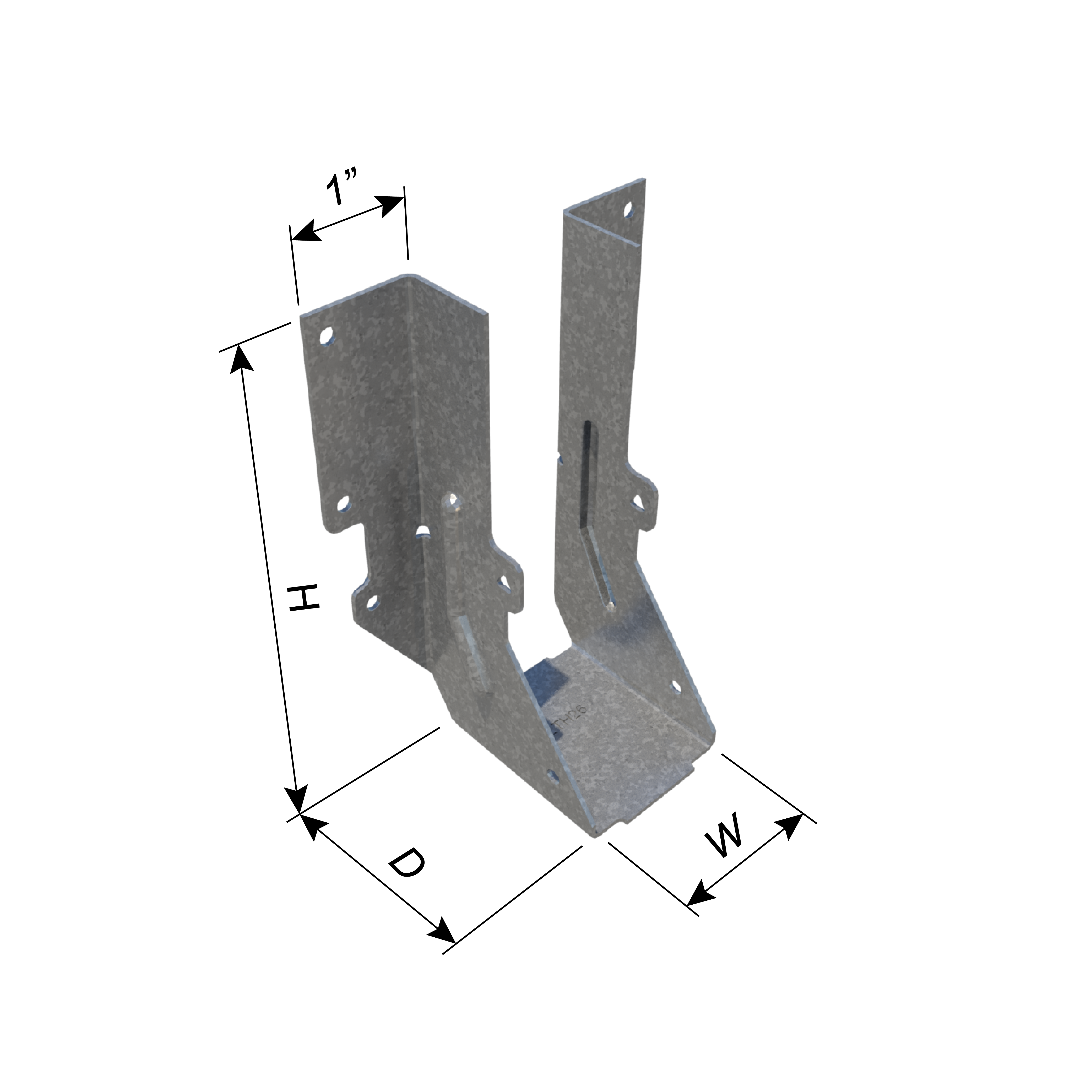

| Product Code | Clear Width | Overall Height | Overall Depth |
|---|---|---|---|
| CDLTH24 | 1-9/16" | 3-3/16" | 2-1/4" |

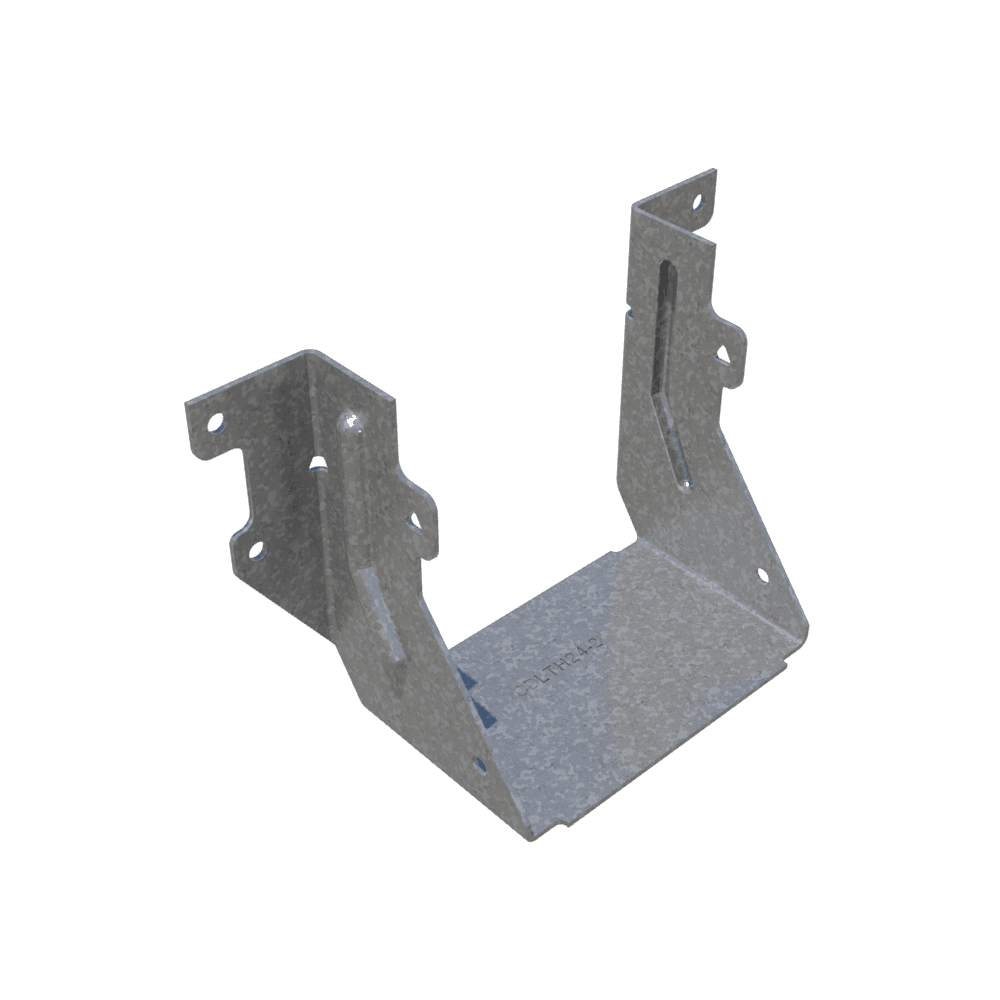

| CDLTH24-2 | 3-1/8" | 3-3/16" | 2-1/4" |

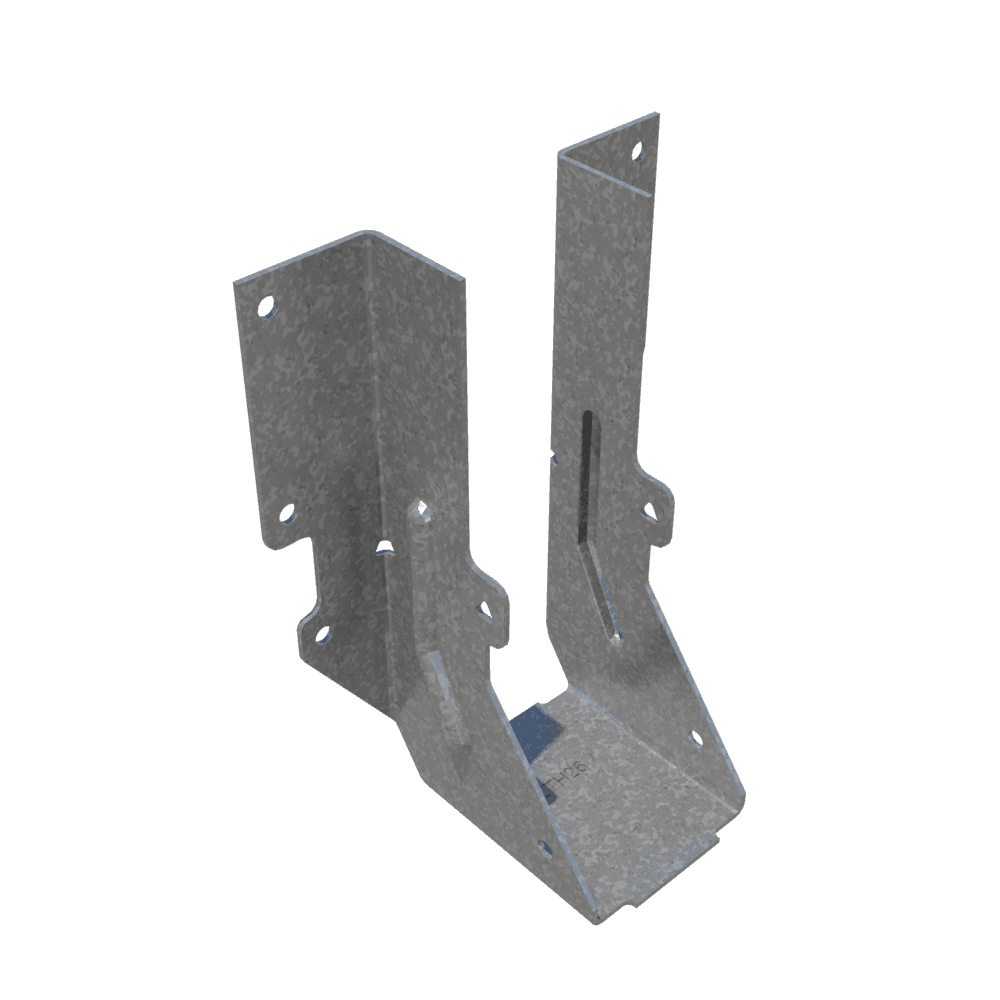

| CDLTH26 | 1-9/16" | 4-3/4" | 2-1/4" |

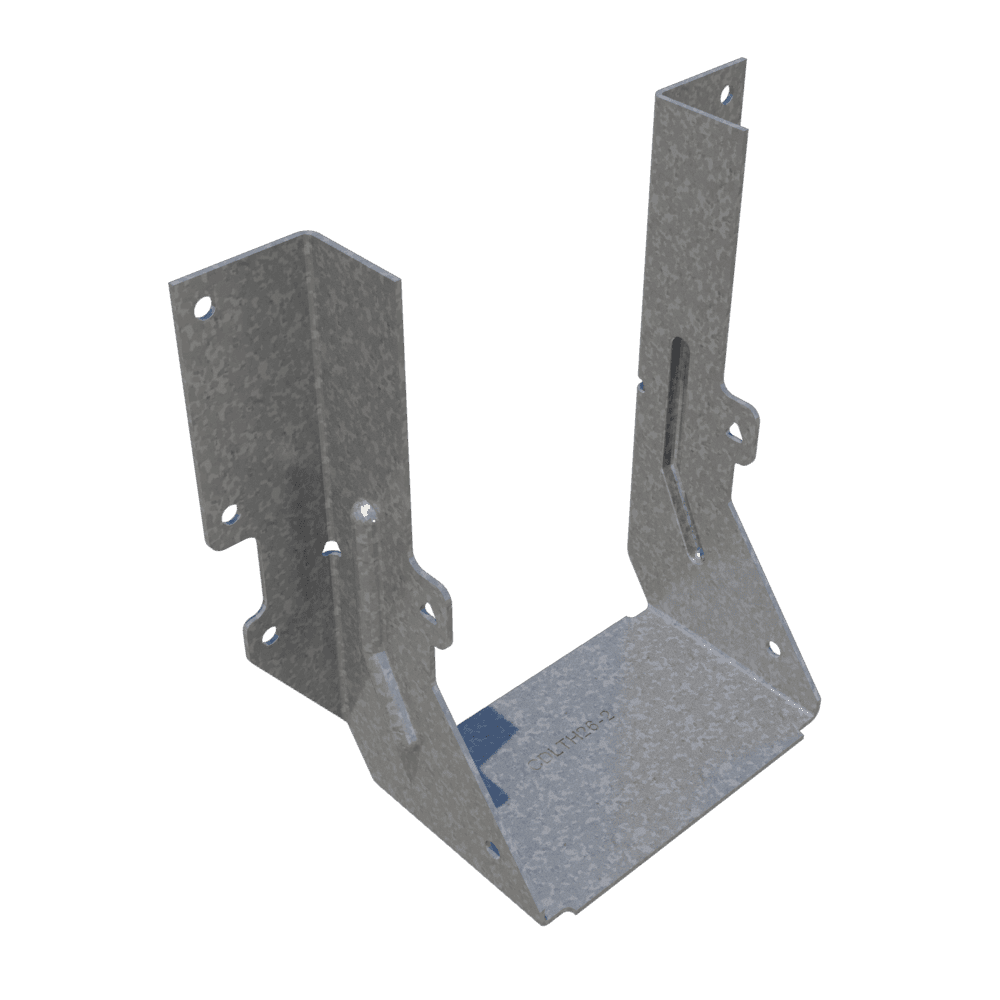

| CDLTH26-2 | 3-1/8" | 4-3/4" | 2-1/4" |

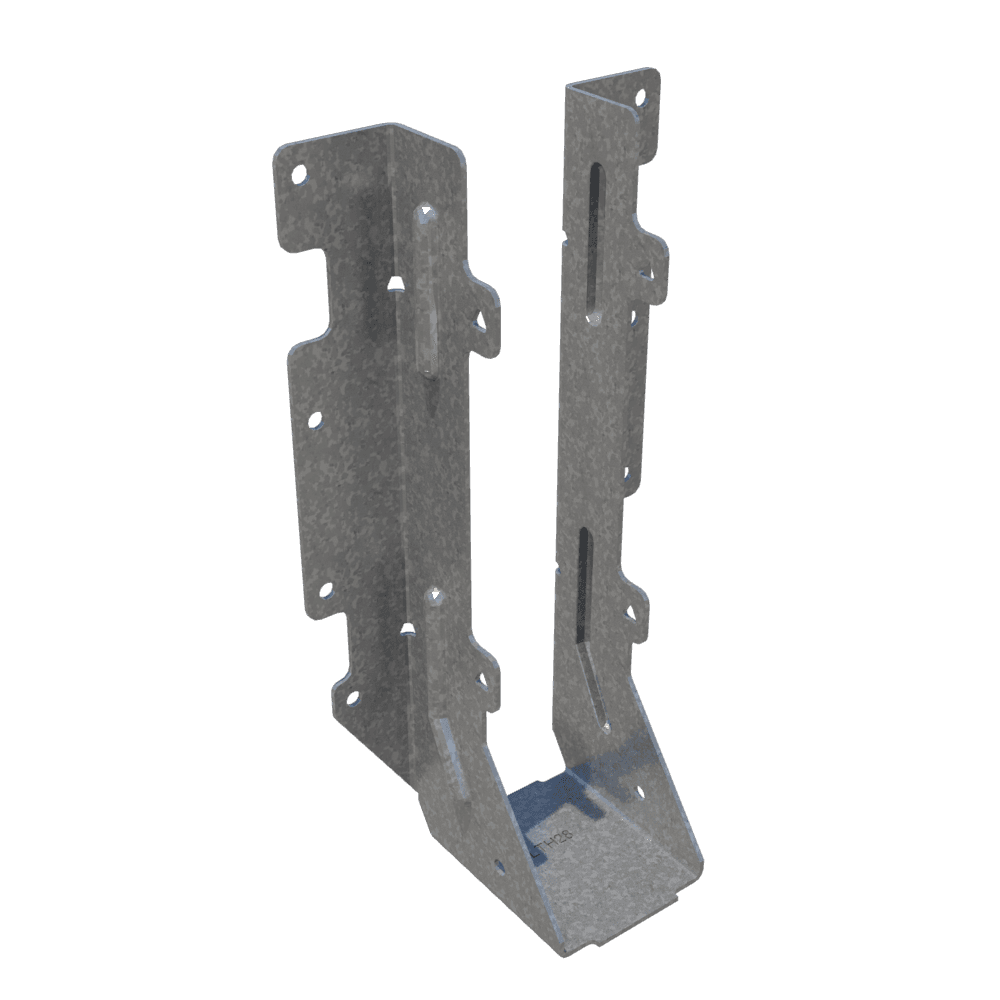

| CDLTH28 | 1-9/16" | 6-11/16" | 2-1/4" |

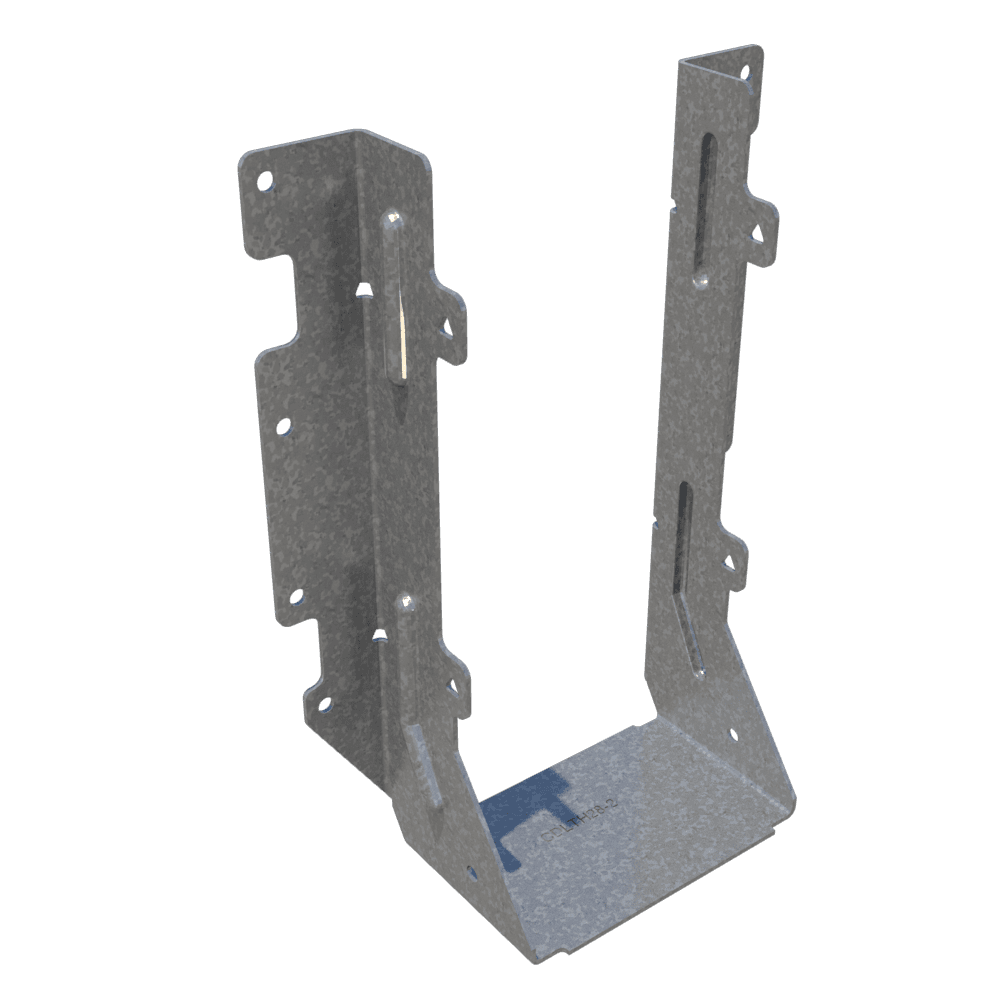

| CDLTH28-2 | 3-1/8" | 6-11/16" | 2-1/4" |
