Medium Clip Angle

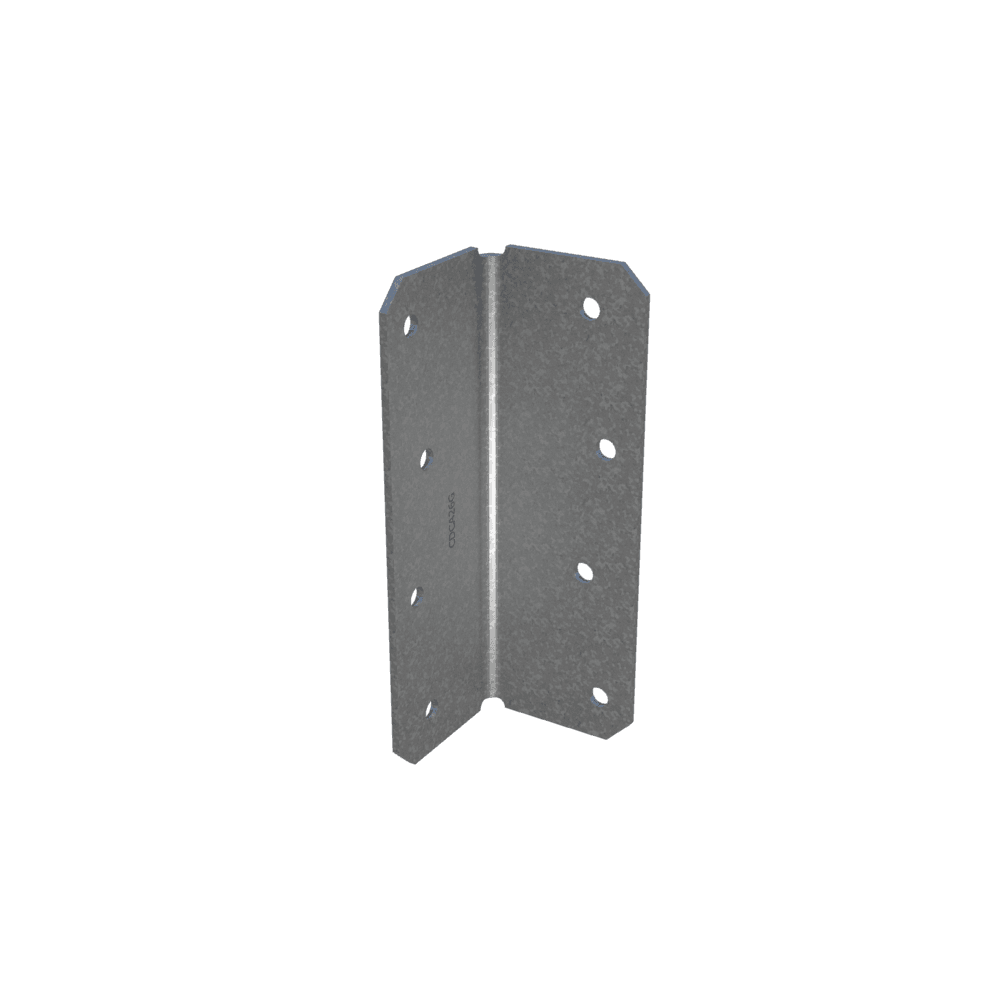

Medium clip angle
12 gauge angles used to attach back-to-back installation.
Quick Actions:

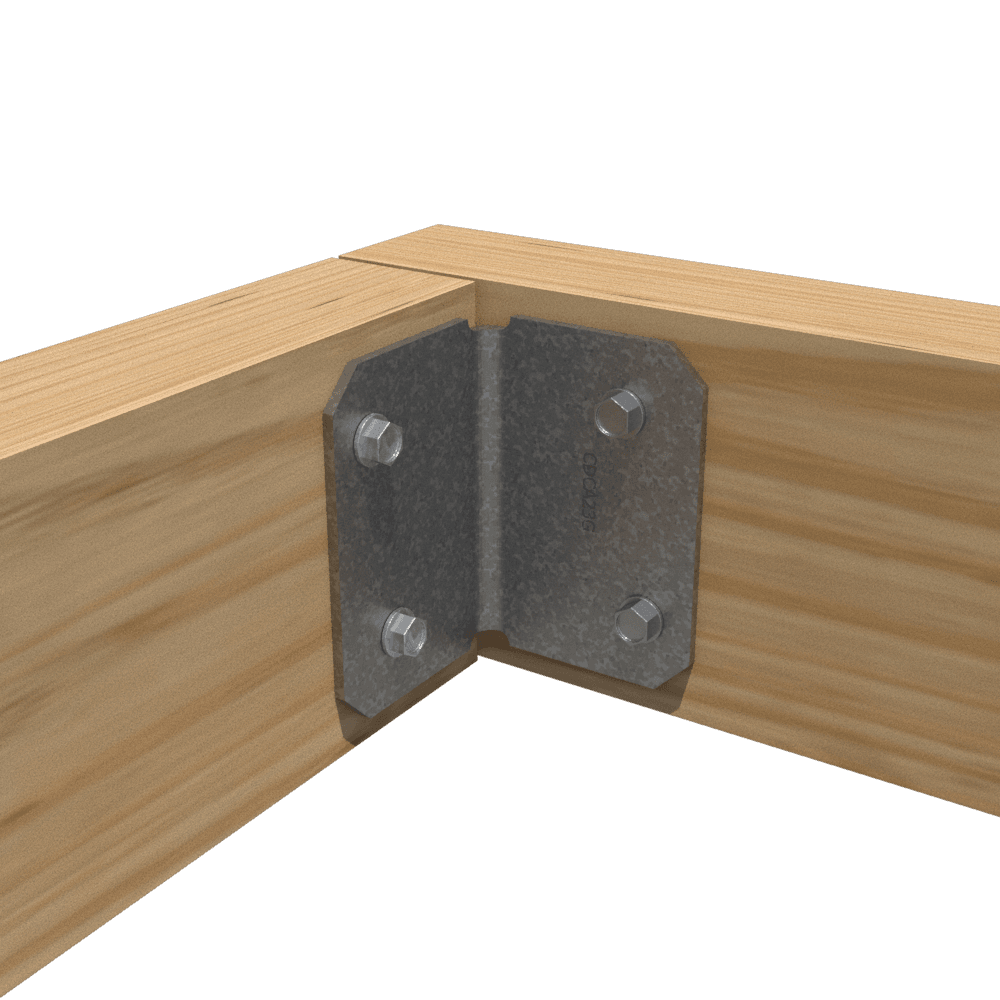

12 gauge angles used to attach back-to-back installation. The staggered hold pattern minimizes wood splitting.
Material: 12ga (97mil), 0.1017" Design thickness, 0.0966" Minimum thickness
Coating: G185
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com

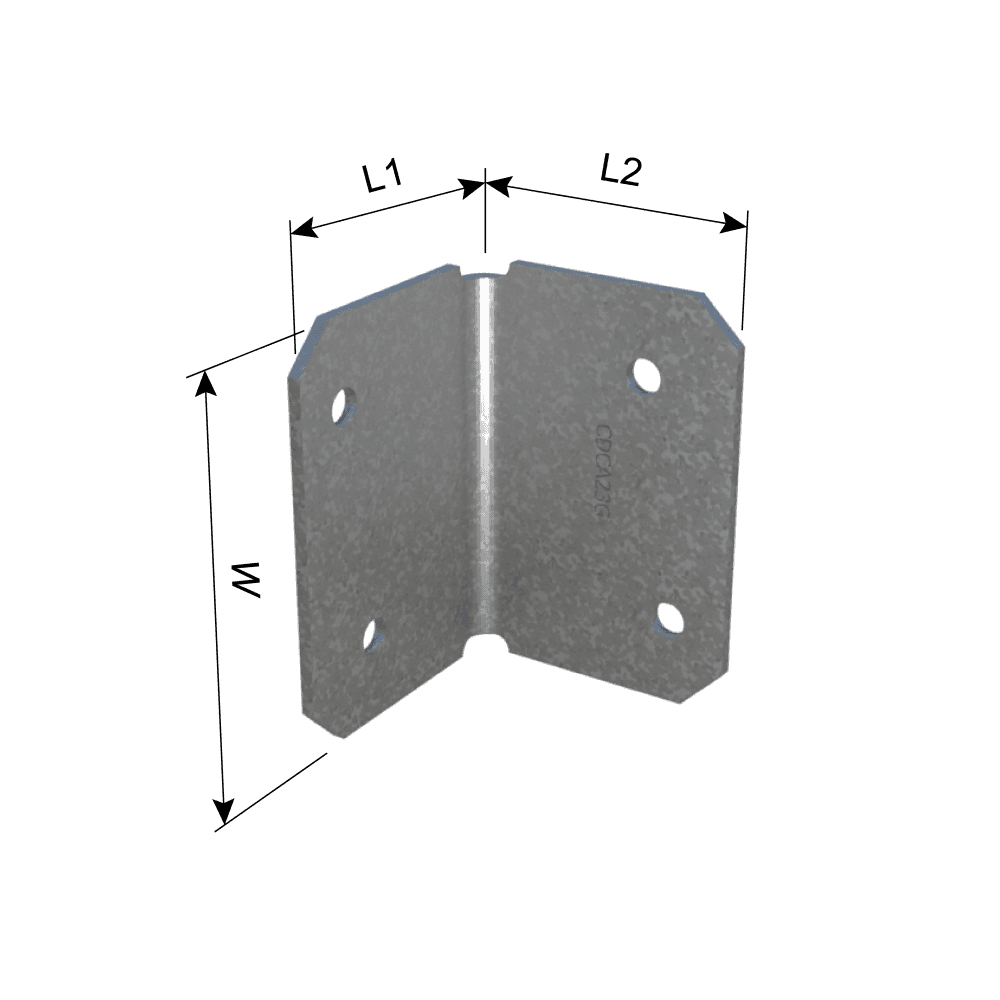

| Product Code | Gauge | Dimensions | ||
|---|---|---|---|---|
| L1 | L2 | W | ||
| CDCA23G | 12 | 2-7/64" | 2-7/64" | 3" |
| CDCA24G | 12 | 2-7/64" | 2-7/64" | 4" |
| CDCA26G | 12 | 2-7/64" | 2-7/64" | 6" |
| CDCA28G | 12 | 2-7/64" | 2-7/64" | 8" |
| CDCA210G | 12 | 2-7/64" | 2-7/64" | 10" |
