Medium Straps (CDLMS Series)
Medium STRAPS
Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.
Quick Actions:
Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.

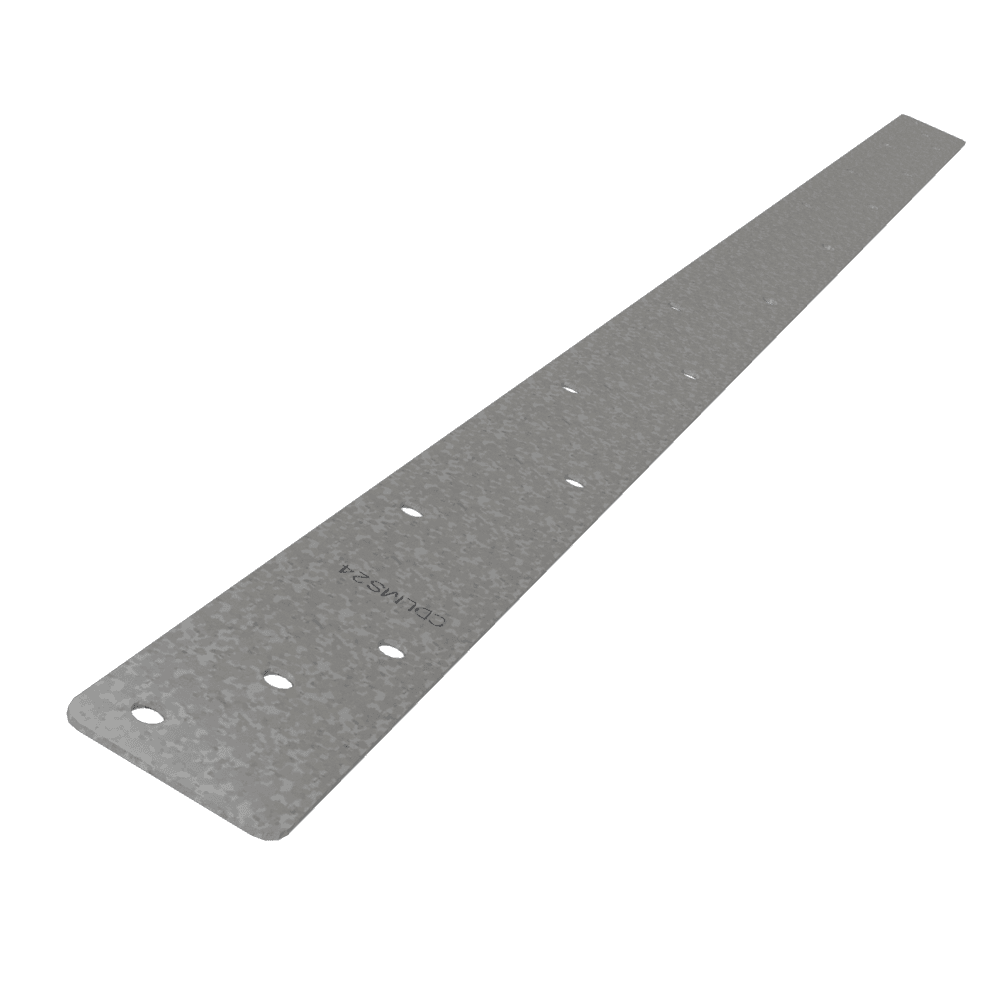

CDLMS Medium Straps are 1-1/4" wide and available in lengths from 9-5/8" to 36-5/8". Three holes are located at 3/4" on center, in a diagonal pattern, at each end of the strap. Remaining holes are punched at 1-1/2" on center, in a diagonal pattern. At mid length of each strap is a 3" long section with no holes.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available except CDLMS33)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com

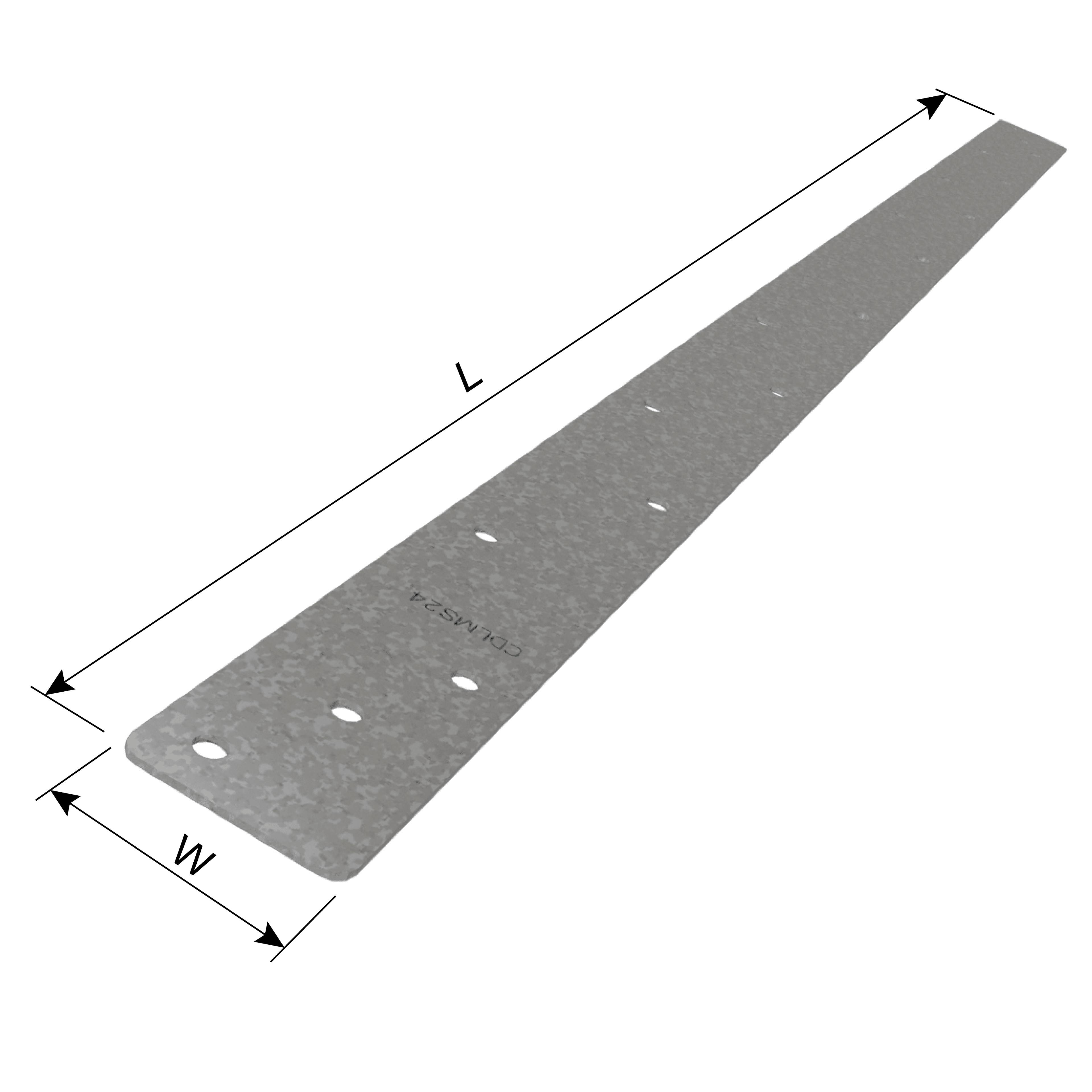

| Strap Dimensions (in) | ||
|---|---|---|
| Product Code | W | L |
| CDLMS9 | 1-1/4 | 9-5/8 |
| CDLMS12 | 1-1/4 | 12-5/8 |
| CDLMS15 | 1-1/4 | 15-5/8 |
| CDLMS18 | 1-1/4 | 18-5/8 |
| CDLMS21 | 1-1/4 | 21-5/8 |
| CDLMS24 | 1-1/4 | 24-5/8 |
| CDLMS30 | 1-1/4 | 30-5/8 |
| CDLMS33 | 1-1/4 | 33-5/8 |
| CDLMS36 | 1-1/4 | 36-5/8 |
