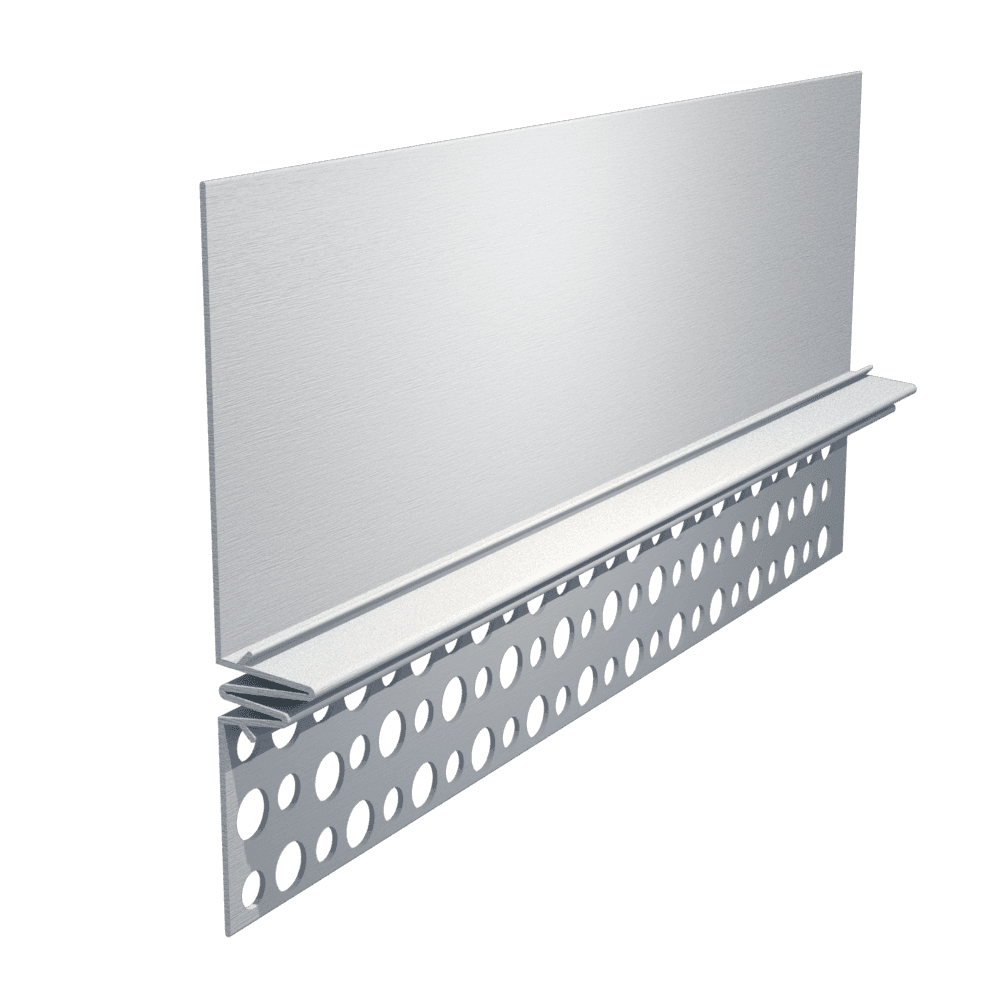

Mid Wall Weep Screed - M Style
Screed with built-in control joint
Accomodates expansion/contraction of the separate substrates.
Quick Actions:

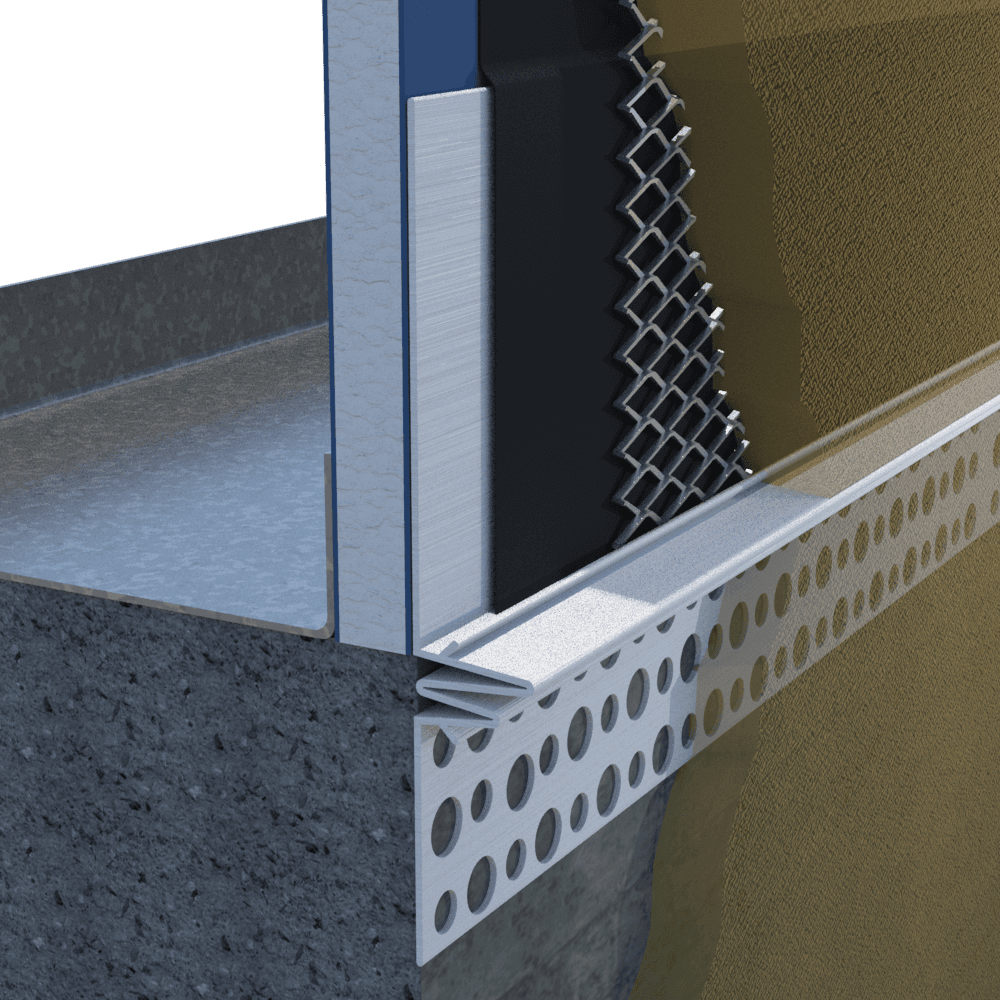

The mid-wall screeds have a built-in control joint to accommodate expansion/contraction of the separate substrates.
Product Data & Ordering Information

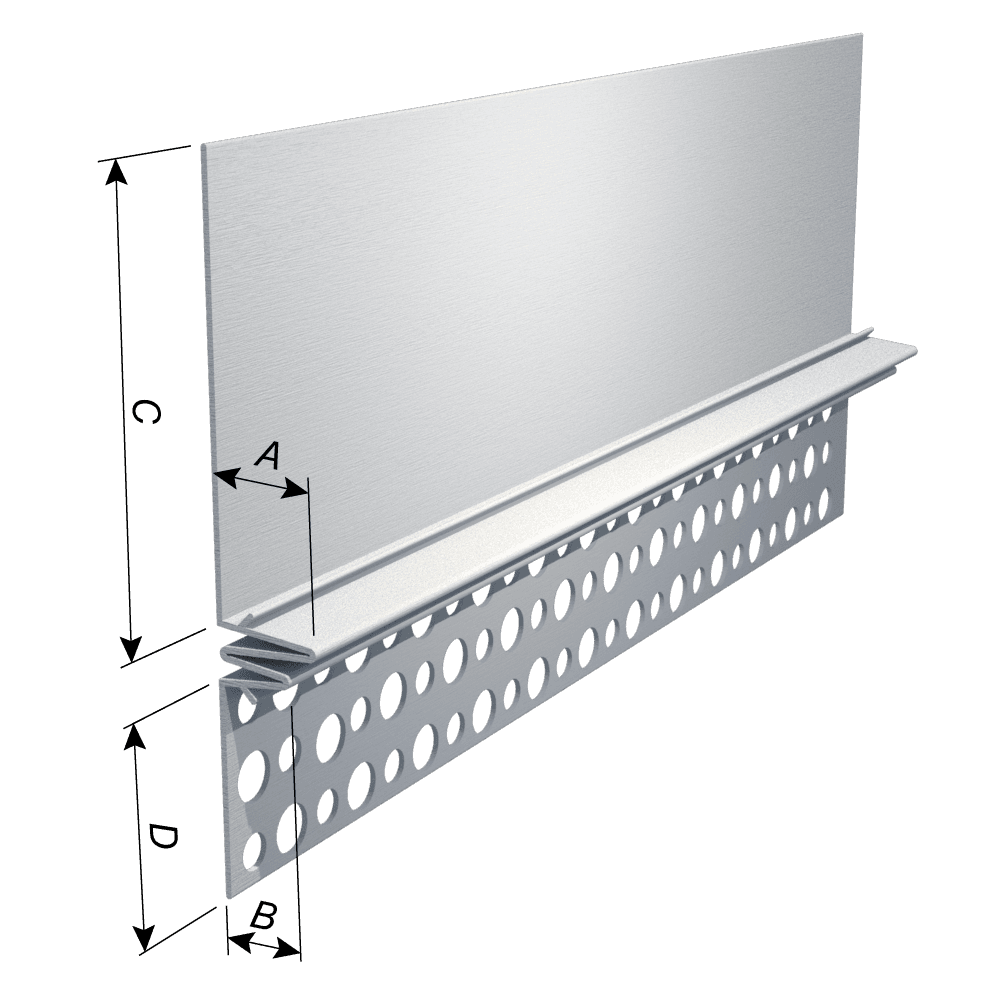

| Product code | Upper Ground (A) | Lower Ground (B) | Upper Flange (C) | Lower Flange (D) | Length | Pcs./Box |
|---|---|---|---|---|---|---|
| 1578-50UL | 7/8" | 1/2" | 3-1/2" | 1-3/4" | 10' | 15 |
| 1578-58UL | 7/8" | 5/8" | 3-1/2" | 1-3/4" | 10' | 15 |
| 1578-78UL | 7/8" | 7/8" | 3-1/2" | 1-3/4" | 10' | 15 |
