Miscellaneous Soffit Vent
One-piece Soffit Vent designed for plywood, soffit board, and three-coat stucco
May be combined with Starter Strips / Casing Beads or DEFS Casing Beads.
Quick Actions:

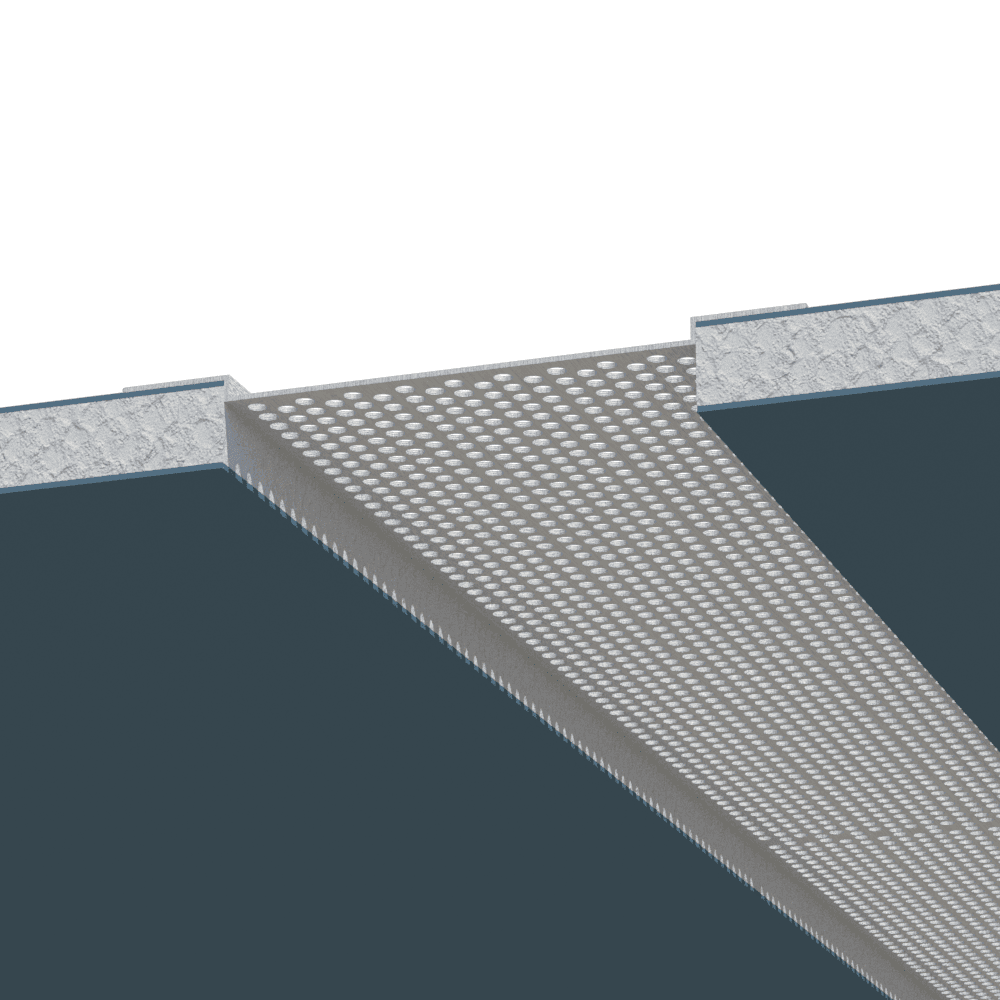

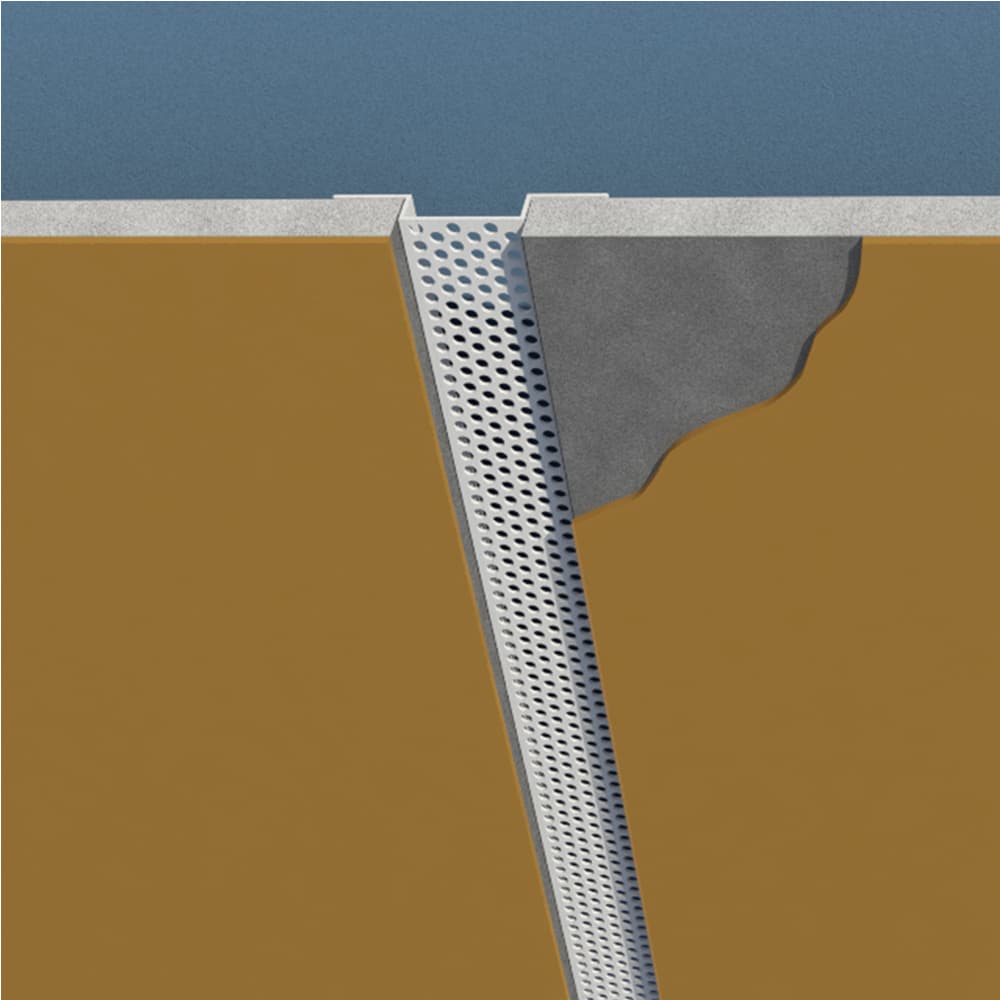

ClarkDietrich one-piece soffit vent designed for plywood, soffit boards and three-piece stucco and plaster. It may be combined with various Starter Strips / Casing Beads to create a three-piece system for EIFS, DEFS, stucco or plaster to provide an economical means for venting soffit areas.
Vent clips are provided for proper connection and to assist in the alignment of soffit vents. Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

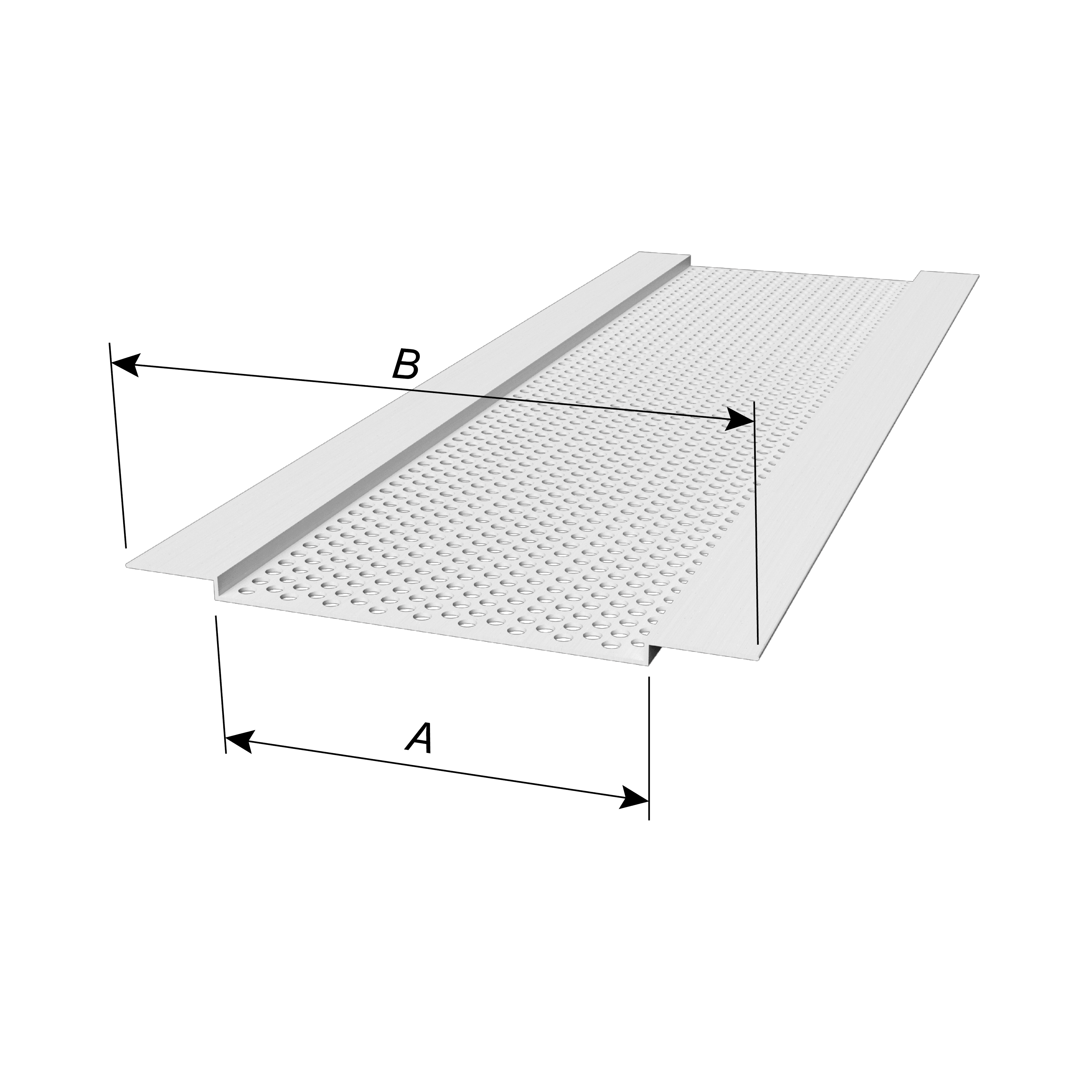

| Product code | Vent width (A) | Board thickness | Overall width (B) | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| V-100 | 1" | 3/8" | 2-3/8" | 4 sq. in. | 40 |
| V-150 | 1-1/2" | 3/8" | 2-7/8" | 6 sq. in. | 40 |
| V-200 | 2" | 3/8" | 3-3/8" | 8 sq. in. | 40 |
| V-300 | 3" | 3/8" | 4-3/8" | 15 sq. in. | 40 |
| V-400 | 4" | 3/8" | 5-3/8" | 16 sq. in. | 25 |
| V-600 | 6" | 3/8" | 7-3/8" | 18 sq. in. | 20 |
Note: Items are made to order, lead time will apply.
Contact ClarkDietrich customer service at 1-800-648-4695.
The one-piece soffit vent can be combined with the following accessory trims:
