Panel Lift Clip (PLC)
PROVIDES LIFTING POINTS FOR PREFABRICATED PANELS

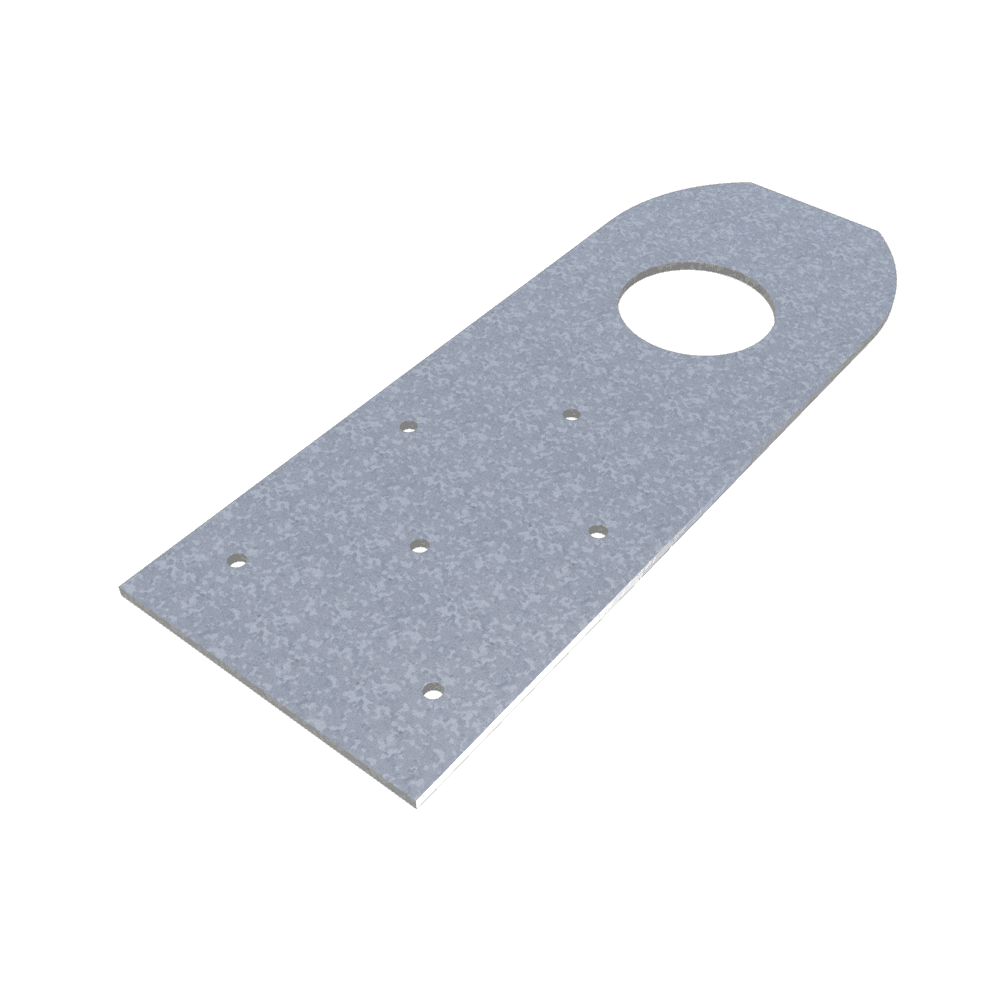

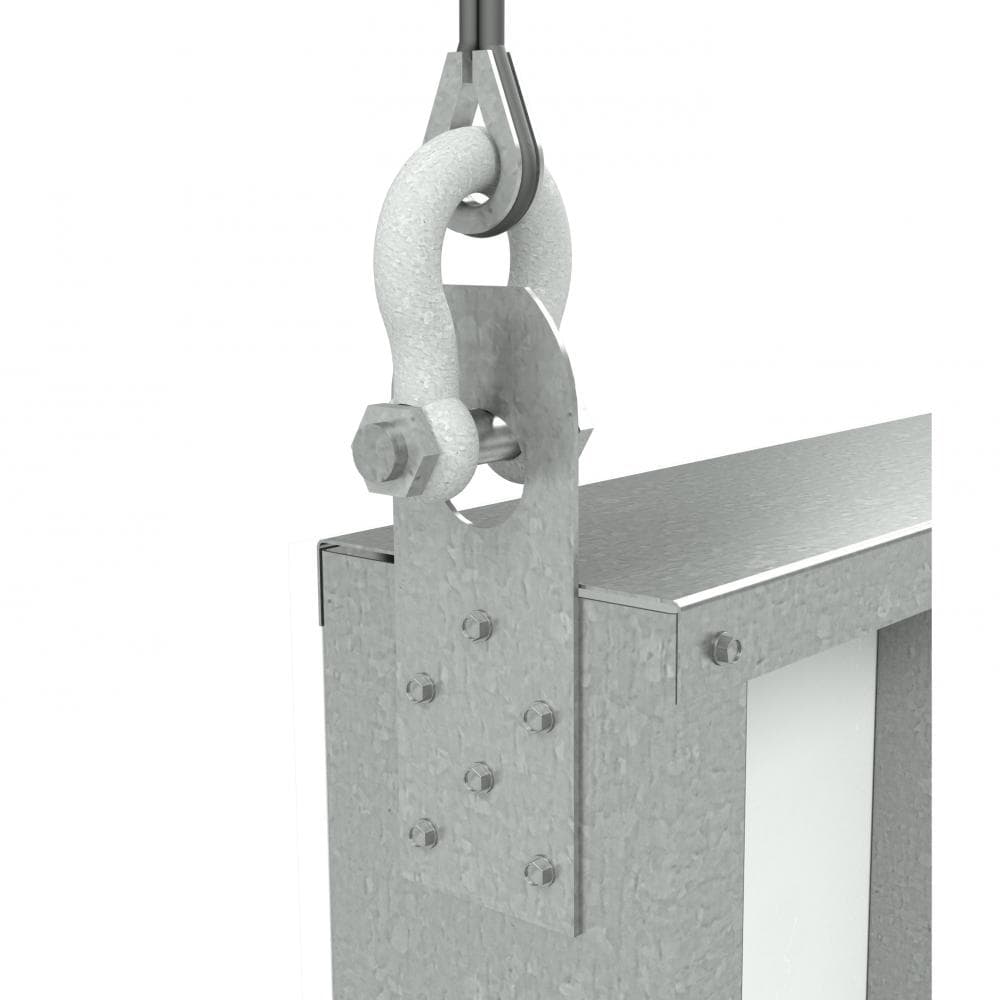

The ClarkDietrich Panel Lift Clip is load rated and is used to safely lift wall panels at assembly warehouses or on job-sites. The clip comes pre-punched for screw attachment to the panel as well as a larger hole for the clamp. The rounded design of the top of the panel clip allows for the clamp to slide freely without getting stuck on the corners. The Panel Lift Clip comes in 12ga and is offered in two sizes, 8” and 12”.
Quick Actions:
Our Panel Lift Clip is load rated and is used to safely lift wall panels at assembly warehouses or on a job-site. The clip comes pre-punched for screw attachment to the panel as well as a larger hole for the clamp. The rounded design of the top of the panel clip allows for the clamp to slide freely without getting stuck on the corners. The Panel Lift Clip comes in 12ga and is offered in two sizes 8” and 12”.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
Product Dimensions
PLC8-97 = 3" wide x 8" long plate
PLC12-97 = 3" wide x 12" long plate
Material Specifications
12ga (97 mil), 0.1017" Design thickness, 0.0966" Min. thickness
| Product code | Overall Length | Packaging |
|---|---|---|
| PLC8-97 | 8" | Bucket of 100 |
| PLC12-97 | 12" | Bucket of 50 |
