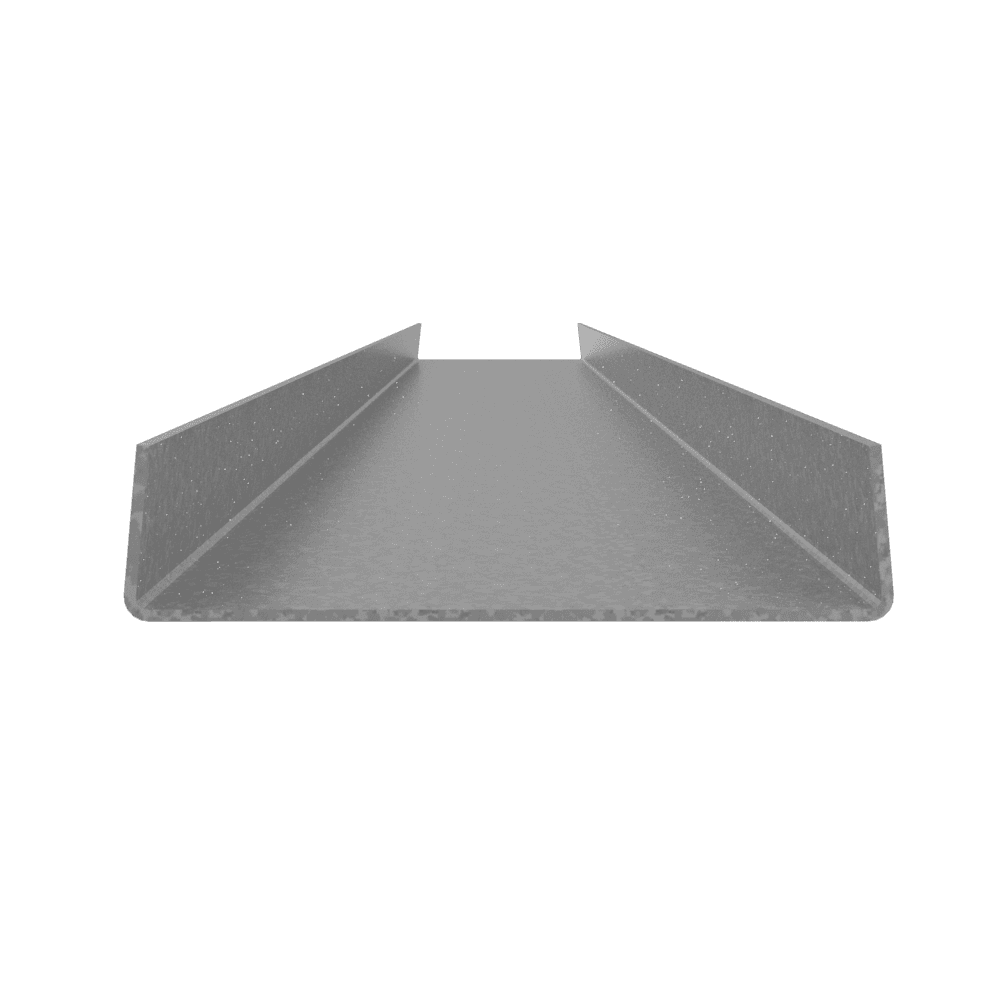

PanelTRAK
Steel Track for direct web bearing

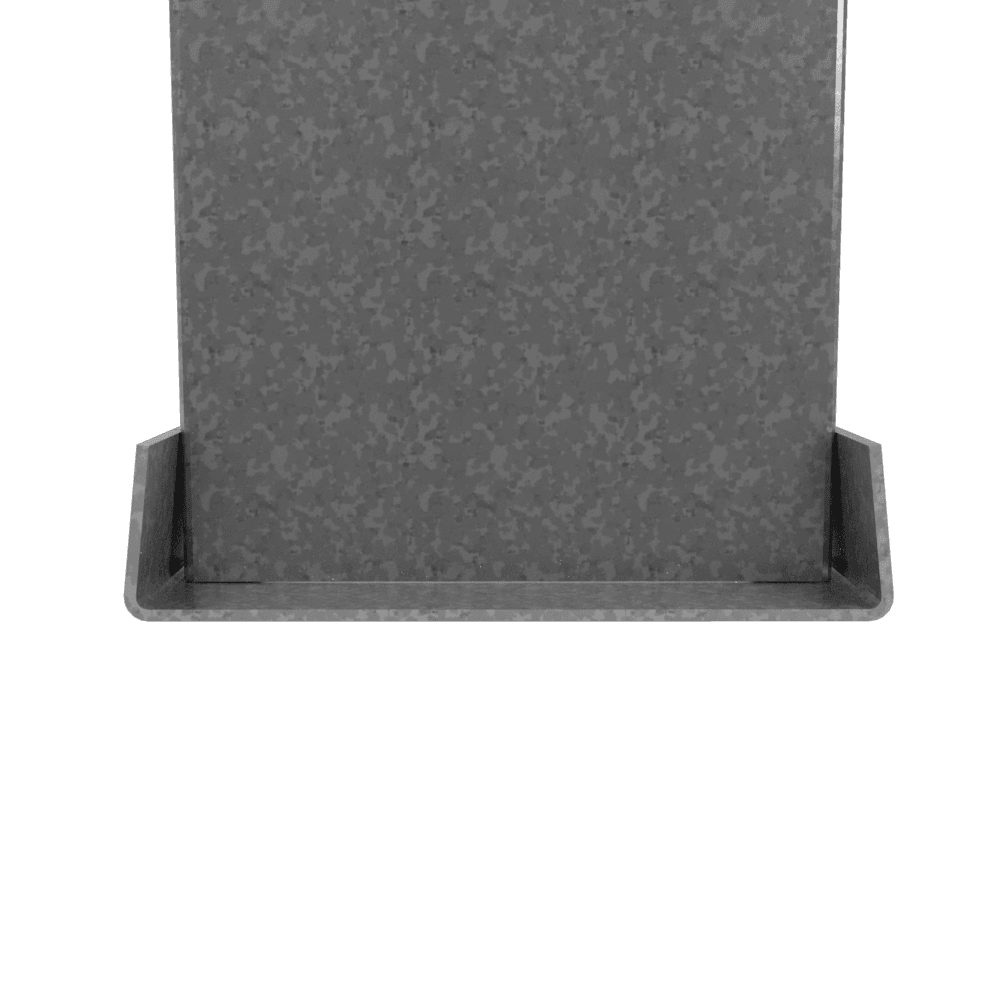

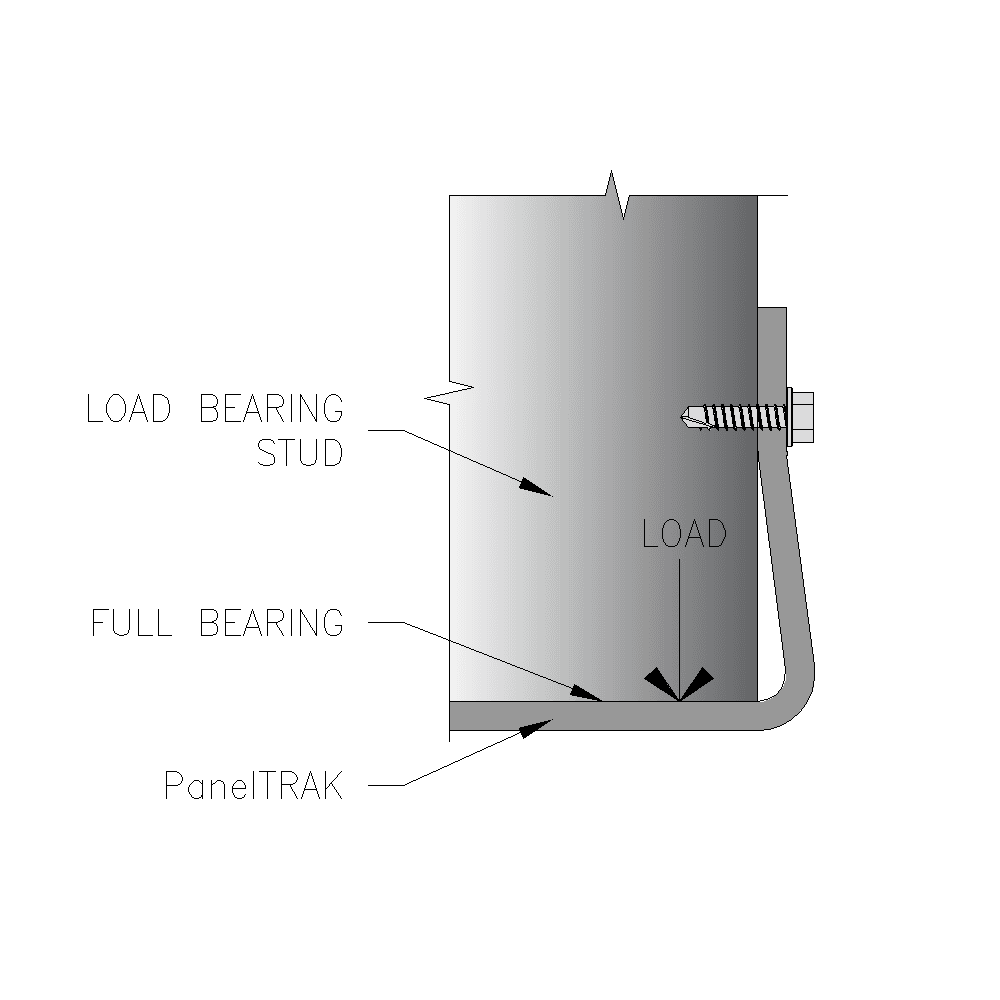

PanelTRAK is a structural steel track that allows steel studs to bear directly on the track web rather than the radii of the track corners. Because of its slightly oversized web base, it creates an easier installation in load bearing applications. PanelTRAK can be used in axial loadbearing walls, curtain walls, tall interior partitions, floor joists and roof truss assemblies.
Quick Actions:

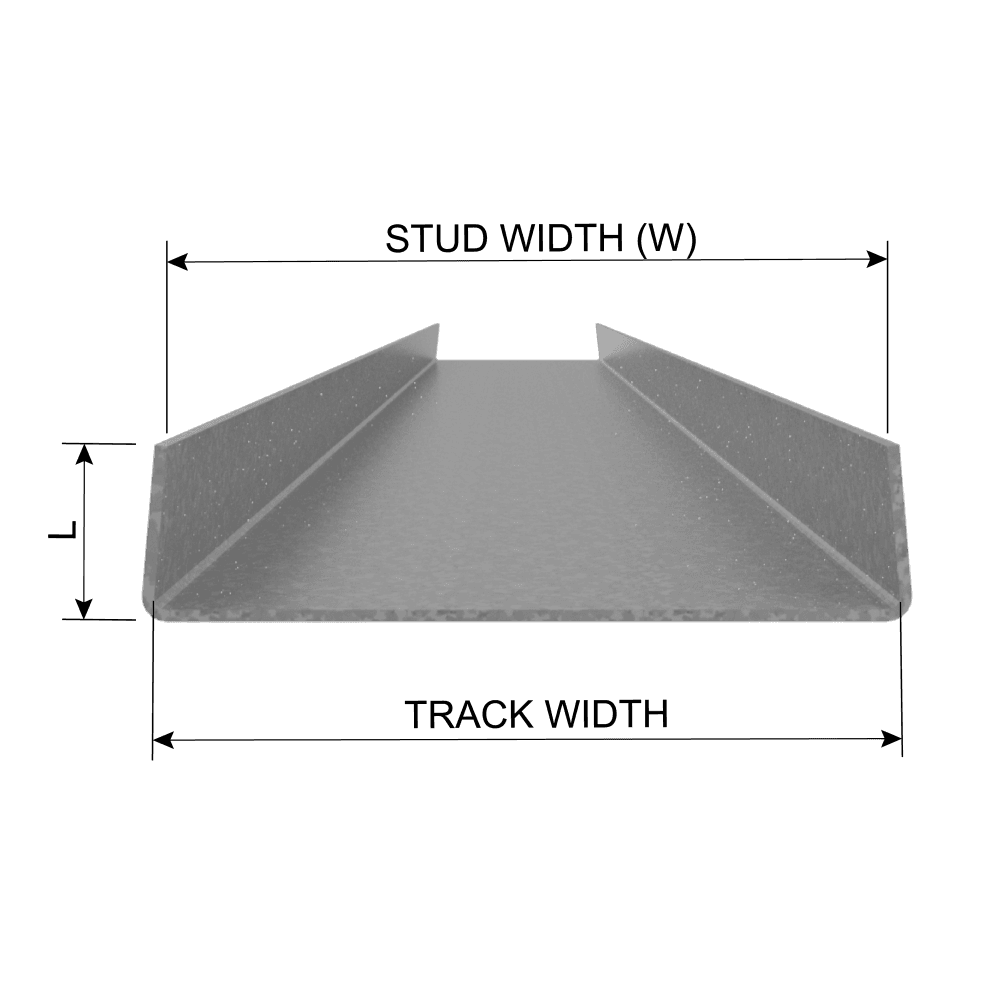

ClarkDietrich PanelTRAK is made in a variety of web and leg sizes to meet different applications
- Standard Web Size: 3-5/8”, 4”, 6” and 8”
- Leg heights: 1-1/2” and 2”.
- Thickness: 33 mils (20ga), 43 mils (18ga), 54 mils (16ga), and 68 mils (14ga).
- 33 mils (20ga) and 43 mils (18ga) material produced with 33ksi steel.
- 54 mils (16ga) and 68 mils (14ga) material produced with 50ksi steel.
- Standard coating: CP60
- Standard 10’ lengths. (Custom lengths available)
- Lead-times vary, contact your local sales representative for availability and pricing.

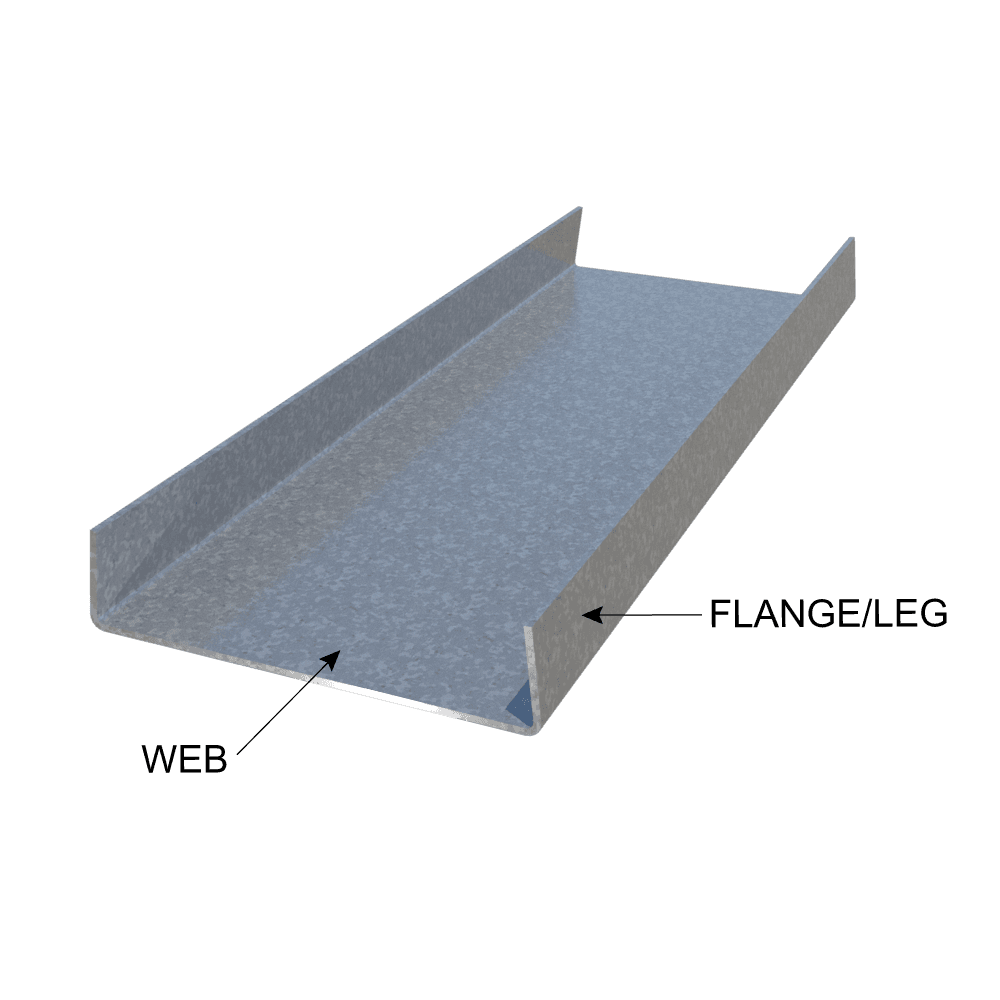

ClarkDietrich PanelTRAK is a U-shaped framing component used as top and bottom runners to secure wall studs. PanelTRAK is also used as head and sill plates of wall openings and solid blocking. PanelTRAK is normally ordered in corresponding size and gauge to the wall studs. .
See ClarkDietrich's Product Identification sheet for more on how to identify our products.
