Paper-Backed Lath
Galvanized Expanded Steel Plaster/Stucco Base
A superior mesh multi-purpose expanded steel base with an approved Grade-D weather resistant barrier attached. Application of asphalt paper-backed (APB) metal lath is used behind stone, traditional stucco, and tile installations as a code compliant weather resistant barrier.
Quick Actions:
It provides protection against wet areas during stucco curing. Paper-Backed Lath comes in flat and self-furring configurations to accommodate your installation needs.

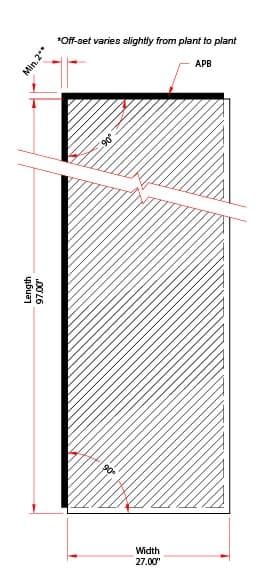

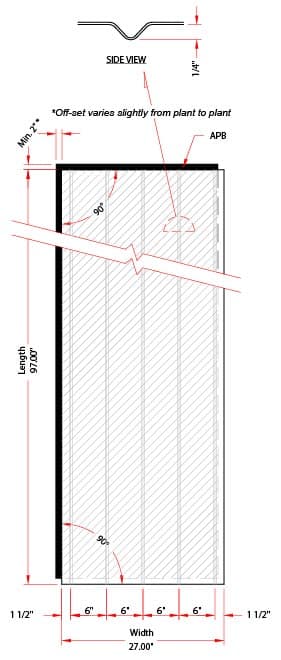

APB is available with Diamond Metal Lath, Self-Furring Dimple Lath and Self-Furring V-Groove Lath.
Optional 60-minute Grade-D paper available for higher weather resistance and durability.
The asphalt paper-backed weather resistant barrier meets Federal Specification UUB790A: Type 1, Grade-D, Style 2 and is printed on the face of the paper for easy identification.
Galvanized steel products should not be used with magnesium oxychloride cement stucco or Portland cement stucco containing calcium chloride additives.
Product Data & Ordering Information
Material: G60 Galvanized Steel
Type 1, Grade-D, Style 2 Paper
Packaged: 25 bundles or 250 pieces per pallet
| Finish |
Wt. per |
Sheet Size | Sheets/Bundle | Bundle/Pallet |
|---|---|---|---|---|
| Galv. | 2.5 lbs. | 27" x 97" | 10 | 25 |
| Galv. | 3.4 lbs. | 27" x 97" | 10 | 25 |
