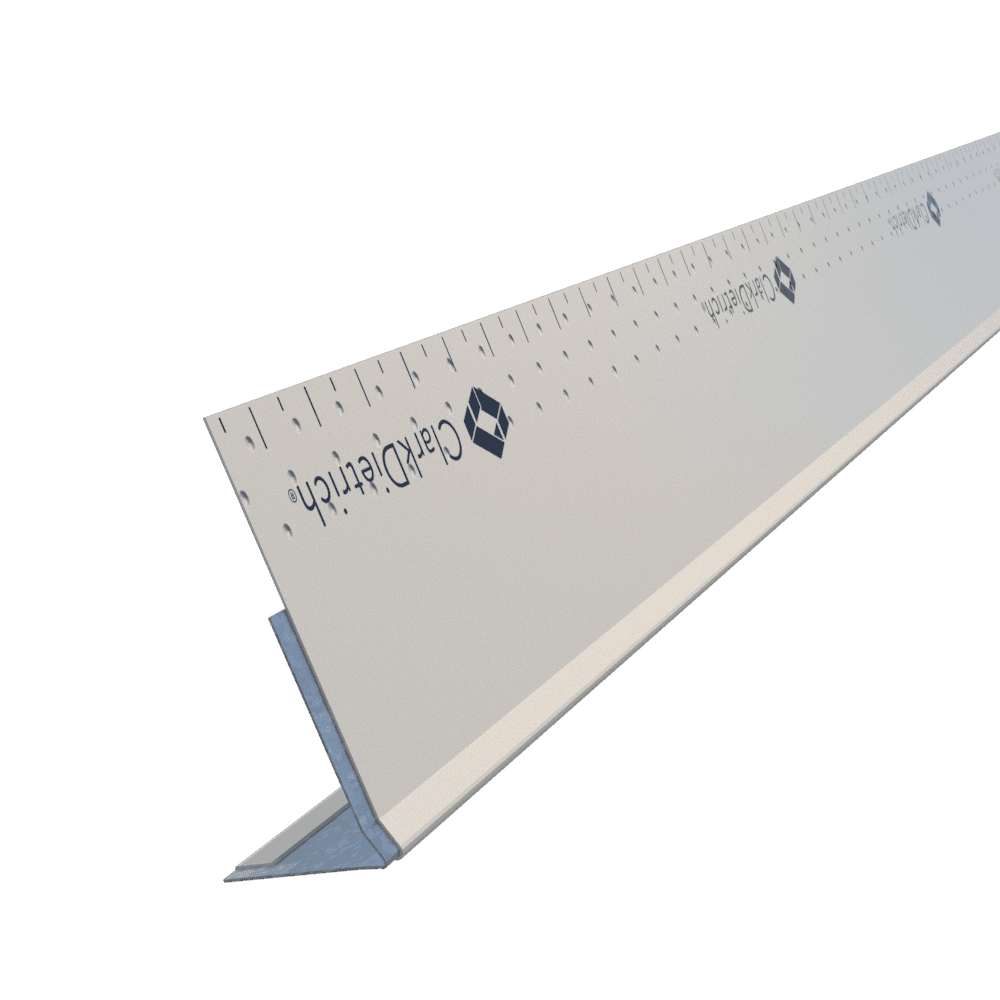

Paper-Faced L-Trim
Protects and finishes wallboard edge when gypsum panels abut dissimilar surfaces

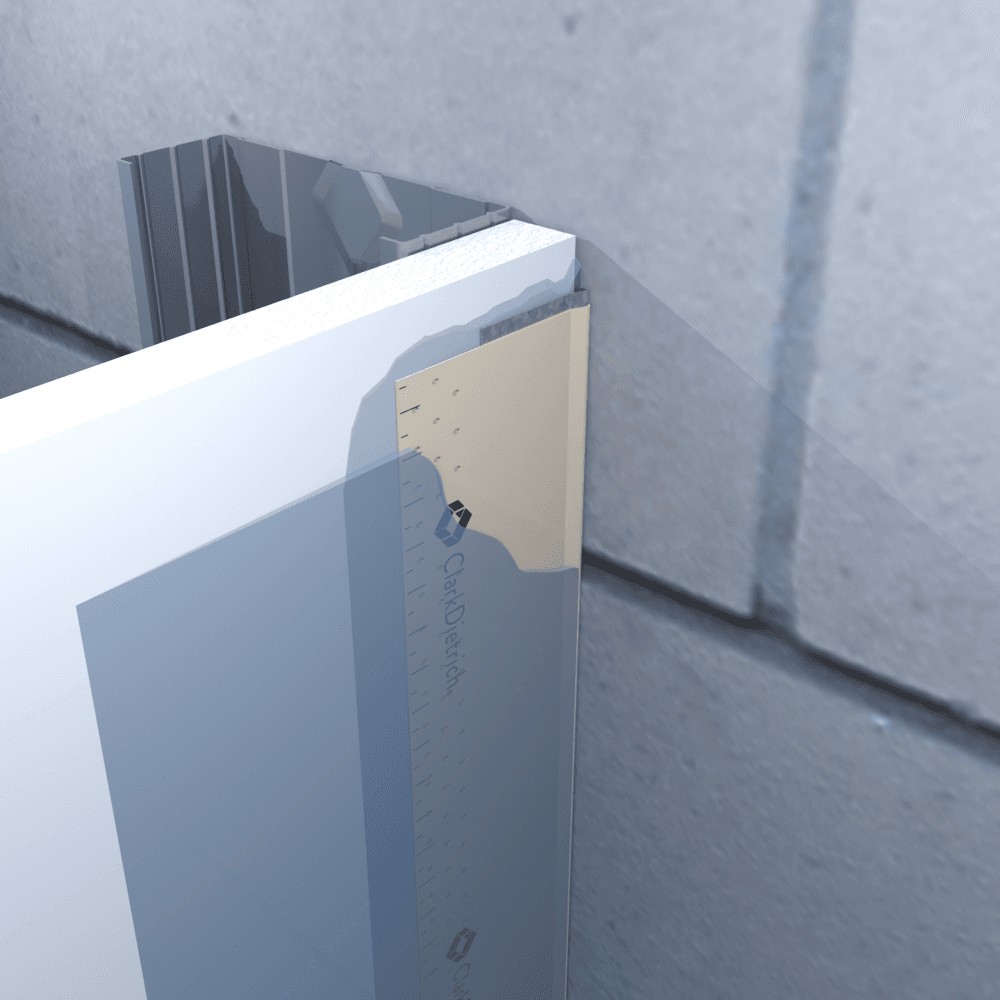

L-Trims are used to finish the ends of wallboard where it abuts dissimilar surfaces such as suspended ceilings, beams, plaster, masonry or untrimmed door and window jambs.
Quick Actions:
Tape-on L-Trims (CDL) are applied in the same manner as all other tape-on beads. Joint compound is used to embed the paper-faced bead to the wallboard paper. Excess compound can be removed with a drywall knife or clean rag.
- Impervious to "scuffing" and "fluffing-up"
- Will not be damaged by sanding
- Substantially reduces joint compound consumption and eliminates one finish coat
- Does not require mechanical fastening (No nails, staples, screws or crimps)
- Superior adhesion, bonding and paintability
- Does not require nose coating
- U.S. Patent Nos. 5,613,335 and 5,836,122
Material: 0.0125 galvanized coating
Product Data & Ordering Information
| Product code | USG Reference | Style | Dimensions | Pcs./Ctn. | Ctns/Skid | ||
|---|---|---|---|---|---|---|---|
| A | B | C | |||||
| CDL-1/2 | B4 | 1/2" | 3/4" | 15/16" | 9/16" | 50 | 40 |
| CDL-5/8 | B4 | 5/8" | 1/2" | 1-1/16" | 11/16" | 50 | 40 |
Standard lengths are 8' and 10'. Other lengths available.
