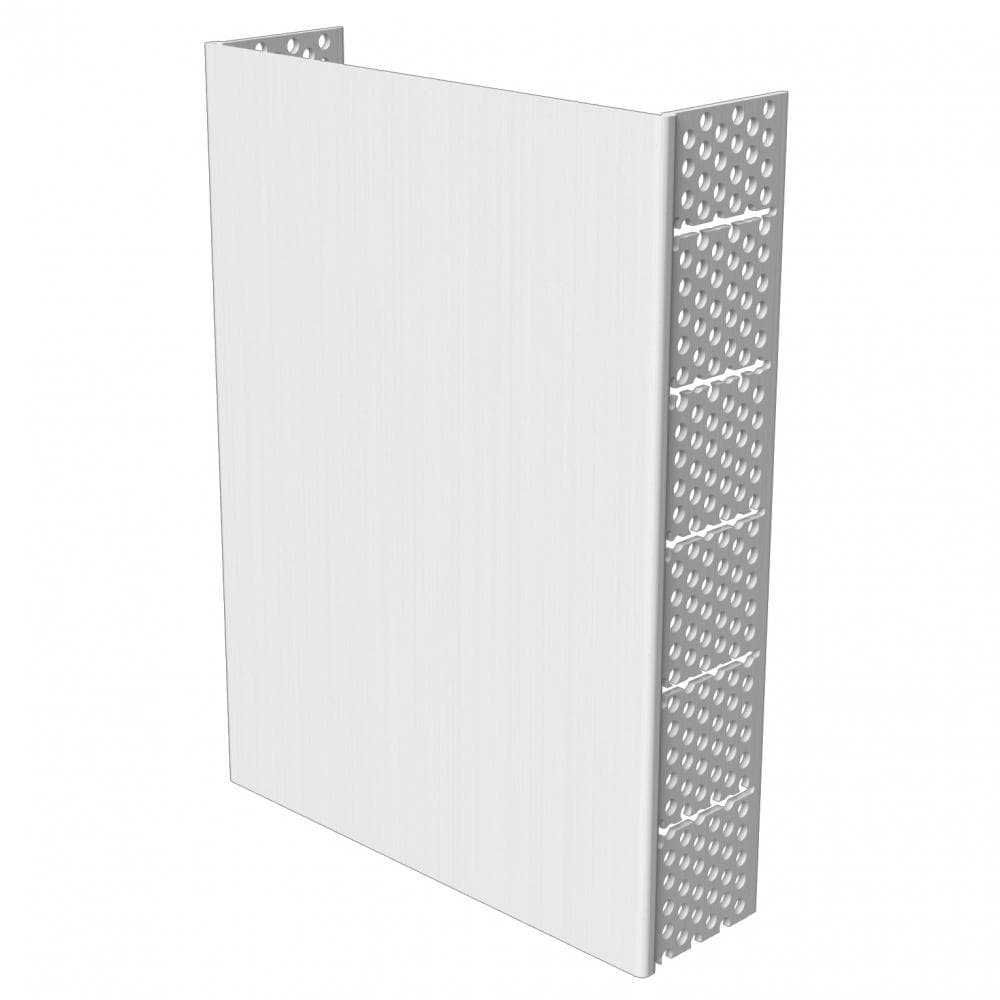

Partition End Caps
Quickly finishes doorways, knee walls and wall ends
Finish doorways, wall ends, knee walls and closets by eliminating the need for a drywall rip and two corner beads.
Quick Actions:

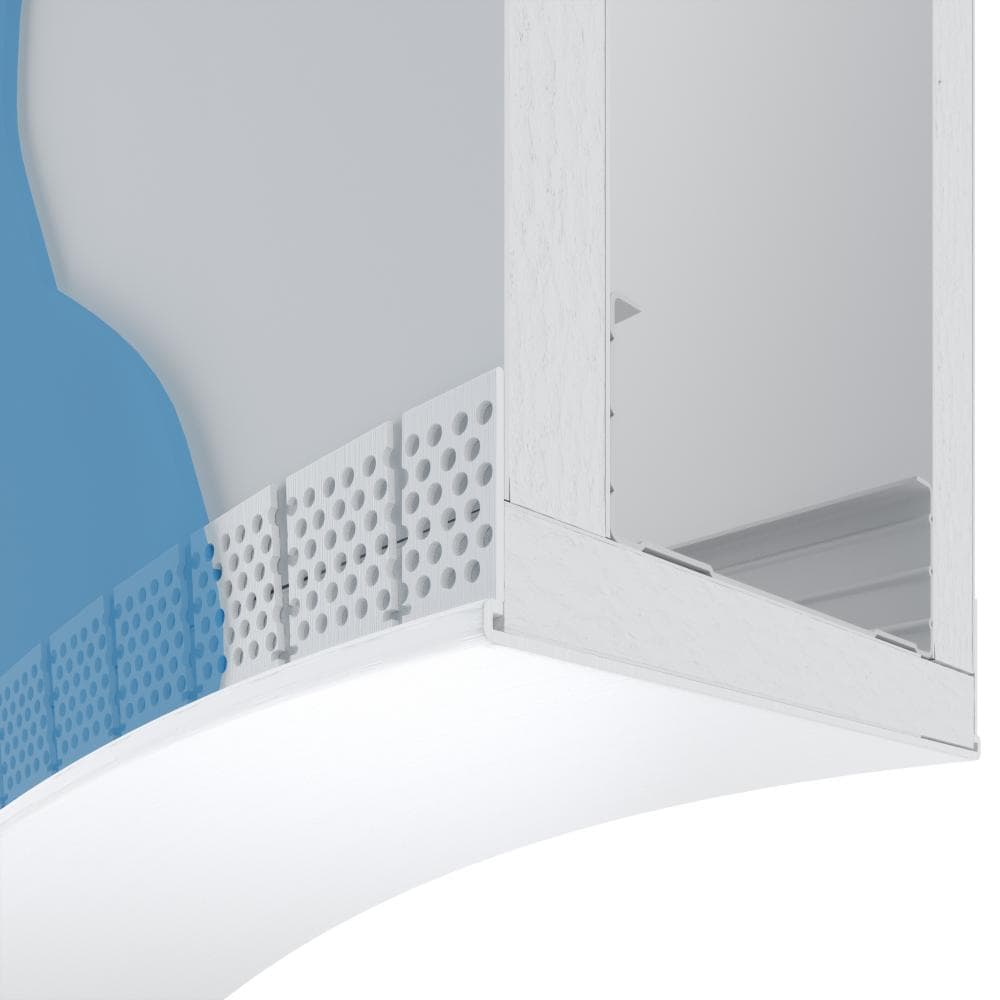

Partition End Caps are designed with a “T” slotted flange to create straight-to-curve arches by simply cutting the ends of "T" slots where arches or curve is desired. This product provides time (cost) savings through single-piece installation versus installing two corner beads. You also use less compound than two corner bead applications. Multiple perforations enhance strength of joint compound adhesion. Easy to cut, rust proof and dent resistant.
Product Data & Ordering Information
| Product code | Board thickness | Overall width | "T" Slotted flanges | Length | Pcs./Ctn. |
|---|---|---|---|---|---|
| PEC50-358-10 | 1/2" | 4-5/8" | 1-1/8" | 10' | 10 |
| PEC58-358-10 | 5/8" | 4-7/8" | 1-1/8" | 10' | 10 |
| PEC50-250-10 | 1/2" | 3-1/2" | 1-1/8" | 10' | 10 |
| PEC58-250-10 | 5/8" | 3-3/4" | 1-1/8" | 10' | 10 |

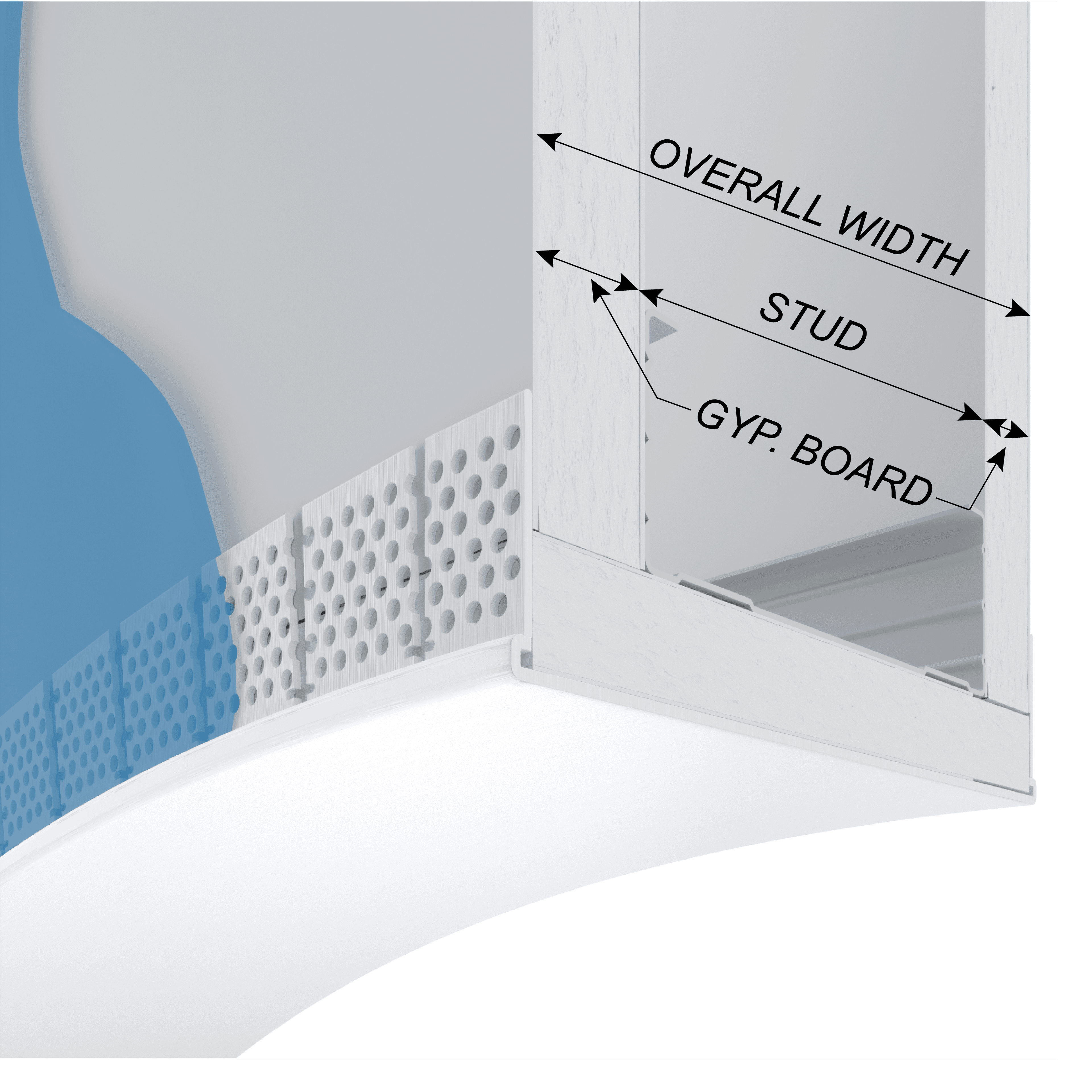

PEC50-358 = 3-5/8" stud with 1/2" gypsum board each side for an overall width of 4-5/8"
PEC58-358 = 3-5/8" stud with 5/8" gypsum board each side for an overall width of 4-7/8"
PEC50-250 = 2-1/2" stud with 1/2" gypsum board each side for an overall width of 3-1/2"
PEC58-250 = 2-1/2" stud with 5/8" gypsum board each side for an overall width of 3-3/4"
