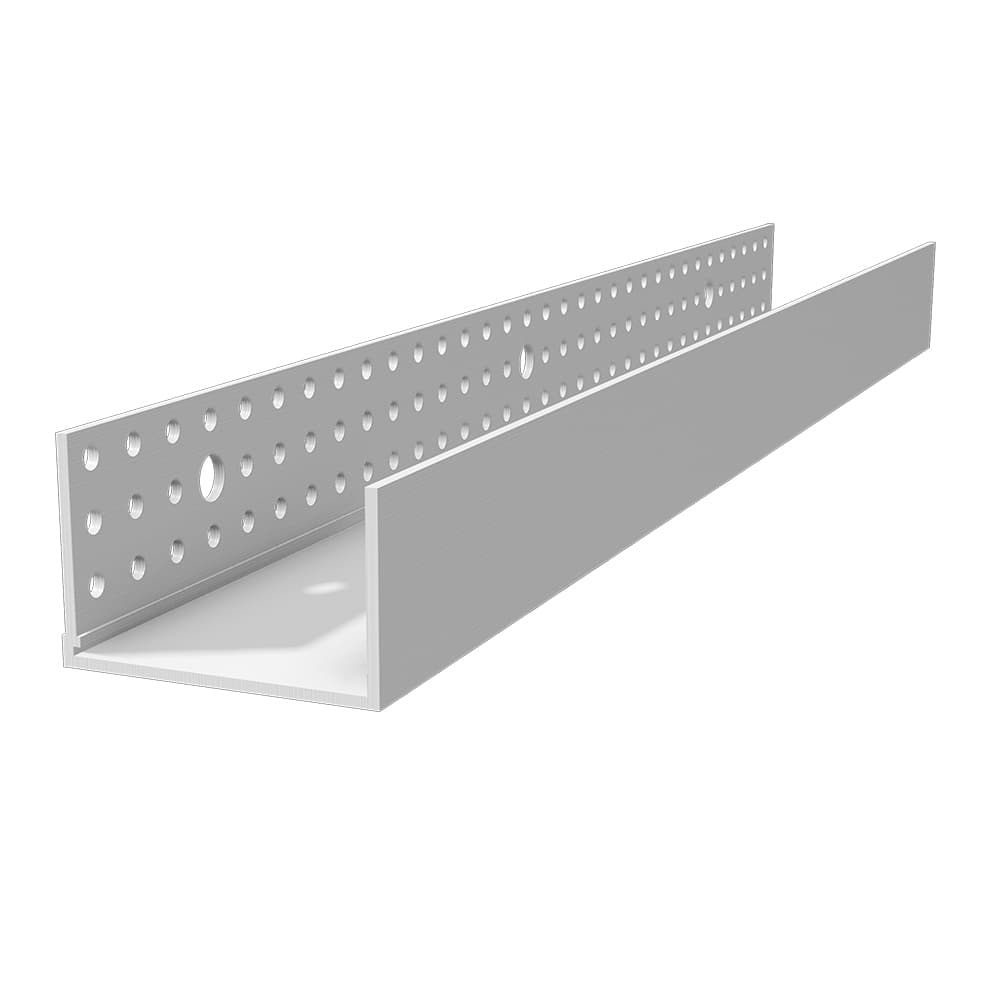

Prefabricated Panel Edge
Designed for systems that are manufactured into panels for job installation
Includes the ClarkDietrich Keylock™ Splice for connecting multiple sections and to assist in alignment in Exterior Insulation Finish Systems (EIFS) .
Quick Actions:

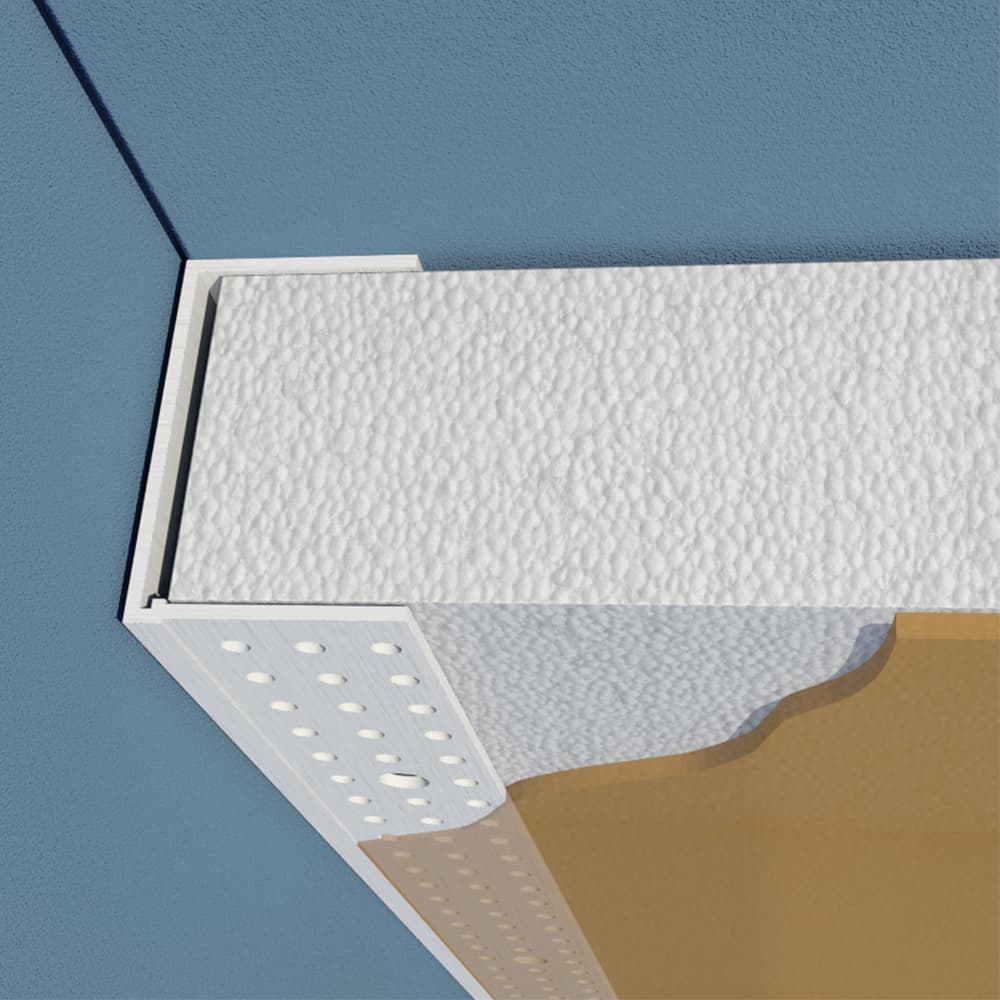

Creates a termination at a panel edge in Exterior Insulation Finish Systems (EIFS).
The perforated flanges allow the base coat mixture to easily flow through and bond to the substrate. Includes the Keylock™ Splice for connecting multiple sections and to assist in their alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

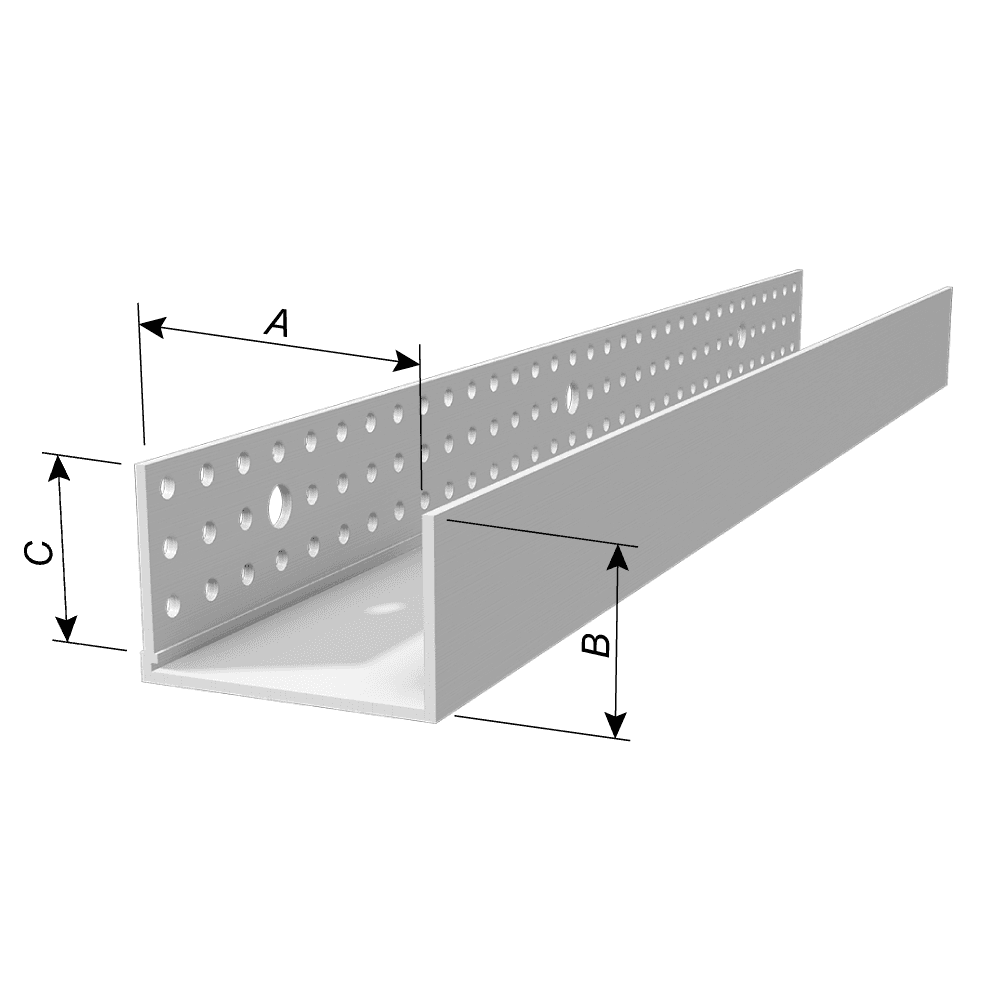

| Product code | Finish thickness | Insulation thickness (A) | Solid flange (B) | Perforated flange (C) | Pcs./Box |
|---|---|---|---|---|---|
| PRE100-16 | 1/16" | 1" | 1" | 1-1/8" | 60 |
| PRE150-16 | 1/16" | 1-1/2" | 1" | 1-1/8" | 40 |
| PRE200-16 | 1/16" | 2" | 1" | 1-1/8" | 25 |
U.S. Patent Numbers 5,970,671 and 6,134,847
