Purlin Hangers
purlin hangers
Designed specifically for agricultural and post-frame use with superior performance and easy installation.
Quick Actions:

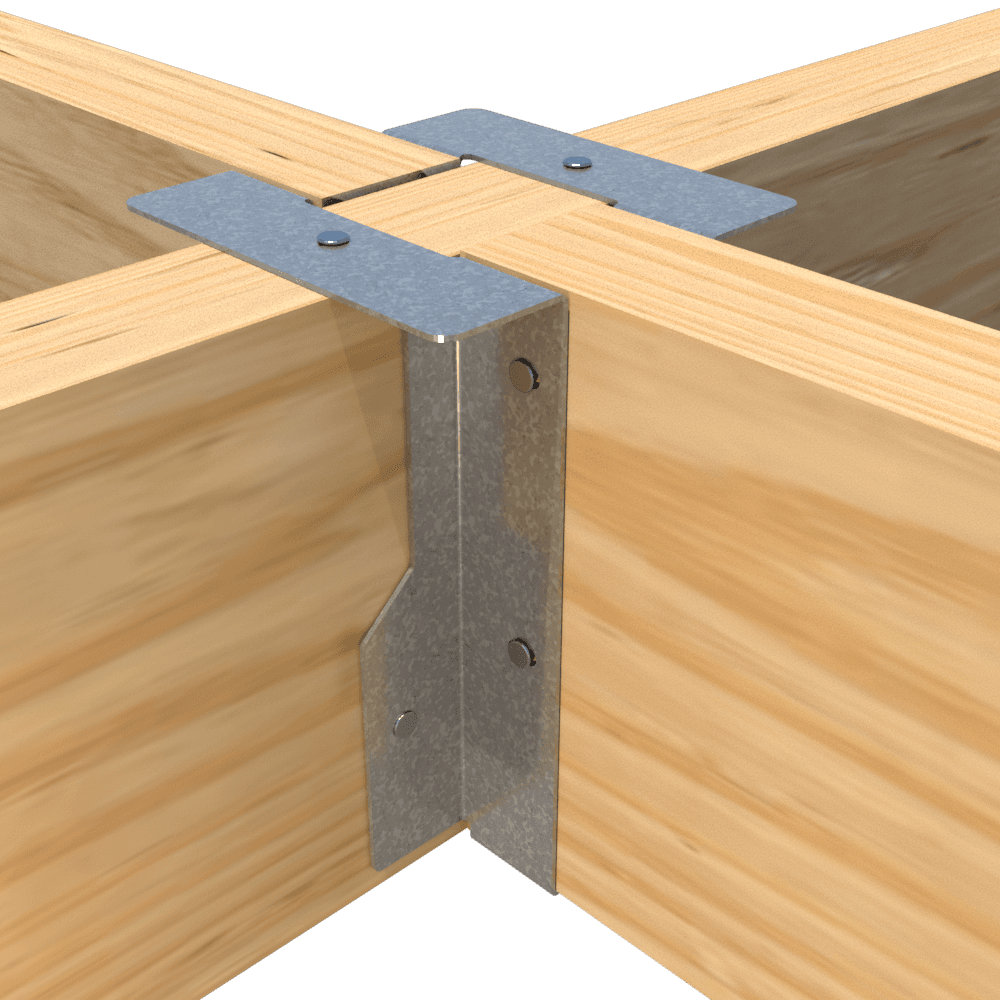

Designed specifically for agricultural and post-frame use with superior performance and easy installation. All of the hangers offer multiple installation methods, giving users maximum flexibility. Double-shear and straight nailing options available. Placement tooth or placement nail options for simplified installation.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

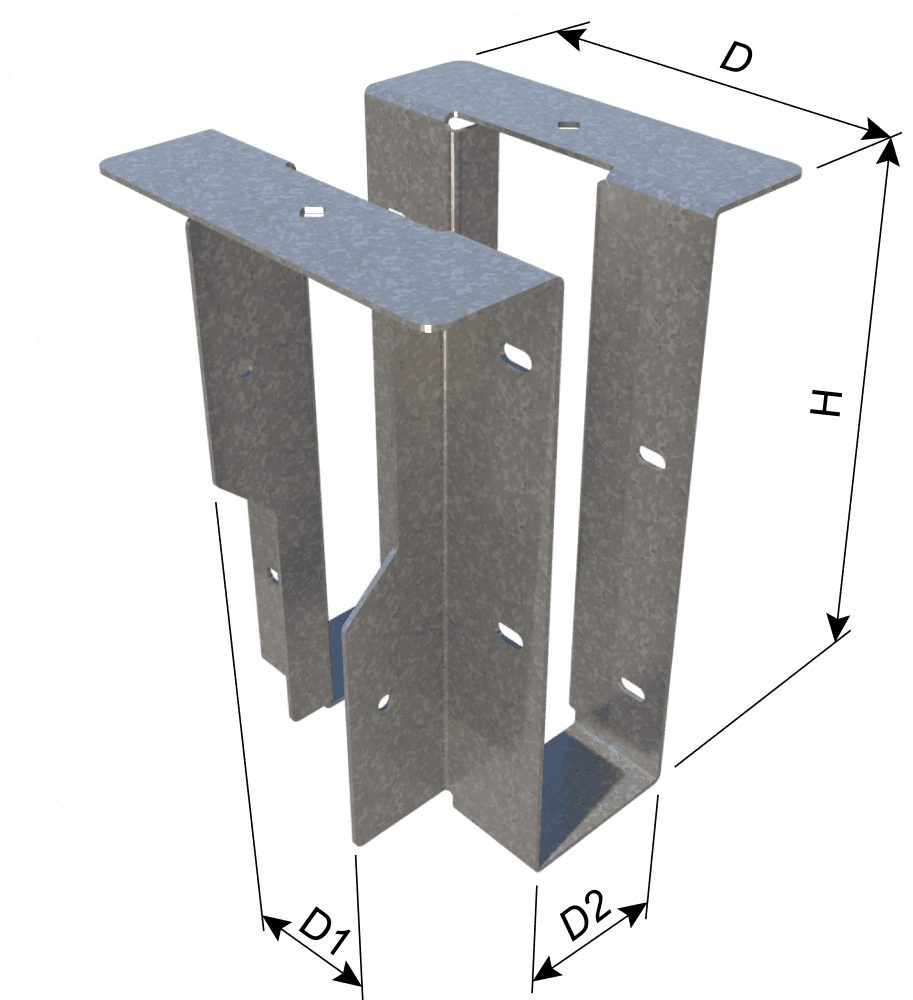

PRODUCT DIMENSIONS
| D1 | 1-3/4" |
|---|---|
| D2 | 1-9/16" |
| H | 1-9/16" |
| D | 1-9/16" |
