Soffit Vents (One-Piece)

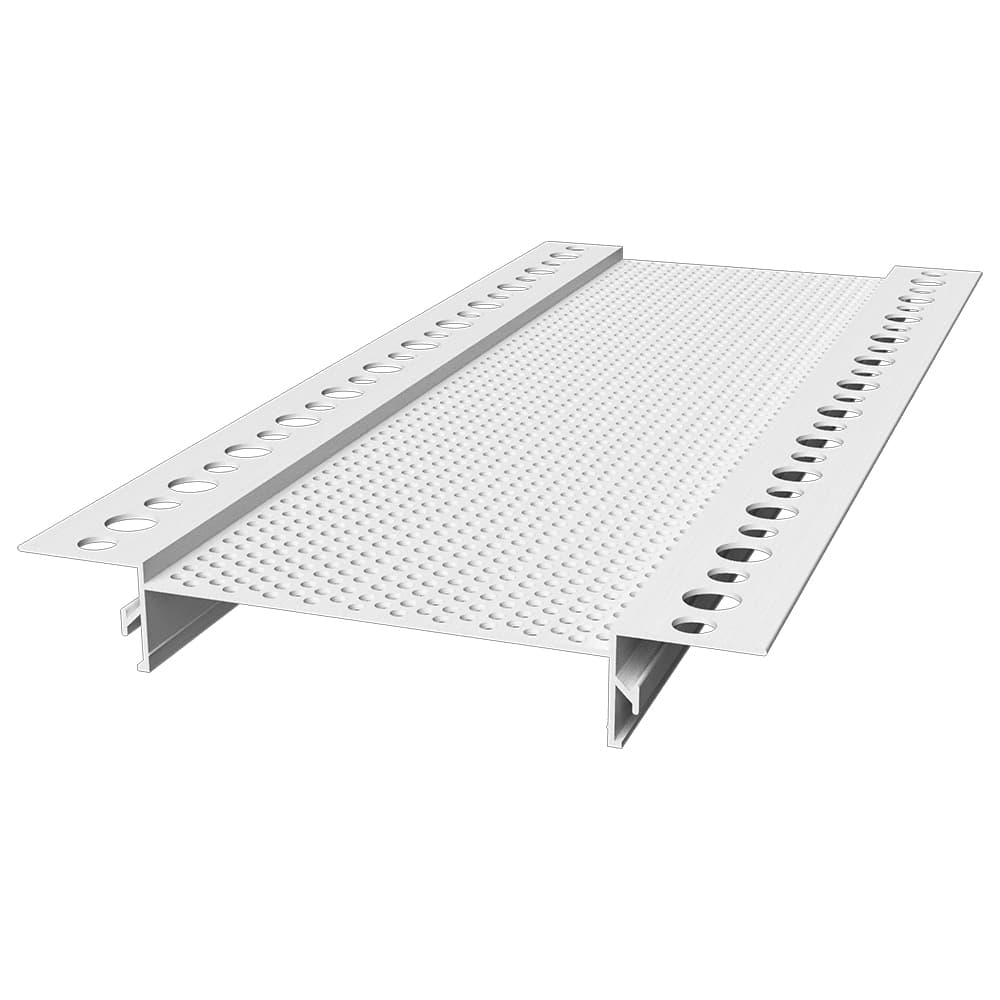

Continuous one-piece Soffit Vent
Reinforcing rib to key into stucco and plaster with a perforated flange.
Quick Actions:

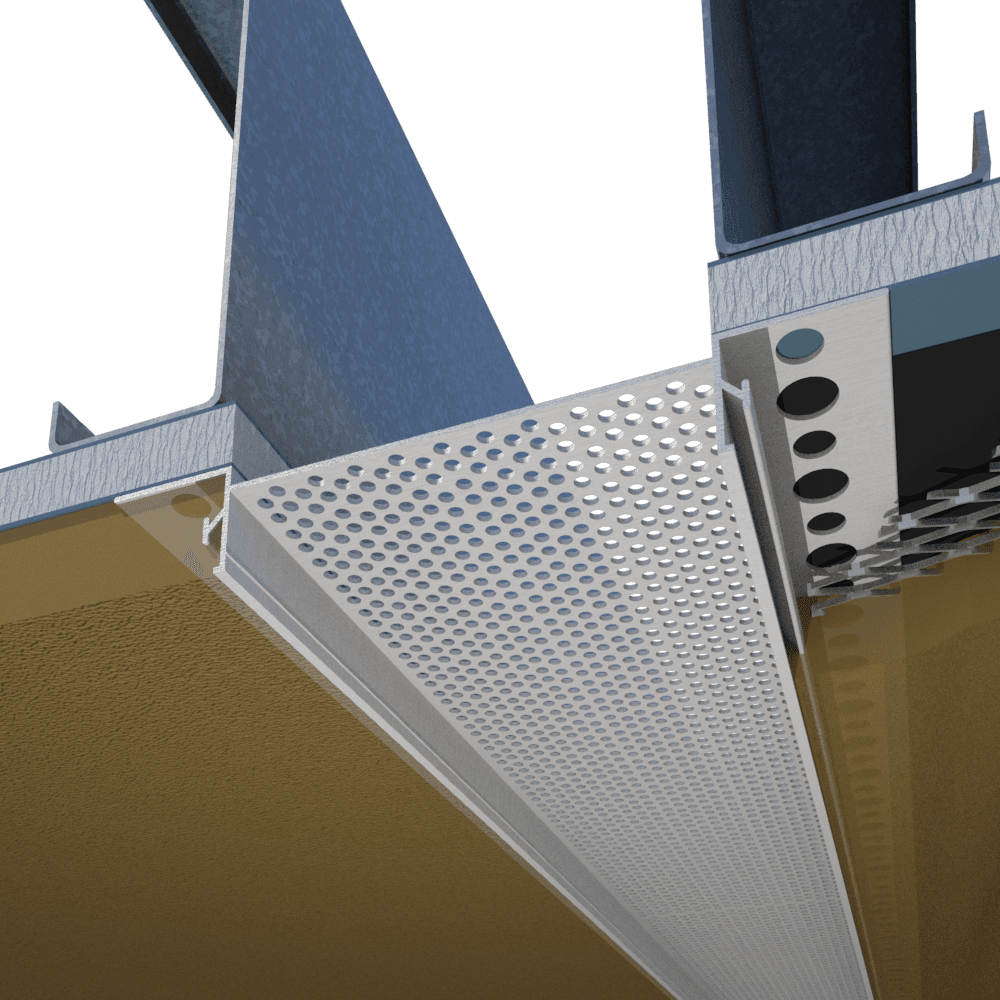

Continuous one-piece Soffit Vent with reinforcing rib to key into stucco and plaster with a perforated flange. Vent clips are provided to connect soffit vent and to assist in alignment, with perforated flange.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| CS50-200V | 1/2" | 2" | 4" | 8 sq. in | 20 |
| CS58-200V | 5/8" | 18 | |||
| CS75-200V | 3/4" | 15 | |||
| CS78-200V | 7/8" | 13 | |||
| CS100-200V | 1" | 12 | |||
| CS50-300V | 1/2" | 3" | 5" | 15 sq. in | 18 |
| CS58-300V | 5/8" | 15 | |||
| CS75-300V | 3/4" | 15 | |||
| CS78-300V | 7/8" | 13 | |||
| CS100-300V | 1" | 12 | |||
| CS50-400V | 1/2" | 4" | 6" | 16 sq. in | 20 |
| CS58-400V | 5/8" | 18 | |||
| CS75-400V | 3/4" | 14 | |||
| CS78-400V | 7/8" | 12 | |||
| CS100-400V | 1" | 10 | |||
| CS50-600V | 1/2" | 6" | 8" | 18 sq. in | 25 |
| CS58-600V | 5/8" | 25 | |||
| CS75-600V | 3/4" | 25 | |||
| CS78-600V | 7/8" | 20 | |||
| CS100-600V | 1" | 18 |
Note: Items are made to order, lead time will apply.
Contact ClarkDietrich customer service at 1-800-648-4695.
