Soffit Vents (Three-Piece)
Continuous three-piece Soffit Vent
For stucco and plaster.
Quick Actions:

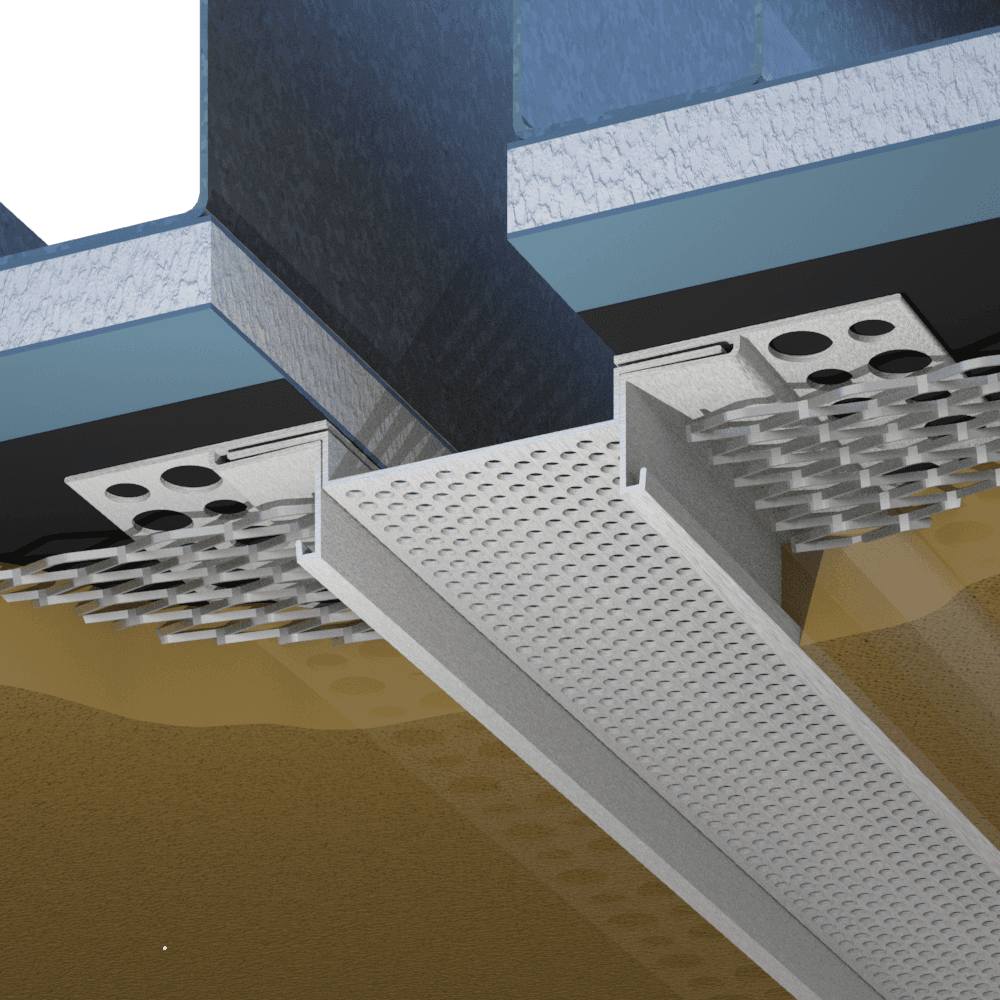

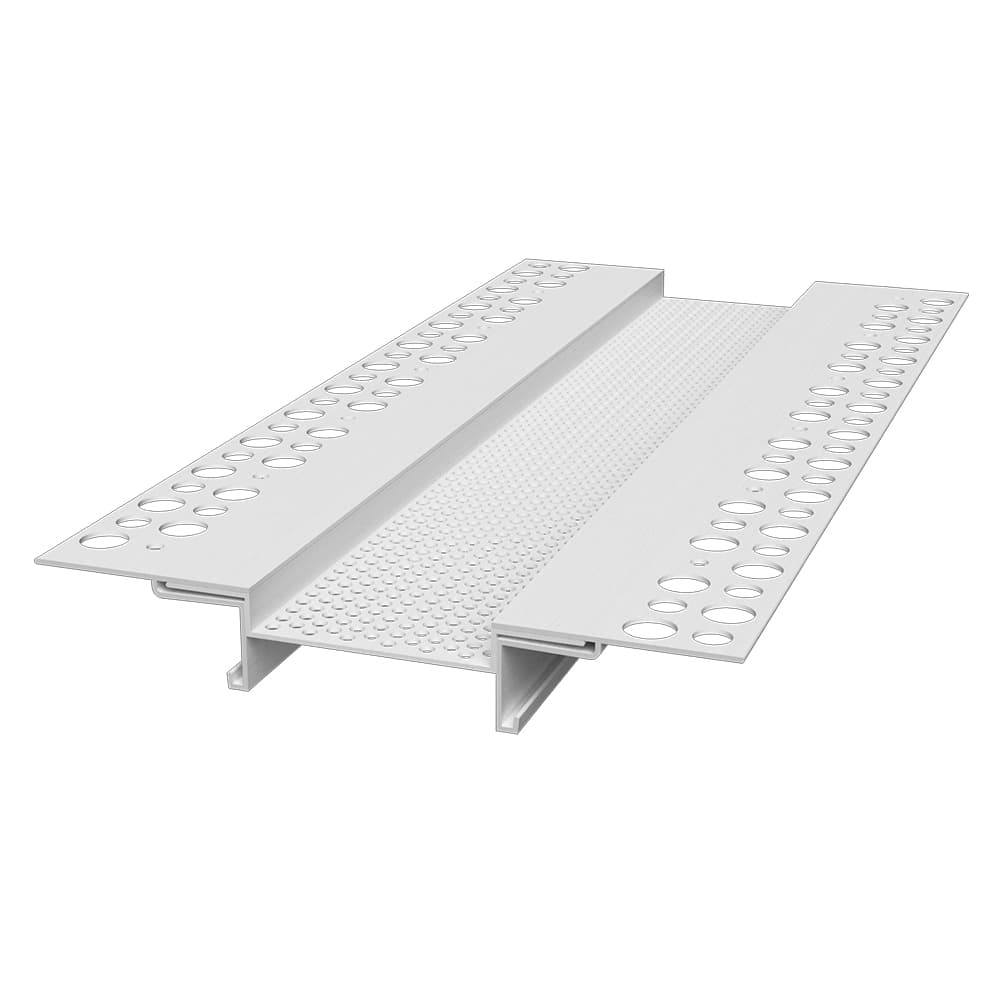

Continuous three-piece soffit vent for stucco and plaster. Vent clips are provided to connect the soffit vents and to assist in alignment. Three-piece vent with a perforated flange.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| SV38-100 | 3/8" | 1" | 5-1/8" | 4 sq. in | 15 |
| SV50-100 | 1/2" | 13 | |||
| SV58-100 | 5/8" | 13 | |||
| SV75-100 | 3/4" | 13 | |||
| SV78-100 | 7/8" | 11 | |||
| SV100-100 | 1" | 10 | |||
| SV38-150 | 3/8" | 1-1/2" | 5-3/8" | 6 sq. in | 15 |
| SV50-150 | 1/2" | 13 | |||
| SV58-150 | 5/8" | 13 | |||
| SV75-150 | 3/4" | 13 | |||
| SV78-150 | 7/8" | 11 | |||
| SV100-150 | 1" | 10 | |||
| SV38-200 | 3/8" | 2" | 6-1/8" | 8 sq. in | 15 |
| SV50-200 | 1/2" | 13 | |||
| SV58-200 | 5/8" | 13 | |||
| SV75-200 | 3/4" | 13 | |||
| SV78-200 | 7/8" | 9 | |||
| SV100-200 | 1" | 10 | |||
| SV38-300 | 3/8" | 3" | 7-1/8" | 15 sq. in | 15 |
| SV50-300 | 1/2" | 13 | |||
| SV58-300 | 5/8" | 11 | |||
| SV75-300 | 3/4" | 11 | |||
| SV78-300 | 7/8" | 10 | |||
| SV100-300 | 1" | 10 | |||
| SV38-400 | 3/8" | 4" | 8-1/8" | 16 sq. in. | 13 |
| SV50-400 | 1/2" | 10 | |||
| SV58-400 | 5/8" | 10 | |||
| SV75-400 | 3/4" | 9 | |||
| SV78-400 | 7/8" | 9 | |||
| SV100-400 | 1" | 9 | |||
| SV38-600 | 3/8" | 6" | 10-1/8" | 18 sq. in. | 15 |
| SV50-600 | 1/2" | 15 | |||
| SV58-600 | 5/8" | 15 | |||
| SV75-600 | 3/4" | 15 | |||
| SV78-600 | 7/8" | 15 | |||
| SV100-600 | 1" | 15 |
