Starter Strip / Casing Bead with Drip

Heavy-duty, base support starter strips and perimeter casing beads with a drip leg for use in Exterior Insulation Finish Systems (EIFS).

Designed with a drip leg and without weep holes  to move moisture away from openings.

Perforated flanges allow the base coat mixture to easily flow through and bond to the substrate. Includes the Keylock™ Splice for connecting multiple sections and to assist in alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation.

Product Data & Ordering Information

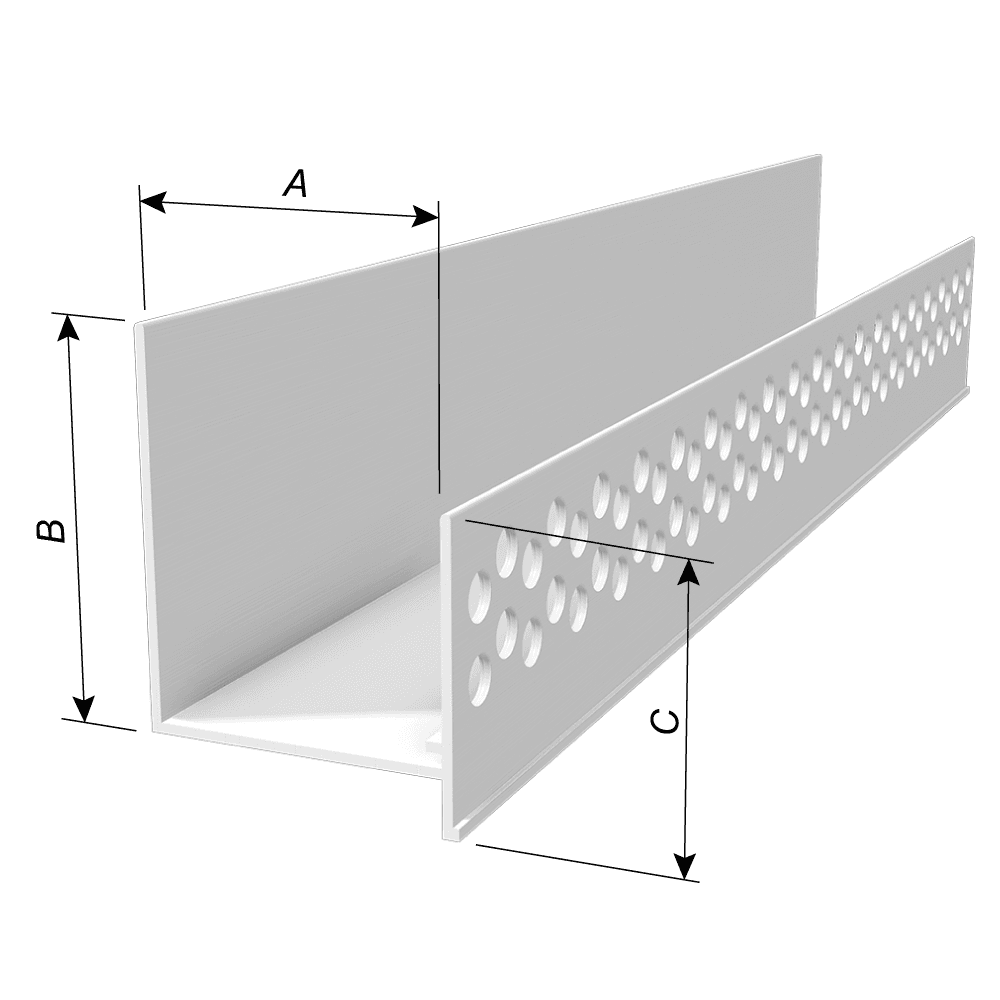

Product code	Finish thickness	Insulation thickness (A)	Back flange (B)	Perforated flange (C)	Pcs./Box
CBS75-16D	1/16"	3/4"	2"	5/8"	45
CBS100-16D	1/16"	1"	2"	5/8"	40
CBS150-16D	1/16"	1-1/2"	2"	5/8"	30
CBS200-16D	1/16"	2"	2"	5/8"	20
CBS250-16D	1/16"	2-1/2"	2"	5/8"	20
CBS300-16D	1/16"	3"	2"	5/8"	16
CBS400-16D	1/16"	4"	2"	5/8"	10

U.S. Patent Numbers 5,970,671 and 6,134,847
