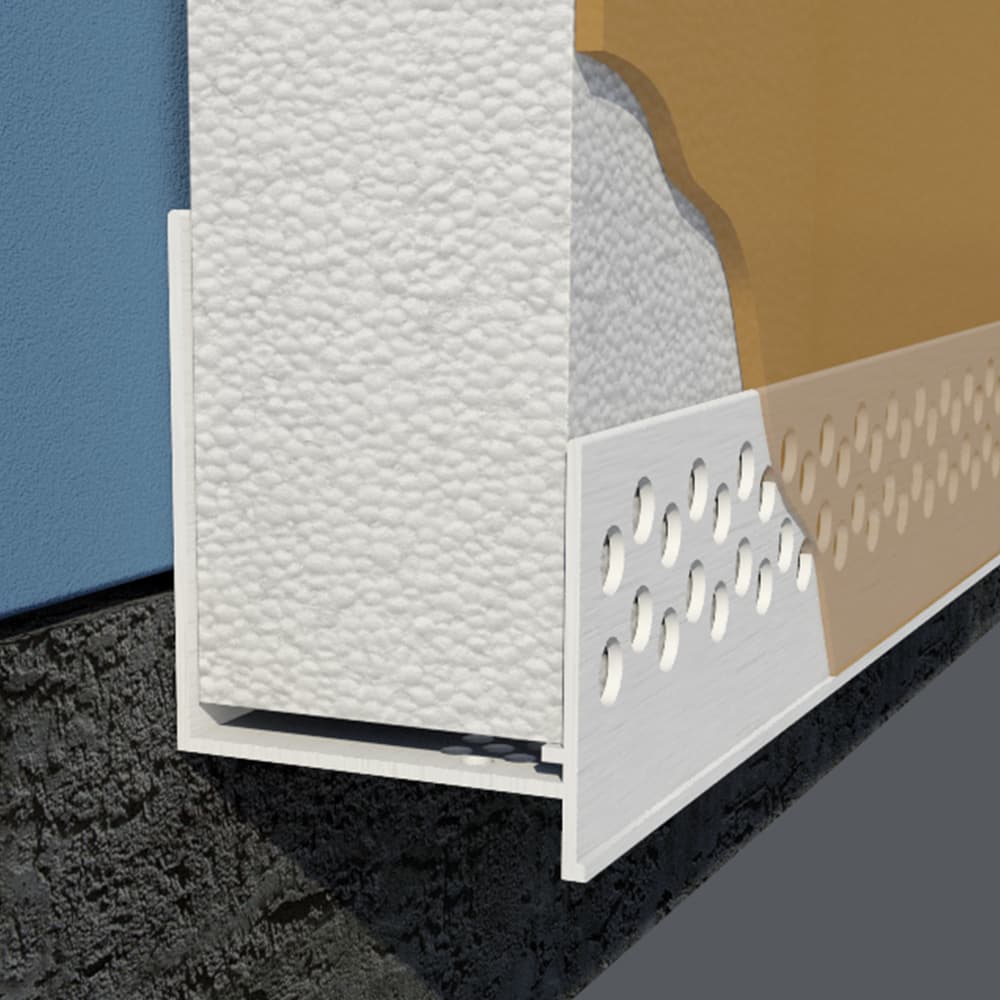

Starter Strip with Drip and Weep Holes in Front
Heavy-duty base support starter strips and perimeter casing beads with weep holes on the front side and a drip leg
Designed with weep holes on the front side and a drip leg to move moisture away from openings in Exterior Insulation Finish Systems (EIFS).
Quick Actions:
Heavy-duty, base support starter strips and perimeter casing beads with weep holes and a drip leg for use in Exterior Insulation Finish Systems (EIFS).
Designed with weep holes on the front side and a drip leg to move moisture away from openings.
Perforated flanges allow the base coat mixture to easily flow through and bond to the substrate. Includes the Keylock™ Splice for connecting multiple sections and to assist in their alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information
| Product code | Finish thickness | Insulation thickness (A) | Back flange (B) | Perforated flange (C) | Pcs./Box |
|---|---|---|---|---|---|
| CBS75-16DWF | 1/16" | 3/4" | 2" | 5/8" | 45 |
| CBS100-16DWF | 1/16" | 1" | 2" | 5/8" | 40 |
| CBS150-16DWF | 1/16" | 1-1/2" | 2" | 5/8" | 30 |
| CBS200-16DWF | 1/16" | 2" | 2" | 5/8" | 20 |
| CBS250-16DWF | 1/16" | 2-1/2" | 2" | 5/8" | 20 |
| CBS300-16DWF | 1/16" | 3" | 2" | 5/8" | 16 |
| CBS400-16DWF | 1/16" | 4" | 2" | 5/8" | 10 |
U.S. Patent Numbers 5,970,671 and 6,134,847
Notes: If weep holes are required in the back, change the product code suffix to DWB, example CBS150-16DWB. If weep holes are required in front and the back, change the product code suffix to DWW, wxample CBS200-16DWW
