Straps (CDMS Series)
STRAPS

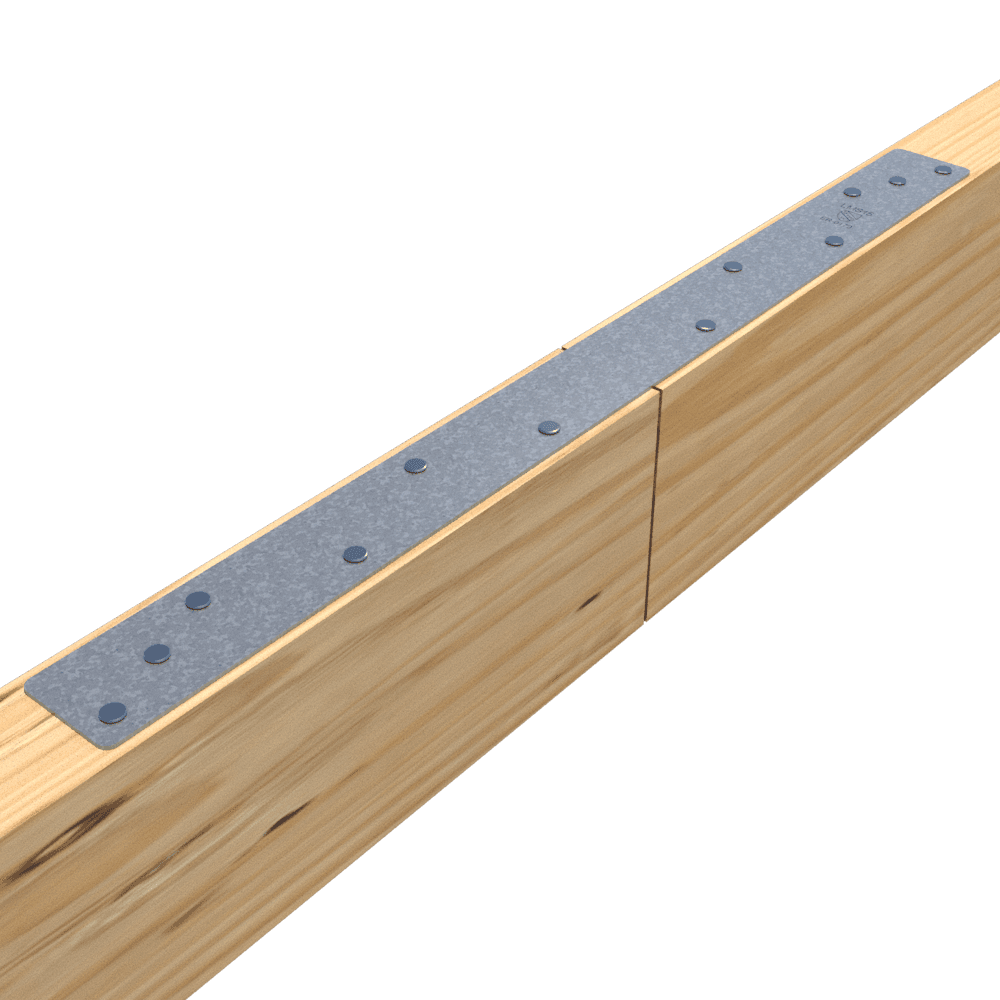

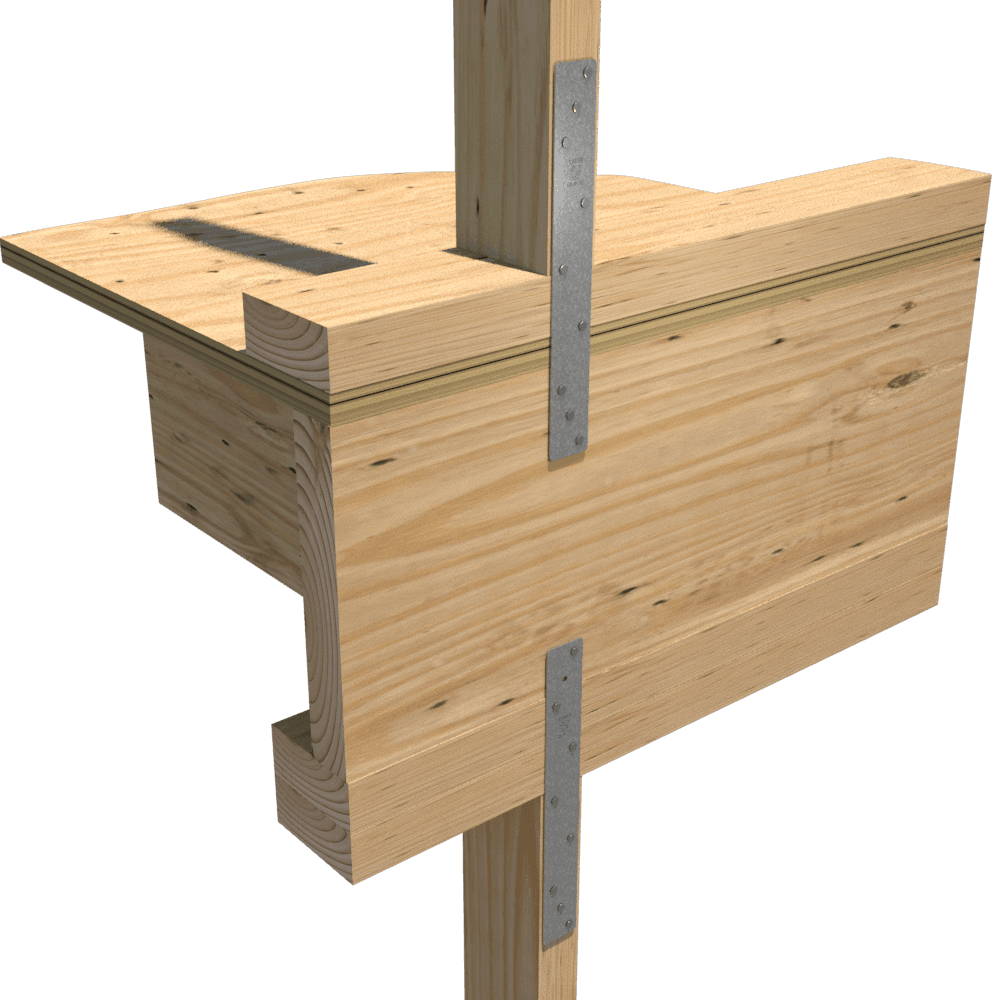

Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.
Quick Actions:
Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.

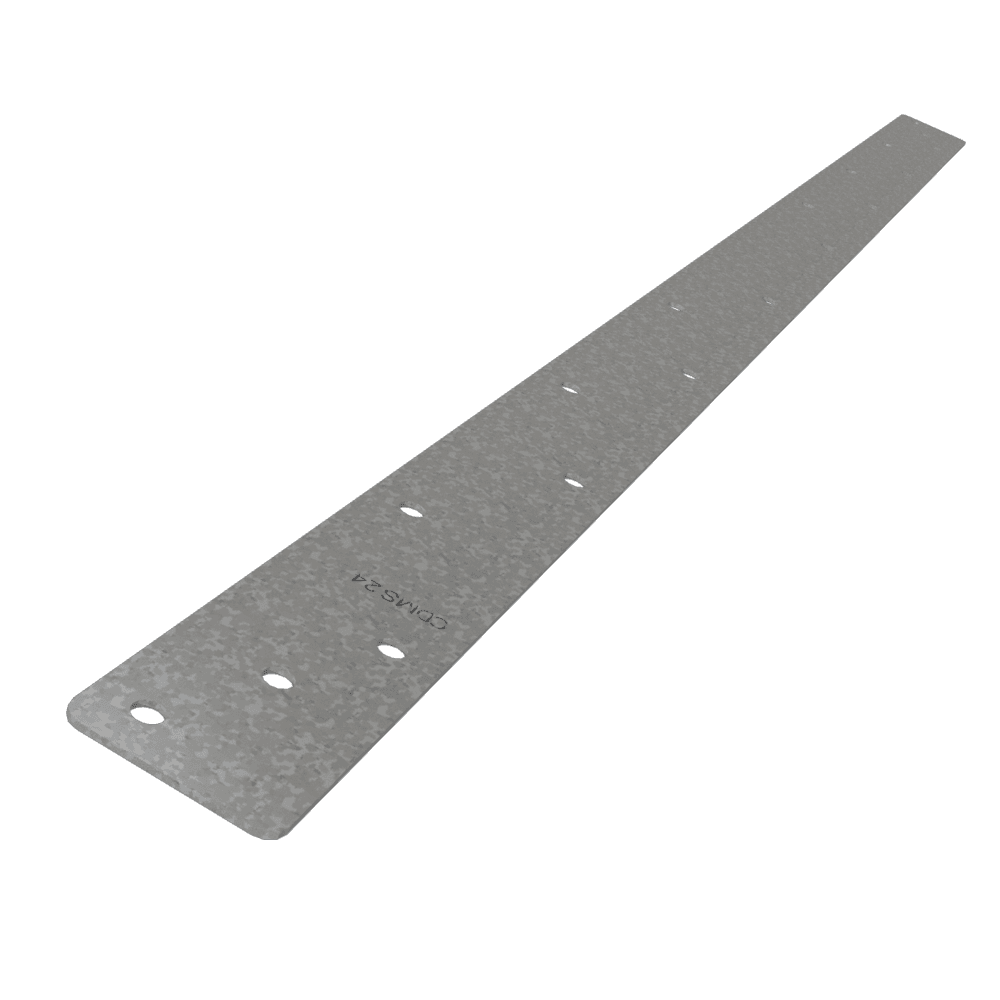

CDMS Straps are 1-1/4" wide and available in lengths from 21-5/8" to 39-5/8". Three holes are located at 3/4" on center, in a diagonal pattern, at each end of the strap. Remaining holes are punched at 1-1/2" on center, in a diagonal pattern. At mid length of each strap is a 3" long section with no holes.
Material: 16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available except on CDMS27, CDMS33 & CDMS39)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
| Strap Dimensions (in) | ||
|---|---|---|
| Product Code | W | L |
| CDMS21 | 1-1/4 | 21-5/8 |
| CDMS24 | 1-1/4 | 24-5/8 |
| CDMS27 | 1-1/4 | 27-5/8 |
| CDMS30 | 1-1/4 | 30-5/8 |
| CDMS33 | 1-1/4 | 33-5/8 |
| CDMS36 | 1-1/4 | 36-5/8 |
| CDMS39 | 1-1/4 | 39-5/8 |
