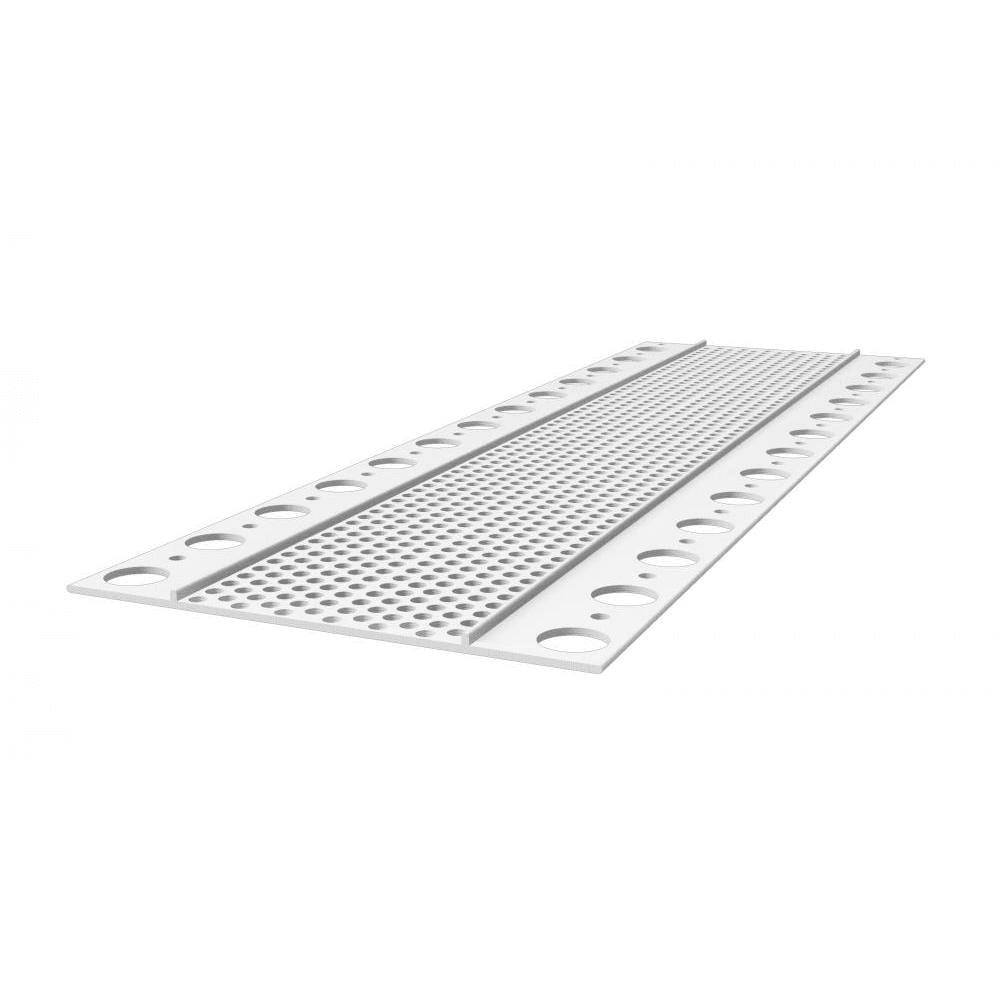

Surface Mount Soffit Vent
One-piece soffit board designed for venting soffit areas over exterior board in EIFS and DEFS applications
Available with 2", 3", 4" wide vents, each with a 1/8” ground. Vent clips are provided to connect the soffit vent and to assist in the alignment of the soffit vents. Always use a rigid backing or blocking material behind surface mounted reveal.
Quick Actions:

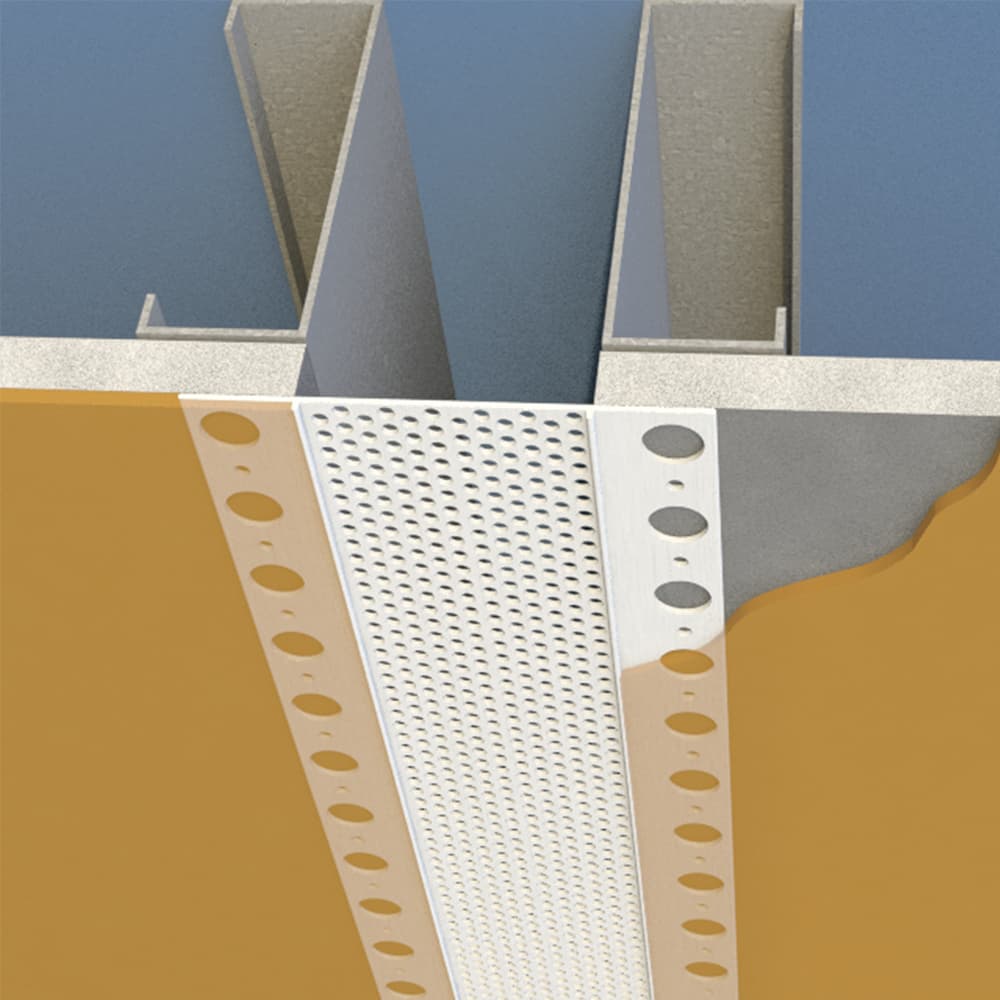

ClarkDietrich one-piece soffit vents provide an economical means for venting soffit areas.
Vent clips are provided for proper connection and to assist in the alignment of the soffit vents.
Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

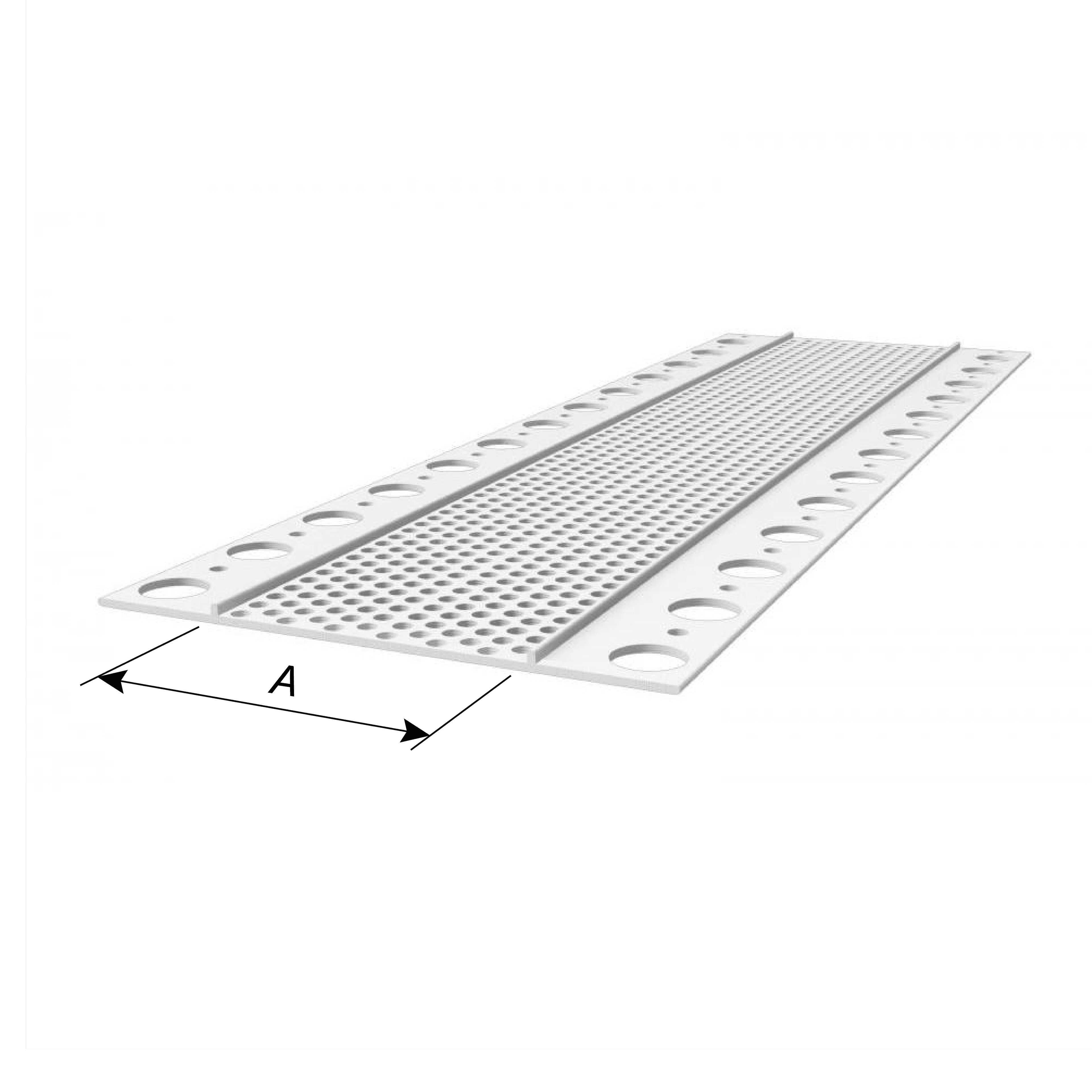

| Product code | Vent width (A) | Board thickness | Finish thickness | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| CS18-200V | 2" | All | 1/8" | 8 sq. in. | 50 |
| CS18-300V | 3" | All | 1/8" | 15 sq. in. | 40 |
| CS18-400V | 4" | All | 1/8" | 16 sq. in. | 25 |
