TradeReady® Rim Track Splice Plate (TDSP)
Ideal for splicing rim joist and is easily field skewable for off-angle rim joist connections

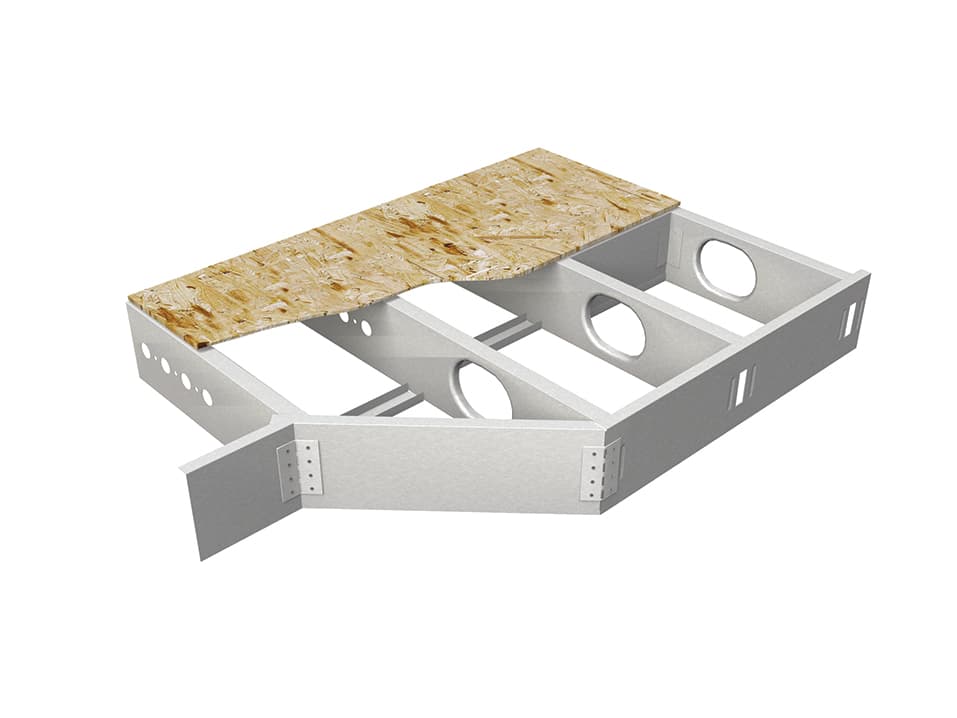

The Field Skewable TradeReady® Rim Track Splice Plate provides an easy and efficient method for splicing TradeReady® Rim. This plate is also ideal for connecting and reinforcing the rim at bay or bow window details.
Quick Actions:
The center of the plate allows for easy one-time field bending from 0 ̊ to 135 ̊.
Caution: This plate can only be bent one time.
- Ideal for bay and bow windows.
- Great for off-angle connections.
- Prepunched for easy installation.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Bucket |
|---|---|---|---|---|---|
| TDSP-54 | 16 | 54 | 0.0566 | 4 x 6 | 100 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
