Universal Header Hanger (H-Series)
used to connect box headers to jambs or beams to columns
The H-Series™ Universal Header Hanger is used to connect box headers to jambs or beams to columns and transfer large vertical loads.
Quick Actions:

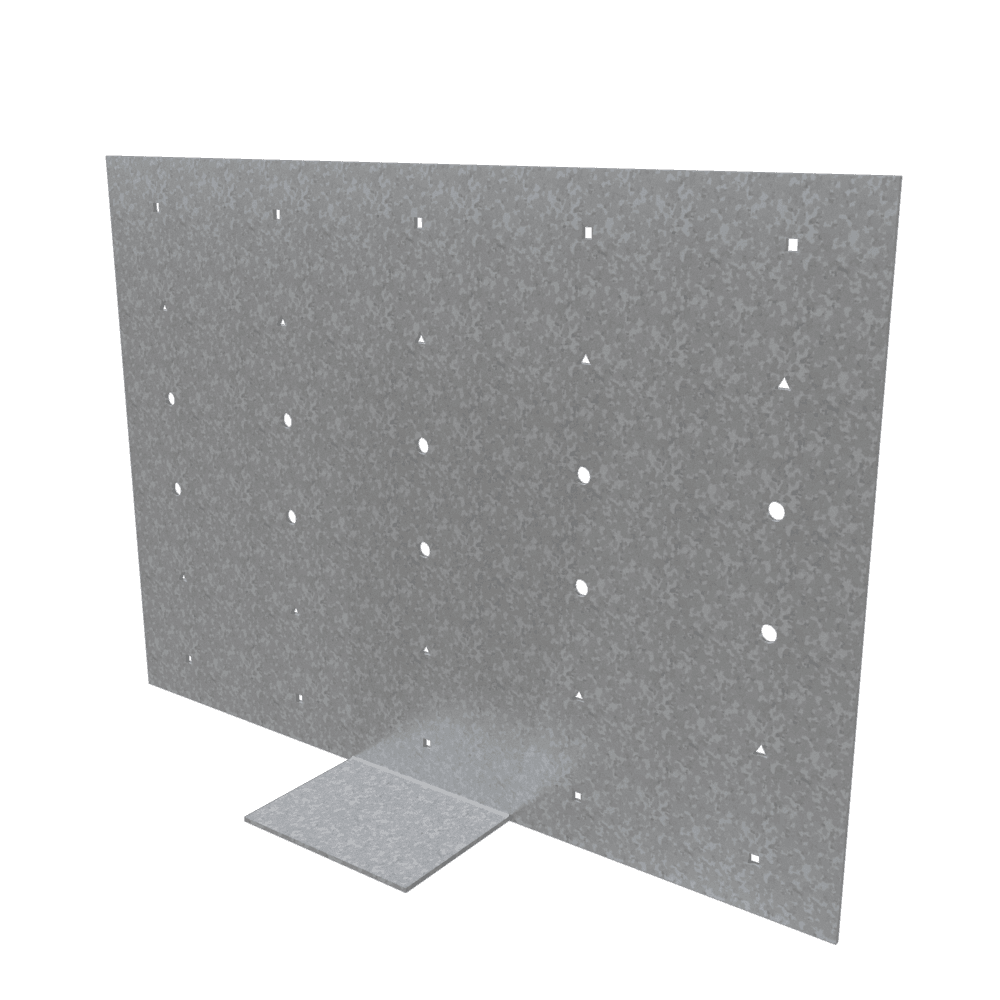

This universal hanger is designed so one part can be used for either side of the connection. The hanger also features a support tab for proper alignment and easy installation.
The H-Series™ hanger is also prepunched with a series of round, square and triangle holes to ensure proper fastener placement for specified loads.
- Universal application — no left or right handed
- Support tab for easy installation
- Multi-hole shapes for proper fastening to achieve desired loads
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information:
| Product code | Gauge | Mils | Clip Size |
|---|---|---|---|
| H436 | 18 | 43 | 6" x 8-1/2" |
| H546 | 16 | 54 | 6" x 8-1/2" |
| H686 | 14 | 68 | 6" x 8-1/2" |
Packaging: 50 Clips per Bucket
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
