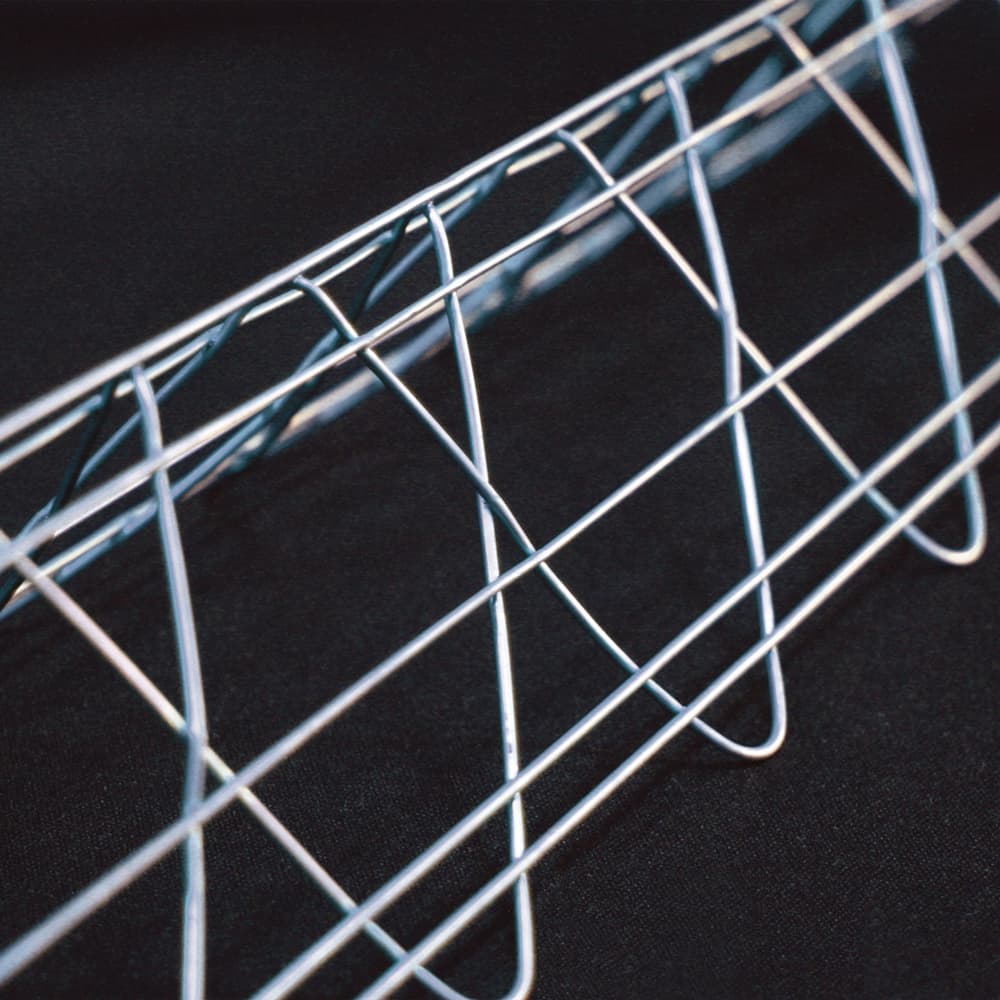

V-Truss Corner

V-Truss offers advancements over the original Structa Corner design, including greater strength, ease of installation and increased embedment.

Find out more about Structa Wire here

STRAIGHT AND TRUE CORNER REINFORCEMENT

• Structa V-Truss is engineered to provide superior reinforcement for stucco corners
• Its unique 'Truss' design ensures a 'true' straight corner every time
• It provides improved embedment
• The product allows for lots of nailing opportunities
• It’s easy to handle, with few sharp ends
• Twin Tracs allow for easy attachment and increased rigidity

STRUCTA V TRUSS IS AVAILABLE IN 3 PROFILES: 3 COAT, 1 COAT AND BULLNOSE

• V-Truss 3 Coat and 1 Coat have three nose wire – 2 1/2" legs
• They are available in 10'
• V-Truss Bullnose has four nose wires to give a smooth and round nose
• Specialty profiles are available in our original Structacorner 'loop' design
• Structacorner Arch is available in 3 coat and Bullnose (7/16" radius)
• Structacorner Short Flange is available is 3 Coat, 1 Coat or Bullnose
• Short Flanges are 2-1/2" by 1-1/2" leg lengths
• V-Truss 3 Coat Straight is also available in stainless steel – 304 Grade

Product data & ordering information

• 40 pieces per carton
• 50 cartons per pallet
• All nose wires should be covered with 1/8″ stucco
• Products should be stored per ASTM C1063-97
